HJ61RG-PXQ (1985)

Toyota Land Cruiser

Production Oct 1985 - Aug 1987
Engine 12HT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8510- )12HT

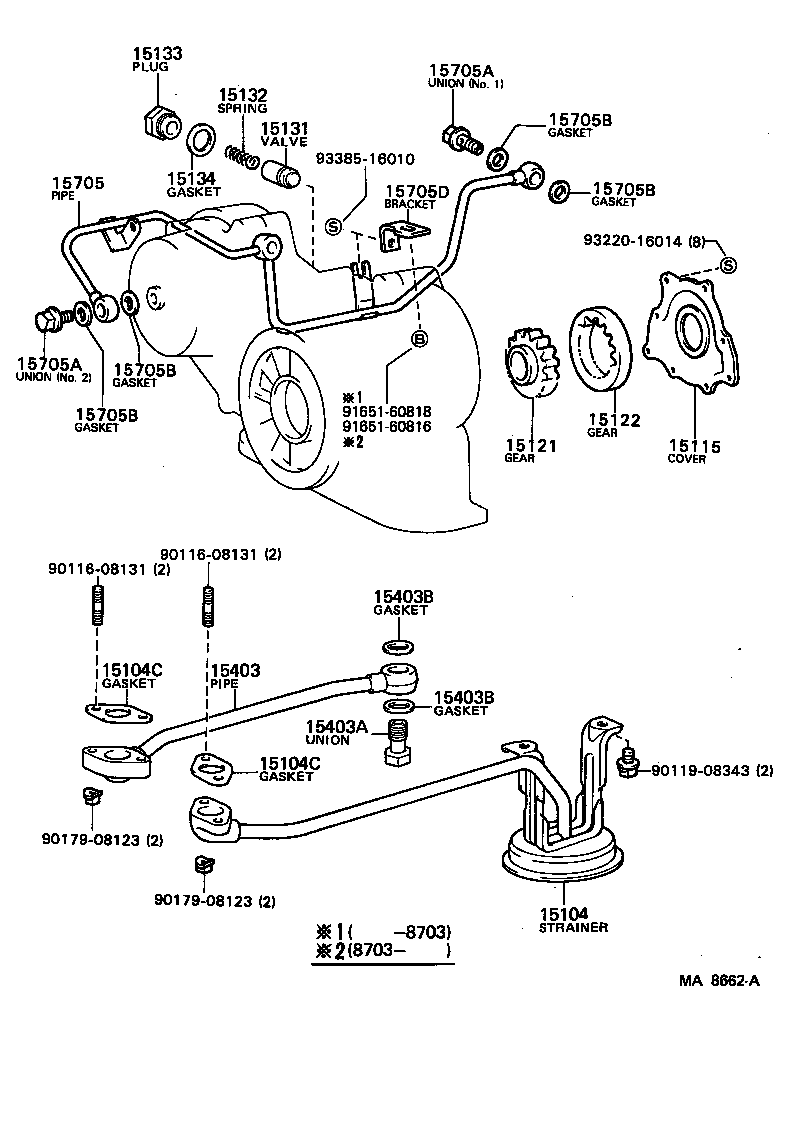

Click highlighted areas on diagram

diagram 15104 15104C 15104C 15115 15121 15122 15131 15132 15133 15134 15403 15403A 15403B 15403B 15705 15705A 15705A 15705B 15705B 15705B 15705B 15705D 9011608131 9011608131 9011908343 9017908123 9017908123 9165160816 9165160818 9322016014 9338516010
Part # Description Qty Price
15104 - STRAINER SUB-ASSY, OIL
15104-68020

12HT..HJ61

 1
15104C - GASKET(FOR OIL STRAINER)
15149-68010

12HT,2H..HJ6#

 2
15104C - GASKET(FOR OIL STRAINER)
15149-68010

12HT,2H..HJ6#

 2
15115 - COVER, OIL PUMP
15115-68020

12HT,2H..HJ6#

 1
15121 - GEAR, OIL PUMP DRIVE
15121-68020

12HT,2H..HJ6#

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-68020

12HT,2H..HJ6#

 1
15131 - VALVE, OIL PUMP RELIEF
15131-22010

12HT,2H..HJ6#

 1
15403 - PIPE SUB-ASSY, OIL PUMP OUTLET
15403-68010

12HT,2H..HJ6#

 1
15403A - UNION(FOR OIL PUMP OUTLET PIPE)
90401-18007

12HT,2H..HJ6#

 1
15403B - GASKET(FOR OIL PUMP OUTLET PIPE)
90430-18012

12HT,2H..HJ6#

 2
15403B - GASKET(FOR OIL PUMP OUTLET PIPE)
90430-18012

12HT,2H..HJ6#

 2
15705 - PIPE SUB-ASSY, OIL, INJECTION PUMP INLET
15707-68030

12HT..HJ61

 1
15705A - UNION(FOR INJECTION PUMP INLET PIPE)
90401-10006

12HT..HJ61

NO.1

 1
90401-10024

12HT..HJ61

NO.2

 1
15705A - UNION(FOR INJECTION PUMP INLET PIPE)
90401-10006

12HT..HJ61

NO.1

 1
90401-10024

12HT..HJ61

NO.2

 1
15705B - GASKET(FOR INJECTION PUMP INLET PIPE)
90430-10035

12HT,2H..HJ6#

 4
15705B - GASKET(FOR INJECTION PUMP INLET PIPE)
90430-10035

12HT,2H..HJ6#

 4
15705B - GASKET(FOR INJECTION PUMP INLET PIPE)
90430-10035

12HT,2H..HJ6#

 4
15705B - GASKET(FOR INJECTION PUMP INLET PIPE)
90430-10035

12HT,2H..HJ6#

 4
15705D - BRACKET(FOR INJECTION PUMP INLET PIPE)
15783-68010

12HT,2H..HJ6#

 1
Common parts
90116-08131
90119-08343
90179-08123
91651-60816
91651-60818
93220-16014
93385-16010
