HJ61RG-MZXQ (1985)
Toyota Land Cruiser

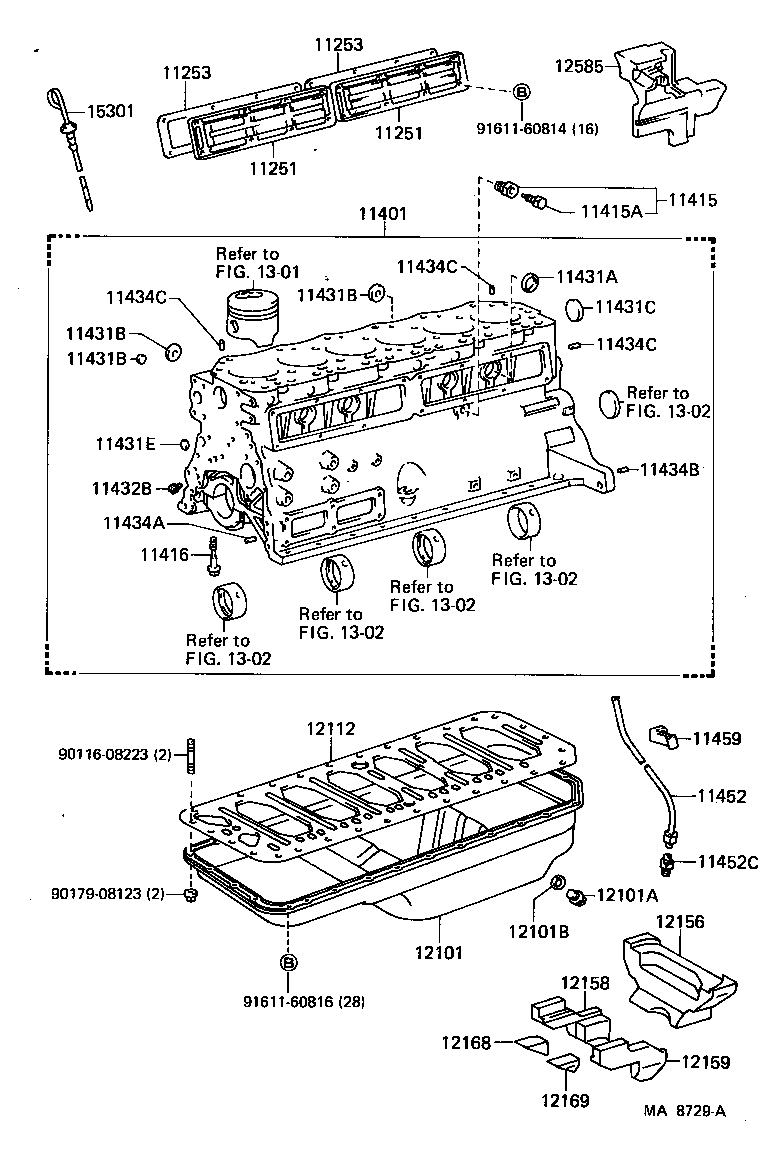

(8510- )2H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11251 - COVER, VALVE PUSH ROD | ||||
| 11251-68010 |
12HT,2H..HJ6# |
2 | ||
| 11251 - COVER, VALVE PUSH ROD | ||||
| 11251-68010 |
12HT,2H..HJ6# |
2 | ||
| 11253 - GASKET, VALVE PUSH ROD COVER | ||||
| 11253-68010 |
12HT,2H..HJ6# |
2 | ||
| 11253 - GASKET, VALVE PUSH ROD COVER | ||||
| 11253-68010 |
12HT,2H..HJ6# |
2 | ||
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-69255 |
12HT..HJ61 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 96431-53850 |
12HT..HJ61 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90105-14039 |
12HT,2H..HJ6# *14-1.5PX81-25 |
14 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
12HT,2H..HJ6# OD=35 |
4 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-42000 |
12HT,2H..HJ6# OD=20 |
1 | ||
| 90331-35003 |
12HT,2H..HJ6# OD=35,ID=14 |
2 | ||
| 90331-35002 |
12HT,2H..HJ6# OD=35,ID=12 |
2 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-42000 |
12HT,2H..HJ6# OD=20 |
1 | ||
| 90331-35003 |
12HT,2H..HJ6# OD=35,ID=14 |
2 | ||
| 90331-35002 |
12HT,2H..HJ6# OD=35,ID=12 |
2 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-42000 |
12HT,2H..HJ6# OD=20 |
1 | ||
| 90331-35003 |
12HT,2H..HJ6# OD=35,ID=14 |
2 | ||
| 90331-35002 |
12HT,2H..HJ6# OD=35,ID=12 |
2 | ||
| 11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK) | ||||
| 96411-11800 |
12HT,2H..HJ6# OD=18 |
2 | ||
| 96411-41800 |
12HT..HJ61;2H..HJ60..MTM;2H..HJ60..4FC..EUR OD=18 |
2 | ||
| 11432B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90345-51003 |
12HT,2H..HJ6# |
1 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-08054 |
12HT,2H..HJ6# L=23,OD=8,L=23,OD=8 |
1 | ||
| 90250-08120 |
12HT,2H..HJ6# L=18,OD=8,L=18,OD=8 |
4 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-08054 |
12HT,2H..HJ6# L=23,OD=8,L=23,OD=8 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08074 |
12HT,2H..HJ6# L=15,OD=8,RR,L=15,OD=8 |
1 | ||
| 90250-06037 |
12HT,2H..HJ6# L=12,OD=6,FR,L=12,OD=6 |
1 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08074 |
12HT,2H..HJ6# L=15,OD=8,RR,L=15,OD=8 |
1 | ||
| 90250-06037 |
12HT,2H..HJ6# L=12,OD=6,FR,L=12,OD=6 |
1 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08074 |
12HT,2H..HJ6# L=15,OD=8,RR,L=15,OD=8 |
1 | ||
| 90250-06037 |
12HT,2H..HJ6# L=12,OD=6,FR,L=12,OD=6 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-68030 |
12HT..HJ61 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-18089 |
12HT..HJ61;2H..HJ60..MTM;2H..HJ60..4FC..EUR OD=18 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-18244 |
12HT..HJ61;2H..HJ60..SRF;2H..HJ60..5F..HRF ID=18 |
1 | ||
| 12112 - PAN, OIL NO.2 | ||||
| 11429-68010 |
12HT..HJ61 |
1 | ||
| Common parts | ||||
| 90116-08223 | ||||
| 90179-08123 | ||||
| 91611-60814 | ||||
| 91611-60816 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1302 | ||||

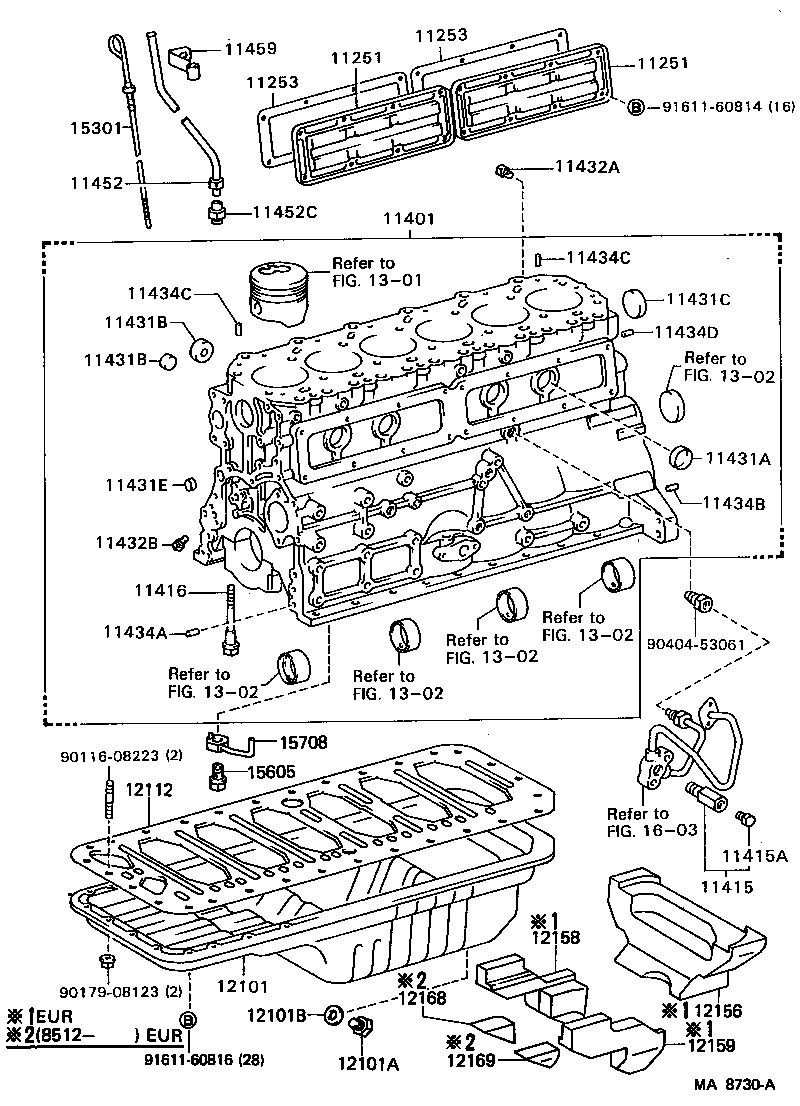

(8510- )12HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11251 - COVER, VALVE PUSH ROD | ||||
| 11251-68010 |
12HT,2H..HJ6# |
2 | ||
| 11251 - COVER, VALVE PUSH ROD | ||||
| 11251-68010 |
12HT,2H..HJ6# |
2 | ||
| 11253 - GASKET, VALVE PUSH ROD COVER | ||||
| 11253-68010 |
12HT,2H..HJ6# |
2 | ||
| 11253 - GASKET, VALVE PUSH ROD COVER | ||||
| 11253-68010 |
12HT,2H..HJ6# |
2 | ||
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-69255 |
12HT..HJ61 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 96431-53850 |
12HT..HJ61 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90105-14039 |
12HT,2H..HJ6# *14-1.5PX81-25 |
14 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
12HT,2H..HJ6# OD=35 |
4 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-42000 |
12HT,2H..HJ6# OD=20 |
1 | ||
| 90331-35003 |
12HT,2H..HJ6# OD=35,ID=14 |
2 | ||
| 90331-35002 |
12HT,2H..HJ6# OD=35,ID=12 |
2 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-42000 |
12HT,2H..HJ6# OD=20 |
1 | ||
| 90331-35003 |
12HT,2H..HJ6# OD=35,ID=14 |
2 | ||
| 90331-35002 |
12HT,2H..HJ6# OD=35,ID=12 |
2 | ||
| 11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK) | ||||
| 96411-11800 |
12HT,2H..HJ6# OD=18 |
2 | ||
| 96411-41800 |
12HT..HJ61;2H..HJ60..MTM;2H..HJ60..4FC..EUR OD=18 |
2 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-51003 |
12HT..HJ61 |
1 | ||
| 11432B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90345-51003 |
12HT,2H..HJ6# |
1 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-08054 |
12HT,2H..HJ6# L=23,OD=8,L=23,OD=8 |
1 | ||
| 90250-08120 |
12HT,2H..HJ6# L=18,OD=8,L=18,OD=8 |
4 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-08054 |
12HT,2H..HJ6# L=23,OD=8,L=23,OD=8 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08074 |
12HT,2H..HJ6# L=15,OD=8,RR,L=15,OD=8 |
1 | ||
| 90250-06037 |
12HT,2H..HJ6# L=12,OD=6,FR,L=12,OD=6 |
1 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08074 |
12HT,2H..HJ6# L=15,OD=8,RR,L=15,OD=8 |
1 | ||
| 90250-06037 |
12HT,2H..HJ6# L=12,OD=6,FR,L=12,OD=6 |
1 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-08054 |
12HT,2H..HJ6# L=23,OD=8,L=23,OD=8 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-68030 |
12HT..HJ61 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-18089 |
12HT..HJ61;2H..HJ60..MTM;2H..HJ60..4FC..EUR OD=18 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-18244 |
12HT..HJ61;2H..HJ60..SRF;2H..HJ60..5F..HRF ID=18 |
1 | ||
| 12112 - PAN, OIL NO.2 | ||||
| 11429-68010 |
12HT..HJ61 |
1 | ||
| 15605 - VALVE SUB-ASSY, OIL CHECK | ||||
| 15605-54010 |
12HT..HJ61 |
6 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-68010 |
12HT..HJ61 |
6 | ||
| Common parts | ||||
| 90116-08223 | ||||
| 90179-08123 | ||||
| 90404-53061 | ||||
| 91611-60814 | ||||
| 91611-60816 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1302 | ||||
| 1603 | ||||
