HJ61RG-MXQ (1985)

Toyota Land Cruiser

Production Oct 1985 - Aug 1987
Engine 12HT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8510- )HJ6#..RHD

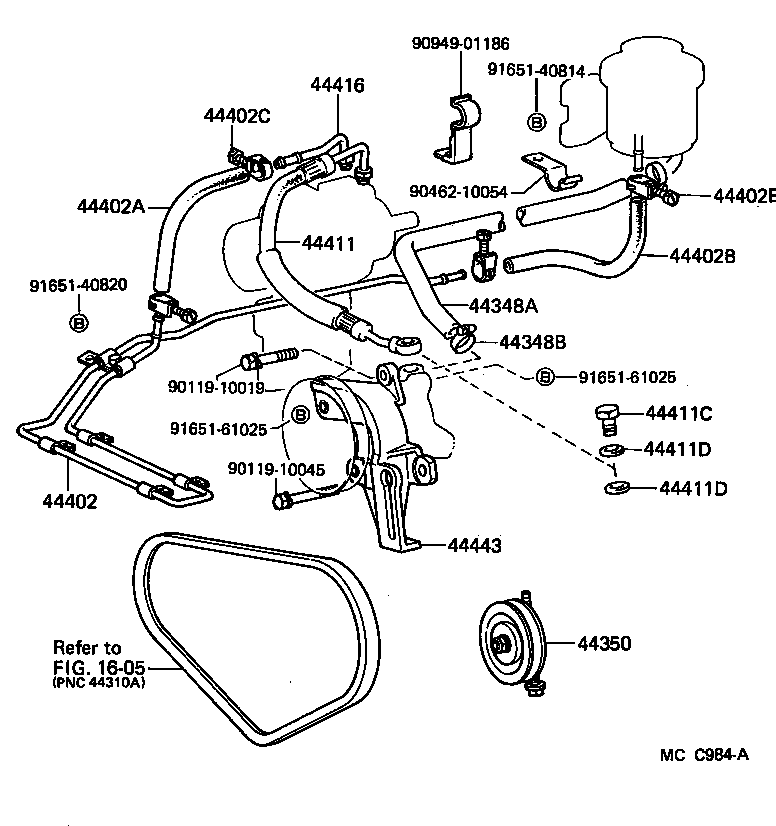

Click highlighted areas on diagram

diagram 1605 44348A 44348B 44350 44402 44402A 44402B 44402C 44402E 44411 44411C 44411D 44411D 44416 44443 9011910019 9011910045 9046210054 9094901186 9165140814 9165140820 9165161025 9165161025
Part # Description Qty Price
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001

HJ6#

 2
44350 - PULLEY ASSY, POWER STEERING IDLE
16630-47020

HJ6#

 1
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44420-60080

HJ6#..RHD

 1
44402B - HOSE, POWER STEERING OIL COOLER OUTLET
90445-18089

HJ6#..RHD

 1
44411 - HOSE, PRESSURE FEED
44411-60310

HJ6#..RHD

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16008

HJ61..5F

 1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16242

HJ6#

 1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16242

HJ6#

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-60061

BJ60,FJ62,HJ6#

 1
44443 - BRACKET, PUMP
44443-60071

HJ6#

 1
Common parts
90119-10019
90119-10045
90462-10054
90949-01186
91651-40814
91651-40820
91651-61025
Linked diagrams
1605
