HJ61LV-MCXW (1985)

Toyota Land Cruiser

Production Oct 1985 - Aug 1987
Engine 12HT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8510- )12HT

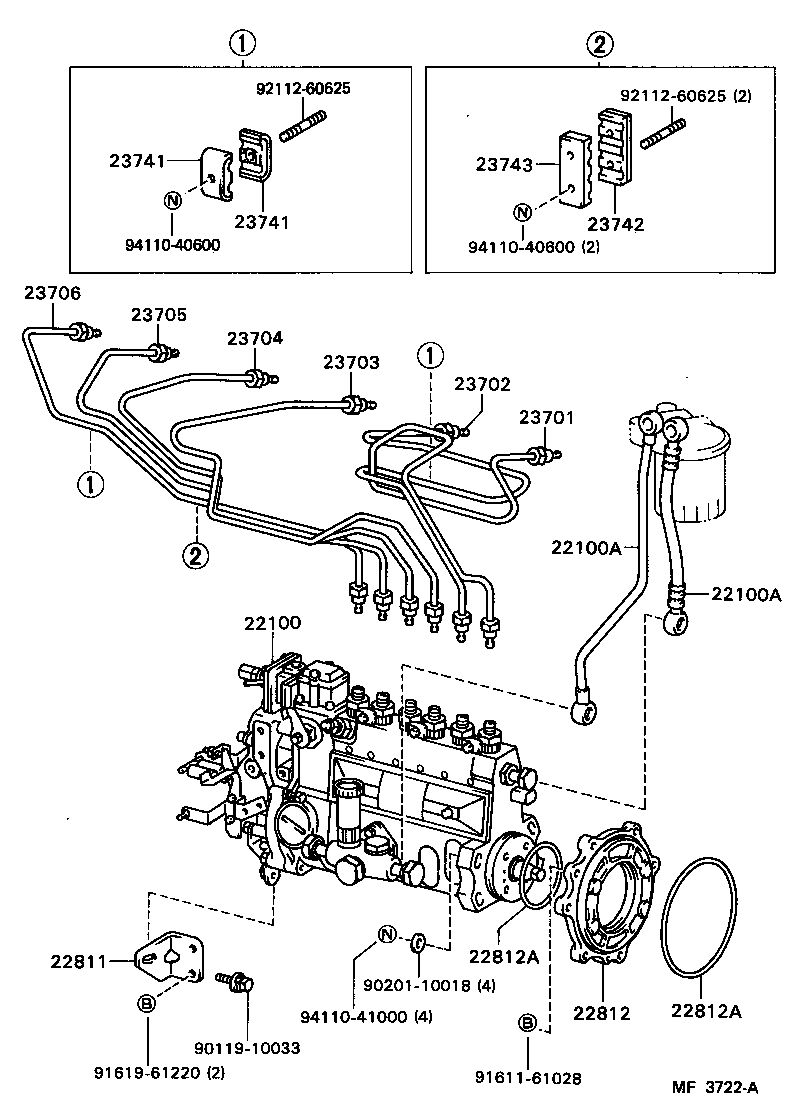

Click highlighted areas on diagram

diagram 22100 22100A 22100A 22811 22812 22812A 22812A 23701 23702 23703 23704 23705 23706 23741 23741 23742 23743 9011910033 9020110018 9161161028 9161961220 9211260625 9211260625 9411040600 9411040600 9411041000
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-68150

12HT..HJ61..EUR

 1
22100-68160

12HT..HJ61..EUR

COLD SPEC

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23801-68030

12HT..HJ61

PIPE L=336,PIPE

 1
23906-68010

12HT..HJ61

HOSE L=195,HOSE

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23801-68030

12HT..HJ61

PIPE L=336,PIPE

 1
23906-68010

12HT..HJ61

HOSE L=195,HOSE

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-68020

12HT..HJ61

 1
22812 - RETAINER, INJECTION PUMP
22812-68020

12HT..HJ61

 1
22812A - RING, O
90301-74001

12HT..HJ61

PUMP SIDE

 1
90301-99013

12HT,2H..HJ6#

ID=129.4 CASE SIDE

 1
22812A - RING, O
90301-74001

12HT..HJ61

PUMP SIDE

 1
90301-99013

12HT,2H..HJ6#

ID=129.4 CASE SIDE

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-68020

12HT..HJ61

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-68020

12HT..HJ61

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-68020

12HT..HJ61

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-68020

12HT..HJ61

 1
23705 - PIPE SUB-ASSY, INJECTION, NO.5
23705-68020

12HT..HJ61

 1
23706 - PIPE SUB-ASSY, INJECTION, NO.6
23706-68020

12HT..HJ61

 1
23742 - CLAMP, INJECTION PIPE, NO.2
23741-64020

12HT..HJ61

 1
23743 - CLAMP, INJECTION PIPE, NO.3
23741-64020

12HT..HJ61

 1
Common parts
90119-10033
90201-10018
91611-61028
91619-61220
92112-60625
94110-40600
94110-41000
