HJ61LG-MXW (1985)

Toyota Land Cruiser

Production Oct 1985 - Aug 1987
Engine 12HT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8510- )12HT

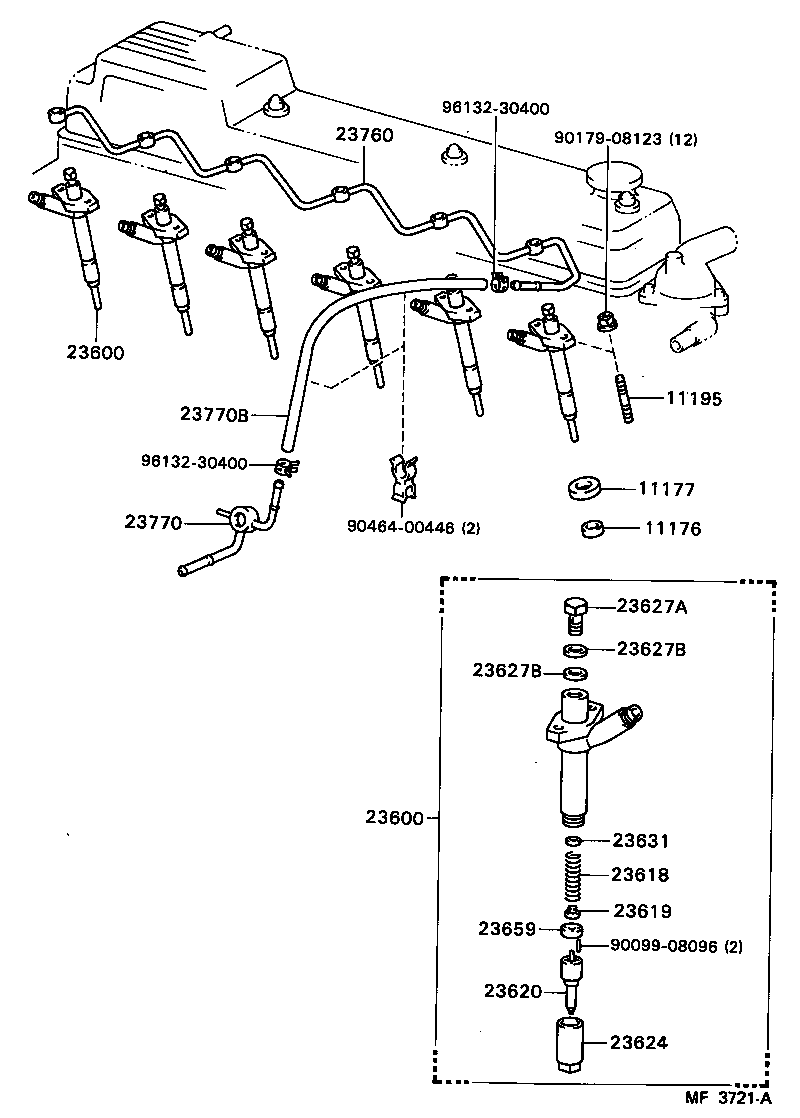

Click highlighted areas on diagram

diagram 11176 11177 11195 23600 23600 23618 23619 23620 23624 23627A 23627B 23627B 23631 23659 23760 23770 23770B 9009908096 9017908123 9046400446 9613230400 9613230400
Part # Description Qty Price
11176 - SEAT, INJECTION NOZZLE
11176-56020

12HT..HJ61

 6
11177 - GASKET, INJECTION NOZZLE SEAT
90430-18014

12HT..HJ61

 6
11195 - BOLT, NOZZLE SET, STUD
90116-08234

12HT..HJ61

 12
23600 - HOLDER & NOZZLE SET, NOZZLE
23600-68030

12HT..HJ61

 6
23600 - HOLDER & NOZZLE SET, NOZZLE
23600-68030

12HT..HJ61

 6
23618 - SPRING, NOZZLE HOLDER PRESSURE
23618-58010

12HT..HJ61

 6
23619 - PIN, NOZZLE HOLDER PRESSURE
23619-58010

12HT..HJ61

 6
23620 - NOZZLE ASSY
23620-68030

12HT..HJ61

 6
23624 - NUT, NOZZLE RETAINING
23624-58010

12HT..HJ61

 6
23627A - SCREW, FOLLOW(FOR NOZZLE)
23625-58230

12HT..HJ61

 6
23627B - WASHER, COPPER PLATE(FOR NOZZLE)
90201-08106

12HT..HJ61

 12
23627B - WASHER, COPPER PLATE(FOR NOZZLE)
90201-08106

12HT..HJ61

 12
23631 - WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)
23631-58012

12HT..HJ61

T=1.100

 6
23631-58015

12HT..HJ61

T=1.250

 6
23631-58014

12HT..HJ61

T=1.200

 6
23631-58016

12HT..HJ61

T=1.300

 6
23631-58011

12HT..HJ61

T=1.050

 6
23631-58013

12HT..HJ61

T=1.150

 6
23632-58014

12HT..HJ61

T=1.700

 6
23631-58017

12HT..HJ61

T=1.350

 6
23631-58010

12HT..HJ61

T=1.000

 6
23632-58012

12HT..HJ61

T=1.600

 6
23632-58013

12HT..HJ61

T=1.650

 6
23632-58011

12HT..HJ61

T=1.550

 6
23632-58010

12HT..HJ61

T=1.500

 6
23631-58019

12HT..HJ61

T=1.450

 6
23633-58013

12HT..HJ61

T=0.700

 6
23633-58010

12HT..HJ61

T=1.425

 6
23632-58019

12HT..HJ61

T=1.375

 6
23633-58018

12HT..HJ61

T=0.975

 6
23631-58018

12HT..HJ61

T=1.400

 6
23633-58014

12HT..HJ61

T=0.750

 6
23633-58016

12HT..HJ61

T=0.850

 6
23632-58015

12HT..HJ61

T=1.750

 6
23632-58018

12HT..HJ61

T=1.325

 6
23633-58011

12HT..HJ61

T=1.475

 6
23633-58019

12HT..HJ61

T=1.025

 6
23633-58015

12HT..HJ61

T=0.800

 6
23632-58016

12HT..HJ61

T=1.800

 6
23632-58017

12HT..HJ61

T=1.275

 6
23634-58013

12HT..HJ61

T=1.225

 6
23633-58017

12HT..HJ61

T=0.900

 6
23634-58012

12HT..HJ61

T=1.175

 6
23633-58012

12HT..HJ61

T=0.950

 6
23634-58011

12HT..HJ61

T=1.125

 6
23634-58010

12HT..HJ61

T=1.075

 6
23659 - PACKING, TIP(FOR NOZZLE)
23659-58010

12HT..HJ61

 6
23760 - PIPE ASSY, NOZZLE LEAKAGE
23760-68020

12HT..HJ61

 1
23770 - PIPE ASSY, NOZZLE LEAKAGE, NO.2
23770-68030

12HT..HJ61

 1
23770B - HOSE, FUEL
95332-04030

12HT..HJ61

*H,L=300

 1
95333-04030

12HT..HJ61

L=300

 1
Common parts
90099-08096
90179-08123
90464-00446
96132-30400
