HJ61LG-MNXW (1987)
Toyota Land Cruiser

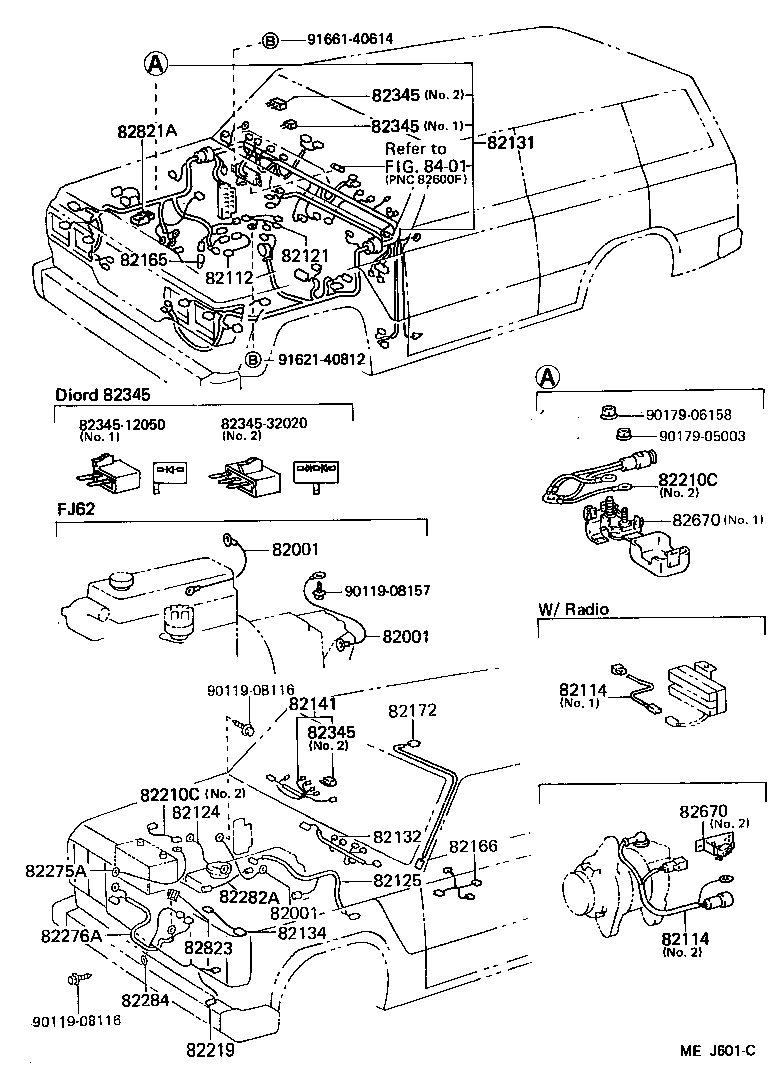

ILLUST NO. 1 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07003 |
FJ62,HJ6# FRAME-ENGINE |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07003 |
FJ62,HJ6# FRAME-ENGINE |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07003 |
FJ62,HJ6# FRAME-ENGINE |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-90K05 |
HJ6#..LHD..MTM..LUB..GX NO.2 |
1 | ||
| 82114-90A02 |
HJ6#..LHD W(RADIO),NO.1 |
1 | ||
| 82114-90K05 |
HJ6#..LHD..MTM..LUB..GX COLD SPEC,NO.2 |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-90K05 |
HJ6#..LHD..MTM..LUB..GX NO.2 |
1 | ||
| 82114-90A02 |
HJ6#..LHD W(RADIO),NO.1 |
1 | ||
| 82114-90K05 |
HJ6#..LHD..MTM..LUB..GX COLD SPEC,NO.2 |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-90A01 |
HJ6# |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-90A02 |
HJ61 |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-90A03 |
HJ6#..MTM |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-90G87 |
HJ61 |
1 | ||
| 82131-90G88 |
HJ61 COLD SPEC |
1 | ||
| 82132 - WIRE, COWL, NO.2 | ||||
| 82132-90A17 |
FJ62,HJ6#..GX,VX |
1 | ||
| 82134 - WIRE, COWL, NO.4 | ||||
| 82134-90A00 |
HJ6# |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-90A20 |
HJ6#..GX,STD W(CLOCK) |
1 | ||
| 82141-90A19 |
HJ6#..GX,STD |
1 | ||
| 82141-90A21 |
HJ6#..GX,STD W(DIFFERENTIAL LOCK) OR W(CLOCK & DIFFERENTIAL LOCK) |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-90A00 |
FJ62,HJ61..GX;HJ60..MTM..GX |
1 | ||
| 82166-90A01 |
HJ6#..LHD..MTM..LUB..GX W(FRONT BENCH SEAT) |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-90A03 |
FJ62,HJ6#..LHD..(GX,VX) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08115 |
HJ61 L=110,G,NO.1 |
1 | ||
| 90982-08212 |
HJ61 L=120,GX2,B,L,NO.2 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08115 |
HJ61 L=110,G,NO.1 |
1 | ||
| 90982-08212 |
HJ61 L=120,GX2,B,L,NO.2 |
1 | ||
| 82219 - WIRE, THERMO SENSOR | ||||
| 82219-90A00 |
HJ6#..LHD..(GX,VX) W(ACCESSORY METER) |
1 | ||
| 82219-90K02 |
HJ61..GX;HJ60..LHD..MTM..SRF..LUB W(MECHANICAL & ACCESSORY METER) |
1 | ||
| 82282A - WIRE, INDICATOR (FOR DIFF LOCK) | ||||
| 82282-90A05 |
FJ62,HJ6# REAR |
1 | ||
| 82282-90A04 |
FJ62,HJ6# FRONT |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
FJ62,HJ6#..LHD NO.1 |
1 | ||
| 82345-12050 |
HJ61;HJ60..RHD NO.1 |
1 | ||
| 82345-32020 |
FJ62,HJ6# NO.2 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
FJ62,HJ6#..LHD NO.1 |
1 | ||
| 82345-12050 |
HJ61;HJ60..RHD NO.1 |
1 | ||
| 82345-32020 |
FJ62,HJ6# NO.2 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
FJ62,HJ6#..LHD NO.1 |
1 | ||
| 82345-12050 |
HJ61;HJ60..RHD NO.1 |
1 | ||
| 82345-32020 |
FJ62,HJ6# NO.2 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
FJ62,HJ6#..LHD NO.1 |
1 | ||
| 82345-12050 |
HJ61;HJ60..RHD NO.1 |
1 | ||
| 82345-32020 |
FJ62,HJ6# NO.2 |
1 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-90A01 |
HJ61 NO.1 |
1 | ||
| 82670-90K02 |
HJ6#..LHD..MTM..LUB..GX NO.2 |
1 | ||
| 82670-90K02 |
HJ6#..LHD..MTM..LUB..GX COLD SPEC,NO.2 |
1 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-90A01 |
HJ61 NO.1 |
1 | ||
| 82670-90K02 |
HJ6#..LHD..MTM..LUB..GX NO.2 |
1 | ||
| 82670-90K02 |
HJ6#..LHD..MTM..LUB..GX COLD SPEC,NO.2 |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-12150 |
FJ62,HJ6# |
1 | ||
| Common parts | ||||
| 82345-12050 | ||||
| 82345-32020 | ||||
| 90119-08116 | ||||
| 90119-08157 | ||||
| 90179-05003 | ||||
| 90179-06158 | ||||
| 91621-40812 | ||||
| 91661-40614 | ||||
| Linked diagrams | ||||
| 8401 | ||||

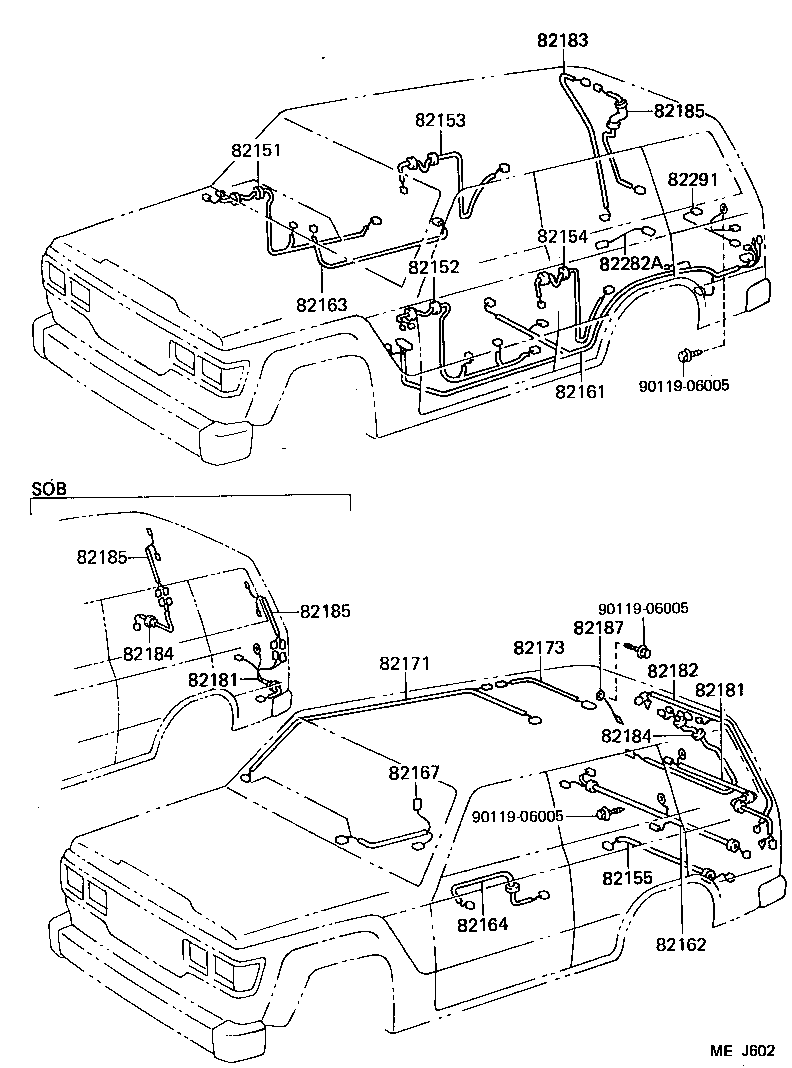

ILLUST NO. 2 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-90A05 |
HJ6#..LHD |
1 | ||
| 82151-90A08 |
FJ62,HJ6#..LHD..(GX,VX) W(POWER WINDOW) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82151-90A05 |
FJ62,HJ61;HJ60..ATM;HJ60..HRF;HJ60..SRF..SOB..GX |
1 | ||
| 82152-90A05 |
FJ62,HJ6#..LHD..(GX,VX) W(POWER WINDOW) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82154-90A03 |
FJ62,HJ6#..GX,VX |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-90A03 |
FJ62,HJ6#..GX,VX |
1 | ||
| 82155 - WIRE, CENTER PILLER, NO.1 | ||||
| 82155-90A01 |
HJ6# |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-90A43 |
HJ6#..GX,VX W(POWER WINDOW) |
1 | ||
| 82161-90A46 |
FJ62,HJ6#..LUB |
1 | ||
| 82161-90A42 |
HJ6#..LUB |
1 | ||
| 82161-90A47 |
FJ62,HJ6#..GX,VX W(POWER WINDOW) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-90A36 |
HJ60..STD;FJ62,HJ6#..LUB |
1 | ||
| 82162-90A37 |
HJ6#..LUB W(POWER WINDOW) OR W(TRAILER SOCKET SWITCH |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-90A14 |
HJ6#..MTM..(GX,STD) |
1 | ||
| 82163-90A15 |
HJ6#..MTM..GX W(POWER WINDOW) |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-90A03 |
HJ6# W(DIFFERENTIAL LOCK) |
1 | ||
| 82164-90A02 |
HJ6# W(SEDIMENTER) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-90A13 |
FJ62,HJ6#..LHD..(GX,VX) W(ACCESSORY METER) |
1 | ||
| 82171-90A10 |
FJ62,HJ6# |
1 | ||
| 82173 - WIRE, ROOF, NO.3 | ||||
| 82173-90A00 |
FJ62,HJ6#..SRF;HJ60..HRF..SOB |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-90A00 |
FJ62,HJ6#..LUB |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-90A00 |
FJ62,HJ6#..LUB |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-90A02 |
FJ62,HJ6#..LUB |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-90A01 |
FJ62,HJ6#..LUB |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-90A03 |
FJ62,HJ6#..LUB LH |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-90A03 |
FJ62,HJ6#..LUB LH |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-90A05 |
FJ62,HJ6#..LUB |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-90A05 |
FJ62,HJ6#..LUB |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-90A05 |
FJ62,HJ6#..LUB |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-90A00 |
FJ62,HJ6#..LUB |
1 | ||
| 82282A - WIRE, INDICATOR (FOR DIFF LOCK) | ||||
| 82282-90A05 |
FJ62,HJ6# REAR |
1 | ||
| 82282-90A04 |
FJ62,HJ6# FRONT |
1 | ||
| 82291 - WIRING, TO SOLENOID | ||||
| 82291-90A02 |
FJ62,HJ6#..GX,VX |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||

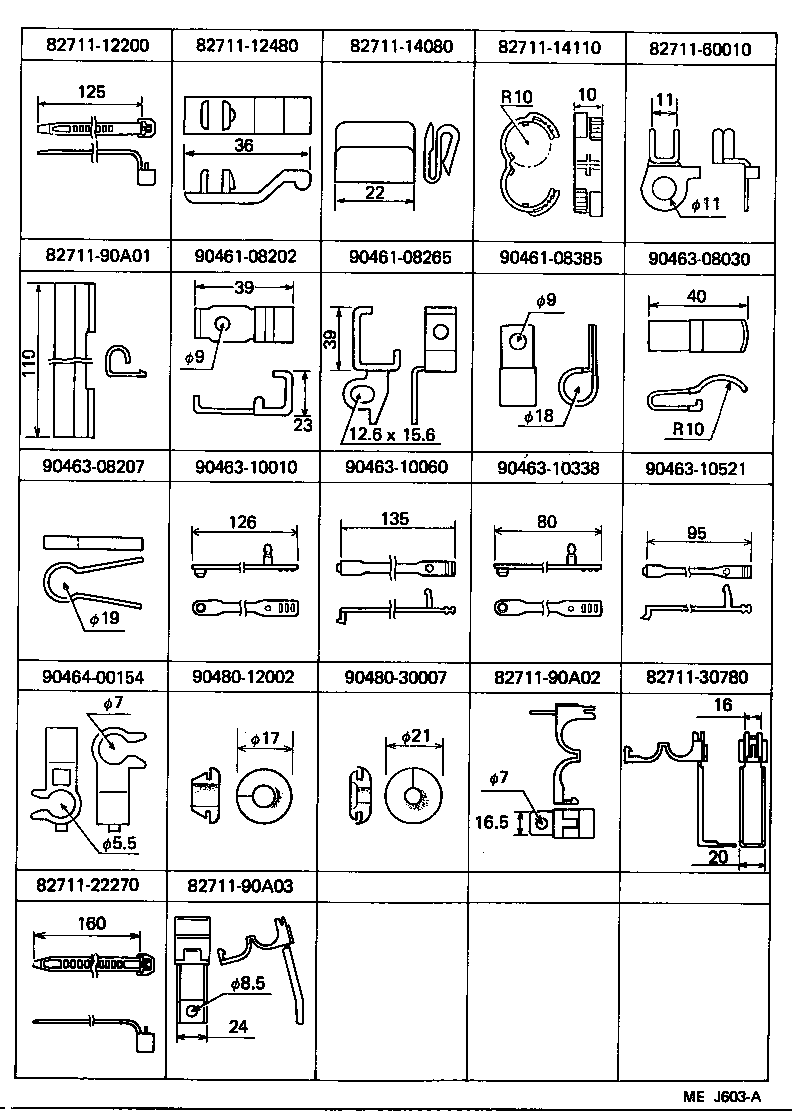

ILLUST NO. 3 OF 3(8708- )
CLAMP & GROMMET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-12480 | ||||
| 82711-14080 | ||||
| 82711-14110 | ||||
| 82711-22270 | ||||
| 82711-30780 | ||||
| 82711-60010 | ||||
| 82711-90A01 | ||||
| 82711-90A02 | ||||
| 82711-90A03 | ||||
| 90461-08202 | ||||
| 90461-08265 | ||||
| 90461-08385 | ||||
| 90463-08030 | ||||
| 90463-08207 | ||||
| 90463-10010 | ||||
| 90463-10060 | ||||
| 90463-10338 | ||||
| 90463-10521 | ||||
| 90464-00154 | ||||
| 90480-12002 | ||||
| 90480-30007 | ||||
