HJ61LG-MNXW (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 12HT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

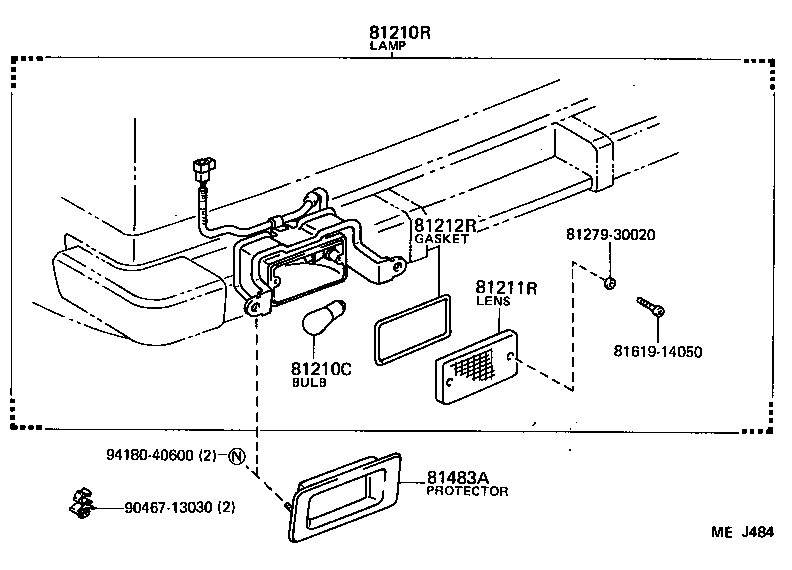

Click highlighted areas on diagram

diagram 81210C 81210R 81211R 81212R 8127930020 81483A 8161914050 9046713030 9418040600
Part # Description Qty Price
81210C - BULB, REAR FOG LAMP
90981-16014

HJ6#

24V 21W

 2
90981-16014

HJ6#..LHD..MTM..LUB..GX

24V 21W,FINLAND SPEC

 1
81210R - LAMP ASSY, REAR FOG
81220-90A00

HJ6#

LH

 1
81210-90A02

HJ6#

RH

 1
81211R - LENS, REAR FOG LAMP
81211-95700

HJ6#..LHD..MTM..LUB..GX

FINLAND SPEC

 1
81211-95700

FJ62,HJ6#

 2
81212R - GASKET, REAR FOG LAMP, NO.1
81212-95700

FJ62,HJ6#

 2
81212-95700

HJ6#..LHD..MTM..LUB..GX

FINLAND SPEC

 1
81483A - PROTECTOR, FOG LAMP
81483-90A00

FJ62,HJ6#

RH

 1
81484-90A00

FJ62,HJ6#

LH

 1
Common parts
81279-30020
81619-14050
90467-13030
94180-40600
