HJ61LG-MNXW (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 12HT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

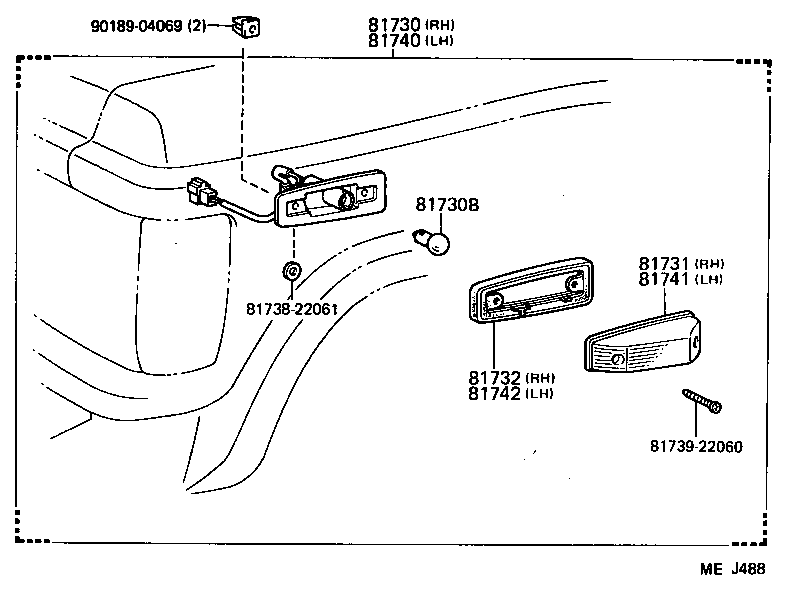

Click highlighted areas on diagram

diagram 81730 81730B 81731 81732 8173822061 8173922060 81740 81741 81742 9018904069
Part # Description Qty Price
81730 - LAMP ASSY, SIDE TURN SIGNAL, RH
81730-90A00

HJ6#

 1
81730B - BULB (FOR SIDE TURN SIGNAL LAMP)
90981-16016

HJ6#

24V 5W

 2
81731 - LENS, SIDE TURN SIGNAL LAMP, RH
81731-20120

FJ62,HJ6#

 1
81732 - GASKET, SIDE TURN SIGNAL LAMP LENS, RH
81732-14100

FJ62,HJ6#

 1
81740 - LAMP ASSY, SIDE TURN SIGNAL, LH
81740-90A00

HJ6#

 1
81741 - LENS, SIDE TURN SIGNAL LAMP, LH
81741-20120

FJ62,HJ6#

 1
81742 - GASKET, SIDE TURN SIGNAL LAMP LENS, LH
81742-14100

FJ62,HJ6#

 1
Common parts
81738-22061
81739-22060
90189-04069
