HJ61LG-MNXW (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 12HT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

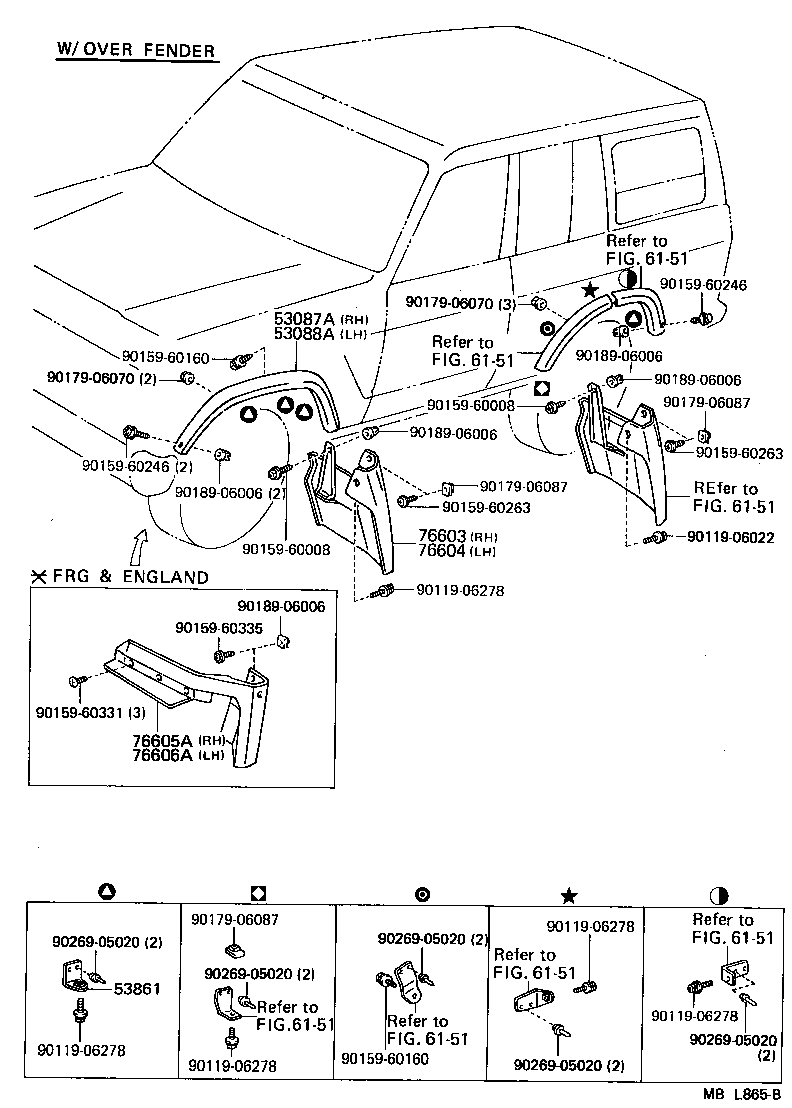

ILLUST NO. 2 OF 2(8708- )

Click highlighted areas on diagram

diagram 53087A 53088A 53861 6151 6151 6151 6151 6151 6151 6151 76603 76604 76605A 76606A 9011906022 9011906278 9011906278 9011906278 9011906278 9011906278 9015960008 9015960008 9015960160 9015960160 9015960246 9015960246 9015960263 9015960263 9015960331 9015960335 9017906070 9017906070 9017906087 9017906087 9017906087 9018906006 9018906006 9018906006 9018906006 9018906006 9026905020 9026905020 9026905020 9026905020 9826905020
Part # Description Qty Price
53087A - EXTENSION SUB-ASSY, FRONT WHEEL OPENING, RH
53087-90A00

HJ6#..LHD..(GX,VX)

 1
53088A - EXTENSION SUB-ASSY, FRONT WHEEL OPENING, LH
53088-90A00

HJ6#..LHD..(GX,VX)

 1
53861 - BRACKET, FRONT WHEEL OPENING, NO.1
53861-90A00

HJ6#..LHD..(GX,VX)

 8
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76603-69015

HJ61;HJ60..ATM;HJ60..RHD

 1
76603-90A01

HJ6#..LHD..(GX,VX)

W(OVER FENDER)

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76604-69015

HJ61;HJ60..ATM;HJ60..RHD

 1
76604-90A01

HJ6#..LHD..(GX,VX)

W(OVER FENDER)

 1
Common parts
90119-06022
90119-06278
90159-60008
90159-60160
90159-60246
90159-60263
90159-60331
90159-60335
90179-06070
90179-06087
90189-06006
90269-05020
98269-05020
Linked diagrams
6151

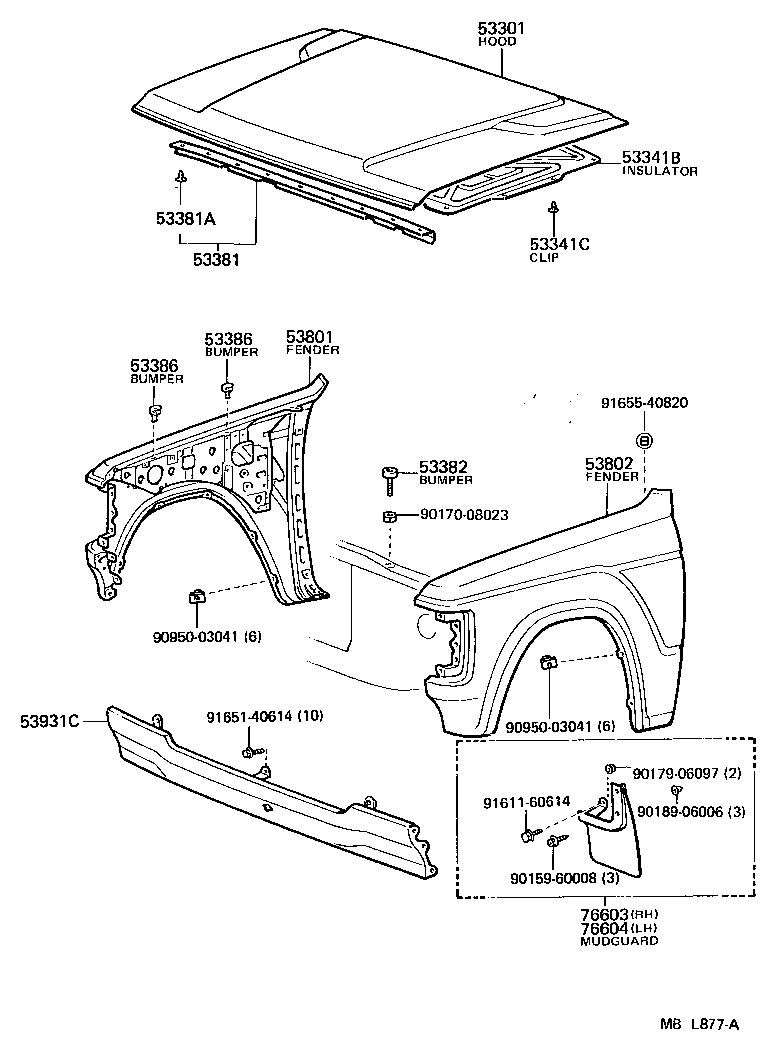

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

diagram 53301 53341B 53341C 53381 53381A 53382 53386 53386 53801 53802 53931C 76603 76604 9015960008 9017008023 9017906097 9018906006 9095003041 9095003041 9161160614 9165140614 9165540820
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-90A01

FJ62,HJ6#

 1
53341B - INSULATOR, HOOD
53341-90A01

FJ62,HJ61

 1
53341C - CLIP(FOR HOOD INSULATOR)
90467-09014

FJ62,HJ6#

 17
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-90A00

FJ62,HJ6#

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

FJ62,HJ6#

 9
53382 - BUMPER, HOOD, FRONT
53382-90K00

HJ6#

 2
53382-90K01

FJ62,HJ6#

 2
53386 - BUMPER, HOOD, REAR
53382-30060

FJ62,HJ6#

 4
53386 - BUMPER, HOOD, REAR
53382-30060

FJ62,HJ6#

 4
53801 - FENDER SUB-ASSY, FRONT RH
53801-90G14

HJ6#..LHD..(GX,VX)

W(OVER FENDER) OR W(OVER FENDER & ANTTENA)

 1
53801-90A85

HJ6#..LHD..MTM..LUB..GX

W(SIDE STEP & ANTENNA)

 1
53801-90G29

HJ6#

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-90A94

HJ6#

 1
53802-90A90

HJ6#..LHD..(GX,VX)

W(OVER FENDER)

 1
53931C - PANEL, FRONT END
53931-90A06

FJ62,HJ6#

 1
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76603-69015

HJ61;HJ60..ATM;HJ60..RHD

 1
76603-90A01

HJ6#..LHD..(GX,VX)

W(OVER FENDER)

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76604-69015

HJ61;HJ60..ATM;HJ60..RHD

 1
76604-90A01

HJ6#..LHD..(GX,VX)

W(OVER FENDER)

 1
Common parts
90159-60008
90170-08023
90179-06097
90189-06006
90950-03041
91611-60614
91651-40614
91655-40820
