HJ61LG-MNXW (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 12HT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

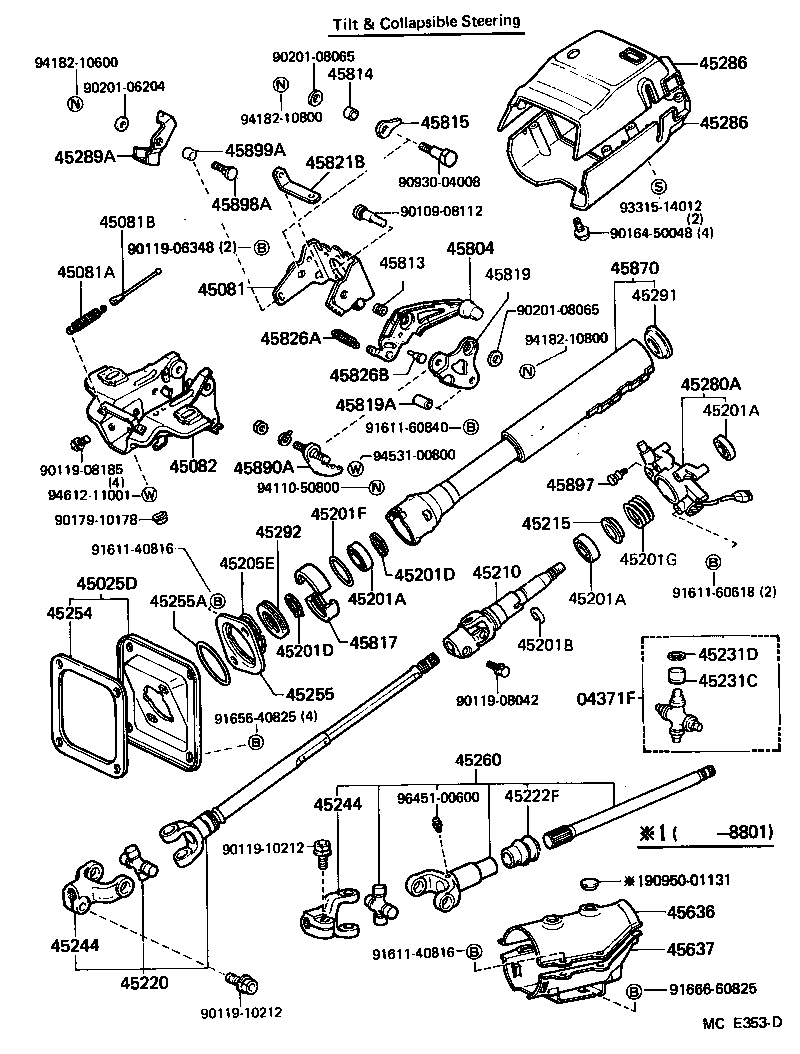

Click highlighted areas on diagram

diagram 04371F 45025D 45081 45081A 45081B 45082 45201A 45201A 45201A 45201B 45201D 45201D 45201F 45201G 45205E 45210 45215 45220 45222F 45231C 45231D 45244 45244 45254 45255 45255A 45260 45280A 45286 45286 45289A 45291 45292 45636 45637 45804 45813 45814 45815 45817 45819 45819A 45821B 45826A 45826B 45870 45890A 45897 45898A 45899A 9010908112 9011906348 9011908042 9011908185 9011910212 9011910212 9016450048 9017910178 9020106204 9020108065 9020108065 9093004008 9095001131 9161140816 9161140816 9161160618 9161160840 9165640825 9166660825 9331514012 9411050800 9418210600 9418210800 9418210800 9453100800 9461211001 9645100600
Part # Description Qty Price
04371F - SPIDER KIT, UNIVERSAL JOINT(FOR STEERING MAIN SHAFT)
04371-10011

FJ62,HJ6#

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-60020

FJ62,HJ6#

 1
45081 - SUPPORT SUB-ASSY, TILT STEERING
45081-22020

FJ62,HJ6#

 1
45081A - SPRING, TENSION(FOR TILT STEERING)
90506-23009

FJ62,HJ6#

 2
45081B - CORD(FOR TILT STEERING)
90945-02038

FJ62,HJ6#

L=105.5

 2
90945-02034

FJ62,HJ6#

L=107.5

 2
45082 - BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE
45082-60010

FJ62,HJ6#

 1
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-28001

FJ62,HJ6#

CTR

 1
90363-30007

FJ62,HJ6#

LWR

 1
90363-18001

FJ62,HJ6#

UPR

 1
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-28001

FJ62,HJ6#

CTR

 1
90363-30007

FJ62,HJ6#

LWR

 1
90363-18001

FJ62,HJ6#

UPR

 1
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-28001

FJ62,HJ6#

CTR

 1
90363-30007

FJ62,HJ6#

LWR

 1
90363-18001

FJ62,HJ6#

UPR

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

FJ62,HJ6#

T=1.20

 1
45201D - RING(FOR STEERING MAIN SHAFT)
96152-00300

FJ62,HJ6#

 2
45201D - RING(FOR STEERING MAIN SHAFT)
96152-00300

FJ62,HJ6#

 2
45201F - RING, O(FOR STEERING MAIN SHAFT)
96711-24045

FJ62,HJ6#

 1
45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
90501-45011

FJ62,HJ6#

 1
45205E - RING, SNAP(FOR STEERING COLUMN TUBE)
90521-01002

FJ62,HJ6#

 1
45210 - SHAFT ASSY, STEERING MAIN
45210-22050

FJ62,HJ6#

 1
45215 - COLLAR, MAIN SHAFT BEARING THRUST
45215-22011

FJ62,HJ6#

 1
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-60050

FJ62,HJ6#

 1
45222F - COVER, DUST
45222-60031

FJ62,HJ6#

 1
45231C - BEARING, UNIVERSAL JOINT SPIDER(FOR STEERING MAIN SHAFT
37402-10020

FJ62,HJ6#

 4
45231D - RING, HOLE SNAP(FOR STEERING MAIN SHAFT)
90521-22013

FJ62,HJ6#

 4
90521-22011

FJ62,HJ6#

 4
90521-22012

FJ62,HJ6#

 4
45244 - YOKE, STEERING WORM
45244-60020

FJ62,HJ6#

 1
45244 - YOKE, STEERING WORM
45244-60020

FJ62,HJ6#

 1
45254 - SHIELD, STEERING COLUMN HOLE
45254-60030

FJ62,HJ6#

 1
45255 - PLATE, STEERING COLUMN HOLE COVER
45255-60010

FJ62,HJ6#

 1
45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP)
90301-60122

FJ62,HJ6#

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-60080

FJ62,HJ6#

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-60130

HJ6#..LHD

 1
45286 - COVER, STEERING COLUMN
45286-6013016

FJ62,HJ6#..LHD

SEPIA BROWN,TRIM4#,UPR

 1
45286-6013003

FJ62,HJ6#..LHD..(GX,VX)

GRAY,TRIM1#,UPR

 1
45287-6009003

FJ62,HJ6#..LHD..(GX,VX)

GRAY,TRIM1#,LWR

 1
45287-6009016

FJ62,HJ6#..LHD

SEPIA BROWN,TRIM4#,LWR

 1
45286 - COVER, STEERING COLUMN
45286-6013016

FJ62,HJ6#..LHD

SEPIA BROWN,TRIM4#,UPR

 1
45286-6013003

FJ62,HJ6#..LHD..(GX,VX)

GRAY,TRIM1#,UPR

 1
45287-6009003

FJ62,HJ6#..LHD..(GX,VX)

GRAY,TRIM1#,LWR

 1
45287-6009016

FJ62,HJ6#..LHD

SEPIA BROWN,TRIM4#,LWR

 1
45289A - SUPPORT, STEERING COLUMN COVER
45289-22020

FJ62,HJ6#

 1
45291 - SEAL, MAIN SHAFT UPPER DUST
45282-22010

FJ62,HJ6#

 1
45292 - SEAL, MAIN SHAFT LOWER DUST
45292-60030

FJ62,HJ6#

 1
45636 - PROTECTOR, INTERMEDIATE LINK JOINT, UPPER
45636-60080

HJ6#..LHD

 1
45637 - PROTECTOR, INTER LINK JOINT, LWR NO.1
45637-60060

FJ62,HJ6#..LHD

 1
45804 - LEVER SUB-ASSY, STEERING TILT
45804-22010

FJ62,HJ6#

 1
45813 - COLLAR, TILT STEERING SUPPORT, NO.1
45813-22020

FJ62,HJ6#

OD=18.003-18.010

 1
45813-22010

FJ62,HJ6#

OD=17.996-18.003

 1
45813-22040

FJ62,HJ6#

OD=18.017-18.024

 1
45813-22050

FJ62,HJ6#

OD=17.989-17.996

 1
45813-22030

FJ62,HJ6#

OD=18.010-18.017

 1
45814 - COLLAR, TILT STEERING SUPPORT, NO.2
45814-22020

FJ62,HJ6#

OD=18.000-18.018

 1
45814-22010

FJ62,HJ6#

OD=17.982-18.000

 1
45815 - SHIM, TILT STEERING SUPPORT
45815-22070

FJ62,HJ6#

T=0.5

 1
45815-22060

FJ62,HJ6#

T=0.2

 1
45815-22080

FJ62,HJ6#

T=0.8

 1
45815-22090

FJ62,HJ6#

T=1.4,T=1.4

 1
45815-22100

FJ62,HJ6#

T=1.8,T=1.8

 1
45817 - STOPPER, STEERING SHAFT THRUST
45817-60010

FJ62,HJ6#

 2
45819 - RETAINER, TILT LEVER
45819-22011

FJ62,HJ6#

 1
45819A - COLLAR(FOR TILT LEVER RETAINER)
90387-08002

FJ62,HJ6#

 1
45821B - REINFORCE, TILT STEERING SUPPORT, NO.1
45821-22010

FJ62,HJ6#

 1
45826A - SPRING, TENSION(FOR STEERING TILT LEVER)
90507-14001

FJ62,HJ6#

 1
45826B - PIN(FOR STEERING TILT LEVER)
72538-12010

FJ62,HJ6#

 1
45870 - TUBE ASSY, STEERING COLUMN
45870-60030

FJ62,HJ6#

 1
45890A - PAWL ASSY, TILT STEERING
45890-22050

FJ62,HJ6#

 1
45897 - BOLT, STEERING LOCK SET
45897-14010

FJ62,HJ6#

 1
45898A - BOLT, RETURN SPRING SET
45898-22010

FJ62,HJ6#

 1
45899A - COVER, TILT STEERING SUPPORT STOPPER
45899-22020

FJ62,HJ6#

 1
Common parts
90109-08112
90119-06348
90119-08042
90119-08185
90119-10212
90164-50048
90179-10178
90201-06204
90201-08065
90930-04008
90950-01131
91611-40816
91611-60618
91611-60840
91656-40825
91666-60825
93315-14012
94110-50800
94182-10600
94182-10800
94531-00800
94612-11001
96451-00600
