HJ61LG-MNXW (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 12HT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )2H

Click highlighted areas on diagram

diagram 22610 22614 22614 22615 22616 22626 22626A 22628 22629 22629 9009901194 9009901194 9009901369 9009901369 9009901381 9009901381 9009901382 9009901382 9009901470 9009901471 9009901472 9009902315 9009902315
Part # Description Qty Price
22610 - TIMER ASSY, AUTOMATIC
22610-68030

12HT..HJ61

 1
22614 - WEIGHT, TIMER
22614-68030

12HT..HJ61

 2
22614 - WEIGHT, TIMER
22614-68030

12HT..HJ61

 2
22615 - SPRING, TIMER
22615-68030

12HT..HJ61

 2
22616 - HUB, TIMER
22616-68030

12HT..HJ61

 1
22626 - GEAR, DRIVE
22626-68030

12HT..HJ61

 1
22626A - RING, CLAMP(FOR DRIVE GEAR)
90096-90001

12HT..HJ61

 1
Common parts
90099-01194
90099-01369
90099-01381
90099-01382
90099-01470
90099-01471
90099-01472
90099-02315

(8708- )12HT

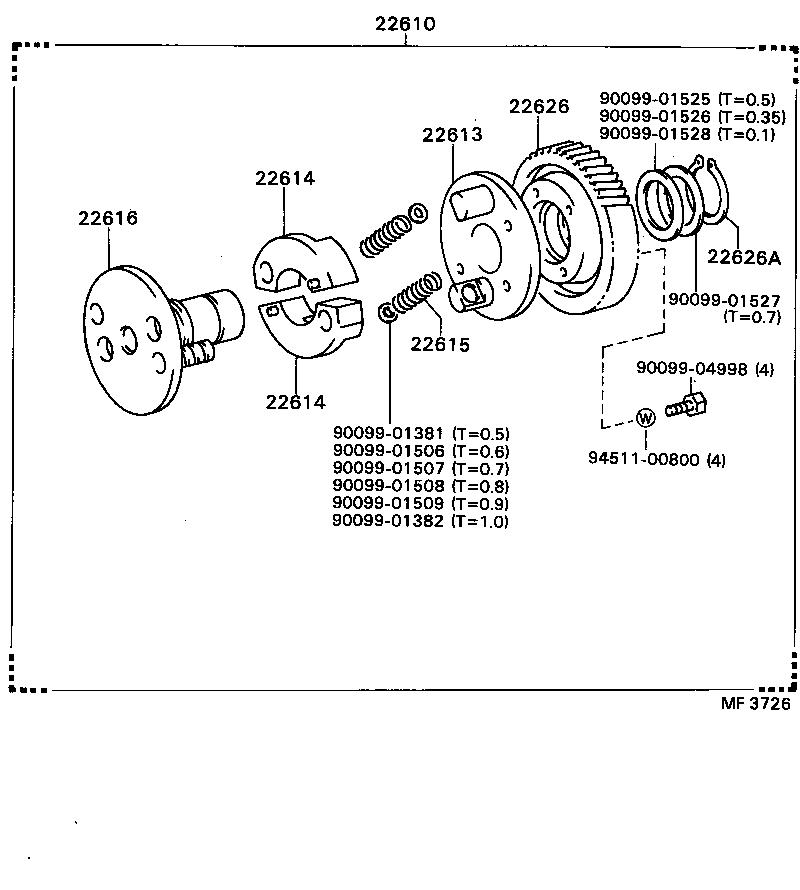

Click highlighted areas on diagram

diagram 22610 22613 22614 22614 22615 22616 22626 22626A 9009901381 9009901382 9009901506 9009901507 9009901508 9009901509 9009901525 9009901526 9009901527 9009901528 9009904998 9451100800
Part # Description Qty Price
22610 - TIMER ASSY, AUTOMATIC
22610-68030

12HT..HJ61

 1
22613 - FLANGE, TIMER DRIVING
22613-68030

12HT..HJ61

 1
22614 - WEIGHT, TIMER
22614-68030

12HT..HJ61

 2
22614 - WEIGHT, TIMER
22614-68030

12HT..HJ61

 2
22615 - SPRING, TIMER
22615-68030

12HT..HJ61

 2
22616 - HUB, TIMER
22616-68030

12HT..HJ61

 1
22626 - GEAR, DRIVE
22626-68030

12HT..HJ61

 1
22626A - RING, CLAMP(FOR DRIVE GEAR)
90096-90001

12HT..HJ61

 1
Common parts
90099-01381
90099-01382
90099-01506
90099-01507
90099-01508
90099-01509
90099-01525
90099-01526
90099-01527
90099-01528
90099-04998
94511-00800
