HJ61LG-MNXW (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 12HT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

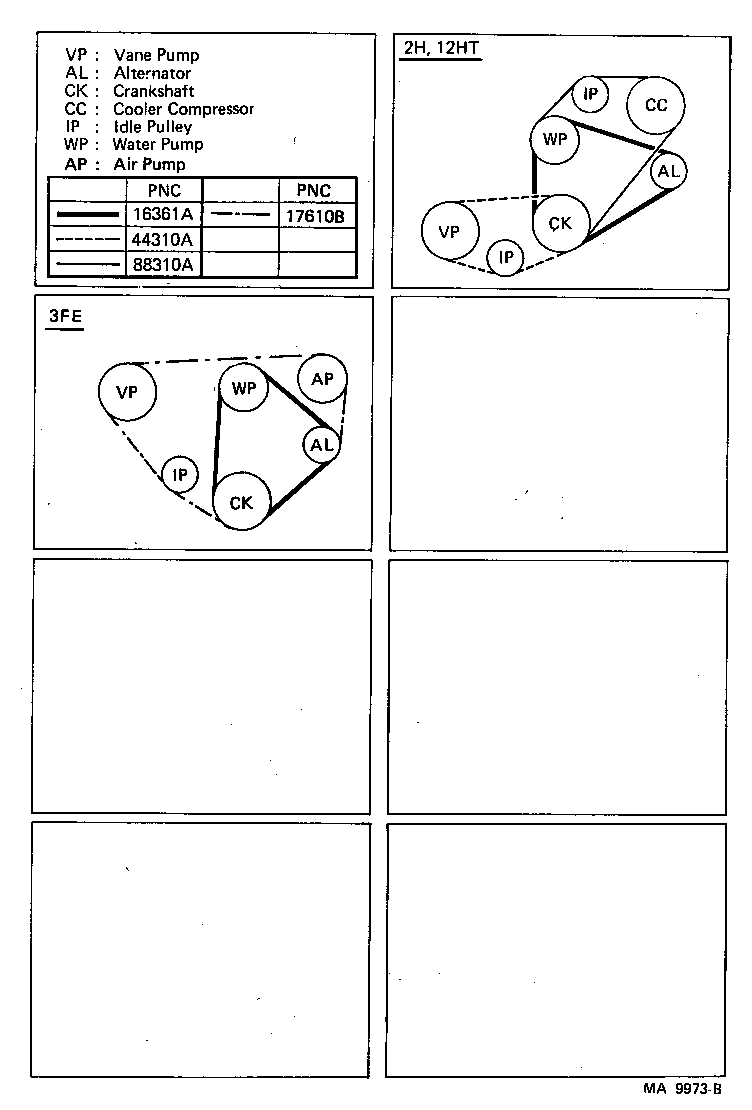

Click highlighted areas on diagram

diagram 16361A 17610B 44310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99343-11095

12HT..HJ61..LUB..GX

COLD SPEC OR AIR CONDITIONER

 1
99343-11090

12HT..HJ61

 1
90916-02243

12HT..HJ61..LUB..GX

COLD SPEC OR AIR CONDITIONER

 1
90916-02251

12HT..HJ61

 1
44310A - BELT, V(FOR VANE PUMP)
90916-02153

HJ6#

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99332-01395

HJ6#..LHD..MTM..LUB..GX

L=1395

 1
