HJ61LG-MNCXW (1987)
Toyota Land Cruiser
Production
Aug 1987
-
Jan 1990
Engine
12HT
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )

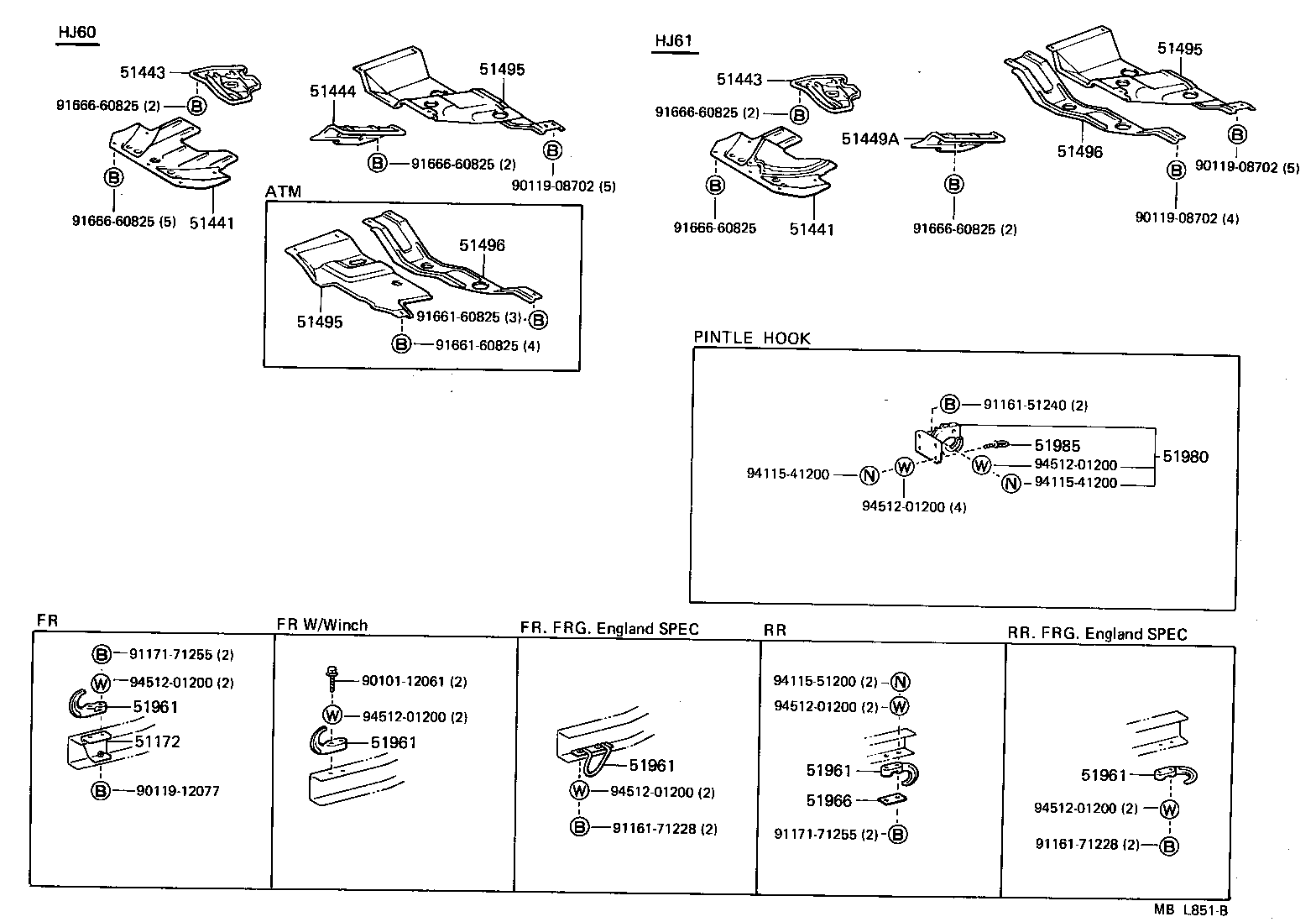

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51172 - REINFORCEMENT, SIDE RAIL FRONT HOOK | ||||
| 51172-60010 |
FJ62,HJ6# |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51440-60020 |
HJ61 |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51440-60020 |
HJ61 |
1 | ||
| 51443 - COVER, ENGINE UNDER, REAR RH | ||||
| 51443-60100 |
HJ6# |
1 | ||
| 51443 - COVER, ENGINE UNDER, REAR RH | ||||
| 51443-60100 |
HJ6# |
1 | ||
| 51449A - COVER, ENGINE SIDE UNDER, LH | ||||
| 51450-60010 |
HJ61 |
1 | ||
| 51495 - COVER, TRANSMISSION UNDER | ||||
| 58270-60061 |
HJ61 |
1 | ||
| 51495 - COVER, TRANSMISSION UNDER | ||||
| 58270-60061 |
HJ61 |
1 | ||
| 51495 - COVER, TRANSMISSION UNDER | ||||
| 58270-60061 |
HJ61 |
1 | ||
| 51496 - COVER, TRANSMISSION UNDER, NO.2 | ||||
| 58260-60020 |
HJ61 |
1 | ||
| 51496 - COVER, TRANSMISSION UNDER, NO.2 | ||||
| 58260-60020 |
HJ61 |
1 | ||
| 51961 - HOOK, NO.1 | ||||
| 51961-36040 |
FJ62,HJ6# RR |
1 | ||
| 51961-60040 |
FJ62,HJ6# FR |
1 | ||
| 51961-60010 |
HJ61..GX;HJ60..STD;HJ60..LHD..MTM..SRF..LUB W(WINCH),FR |
1 | ||
| 51961 - HOOK, NO.1 | ||||
| 51961-36040 |
FJ62,HJ6# RR |
1 | ||
| 51961-60040 |
FJ62,HJ6# FR |
1 | ||
| 51961-60010 |
HJ61..GX;HJ60..STD;HJ60..LHD..MTM..SRF..LUB W(WINCH),FR |
1 | ||
| 51961 - HOOK, NO.1 | ||||
| 51961-36040 |
FJ62,HJ6# RR |
1 | ||
| 51961-60040 |
FJ62,HJ6# FR |
1 | ||
| 51961-60010 |
HJ61..GX;HJ60..STD;HJ60..LHD..MTM..SRF..LUB W(WINCH),FR |
1 | ||
| 51961 - HOOK, NO.1 | ||||
| 51961-36040 |
FJ62,HJ6# RR |
1 | ||
| 51961-60040 |
FJ62,HJ6# FR |
1 | ||
| 51961-60010 |
HJ61..GX;HJ60..STD;HJ60..LHD..MTM..SRF..LUB W(WINCH),FR |
1 | ||
| 51961 - HOOK, NO.1 | ||||
| 51961-36040 |
FJ62,HJ6# RR |
1 | ||
| 51961-60040 |
FJ62,HJ6# FR |
1 | ||
| 51961-60010 |
HJ61..GX;HJ60..STD;HJ60..LHD..MTM..SRF..LUB W(WINCH),FR |
1 | ||
| 51966 - RETAINER, REAR HOOK | ||||
| 51966-60010 |
FJ62,HJ6# |
1 | ||
| 51980 - HOOK ASSY, PINTLE | ||||
| 51980-60010 |
FJ62,HJ6# |
1 | ||
| 51985 - HOOK, EYELET PINTLE | ||||
| 51985-60011 |
FJ62,HJ6# |
2 | ||
| Common parts | ||||
| 90101-12061 | ||||
| 90119-08702 | ||||
| 90119-12077 | ||||
| 91161-51240 | ||||
| 91161-71228 | ||||
| 91171-71255 | ||||
| 91661-60825 | ||||
| 91666-60825 | ||||
| 94115-41200 | ||||
| 94115-51200 | ||||
| 94512-01200 | ||||
