HJ61LG-MNCXW (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 12HT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

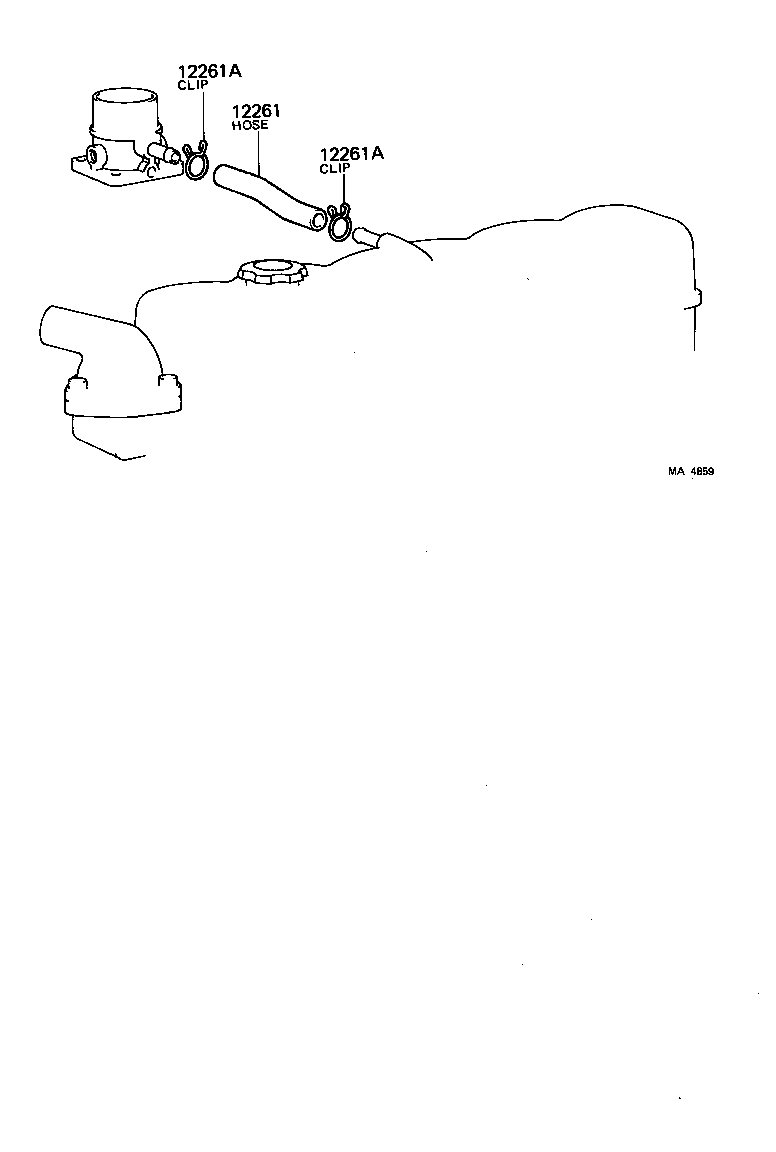

(8708- )2H

Click highlighted areas on diagram

diagram 12261 12261A 12261A
Part # Description Qty Price
12261 - HOSE, VENTILATION
12261-68030

12HT..HJ61

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-23002

12HT,2H..HJ6#

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-23002

12HT,2H..HJ6#

 2

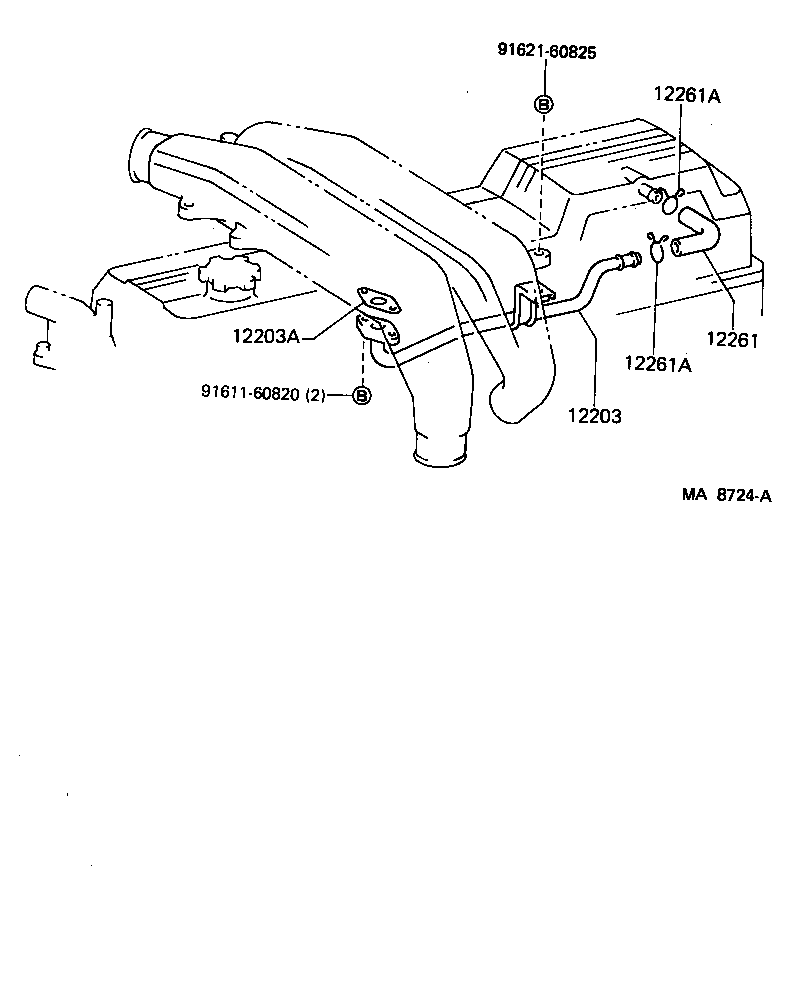

(8708- )12HT

Click highlighted areas on diagram

diagram 12203 12203A 12261 12261A 12261A 9161160820 9162160825
Part # Description Qty Price
12203 - PIPE SUB-ASSY, VENTILATION
12203-68010

12HT..HJ61

 1
12203A - GASKET(FOR VENTILATION PIPE)
15149-68010

12HT..HJ61

 1
12261 - HOSE, VENTILATION
12261-68030

12HT..HJ61

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-23002

12HT,2H..HJ6#

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-23002

12HT,2H..HJ6#

 2
Common parts
91611-60820
91621-60825
