HJ61LG-MEXW (1987)
Toyota Land Cruiser
Production
Aug 1987
-
Jan 1990
Engine
12HT
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 3(8708- )HJ61
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53783A - INSULATOR, APRON FRONT FENDER, RH | ||||
| 53783-90A02 |
FJ62,HJ61 |
1 | ||
| 53784A - INSULATOR, APRON FRONT FENDER, LH | ||||
| 53784-90A01 |
HJ61 |
1 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-90A07 |
HJ61 |
1 | ||
| Common parts | ||||
| 90467-09008 | ||||

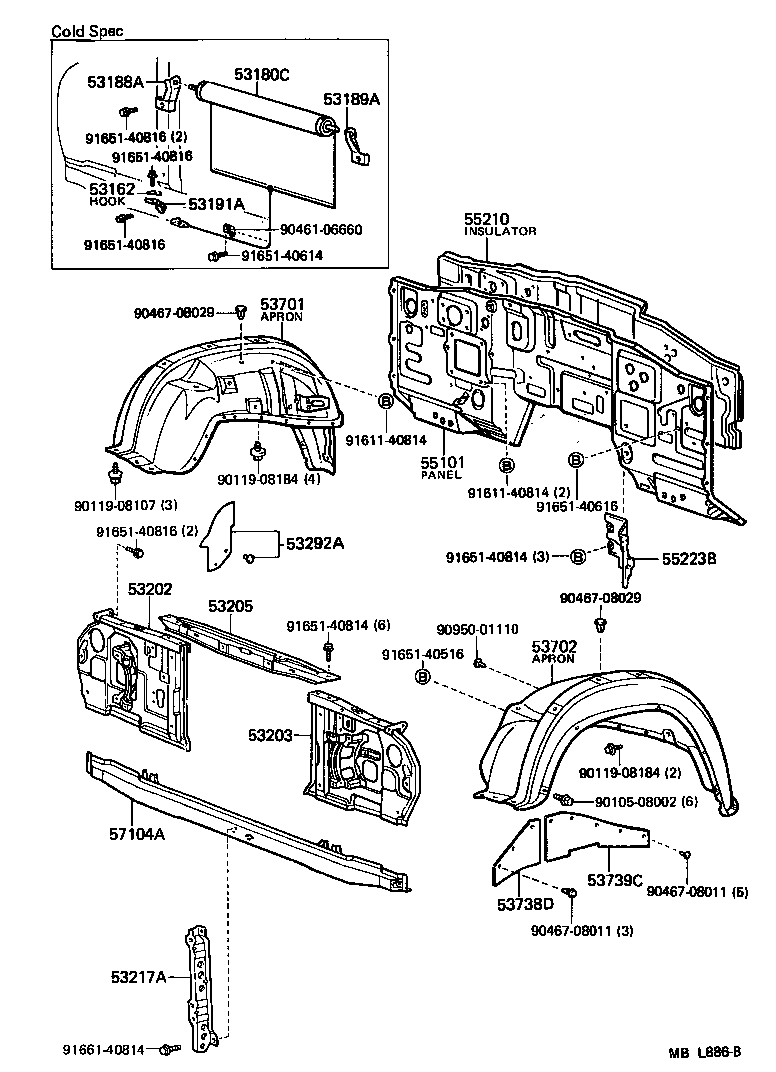

ILLUST NO. 1 OF 3(8708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53162 - HOOK, RADIATOR SHUTTER | ||||
| 53162-90500 |
HJ61;HJ60..SOB;HJ60..RHD;HJ60..HRF..LUB |
1 | ||
| 53180C - SHUTTER ASSY, RADIATOR | ||||
| 53180-90A01 |
HJ61;HJ60..SOB;HJ60..RHD;HJ60..HRF..LUB |
1 | ||
| 53188A - BRACKET, RADIATOR SHUTTER SUPPORT, RH | ||||
| 53188-90A00 |
HJ6#..MTM COLD SPEC |
1 | ||
| 53189A - BRACKET, RADIATOR SHUTTER SUPPORT, LH | ||||
| 53189-90A00 |
HJ6#..MTM COLD SPEC |
1 | ||
| 53191A - BASE, RADIATOR SHUTTER CONTROL WIRE CLAMP | ||||
| 53191-90A01 |
HJ61;HJ60..SOB;HJ60..RHD;HJ60..HRF..LUB |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-90A04 |
FJ62,HJ6# |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-90A05 |
FJ62,HJ6# |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53216-90A03 |
FJ62,HJ6# |
1 | ||
| 53217A - BRACE, HOOD LOCK SUPPORT | ||||
| 53217-90A05 |
FJ62,HJ6# |
1 | ||
| 53217-90A03 |
HJ6# |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-90G83 |
HJ6#..LHD..(GX,VX) W(OVER FENDER) |
1 | ||
| 53701-90G81 |
HJ6#..LHD |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-90A21 |
HJ6#..LHD |
1 | ||
| 53702-90A58 |
HJ6#..LHD..(GX,VX) W(OVER FENDER) |
1 | ||
| 53738D - SEAL, FRONT FENDER APRON TO FRAME, FRONT | ||||
| 53738-90A00 |
FJ62,HJ6# |
2 | ||
| 53739C - SEAL, FRONT FENDER APRON TO FRAME, REAR | ||||
| 53739-90A00 |
FJ62,HJ6# |
2 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55016-90A63 |
HJ61 |
1 | ||
| 55016-90A70 |
HJ61 W(CLUTCH BOOSTER) |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-90A11 |
HJ61 |
1 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-90A03 |
FJ62,HJ6# |
1 | ||
| Common parts | ||||
| 90105-08002 | ||||
| 90119-08107 | ||||
| 90119-08184 | ||||
| 90461-06660 | ||||
| 90467-08011 | ||||
| 90467-08029 | ||||
| 90950-01110 | ||||
| 91611-40814 | ||||
| 91651-40516 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91661-40814 | ||||

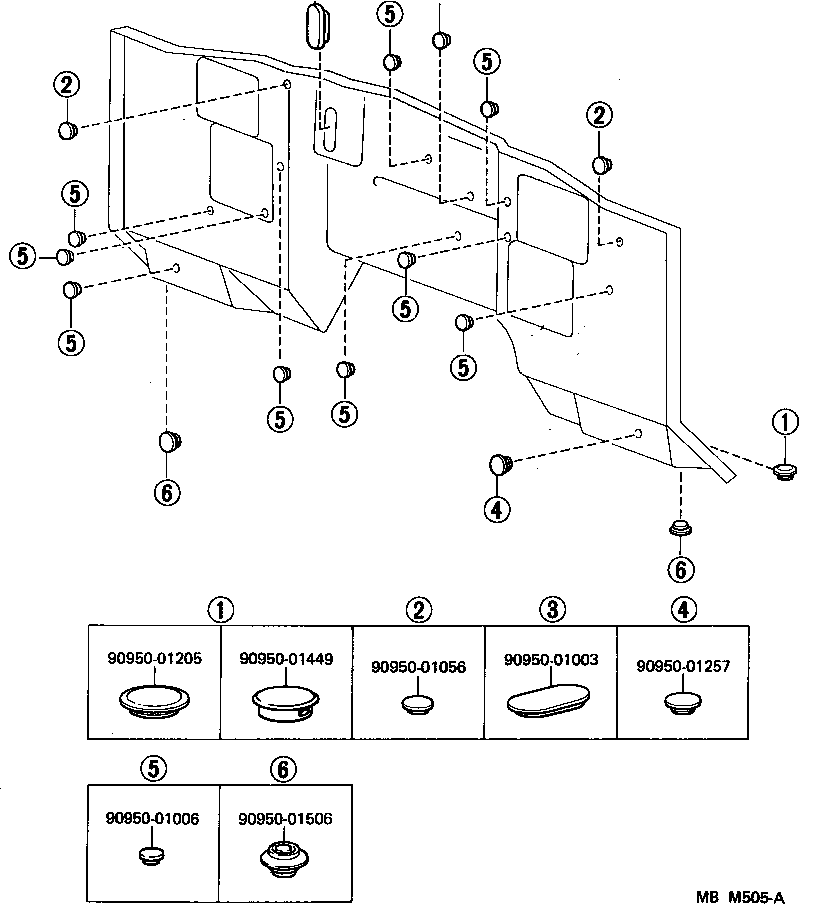

ILLUST NO. 3 OF 3(8708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90950-01003 | ||||
| 90950-01006 | ||||
| 90950-01056 | ||||
| 90950-01205 | ||||
| 90950-01257 | ||||
| 90950-01449 | ||||
| 90950-01506 | ||||
