HJ61LG-MEXW (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 12HT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

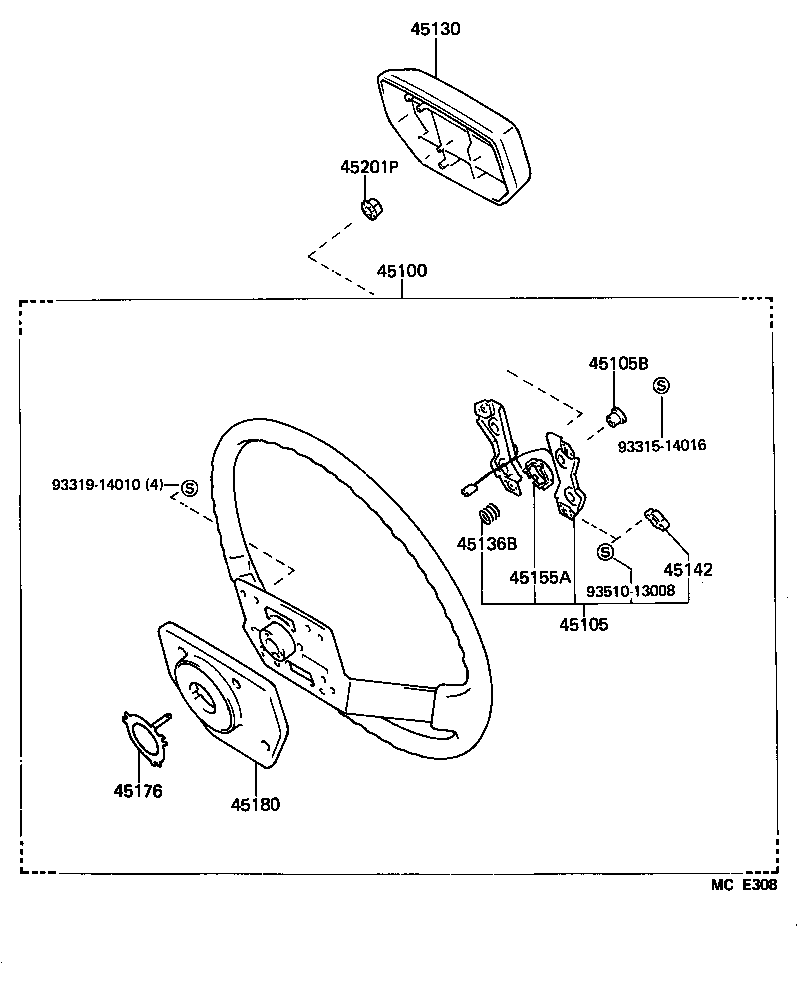

Click highlighted areas on diagram

diagram 45100 45105 45105B 45130 45136B 45142 45155A 45176 45180 45201P 9331514016 9331914010 9351013008
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-6014003

FJ62,HJ6#..GX,VX

SHADOW GRAY,TRIM1#

 1
45100-6014006

FJ62,HJ6#

SEPIA BROWN,TRIM4#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-60040

FJ62,HJ6#

 1
45105B - SPACER(FOR HORN BUTTON CONTACT PLATE)
90561-04010

FJ62,HJ6#

 4
45130 - BUTTON ASSY, HORN
45130-6010103

FJ62,HJ6#..GX,VX

SHADOW GRAY,TRIM1#

 1
45130-6010106

FJ62,HJ6#

SEPIA BROWN,TRIM4#

 1
45136B - SPRING, COMPRESSION(FOR HORN BUTTON CONTACT PLATE)
90501-12099

FJ62,HJ6#

 4
45142 - SEAT, HORN BUTTON CONTACT, NO.1
45142-12050

FJ62,HJ6#

 4
45155A - SPACER, HORN CONTACT
45155-12030

FJ62,HJ6#

 4
45176 - RING, HORN CONTACT
45176-20030

FJ62,HJ6#

 1
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-60021

FJ62,HJ6#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

FJ62,HJ6#

 1
Common parts
93315-14016
93319-14010
93510-13008
