HJ61LG-MEXW (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 12HT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

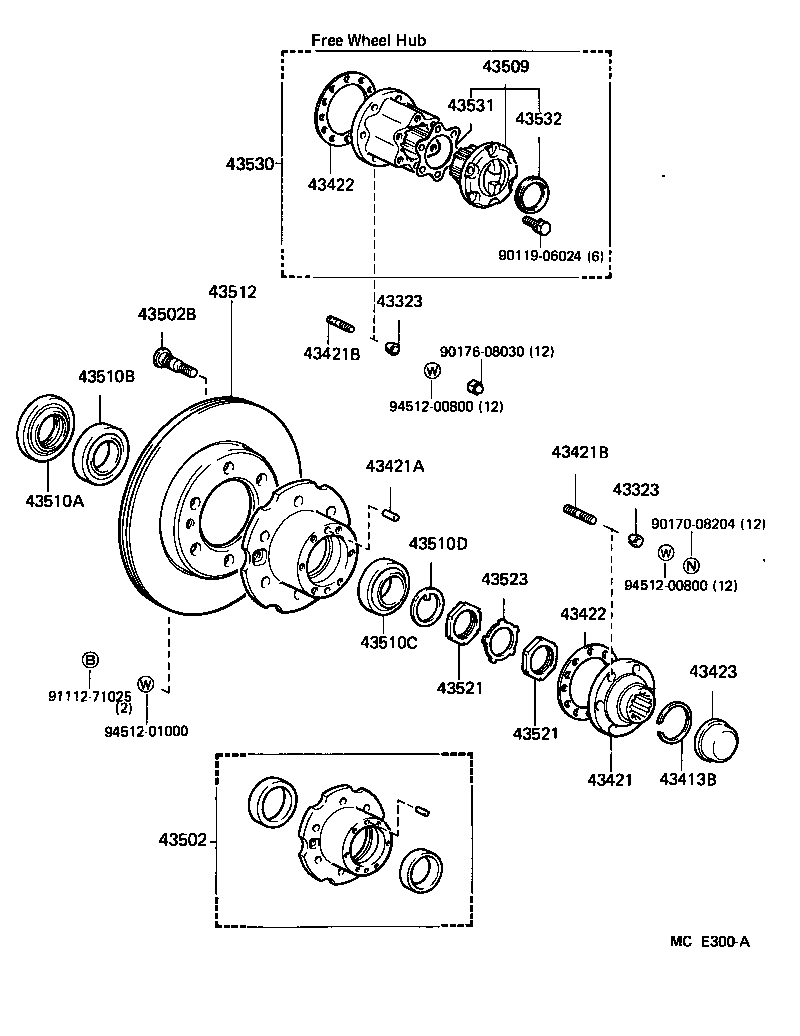

Click highlighted areas on diagram

diagram 43323 43323 43413B 43421 43421A 43421B 43421B 43422 43422 43423 43502 43502B 43509 43510A 43510B 43510C 43510D 43512 43521 43521 43523 43530 43531 43532 9011906024 9017008204 9017608030 9111271025 9451200800 9451200800 9451201000
Part # Description Qty Price
43323 - WASHER, CONE (FOR FRONT AXLE SHAFT)
42323-60010

HJ6#

 12
43323 - WASHER, CONE (FOR FRONT AXLE SHAFT)
42323-60010

HJ6#

 12
43413B - RING, DRIVE SHAFT SNAP
90520-31001

HJ6#

 2
43421A - PIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE)
90250-07057

HJ6#

 4
43421B - BOLT, STUD (FOR FRONT AXLE OUTER SHAFT FLANGE)
90116-08325

HJ6#

 12
43421B - BOLT, STUD (FOR FRONT AXLE OUTER SHAFT FLANGE)
90116-08325

HJ6#

 12
43422 - GASKET, FRONT AXLE OUTER SHAFT FLANGE
43422-60020

HJ6#

 2
43422 - GASKET, FRONT AXLE OUTER SHAFT FLANGE
43422-60020

HJ6#

 2
43502 - HUB SUB-ASSY, FRONT AXLE
43502-60020

HJ6#

 2
43502B - BOLT, HUB (FOR FRONT AXLE)
90942-02053

HJ6#

 12
43509 - COVER SUB-ASSY, FREE WHEEL HUB
43509-60015

HJ6#..GX,VX

 2
43510A - SEAL, OIL (FOR FRONT AXLE HUB)
90311-62001

HJ6#

 2
43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
90368-49084

HJ6#

 2
43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
90368-45087

HJ6#

 2
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90214-42030

HJ6#

 2
43512 - DISC, FRONT
43512-60040

FJ62,HJ6#

 2
43521 - NUT, FRONT WHEEL ADJUSTING
43521-60011

HJ6#

 4
43521 - NUT, FRONT WHEEL ADJUSTING
43521-60011

HJ6#

 4
43523 - WASHER, FRONT WHEEL ADJUSTING LOCK
90215-42025

HJ6#

 2
43530 - HUB ASSY, FREE WHEEL
43530-69017

HJ6#..GX,VX

 2
43531 - GASKET, FREE WHEEL HUB
43531-60010

HJ6#..GX,VX

 2
43532 - RING, FREE WHEEL HUB
43532-60010

HJ6#..GX,VX

 2
Common parts
90119-06024
90170-08204
90176-08030
91112-71025
94512-00800
94512-01000
