HJ61LG-MEXW (1987)
Toyota Land Cruiser
(8708- )2H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22101 - HOUSING SUB-ASSY, INJECTION PUMP | ||||
| 22190-68150 |
12HT..HJ61 |
1 | ||
| 22102 - PLATE SET, VALVE HOLDER LOCK | ||||
| 22102-58230 |
12HT..HJ61 |
3 | ||
| 22103 - COVER SUB-ASSY, INJECTION PUMP | ||||
| 22103-68150 |
12HT..HJ61 |
1 | ||
| 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY | ||||
| 22104-68150 |
12HT..HJ61 |
6 | ||
| 22105 - ELEMENT SUB-ASSY, INJECTION PUMP | ||||
| 22105-68150 |
12HT..HJ61 |
6 | ||
| 22105-68160 |
12HT..HJ61 COLD SPEC |
6 | ||
| 22106 - TAPPET SUB-ASSY, INJECTION PUMP | ||||
| 22106-46010 |
12HT,2H..HJ6# |
6 | ||
| 22111 - COVER, INJECTION PUMP CAMSHAFT BEARING | ||||
| 22111-68150 |
12HT..HJ61 |
1 | ||
| 22114 - RACK, CONTROL | ||||
| 22114-68150 |
12HT..HJ61 |
1 | ||
| 22115 - SCREW, RACK GUIDE | ||||
| 22115-77020 |
12HT,2H..HJ6#..MTM |
1 | ||
| 22116 - COVER, CONTROL RACK | ||||
| 22116-46010 |
12HT,2H..HJ6#..MTM |
1 | ||
| 22131 - HOLDER, DELIVERY VALVE | ||||
| 22131-78030 |
12HT..HJ61 |
6 | ||
| 22142 - SLEEVE, PLUNGER CONTROL | ||||
| 22142-68150 |
12HT..HJ61 |
6 | ||
| 22143 - SEAT, SPRING UPPER | ||||
| 22143-68150 |
12HT..HJ61 |
6 | ||
| 22144 - SPRING, PUMP PLUNGER | ||||
| 22144-46010 |
12HT,2H..HJ6# |
6 | ||
| 22145 - SEAT, SPRING, LOWER | ||||
| 22145-78030 |
12HT..HJ61 |
6 | ||
| 22146 - CAMSHAFT, INJECTION PUMP | ||||
| 22146-68150 |
12HT..HJ61 |
1 | ||
| 22146A - BEARING(FOR INJECTION CAMSHAFT) | ||||
| 90099-10087 |
12HT..HJ61 NO.1 |
1 | ||
| 90099-10151 |
12HT..HJ61 NO.2 |
1 | ||
| 22146A - BEARING(FOR INJECTION CAMSHAFT) | ||||
| 90099-10087 |
12HT..HJ61 NO.1 |
1 | ||
| 90099-10151 |
12HT..HJ61 NO.2 |
1 | ||
| 22147 - RING, CAMSHAFT ADJUST | ||||
| 22147-77020 |
12HT..HJ61 NO.1 |
1 | ||
| 22147-78030 |
12HT..HJ61 NO.2 |
1 | ||
| 22147 - RING, CAMSHAFT ADJUST | ||||
| 22147-77020 |
12HT..HJ61 NO.1 |
1 | ||
| 22147-78030 |
12HT..HJ61 NO.2 |
1 | ||
| 22148 - SPRING, DELIVERY VALVE | ||||
| 22148-78030 |
12HT..HJ61 |
6 | ||
| 22149 - GASKET, DELIVERY VALVE | ||||
| 22149-78030 |
12HT..HJ61 |
6 | ||
| 22150 - BLEEDER SUB-ASSY, AIR | ||||
| 22160-78030 |
12HT..HJ61 |
1 | ||
| 22155 - PINION, PLUNGER CONTROL | ||||
| 22155-68150 |
12HT..HJ61 |
6 | ||
| 22156 - SCREW, PLUNGER CONTROL PINION CLAMP | ||||
| 22156-76010 |
12HT,2H..HJ6# |
6 | ||
| 22157 - PLUG, INJECTION PUMP FELT PLATE | ||||
| 22157-48023 |
12HT,2H..HJ6#..MTM |
6 | ||
| 22161 - PLATE, CAMSHAFT SHIM | ||||
| 22161-76010 |
12HT..HJ61 T=0.10,NO.1,T=0.10 |
3 | ||
| 22164-76010 |
12HT..HJ61 T=0.16,T=0.16,NO.1 |
3 | ||
| 22162-76010 |
12HT..HJ61 T=0.12,T=0.12,NO.1 |
3 | ||
| 22166-78033 |
12HT..HJ61 T=0.15,T=0.15,NO.2 |
3 | ||
| 22163-76010 |
12HT..HJ61 T=0.14,T=0.14,NO.1 |
3 | ||
| 22165-76010 |
12HT..HJ61 T=0.18,T=0.18,NO.1 |
3 | ||
| 22166-78035 |
12HT..HJ61 T=0.50,NO.2,T=0.50 |
3 | ||
| 22166-78037 |
12HT..HJ61 T=1.50,T=1.50,NO.2 |
3 | ||
| 22166-76010 |
12HT..HJ61 T=0.50,NO.1,T=0.50 |
3 | ||
| 22166-78032 |
12HT..HJ61 T=0.10,NO.2,T=0.10 |
3 | ||
| 22166-78034 |
12HT..HJ61 T=0.30,T=0.30,NO.2 |
3 | ||
| 22166-78036 |
12HT..HJ61 T=1.00,T=1.00,NO.2 |
3 | ||
| 22161 - PLATE, CAMSHAFT SHIM | ||||
| 22161-76010 |
12HT..HJ61 T=0.10,NO.1,T=0.10 |
3 | ||
| 22164-76010 |
12HT..HJ61 T=0.16,T=0.16,NO.1 |
3 | ||
| 22162-76010 |
12HT..HJ61 T=0.12,T=0.12,NO.1 |
3 | ||
| 22166-78033 |
12HT..HJ61 T=0.15,T=0.15,NO.2 |
3 | ||
| 22163-76010 |
12HT..HJ61 T=0.14,T=0.14,NO.1 |
3 | ||
| 22165-76010 |
12HT..HJ61 T=0.18,T=0.18,NO.1 |
3 | ||
| 22166-78035 |
12HT..HJ61 T=0.50,NO.2,T=0.50 |
3 | ||
| 22166-78037 |
12HT..HJ61 T=1.50,T=1.50,NO.2 |
3 | ||
| 22166-76010 |
12HT..HJ61 T=0.50,NO.1,T=0.50 |
3 | ||
| 22166-78032 |
12HT..HJ61 T=0.10,NO.2,T=0.10 |
3 | ||
| 22166-78034 |
12HT..HJ61 T=0.30,T=0.30,NO.2 |
3 | ||
| 22166-78036 |
12HT..HJ61 T=1.00,T=1.00,NO.2 |
3 | ||
| 22174A - KEY(FOR SPLINE SHAFT) | ||||
| 90099-13023 |
12HT..HJ61 |
1 | ||
| 22182 - PLATE, TAPPET ADJUSTING SHIM | ||||
| 22183-46010 |
12HT,2H..HJ6# T=0.20 |
6 | ||
| 22184-46010 |
12HT,2H..HJ6# T=0.30 |
6 | ||
| 22185-46010 |
12HT,2H..HJ6# T=0.40 |
6 | ||
| 22186-48010 |
12HT,2H..HJ6# T=0.15 |
6 | ||
| 22189-48036 |
12HT,2H..HJ6# T=1.40 |
6 | ||
| 22189-48034 |
12HT,2H..HJ6# T=1.20 |
6 | ||
| 22189-48035 |
12HT,2H..HJ6# T=1.30 |
6 | ||
| 22186-46010 |
12HT,2H..HJ6# T=0.50 |
6 | ||
| 22189-48032 |
12HT,2H..HJ6# T=1.00 |
6 | ||
| 22189-48031 |
12HT,2H..HJ6# T=0.90 |
6 | ||
| 22189-48033 |
12HT,2H..HJ6# T=1.10 |
6 | ||
| 22189-46010 |
12HT,2H..HJ6# T=0.80 |
6 | ||
| 22187-46010 |
12HT,2H..HJ6# T=0.60 |
6 | ||
| 22188-46010 |
12HT,2H..HJ6# T=0.70 |
6 | ||
| 22182-46010 |
12HT,2H..HJ6# T=0.10 |
6 | ||
| 22195 - GASKET, BEARING COVER | ||||
| 22195-68150 |
12HT..HJ61 |
1 | ||
| 22611 - NUT, TIMER ROUND | ||||
| 22611-78030 |
12HT..HJ61 |
1 | ||
| Common parts | ||||
| 90099-01451 | ||||
| 90099-18010 | ||||
| 90401-10006 | ||||
| 91611-40814 | ||||
| 91611-60620 | ||||
| 94712-77121 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2206 | ||||

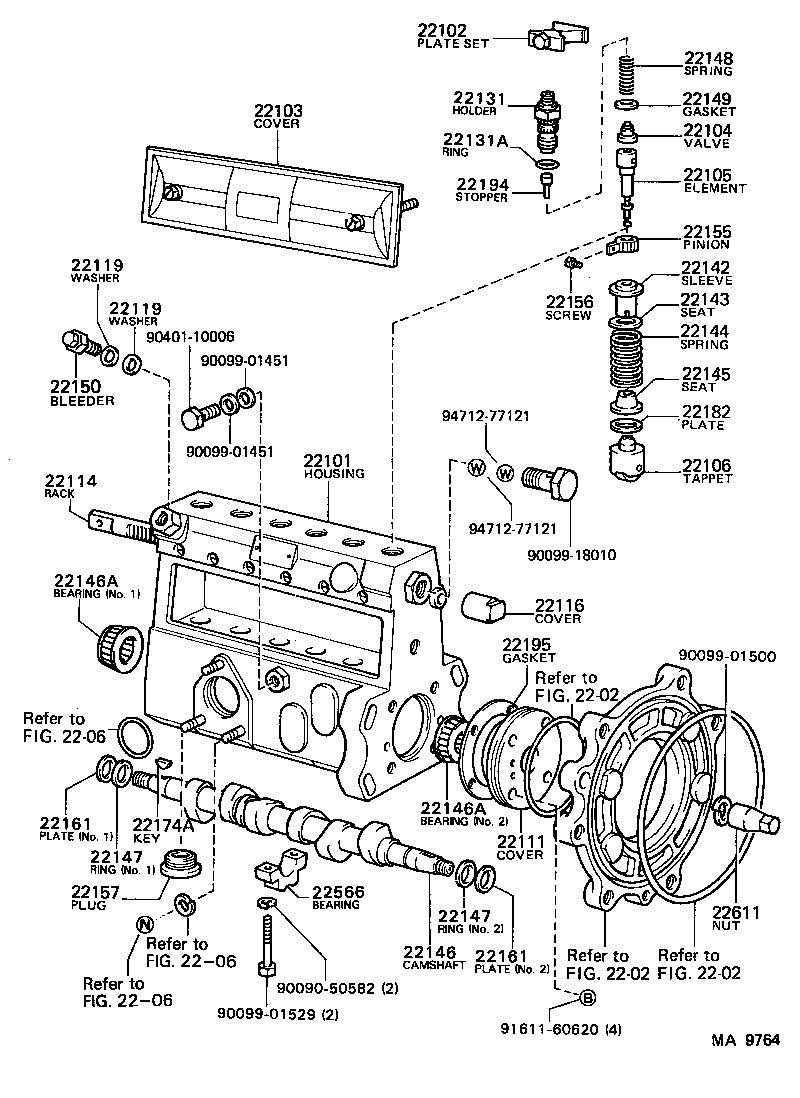

(8708- )12HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22101 - HOUSING SUB-ASSY, INJECTION PUMP | ||||
| 22190-68150 |
12HT..HJ61 |
1 | ||
| 22102 - PLATE SET, VALVE HOLDER LOCK | ||||
| 22102-58230 |
12HT..HJ61 |
3 | ||
| 22103 - COVER SUB-ASSY, INJECTION PUMP | ||||
| 22103-68150 |
12HT..HJ61 |
1 | ||
| 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY | ||||
| 22104-68150 |
12HT..HJ61 |
6 | ||
| 22105 - ELEMENT SUB-ASSY, INJECTION PUMP | ||||
| 22105-68150 |
12HT..HJ61 |
6 | ||
| 22105-68160 |
12HT..HJ61 COLD SPEC |
6 | ||
| 22106 - TAPPET SUB-ASSY, INJECTION PUMP | ||||
| 22106-46010 |
12HT,2H..HJ6# |
6 | ||
| 22111 - COVER, INJECTION PUMP CAMSHAFT BEARING | ||||
| 22111-68150 |
12HT..HJ61 |
1 | ||
| 22114 - RACK, CONTROL | ||||
| 22114-68150 |
12HT..HJ61 |
1 | ||
| 22116 - COVER, CONTROL RACK | ||||
| 22116-46010 |
12HT,2H..HJ6#..MTM |
1 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
12HT..HJ61 |
2 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
12HT..HJ61 |
2 | ||
| 22131 - HOLDER, DELIVERY VALVE | ||||
| 22131-78030 |
12HT..HJ61 |
6 | ||
| 22131A - RING, O(FOR DELIVERY VALVE HOLDER) | ||||
| 90099-14070 |
12HT..HJ61 |
6 | ||
| 22142 - SLEEVE, PLUNGER CONTROL | ||||
| 22142-68150 |
12HT..HJ61 |
6 | ||
| 22143 - SEAT, SPRING UPPER | ||||
| 22143-68150 |
12HT..HJ61 |
6 | ||
| 22144 - SPRING, PUMP PLUNGER | ||||
| 22144-46010 |
12HT,2H..HJ6# |
6 | ||
| 22145 - SEAT, SPRING, LOWER | ||||
| 22145-78030 |
12HT..HJ61 |
6 | ||
| 22146 - CAMSHAFT, INJECTION PUMP | ||||
| 22146-68150 |
12HT..HJ61 |
1 | ||
| 22146A - BEARING(FOR INJECTION CAMSHAFT) | ||||
| 90099-10087 |
12HT..HJ61 NO.1 |
1 | ||
| 90099-10151 |
12HT..HJ61 NO.2 |
1 | ||
| 22146A - BEARING(FOR INJECTION CAMSHAFT) | ||||
| 90099-10087 |
12HT..HJ61 NO.1 |
1 | ||
| 90099-10151 |
12HT..HJ61 NO.2 |
1 | ||
| 22147 - RING, CAMSHAFT ADJUST | ||||
| 22147-77020 |
12HT..HJ61 NO.1 |
1 | ||
| 22147-78030 |
12HT..HJ61 NO.2 |
1 | ||
| 22147 - RING, CAMSHAFT ADJUST | ||||
| 22147-77020 |
12HT..HJ61 NO.1 |
1 | ||
| 22147-78030 |
12HT..HJ61 NO.2 |
1 | ||
| 22148 - SPRING, DELIVERY VALVE | ||||
| 22148-78030 |
12HT..HJ61 |
6 | ||
| 22149 - GASKET, DELIVERY VALVE | ||||
| 22149-78030 |
12HT..HJ61 |
6 | ||
| 22150 - BLEEDER SUB-ASSY, AIR | ||||
| 22160-78030 |
12HT..HJ61 |
1 | ||
| 22155 - PINION, PLUNGER CONTROL | ||||
| 22155-68150 |
12HT..HJ61 |
6 | ||
| 22156 - SCREW, PLUNGER CONTROL PINION CLAMP | ||||
| 22156-76010 |
12HT,2H..HJ6# |
6 | ||
| 22157 - PLUG, INJECTION PUMP FELT PLATE | ||||
| 22157-48023 |
12HT,2H..HJ6#..MTM |
6 | ||
| 22161 - PLATE, CAMSHAFT SHIM | ||||
| 22161-76010 |
12HT..HJ61 T=0.10,NO.1,T=0.10 |
3 | ||
| 22164-76010 |
12HT..HJ61 T=0.16,T=0.16,NO.1 |
3 | ||
| 22162-76010 |
12HT..HJ61 T=0.12,T=0.12,NO.1 |
3 | ||
| 22166-78033 |
12HT..HJ61 T=0.15,T=0.15,NO.2 |
3 | ||
| 22163-76010 |
12HT..HJ61 T=0.14,T=0.14,NO.1 |
3 | ||
| 22165-76010 |
12HT..HJ61 T=0.18,T=0.18,NO.1 |
3 | ||
| 22166-78035 |
12HT..HJ61 T=0.50,NO.2,T=0.50 |
3 | ||
| 22166-78037 |
12HT..HJ61 T=1.50,T=1.50,NO.2 |
3 | ||
| 22166-76010 |
12HT..HJ61 T=0.50,NO.1,T=0.50 |
3 | ||
| 22166-78032 |
12HT..HJ61 T=0.10,NO.2,T=0.10 |
3 | ||
| 22166-78034 |
12HT..HJ61 T=0.30,T=0.30,NO.2 |
3 | ||
| 22166-78036 |
12HT..HJ61 T=1.00,T=1.00,NO.2 |
3 | ||
| 22161 - PLATE, CAMSHAFT SHIM | ||||
| 22161-76010 |
12HT..HJ61 T=0.10,NO.1,T=0.10 |
3 | ||
| 22164-76010 |
12HT..HJ61 T=0.16,T=0.16,NO.1 |
3 | ||
| 22162-76010 |
12HT..HJ61 T=0.12,T=0.12,NO.1 |
3 | ||
| 22166-78033 |
12HT..HJ61 T=0.15,T=0.15,NO.2 |
3 | ||
| 22163-76010 |
12HT..HJ61 T=0.14,T=0.14,NO.1 |
3 | ||
| 22165-76010 |
12HT..HJ61 T=0.18,T=0.18,NO.1 |
3 | ||
| 22166-78035 |
12HT..HJ61 T=0.50,NO.2,T=0.50 |
3 | ||
| 22166-78037 |
12HT..HJ61 T=1.50,T=1.50,NO.2 |
3 | ||
| 22166-76010 |
12HT..HJ61 T=0.50,NO.1,T=0.50 |
3 | ||
| 22166-78032 |
12HT..HJ61 T=0.10,NO.2,T=0.10 |
3 | ||
| 22166-78034 |
12HT..HJ61 T=0.30,T=0.30,NO.2 |
3 | ||
| 22166-78036 |
12HT..HJ61 T=1.00,T=1.00,NO.2 |
3 | ||
| 22174A - KEY(FOR SPLINE SHAFT) | ||||
| 90099-13023 |
12HT..HJ61 |
1 | ||
| 22182 - PLATE, TAPPET ADJUSTING SHIM | ||||
| 22183-46010 |
12HT,2H..HJ6# T=0.20 |
6 | ||
| 22184-46010 |
12HT,2H..HJ6# T=0.30 |
6 | ||
| 22185-46010 |
12HT,2H..HJ6# T=0.40 |
6 | ||
| 22186-48010 |
12HT,2H..HJ6# T=0.15 |
6 | ||
| 22189-48036 |
12HT,2H..HJ6# T=1.40 |
6 | ||
| 22189-48034 |
12HT,2H..HJ6# T=1.20 |
6 | ||
| 22189-48035 |
12HT,2H..HJ6# T=1.30 |
6 | ||
| 22186-46010 |
12HT,2H..HJ6# T=0.50 |
6 | ||
| 22189-48032 |
12HT,2H..HJ6# T=1.00 |
6 | ||
| 22189-48031 |
12HT,2H..HJ6# T=0.90 |
6 | ||
| 22189-48033 |
12HT,2H..HJ6# T=1.10 |
6 | ||
| 22189-46010 |
12HT,2H..HJ6# T=0.80 |
6 | ||
| 22187-46010 |
12HT,2H..HJ6# T=0.60 |
6 | ||
| 22188-46010 |
12HT,2H..HJ6# T=0.70 |
6 | ||
| 22182-46010 |
12HT,2H..HJ6# T=0.10 |
6 | ||
| 22194 - STOPPER, DELIVERY VALVE | ||||
| 22194-78030 |
12HT..HJ61 |
6 | ||
| 22195 - GASKET, BEARING COVER | ||||
| 22195-68150 |
12HT..HJ61 |
1 | ||
| 22566 - BEARING(FOR INJECTION PUMP CAMSHAFT CENTOR) | ||||
| 22566-68150 |
12HT..HJ61 |
1 | ||
| 22611 - NUT, TIMER ROUND | ||||
| 22611-78030 |
12HT..HJ61 |
1 | ||
| Common parts | ||||
| 90090-50582 | ||||
| 90099-01451 | ||||
| 90099-01500 | ||||
| 90099-01529 | ||||
| 90099-18010 | ||||
| 90401-10006 | ||||
| 91611-60620 | ||||
| 94712-77121 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2206 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
