HJ60RV-KC (1982)

Toyota Land Cruiser

Production Oct 1982 - Aug 1987
Engine 2H
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

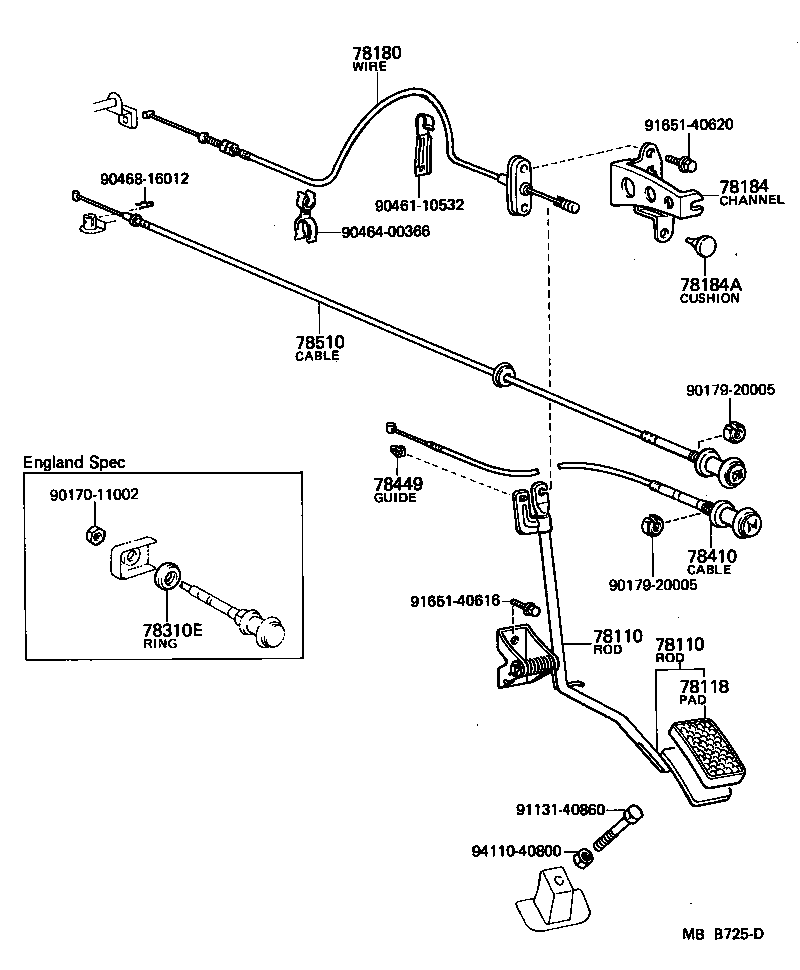

(8008-8411)HJ60..RHD

Click highlighted areas on diagram

diagram 78110 78110 78118 78180 78184 78184A 78310E 78410 78449 78510 9017011002 9017920005 9017920005 9046110532 9046400366 9046816012 9113140860 9165140616 9165140620 9411040800
Part # Description Qty Price
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-90A05

BJ60,FJ62,HJ6#..RHD

W/THROTTLE BUTTON

 1
78120-90A01

BJ60,FJ60,HJ60..RHD

W/THROTTLE BUTTON

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-90A05

BJ60,FJ62,HJ6#..RHD

W/THROTTLE BUTTON

 1
78120-90A01

BJ60,FJ60,HJ60..RHD

W/THROTTLE BUTTON

 1
78118 - PAD, ACCELERATOR PEDAL
78111-95110

BJ60,FJ6#,HJ6#

 1
78180 - WIRE ASSY, ACCELERATOR
78180-90A01

HJ60..RHD

 1
78180-90A19

HJ60..RHD..MTM

 1
78180-90A20

HJ60..RHD

 1
78180-90A27

HJ60..RHD..SRF

 1
78184 - CHANNEL, ACCELERATOR IDLE ADJUSTING STOPPER
78184-90A01

HJ60..RHD..MTM

 1
78184-90A00

BJ60,FJ60,HJ60..RHD

 1
78184-90A01

BJ60,FJ62,HJ60..RHD

 1
78184A - CUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL)
90541-06008

BJ60,FJ6#,HJ6#..RHD

 1
78410 - CABLE ASSY, THROTTLE CONTROL
78410-90A00

BJ60,FJ60,HJ60..RHD..(EUR,GEN)

 1
78410-90A00

BJ60,FJ62,HJ6#..RHD

 1
78449 - GUIDE, THROTTLE CABLE
78449-90300

BJ60,FJ6#,HJ60

 1
78510 - CABLE ASSY, STOP
78510-90A00

HJ60..RHD..GEN

 1
Common parts
90170-11002
90179-20005
90461-10532
90464-00366
90468-16012
91131-40860
91651-40616
91651-40620
94110-40800

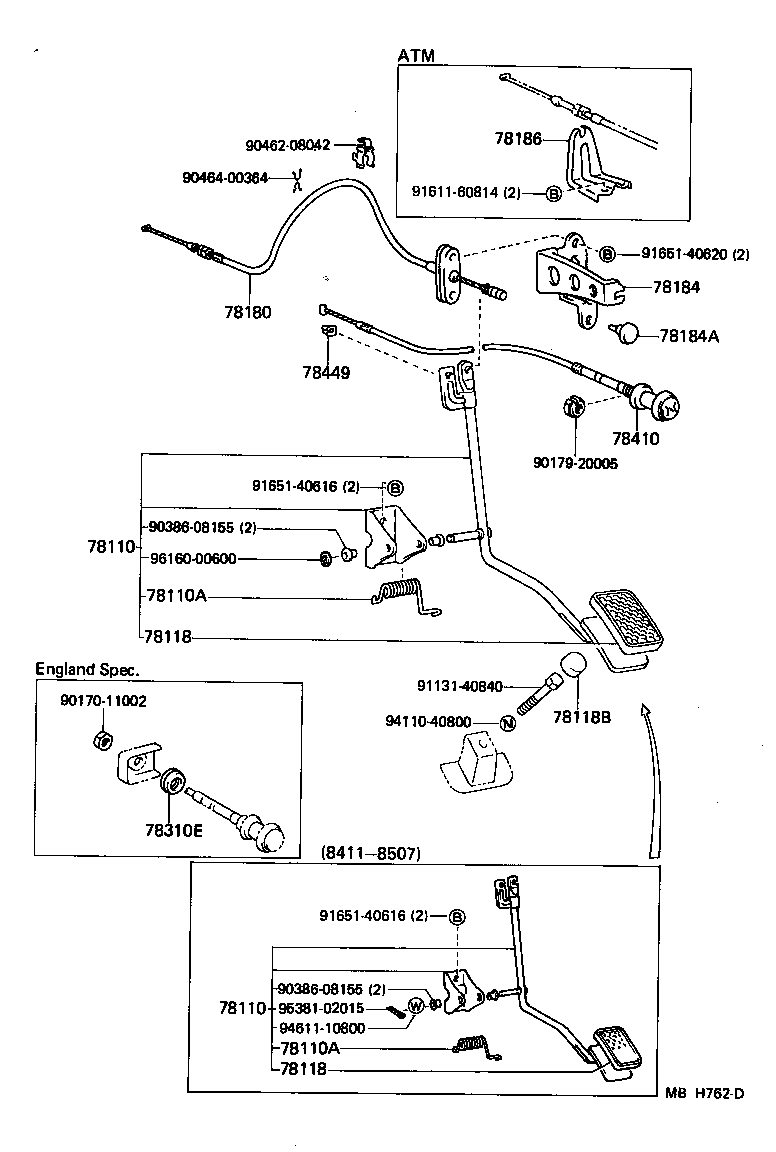

(8411- )HJ60..RHD

Click highlighted areas on diagram

diagram 78110 78110 78110A 78110A 78118 78118 78118B 78180 78184 78184A 78186 78310E 78410 78449 9017011002 9017920005 9038608155 9038608155 9046208042 9046400364 9113140840 9161160814 9165140616 9165140616 9165140620 9411040800 9461110800 9538102015 9616000600
Part # Description Qty Price
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-90A05

BJ60,FJ62,HJ6#..RHD

W/THROTTLE BUTTON

 1
78120-90A01

BJ60,FJ60,HJ60..RHD

W/THROTTLE BUTTON

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-90A05

BJ60,FJ62,HJ6#..RHD

W/THROTTLE BUTTON

 1
78120-90A01

BJ60,FJ60,HJ60..RHD

W/THROTTLE BUTTON

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-26046

BJ60,FJ62,HJ60..RHD

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-26046

BJ60,FJ62,HJ60..RHD

 1
78118 - PAD, ACCELERATOR PEDAL
78111-95110

BJ60,FJ6#,HJ6#

 1
78118 - PAD, ACCELERATOR PEDAL
78111-95110

BJ60,FJ6#,HJ6#

 1
78118B - STOPPER, ACCELERATOR PEDAL
78118-90K00

BJ60,FJ62,HJ6#

 1
78180 - WIRE ASSY, ACCELERATOR
78180-90A01

HJ60..RHD

 1
78180-90A19

HJ60..RHD..MTM

 1
78180-90A20

HJ60..RHD

 1
78180-90A27

HJ60..RHD..SRF

 1
78184 - CHANNEL, ACCELERATOR IDLE ADJUSTING STOPPER
78184-90A01

HJ60..RHD..MTM

 1
78184-90A00

BJ60,FJ60,HJ60..RHD

 1
78184-90A01

BJ60,FJ62,HJ60..RHD

 1
78184A - CUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL)
90541-06008

BJ60,FJ6#,HJ6#..RHD

 1
78410 - CABLE ASSY, THROTTLE CONTROL
78410-90A00

BJ60,FJ60,HJ60..RHD..(EUR,GEN)

 1
78410-90A00

BJ60,FJ62,HJ6#..RHD

 1
78449 - GUIDE, THROTTLE CABLE
78449-90300

BJ60,FJ6#,HJ60

 1
Common parts
90170-11002
90179-20005
90386-08155
90462-08042
90464-00364
91131-40840
91611-60814
91651-40616
91651-40620
94110-40800
94611-10800
95381-02015
96160-00600
