HJ60RG-PZQ (1984)

Toyota Land Cruiser

Production Nov 1984 - Aug 1987
Engine 2H
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )

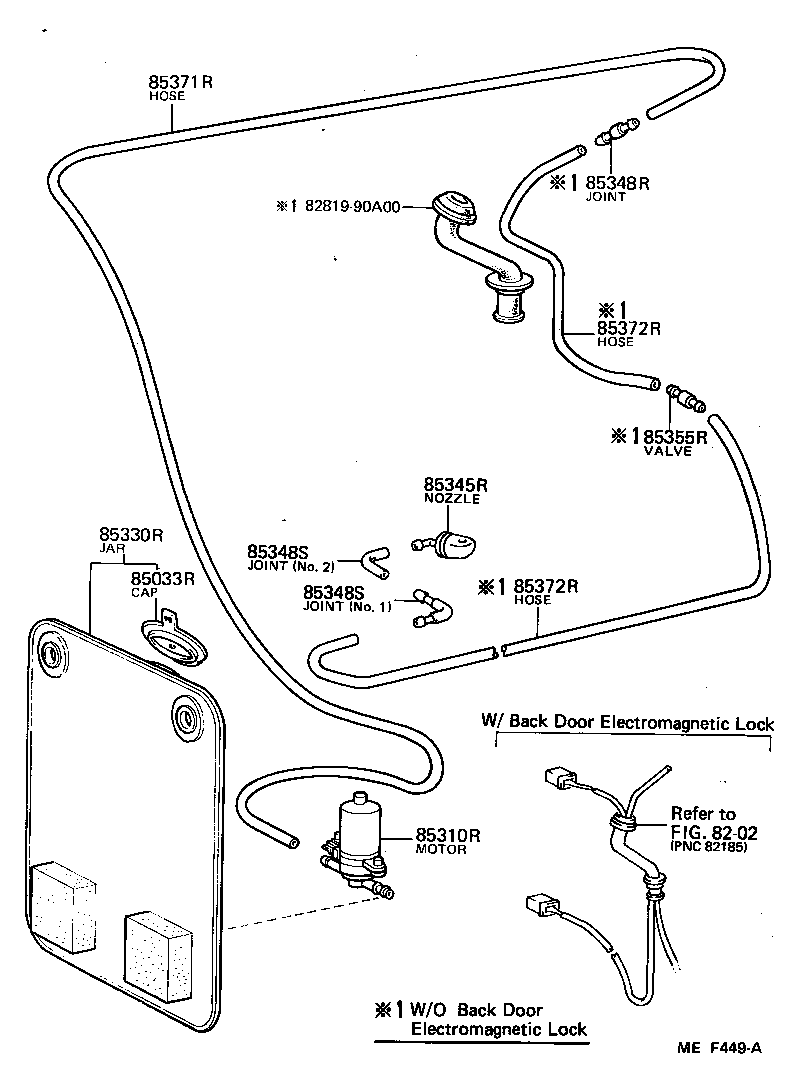

Click highlighted areas on diagram

diagram 8202 8281990A00 85033R 85310R 85330R 85345R 85348R 85348S 85348S 85355R 85371R 85372R 85372R
Part # Description Qty Price
85033R - CAP ASSY, REAR WASHER
85332-20050

FJ6#,HJ6#..LUB

 1
85310R - MOTOR ASSY, REAR WASHER
85310-20100

HJ60..LUB..(ARL,GEN)

12V

 1
85330R - JAR ASSY, REAR WASHER
85330-90A08

FJ62,HJ6#..LUB

 1
85330-90A05

FJ60,HJ60..LUB

 1
85345R - NOZZLE, REAR WASHER
85035-90A01

FJ60,HJ60..LUB

 1
85035-90A02

FJ62,HJ6#..LUB

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85355-10060

FJ60,HJ60..LUB

 1
85355-89122

FJ62,HJ6#..LUB

 1
85355-87201

FJ62,HJ60..LUB

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85355-20200

FJ62,HJ6#..LUB

NO.1

 1
85355-14481

FJ62,HJ6#..LUB

NO.2

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85355-20200

FJ62,HJ6#..LUB

NO.1

 1
85355-14481

FJ62,HJ6#..LUB

NO.2

 1
85355R - VALVE, REAR WASHER HOSE
85031-90A00

FJ6#,HJ6#..LUB

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-06292

FJ6#,HJ6#..LUB

*H,L=2300

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90446-06013

FJ6#,HJ6#..LUB

*H,L=950

 2
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90446-06013

FJ6#,HJ6#..LUB

*H,L=950

 2
Common parts
82819-90A00
Linked diagrams
8202
