HJ60RG-PW (1984)

Toyota Land Cruiser

Production Nov 1984 - Aug 1986
Engine 2H
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

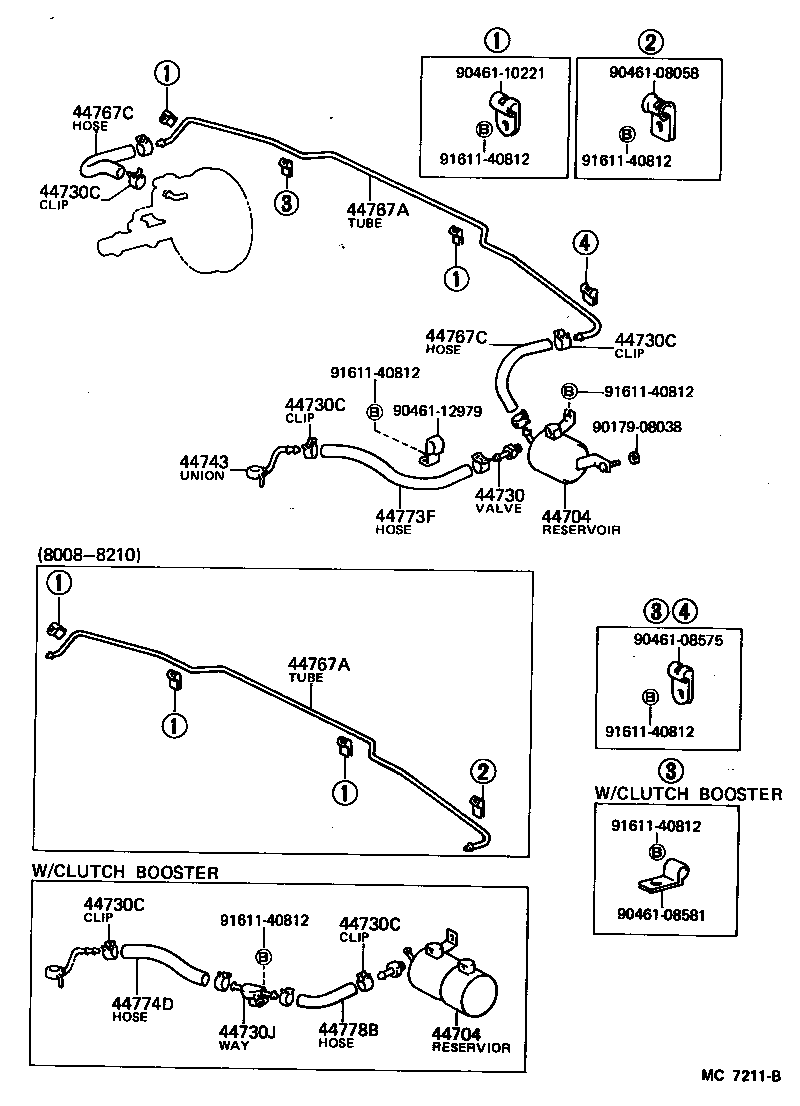

(8008-8510)HJ60..RHD

Click highlighted areas on diagram

diagram 44704 44704 44730 44730C 44730C 44730C 44730C 44730C 44730J 44743 44767A 44767A 44767C 44767C 44773F 44774D 44778B 9017908038 9046108058 9046108575 9046108581 9046110221 9046112979 9161140812 9161140812 9161140812 9161140812 9161140812 9161140812 9161140812
Part # Description Qty Price
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-60050

BJ60,HJ60

 1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-60050

BJ60,HJ60

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60040

BJ60,HJ6#

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16141

BJ60,FJ60,HJ60

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16141

BJ60,FJ60,HJ60

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16141

BJ60,FJ60,HJ60

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16141

BJ60,FJ60,HJ60

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16141

BJ60,FJ60,HJ60

 8
44743 - UNION(FOR VACUUM PUMP)
90405-09088

HJ60..4FC

 1
90405-09027

HJ60

 1
90405-09115

HJ60..4FC

 1
44767A - TUBE, VACUUM RESERVOIR TO BRAKE BOOSTER
44767-60020

HJ60..RHD

 1
44777-60090

HJ60..RHD

 1
44767A - TUBE, VACUUM RESERVOIR TO BRAKE BOOSTER
44767-60020

HJ60..RHD

 1
44777-60090

HJ60..RHD

 1
44767C - HOSE(FOR VACUUM RESERVOIR TO BRAKE BOOSTER)
90445-17002

HJ60..RHD

BOOSTER SIDE

 1
90445-17895

HJ60..RHD

RESERVOIR SIDE

 1
95441-09270

HJ6#..RHD

RESERVOIR SIDE

 1
44767C - HOSE(FOR VACUUM RESERVOIR TO BRAKE BOOSTER)
90445-17002

HJ60..RHD

BOOSTER SIDE

 1
90445-17895

HJ60..RHD

RESERVOIR SIDE

 1
95441-09270

HJ6#..RHD

RESERVOIR SIDE

 1
44773F - HOSE, UNION TO CHECK VALVE
90445-17008

HJ60

 1
Common parts
90179-08038
90461-08058
90461-08575
90461-08581
90461-10221
90461-12979
91611-40812

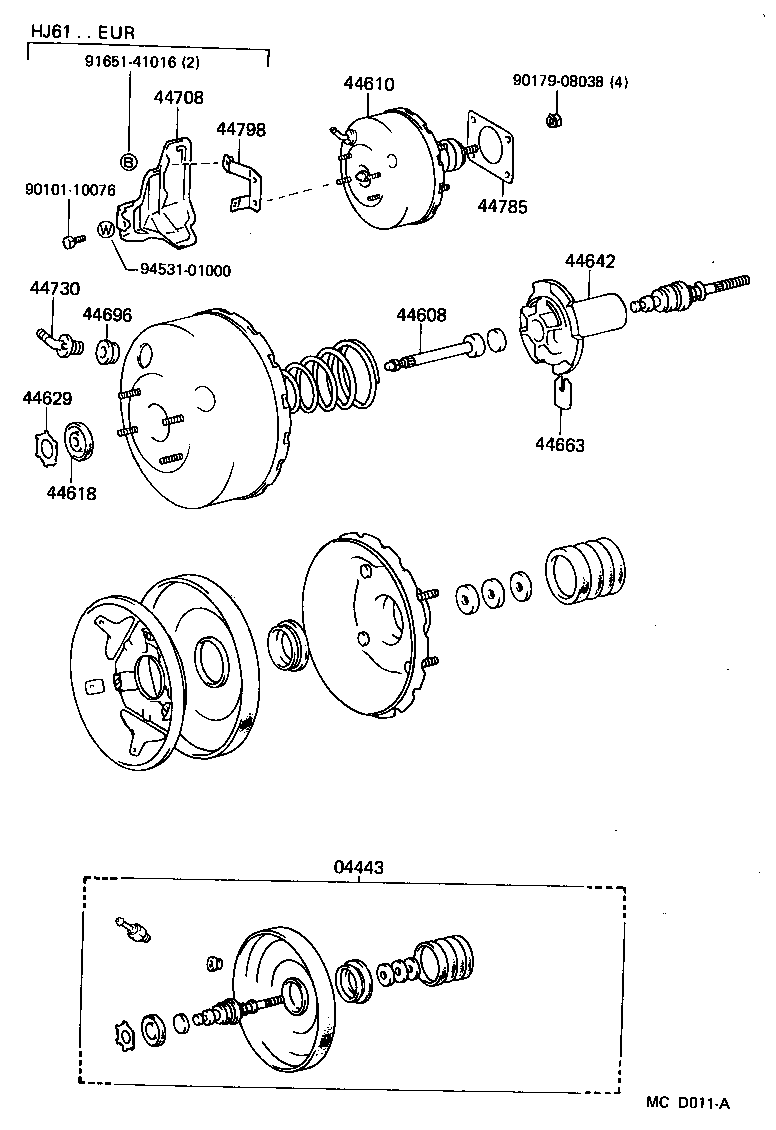

(8411- )BJ60,HJ6#

Click highlighted areas on diagram

diagram 04443 44608 44610 44618 44629 44642 44663 44696 44708 44730 44785 44798 9010110076 9017908038 9165141016 9453101000
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-60100

BJ60,HJ60

FR DISC BRAKE

 1
04443-60240

BJ60,HJ60

FR DISC BRAKE

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44606-35100

HJ60;BJ60,FJ60..ARL,GEN

 1
44610 - BOOSTER ASSY, BRAKE
44610-60120

BJ60,HJ60..RHD

FR DISC BRAKE

 1
44610-60400

HJ60..RHD

FR DISC BRAKE

 1
44629 - RING, CIRCULAR INTERNAL
44628-60010

BJ60,FJ60,HJ60

 1
44642 - PISTON, BRAKE BOOSTER
44642-30030

HJ60;BJ60,FJ60..ARL,GEN

FR DISC BRAKE

 1
44642-60280

BJ60,FJ62,HJ60

FR DISC BRAKE

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60040

BJ60,HJ6#

 1
Common parts
90101-10076
90179-08038
91651-41016
94531-01000

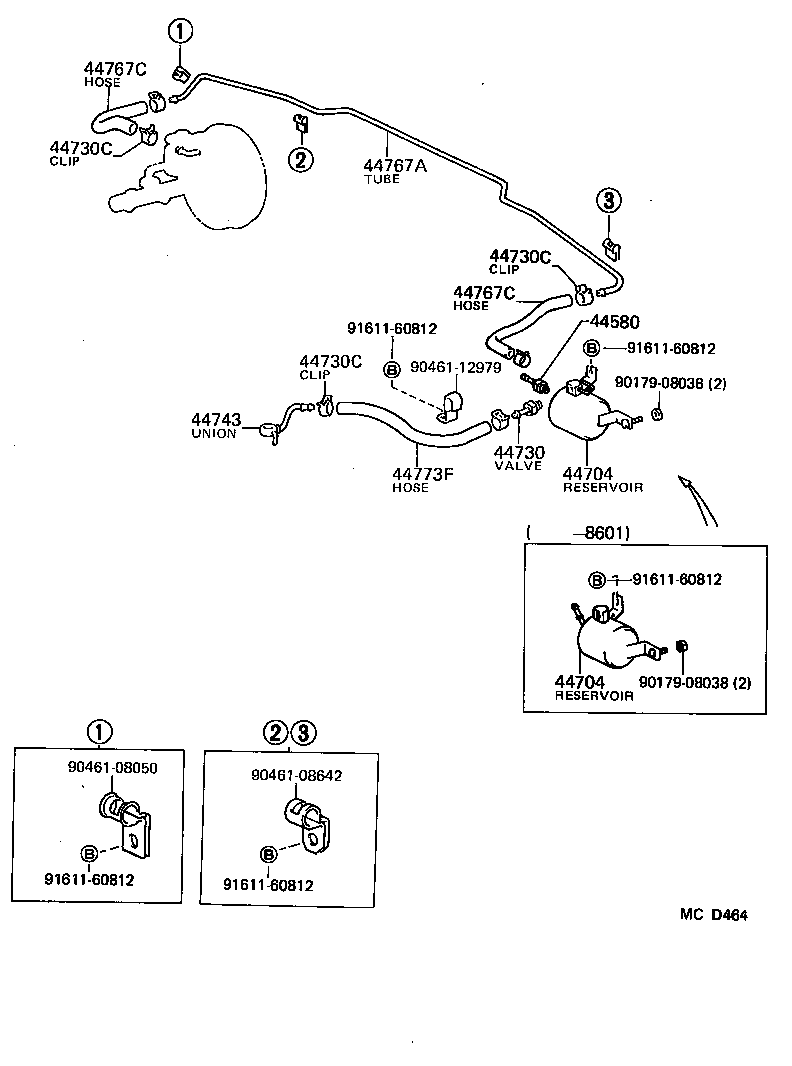

(8510- )HJ6#..RHD..4FC

Click highlighted areas on diagram

diagram 44580 44704 44704 44730 44730C 44730C 44730C 44743 44767A 44767C 44767C 44773F 9017908038 9017908038 9046108050 9046108642 9046112979 9161160812 9161160812 9161160812 9161160812 9161160812
Part # Description Qty Price
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-60050

BJ60,HJ60

 1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-60050

BJ60,HJ60

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60040

BJ60,HJ6#

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16141

BJ60,FJ60,HJ60

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16141

BJ60,FJ60,HJ60

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16141

BJ60,FJ60,HJ60

 8
44743 - UNION(FOR VACUUM PUMP)
90405-09027

HJ60

 1
90405-09088

HJ60..4FC

 1
90405-09115

HJ60..4FC

 1
44767A - TUBE, VACUUM RESERVOIR TO BRAKE BOOSTER
44767-60020

HJ60..RHD

 1
44777-60090

HJ60..RHD

 1
44767C - HOSE(FOR VACUUM RESERVOIR TO BRAKE BOOSTER)
90445-17002

HJ60..RHD

BOOSTER SIDE

 1
90445-17895

HJ60..RHD

RESERVOIR SIDE

 1
95441-09270

HJ6#..RHD

RESERVOIR SIDE

 1
44767C - HOSE(FOR VACUUM RESERVOIR TO BRAKE BOOSTER)
90445-17002

HJ60..RHD

BOOSTER SIDE

 1
90445-17895

HJ60..RHD

RESERVOIR SIDE

 1
95441-09270

HJ6#..RHD

RESERVOIR SIDE

 1
44773F - HOSE, UNION TO CHECK VALVE
90445-17008

HJ60

 1
Common parts
90179-08038
90461-08050
90461-08642
90461-12979
91611-60812
