HJ60RG-MZQ (1983)
Toyota Land Cruiser

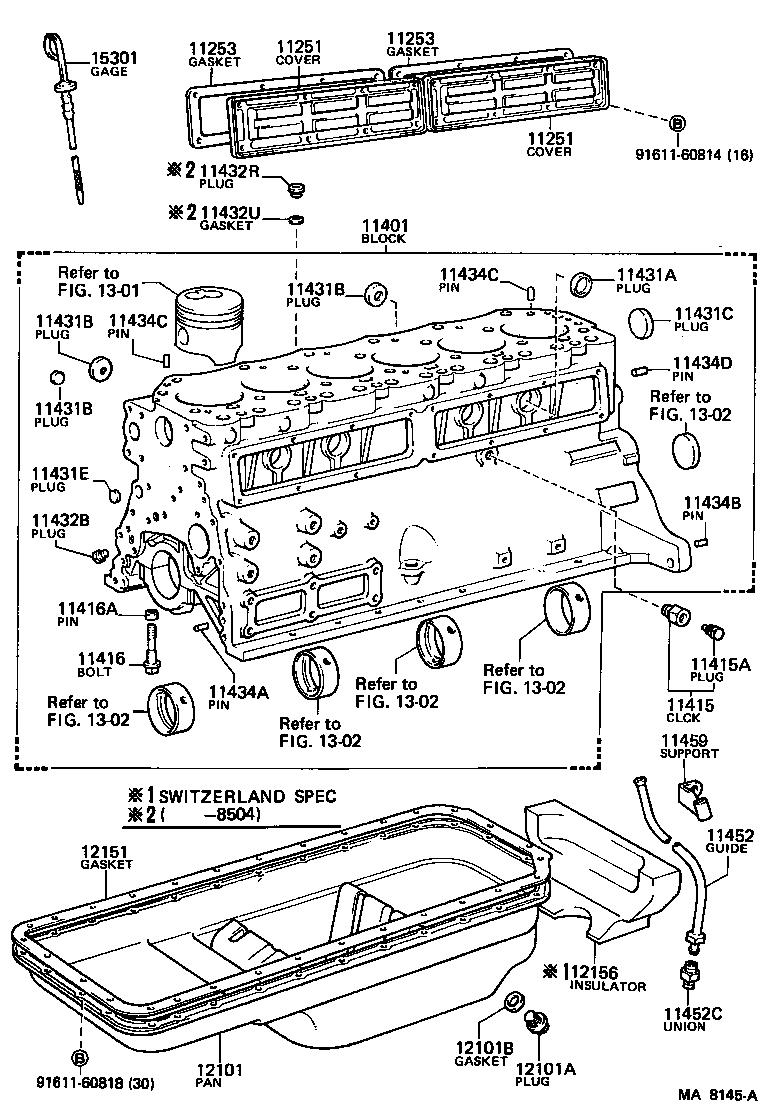

(8008-8411)2H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11251 - COVER, VALVE PUSH ROD | ||||
| 11251-68010 |
12HT,2H..HJ6# |
2 | ||
| 11251 - COVER, VALVE PUSH ROD | ||||
| 11251-68010 |
12HT,2H..HJ6# |
2 | ||
| 11253 - GASKET, VALVE PUSH ROD COVER | ||||
| 11253-68010 |
12HT,2H..HJ6# |
2 | ||
| 11253 - GASKET, VALVE PUSH ROD COVER | ||||
| 11253-68010 |
12HT,2H..HJ6# |
2 | ||
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-69195 |
2H..HJ60 |
1 | ||
| 11401-69075 |
2H..HJ60 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 96431-03833 |
2H..HJ60 |
1 | ||
| 90910-09070 |
2H..HJ60 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 96431-23814 |
2H..HJ60 |
1 | ||
| 90910-09072 |
2H..HJ60 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90105-13001 |
2H..HJ60 *13-1.5PX81-25 |
14 | ||
| 11416A - PIN, RING(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90253-18001 |
2H..HJ60 |
14 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
12HT,2H..HJ6# OD=35 |
4 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-42000 |
12HT,2H..HJ6# OD=20 |
1 | ||
| 90331-35003 |
12HT,2H..HJ6# OD=35,ID=14 |
2 | ||
| 90331-35002 |
12HT,2H..HJ6# OD=35,ID=12 |
2 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-42000 |
12HT,2H..HJ6# OD=20 |
1 | ||
| 90331-35003 |
12HT,2H..HJ6# OD=35,ID=14 |
2 | ||
| 90331-35002 |
12HT,2H..HJ6# OD=35,ID=12 |
2 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-42000 |
12HT,2H..HJ6# OD=20 |
1 | ||
| 90331-35003 |
12HT,2H..HJ6# OD=35,ID=14 |
2 | ||
| 90331-35002 |
12HT,2H..HJ6# OD=35,ID=12 |
2 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 90331-50015 |
2H..HJ60 OD=50 |
2 | ||
| 11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK) | ||||
| 90330-21012 |
2H..HJ60 OD=21 |
2 | ||
| 11432B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90345-51003 |
12HT,2H..HJ6# |
1 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-08054 |
12HT,2H..HJ6# L=23,OD=8,L=23,OD=8 |
1 | ||
| 90250-08120 |
12HT,2H..HJ6# L=18,OD=8,L=18,OD=8 |
4 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-08054 |
12HT,2H..HJ6# L=23,OD=8,L=23,OD=8 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08074 |
12HT,2H..HJ6# L=15,OD=8,RR,L=15,OD=8 |
1 | ||
| 90250-06037 |
12HT,2H..HJ6# L=12,OD=6,FR,L=12,OD=6 |
1 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08074 |
12HT,2H..HJ6# L=15,OD=8,RR,L=15,OD=8 |
1 | ||
| 90250-06037 |
12HT,2H..HJ6# L=12,OD=6,FR,L=12,OD=6 |
1 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-08054 |
12HT,2H..HJ6# L=23,OD=8,L=23,OD=8 |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11409-68010 |
2H..HJ60 |
1 | ||
| 11459 - SUPPORT, OIL LEVEL GAGE GUIDE | ||||
| 11459-68010 |
2H..HJ60 |
1 | ||
| 11459-68010 |
2H..HJ60 |
1 | ||
| 11459-68011 |
2H..HJ60 |
1 | ||
| 11462 - LINER, CYLINDER | ||||
| 11461-68010 |
2H..HJ60 |
6 | ||
| 11475 - SHIM, CYLINDER LINER | ||||
| 11475-68010 |
2H..HJ60 T=0.05 |
1 | ||
| 11476-68010 |
2H..HJ60 T=0.10 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-68011 |
2H..HJ60 |
1 | ||
| 12101-69045 |
2H..HJ60 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-18089 |
2H..HJ60 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-18244 |
2H..HJ60 |
1 | ||
| 12151 - GASKET, OIL PAN | ||||
| 12151-68010 |
2H..HJ60 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-68010 |
2H..HJ60 |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
| 91611-60816 | ||||
| 91611-60818 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1302 | ||||

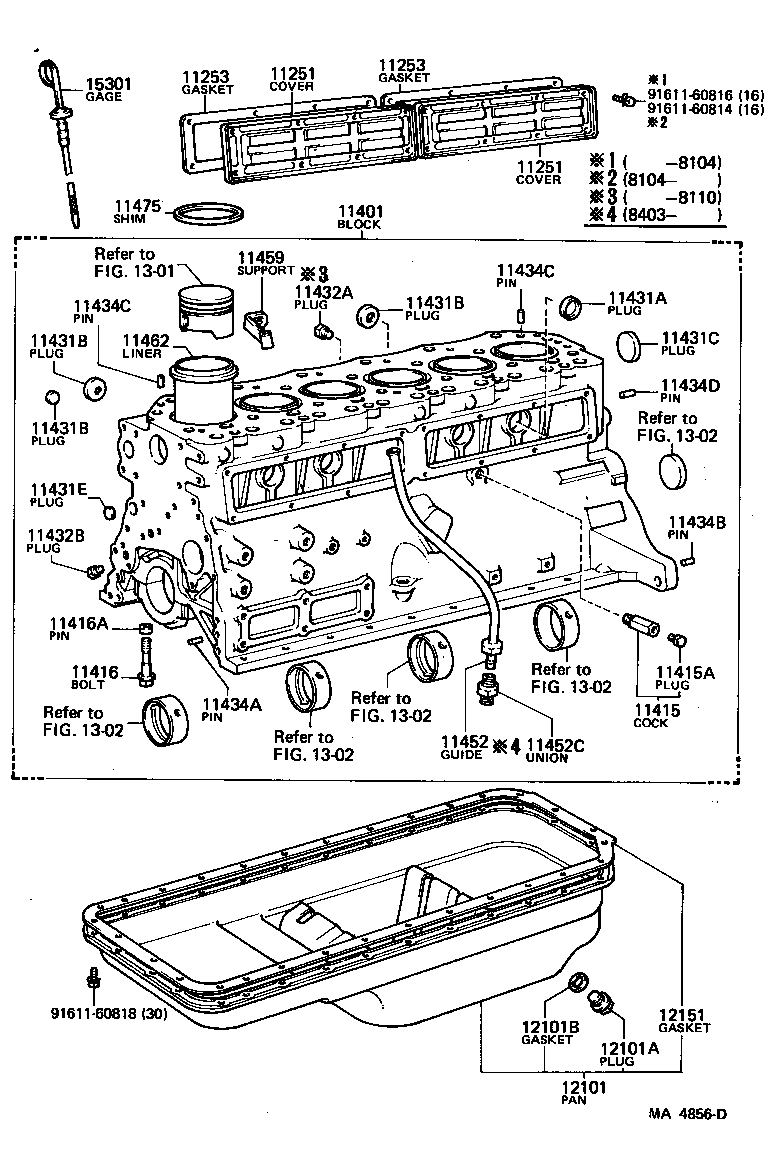

(8411-8510)2H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11251 - COVER, VALVE PUSH ROD | ||||
| 11251-68010 |
12HT,2H..HJ6# |
2 | ||
| 11251 - COVER, VALVE PUSH ROD | ||||
| 11251-68010 |
12HT,2H..HJ6# |
2 | ||
| 11253 - GASKET, VALVE PUSH ROD COVER | ||||
| 11253-68010 |
12HT,2H..HJ6# |
2 | ||
| 11253 - GASKET, VALVE PUSH ROD COVER | ||||
| 11253-68010 |
12HT,2H..HJ6# |
2 | ||
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-69195 |
2H..HJ60 |
1 | ||
| 11401-69075 |
2H..HJ60 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 96431-03833 |
2H..HJ60 |
1 | ||
| 90910-09070 |
2H..HJ60 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 96431-23814 |
2H..HJ60 |
1 | ||
| 90910-09072 |
2H..HJ60 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90105-13001 |
2H..HJ60 *13-1.5PX81-25 |
14 | ||
| 11416A - PIN, RING(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90253-18001 |
2H..HJ60 |
14 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
12HT,2H..HJ6# OD=35 |
4 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-42000 |
12HT,2H..HJ6# OD=20 |
1 | ||
| 90331-35003 |
12HT,2H..HJ6# OD=35,ID=14 |
2 | ||
| 90331-35002 |
12HT,2H..HJ6# OD=35,ID=12 |
2 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-42000 |
12HT,2H..HJ6# OD=20 |
1 | ||
| 90331-35003 |
12HT,2H..HJ6# OD=35,ID=14 |
2 | ||
| 90331-35002 |
12HT,2H..HJ6# OD=35,ID=12 |
2 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-42000 |
12HT,2H..HJ6# OD=20 |
1 | ||
| 90331-35003 |
12HT,2H..HJ6# OD=35,ID=14 |
2 | ||
| 90331-35002 |
12HT,2H..HJ6# OD=35,ID=12 |
2 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 90331-50015 |
2H..HJ60 OD=50 |
2 | ||
| 11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK) | ||||
| 90330-21012 |
2H..HJ60 OD=21 |
2 | ||
| 11432B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90345-51003 |
12HT,2H..HJ6# |
1 | ||
| 11432R - PLUG, W/HEAD STRAIGHT SCREW, NO.1(FOR CYLINDER BLOCK) | ||||
| 90341-10004 |
2H..HJ60 |
1 | ||
| 11432U - GASKET, STRAIGHT SCREW PLUG NO.1(FOR CYLINDER BLOCK) | ||||
| 90430-10204 |
2H..HJ60 |
1 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-08054 |
12HT,2H..HJ6# L=23,OD=8,L=23,OD=8 |
1 | ||
| 90250-08120 |
12HT,2H..HJ6# L=18,OD=8,L=18,OD=8 |
4 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-08054 |
12HT,2H..HJ6# L=23,OD=8,L=23,OD=8 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08074 |
12HT,2H..HJ6# L=15,OD=8,RR,L=15,OD=8 |
1 | ||
| 90250-06037 |
12HT,2H..HJ6# L=12,OD=6,FR,L=12,OD=6 |
1 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08074 |
12HT,2H..HJ6# L=15,OD=8,RR,L=15,OD=8 |
1 | ||
| 90250-06037 |
12HT,2H..HJ6# L=12,OD=6,FR,L=12,OD=6 |
1 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-08054 |
12HT,2H..HJ6# L=23,OD=8,L=23,OD=8 |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11409-68010 |
2H..HJ60 |
1 | ||
| 11459 - SUPPORT, OIL LEVEL GAGE GUIDE | ||||
| 11459-68010 |
2H..HJ60 |
1 | ||
| 11459-68010 |
2H..HJ60 |
1 | ||
| 11459-68011 |
2H..HJ60 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-68011 |
2H..HJ60 |
1 | ||
| 12101-69045 |
2H..HJ60 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-18089 |
2H..HJ60 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-18244 |
2H..HJ60 |
1 | ||
| 12151 - GASKET, OIL PAN | ||||
| 12151-68010 |
2H..HJ60 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-68010 |
2H..HJ60 |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
| 91611-60818 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1302 | ||||
