HJ60RG-MW (1982)
Toyota Land Cruiser
(8008-8411)

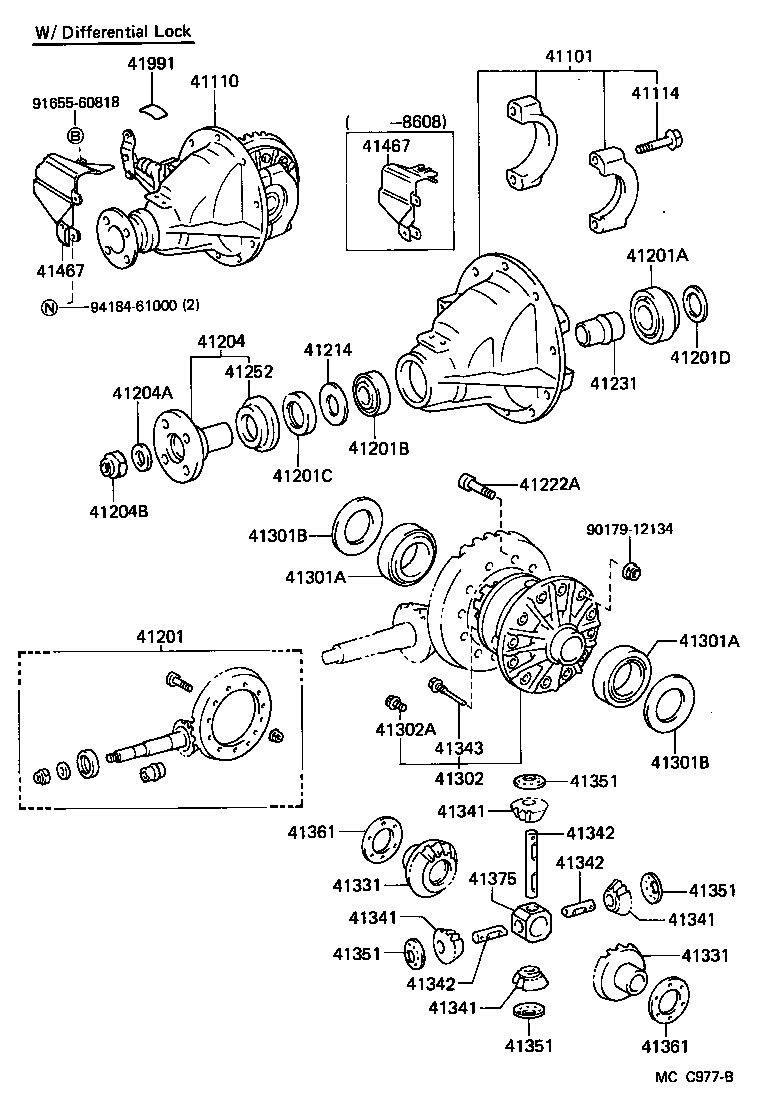

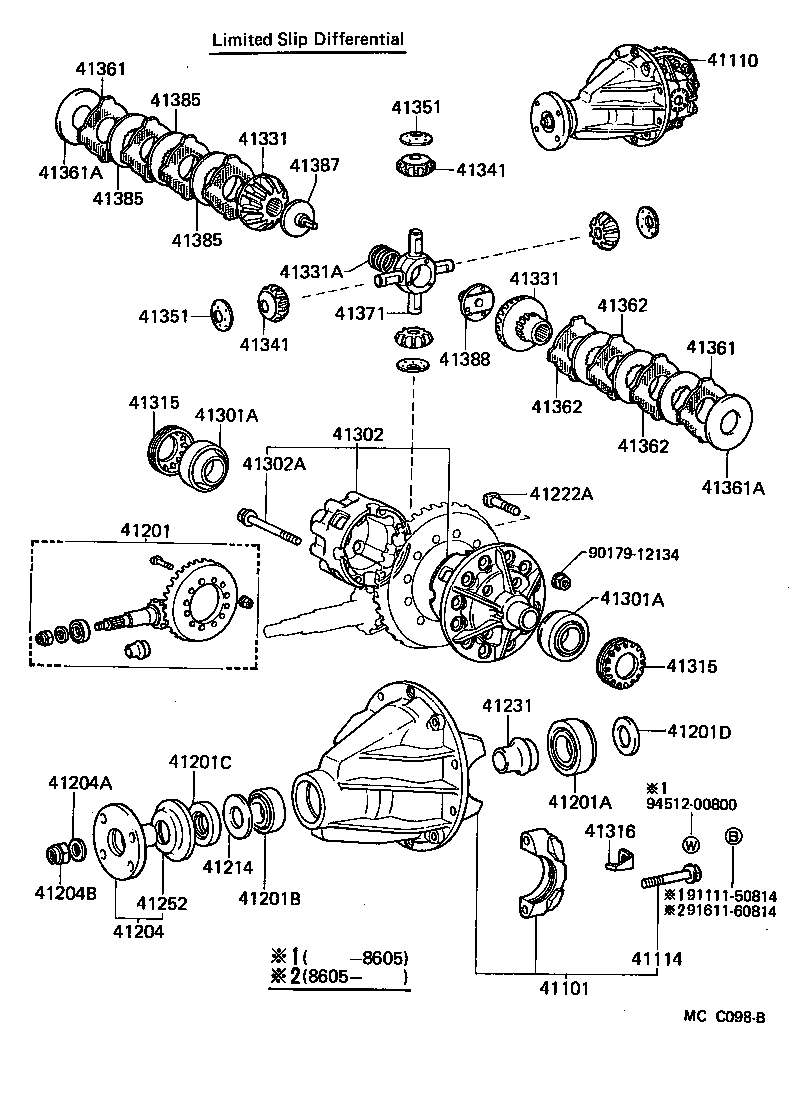

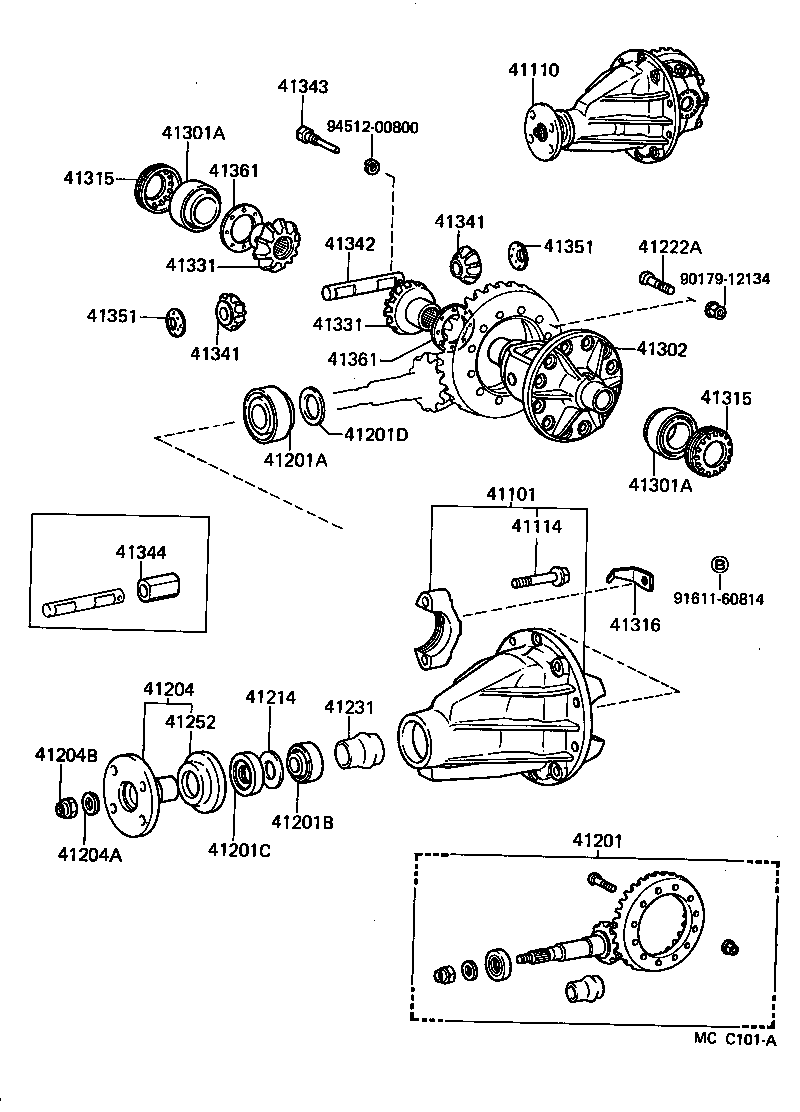

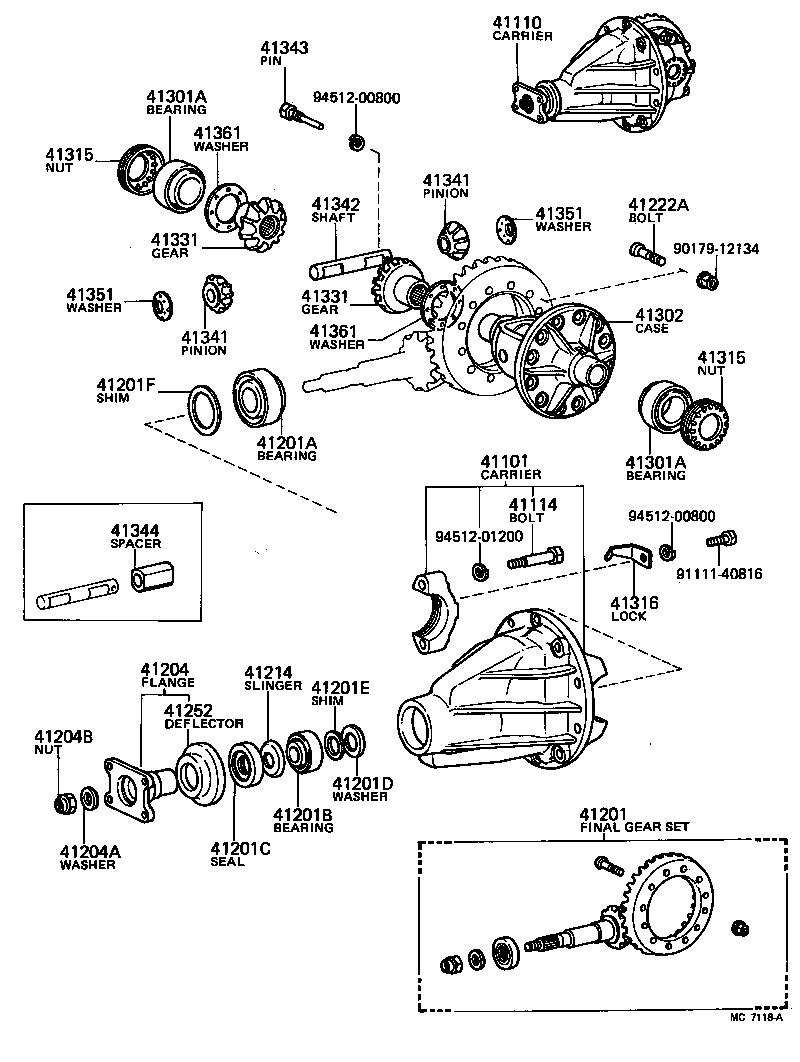

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-60021 |
BJ60,FJ60,HJ60 |
1 | ||
| 41101-60080 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
1 | ||
| 41101-60040 |
BJ60,FJ62,HJ6# |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-60026 |
FJ60,HJ60..EUR,GEN *AXC=K052,*FGR=37:10 |
1 | ||
| 41110-60027 |
FJ60,HJ60..EUR,GEN *AXC=K052,*FGR=37:10 |
1 | ||
| 41110-60062 |
FJ60,HJ60..EUR,GEN *AXC=K055,*FGR=37:10,W/LSD |
1 | ||
| 41110-60100 |
FJ62,HJ6#..MTM..(EUR,GEN) *FGR=37:10=3.700,*AXC=K052,*FGR=37:10 |
1 | ||
| 41110-60220 |
FJ62,HJ6#..MTM..(EUR,GEN) *FGR=37:10=3.700,*AXC=K054,*FGR=37:10,W/*DL |
1 | ||
| 41110-60120 |
FJ62,HJ6#..MTM..(EUR,GEN) *FGR=37:10=3.700,*AXC=K055,*FGR=37:10,W/LSD |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 41114-35010 |
BJ60,FJ60,HJ60 |
4 | ||
| 41114-60010 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
4 | ||
| 90105-12053 |
BJ60,FJ62,HJ6# |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-69095 |
FJ60,HJ60..EUR,GEN *AXC=K052 OR K055,*FGR=37:10 |
1 | ||
| 41201-69156 |
FJ62,HJ6#..MTM..(EUR,GEN) *FGR=37:10=3.700,*AXC=K052 OR K055,*FGR=37:10 |
1 | ||
| 41201-69155 |
FJ62,HJ60..MTM..(EUR,GEN) *AXC=K052 OR K055,*FGR=37:10 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 97619-30308 |
BJ60,FJ60,HJ60 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 97619-30306 |
BJ60,FJ60,HJ60 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38134 |
BJ60,FJ6#,HJ6# |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90560-30184 |
BJ60,FJ60,HJ60 T=2.74-2.76,T=2.74-2.76 |
1 | ||
| 90560-30188 |
BJ60,FJ60,HJ60 T=2.86-2.88,T=2.86-2.88 |
1 | ||
| 90560-30187 |
BJ60,FJ60,HJ60 T=2.83-2.85,T=2.83-2.85 |
1 | ||
| 90560-30190 |
BJ60,FJ60,HJ60 T=2.89-2.91,T=2.89-2.91 |
1 | ||
| 90560-30191 |
BJ60,FJ60,HJ60 T=2.92-2.94,T=2.92-2.94 |
1 | ||
| 90201-40553 |
BJ60,FJ62,HJ6# T=1.15,T=1.15 |
1 | ||
| 90201-40555 |
BJ60,FJ62,HJ6# T=1.25,T=1.25 |
1 | ||
| 90560-30199 |
BJ60,FJ60,HJ60 T=2.98-3.00,T=2.98-3.00 |
1 | ||
| 90560-30185 |
BJ60,FJ60,HJ60 T=2.77-2.79,T=2.77-2.79 |
1 | ||
| 90201-40556 |
BJ60,FJ62,HJ6# T=1.30,T=1.30 |
1 | ||
| 90201-40552 |
BJ60,FJ62,HJ6# T=1.10,T=1.10 |
1 | ||
| 90560-30186 |
BJ60,FJ60,HJ60 T=2.80-2.82,T=2.80-2.82 |
1 | ||
| 90201-40554 |
BJ60,FJ62,HJ6# T=1.20,T=1.20 |
1 | ||
| 90201-40560 |
BJ60,FJ62,HJ6# T=1.50,T=1.50 |
1 | ||
| 90201-40558 |
BJ60,FJ62,HJ6# T=1.40,T=1.40 |
1 | ||
| 90201-40557 |
BJ60,FJ62,HJ6# T=1.35,T=1.35 |
1 | ||
| 90560-30192 |
BJ60,FJ60,HJ60 T=2.95-2.97,T=2.95-2.97 |
1 | ||
| 90201-40559 |
BJ60,FJ62,HJ6# T=1.45,T=1.45 |
1 | ||
| 90201-40551 |
BJ60,FJ62,HJ6# T=1.05,T=1.05 |
1 | ||
| 90201-40561 |
BJ60,FJ62,HJ6# T=1.55,T=1.55 |
1 | ||
| 41201E - SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST) | ||||
| 90564-30035 |
BJ60,FJ60,HJ60 T=0.25 |
4 | ||
| 41201F - SHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST) | ||||
| 90564-68001 |
BJ60,FJ60,HJ60 T=0.25,T=0.25 |
2 | ||
| 90564-68003 |
BJ60,FJ60,HJ60 T=0.35,T=0.35 |
2 | ||
| 90564-68004 |
BJ60,FJ60,HJ60 T=0.40,T=0.40 |
2 | ||
| 90564-68005 |
BJ60,FJ60,HJ60 T=0.45,T=0.45 |
2 | ||
| 90564-68002 |
BJ60,FJ60,HJ60 T=0.30,T=0.30 |
2 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-60010 |
BJ60,FJ60,HJ60 |
1 | ||
| 41204-60030 |
BJ60,FJ6#,HJ6# |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-22007 |
BJ60,FJ62,HJ6# |
1 | ||
| 90201-20005 |
BJ60,FJ60,HJ60 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-22011 |
BJ60,FJ62,HJ6# |
1 | ||
| 90179-20001 |
BJ60,FJ60,HJ60 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-40010 |
BJ60,FJ60,HJ60 |
1 | ||
| 41214-30010 |
BJ60,FJ60,HJ60 |
1 | ||
| 41214-26010 |
BJ60,FJ62,HJ6# |
1 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 41226-35010 |
BJ60,FJ6#,HJ6# |
12 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 37341-30010 |
BJ60,FJ60,HJ60 |
1 | ||
| 41252-35010 |
BJ60,FJ6#,HJ6# |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-60002 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
2 | ||
| 90368-45066 |
BJ60,FJ6#,HJ6# |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-60002 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
2 | ||
| 90368-45066 |
BJ60,FJ6#,HJ6# |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-60020 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
1 | ||
| 41311-36010 |
BJ60,FJ6#,HJ6# |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-30010 |
BJ60,FJ6#,HJ6# |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-30010 |
BJ60,FJ6#,HJ6# |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-30010 |
BJ60,FJ6#,HJ6# |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35020 |
BJ60,FJ6#,HJ6# |
2 | ||
| 41331-60020 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35020 |
BJ60,FJ6#,HJ6# |
2 | ||
| 41331-60020 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55012 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
4 | ||
| 41341-55012 |
BJ60,FJ6#,HJ6# |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55012 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
4 | ||
| 41341-55012 |
BJ60,FJ6#,HJ6# |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-60010 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR L=136.0,W/DIFFERENTIAL LOCK |
1 | ||
| 41342-60020 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR L=60.5,W/DIFFERENTIAL LOCK |
2 | ||
| 41342-55010 |
BJ60,FJ6#,HJ6# |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 41343-55010 |
BJ60,FJ6#,HJ6# |
1 | ||
| 41343-60010 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
3 | ||
| 41344 - SPACER, DIFFERENTIAL PINION SHAFT | ||||
| 41348-35010 |
BJ60,FJ6#,HJ6#..EUR,GEN,ME H=29.4 |
1 | ||
| 41344-35010 |
BJ60,FJ6#,HJ6#..EUR,GEN,ME H=29.8 |
1 | ||
| 41345-35010 |
BJ60,FJ6#,HJ6#..EUR,GEN,ME H=30.2 |
1 | ||
| 41347-35010 |
BJ60,FJ6#,HJ6#..EUR,GEN,ME H=29.0 |
1 | ||
| 41346-35010 |
BJ60,FJ6#,HJ6#..EUR,GEN,ME H=30.6 |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
4 | ||
| 41351-35011 |
BJ60,FJ6#,HJ6# |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
4 | ||
| 41351-35011 |
BJ60,FJ6#,HJ6# |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60030 |
BJ60,FJ6#,HJ6# T=1.90,T=1.85-1.95 |
2 | ||
| 41361-60020 |
BJ60,FJ6#,HJ6# T=1.75,T=1.70-1.80 |
2 | ||
| 41361-60040 |
BJ60,FJ6#,HJ6# T=2.05,T=2.00-2.10 |
2 | ||
| 41361-60010 |
BJ60,FJ6#,HJ6# T=1.60,T=1.55-1.65 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60030 |
BJ60,FJ6#,HJ6# T=1.90,T=1.85-1.95 |
2 | ||
| 41361-60020 |
BJ60,FJ6#,HJ6# T=1.75,T=1.70-1.80 |
2 | ||
| 41361-60040 |
BJ60,FJ6#,HJ6# T=2.05,T=2.00-2.10 |
2 | ||
| 41361-60010 |
BJ60,FJ6#,HJ6# T=1.60,T=1.55-1.65 |
2 | ||
| Common parts | ||||
| 90179-12134 | ||||
| 91111-40816 | ||||
| 94512-00800 | ||||
| 94512-01200 | ||||
(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-60021 |
BJ60,FJ60,HJ60 |
1 | ||
| 41101-60080 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
1 | ||
| 41101-60040 |
BJ60,FJ62,HJ6# |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-60026 |
FJ60,HJ60..EUR,GEN *AXC=K052,*FGR=37:10 |
1 | ||
| 41110-60027 |
FJ60,HJ60..EUR,GEN *AXC=K052,*FGR=37:10 |
1 | ||
| 41110-60062 |
FJ60,HJ60..EUR,GEN *AXC=K055,*FGR=37:10,W/LSD |
1 | ||
| 41110-60100 |
FJ62,HJ6#..MTM..(EUR,GEN) *FGR=37:10=3.700,*AXC=K052,*FGR=37:10 |
1 | ||
| 41110-60220 |
FJ62,HJ6#..MTM..(EUR,GEN) *FGR=37:10=3.700,*AXC=K054,*FGR=37:10,W/*DL |
1 | ||
| 41110-60120 |
FJ62,HJ6#..MTM..(EUR,GEN) *FGR=37:10=3.700,*AXC=K055,*FGR=37:10,W/LSD |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 41114-35010 |
BJ60,FJ60,HJ60 |
4 | ||
| 41114-60010 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
4 | ||
| 90105-12053 |
BJ60,FJ62,HJ6# |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-69095 |
FJ60,HJ60..EUR,GEN *AXC=K052 OR K055,*FGR=37:10 |
1 | ||
| 41201-69156 |
FJ62,HJ6#..MTM..(EUR,GEN) *FGR=37:10=3.700,*AXC=K052 OR K055,*FGR=37:10 |
1 | ||
| 41201-69155 |
FJ62,HJ60..MTM..(EUR,GEN) *AXC=K052 OR K055,*FGR=37:10 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 97619-30308 |
BJ60,FJ60,HJ60 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 97619-30306 |
BJ60,FJ60,HJ60 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38134 |
BJ60,FJ6#,HJ6# |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90560-30184 |
BJ60,FJ60,HJ60 T=2.74-2.76,T=2.74-2.76 |
1 | ||
| 90560-30188 |
BJ60,FJ60,HJ60 T=2.86-2.88,T=2.86-2.88 |
1 | ||
| 90560-30187 |
BJ60,FJ60,HJ60 T=2.83-2.85,T=2.83-2.85 |
1 | ||
| 90560-30190 |
BJ60,FJ60,HJ60 T=2.89-2.91,T=2.89-2.91 |
1 | ||
| 90560-30191 |
BJ60,FJ60,HJ60 T=2.92-2.94,T=2.92-2.94 |
1 | ||
| 90201-40553 |
BJ60,FJ62,HJ6# T=1.15,T=1.15 |
1 | ||
| 90201-40555 |
BJ60,FJ62,HJ6# T=1.25,T=1.25 |
1 | ||
| 90560-30199 |
BJ60,FJ60,HJ60 T=2.98-3.00,T=2.98-3.00 |
1 | ||
| 90560-30185 |
BJ60,FJ60,HJ60 T=2.77-2.79,T=2.77-2.79 |
1 | ||
| 90201-40556 |
BJ60,FJ62,HJ6# T=1.30,T=1.30 |
1 | ||
| 90201-40552 |
BJ60,FJ62,HJ6# T=1.10,T=1.10 |
1 | ||
| 90560-30186 |
BJ60,FJ60,HJ60 T=2.80-2.82,T=2.80-2.82 |
1 | ||
| 90201-40554 |
BJ60,FJ62,HJ6# T=1.20,T=1.20 |
1 | ||
| 90201-40560 |
BJ60,FJ62,HJ6# T=1.50,T=1.50 |
1 | ||
| 90201-40558 |
BJ60,FJ62,HJ6# T=1.40,T=1.40 |
1 | ||
| 90201-40557 |
BJ60,FJ62,HJ6# T=1.35,T=1.35 |
1 | ||
| 90560-30192 |
BJ60,FJ60,HJ60 T=2.95-2.97,T=2.95-2.97 |
1 | ||
| 90201-40559 |
BJ60,FJ62,HJ6# T=1.45,T=1.45 |
1 | ||
| 90201-40551 |
BJ60,FJ62,HJ6# T=1.05,T=1.05 |
1 | ||
| 90201-40561 |
BJ60,FJ62,HJ6# T=1.55,T=1.55 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-60010 |
BJ60,FJ60,HJ60 |
1 | ||
| 41204-60030 |
BJ60,FJ6#,HJ6# |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-22007 |
BJ60,FJ62,HJ6# |
1 | ||
| 90201-20005 |
BJ60,FJ60,HJ60 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-22011 |
BJ60,FJ62,HJ6# |
1 | ||
| 90179-20001 |
BJ60,FJ60,HJ60 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-40010 |
BJ60,FJ60,HJ60 |
1 | ||
| 41214-30010 |
BJ60,FJ60,HJ60 |
1 | ||
| 41214-26010 |
BJ60,FJ62,HJ6# |
1 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 41226-35010 |
BJ60,FJ6#,HJ6# |
12 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-60020 |
BJ60,FJ62,HJ6# |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 37341-30010 |
BJ60,FJ60,HJ60 |
1 | ||
| 41252-35010 |
BJ60,FJ6#,HJ6# |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-60002 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
2 | ||
| 90368-45066 |
BJ60,FJ6#,HJ6# |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-60002 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
2 | ||
| 90368-45066 |
BJ60,FJ6#,HJ6# |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-60020 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
1 | ||
| 41311-36010 |
BJ60,FJ6#,HJ6# |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90109-10091 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
5 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-30010 |
BJ60,FJ6#,HJ6# |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-30010 |
BJ60,FJ6#,HJ6# |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-30010 |
BJ60,FJ6#,HJ6# |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35020 |
BJ60,FJ6#,HJ6# |
2 | ||
| 41331-60020 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35020 |
BJ60,FJ6#,HJ6# |
2 | ||
| 41331-60020 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55012 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
4 | ||
| 41341-55012 |
BJ60,FJ6#,HJ6# |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55012 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
4 | ||
| 41341-55012 |
BJ60,FJ6#,HJ6# |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
4 | ||
| 41351-35011 |
BJ60,FJ6#,HJ6# |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
4 | ||
| 41351-35011 |
BJ60,FJ6#,HJ6# |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60030 |
BJ60,FJ6#,HJ6# T=1.90,T=1.85-1.95 |
2 | ||
| 41361-60020 |
BJ60,FJ6#,HJ6# T=1.75,T=1.70-1.80 |
2 | ||
| 41361-60040 |
BJ60,FJ6#,HJ6# T=2.05,T=2.00-2.10 |
2 | ||
| 41361-60010 |
BJ60,FJ6#,HJ6# T=1.60,T=1.55-1.65 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60030 |
BJ60,FJ6#,HJ6# T=1.90,T=1.85-1.95 |
2 | ||
| 41361-60020 |
BJ60,FJ6#,HJ6# T=1.75,T=1.70-1.80 |
2 | ||
| 41361-60040 |
BJ60,FJ6#,HJ6# T=2.05,T=2.00-2.10 |
2 | ||
| 41361-60010 |
BJ60,FJ6#,HJ6# T=1.60,T=1.55-1.65 |
2 | ||
| 41361A - SHIM(FOR REAR DIFFERENTIAL SIDE GEAR THRUST) | ||||
| 90564-54004 |
BJ60,FJ62,HJ6# T=0.35,T=0.35 |
4 | ||
| 90564-54002 |
BJ60,FJ62,HJ6# T=0.25,T=0.25 |
4 | ||
| 90564-54001 |
BJ60,FJ62,HJ6# T=0.20,T=0.20 |
4 | ||
| 90564-54003 |
BJ60,FJ62,HJ6# T=0.30,T=0.30 |
4 | ||
| 41361A - SHIM(FOR REAR DIFFERENTIAL SIDE GEAR THRUST) | ||||
| 90564-54004 |
BJ60,FJ62,HJ6# T=0.35,T=0.35 |
4 | ||
| 90564-54002 |
BJ60,FJ62,HJ6# T=0.25,T=0.25 |
4 | ||
| 90564-54001 |
BJ60,FJ62,HJ6# T=0.20,T=0.20 |
4 | ||
| 90564-54003 |
BJ60,FJ62,HJ6# T=0.30,T=0.30 |
4 | ||
| Common parts | ||||
| 90179-12134 | ||||
| 91111-50814 | ||||
| 91611-60814 | ||||
| 94512-00800 | ||||
(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-60021 |
BJ60,FJ60,HJ60 |
1 | ||
| 41101-60080 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
1 | ||
| 41101-60040 |
BJ60,FJ62,HJ6# |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-60026 |
FJ60,HJ60..EUR,GEN *AXC=K052,*FGR=37:10 |
1 | ||
| 41110-60027 |
FJ60,HJ60..EUR,GEN *AXC=K052,*FGR=37:10 |
1 | ||
| 41110-60062 |
FJ60,HJ60..EUR,GEN *AXC=K055,*FGR=37:10,W/LSD |
1 | ||
| 41110-60100 |
FJ62,HJ6#..MTM..(EUR,GEN) *FGR=37:10=3.700,*AXC=K052,*FGR=37:10 |
1 | ||
| 41110-60220 |
FJ62,HJ6#..MTM..(EUR,GEN) *FGR=37:10=3.700,*AXC=K054,*FGR=37:10,W/*DL |
1 | ||
| 41110-60120 |
FJ62,HJ6#..MTM..(EUR,GEN) *FGR=37:10=3.700,*AXC=K055,*FGR=37:10,W/LSD |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 41114-35010 |
BJ60,FJ60,HJ60 |
4 | ||
| 41114-60010 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
4 | ||
| 90105-12053 |
BJ60,FJ62,HJ6# |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-69095 |
FJ60,HJ60..EUR,GEN *AXC=K052 OR K055,*FGR=37:10 |
1 | ||
| 41201-69156 |
FJ62,HJ6#..MTM..(EUR,GEN) *FGR=37:10=3.700,*AXC=K052 OR K055,*FGR=37:10 |
1 | ||
| 41201-69155 |
FJ62,HJ60..MTM..(EUR,GEN) *AXC=K052 OR K055,*FGR=37:10 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 97619-30308 |
BJ60,FJ60,HJ60 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 97619-30306 |
BJ60,FJ60,HJ60 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38134 |
BJ60,FJ6#,HJ6# |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90560-30184 |
BJ60,FJ60,HJ60 T=2.74-2.76,T=2.74-2.76 |
1 | ||
| 90560-30188 |
BJ60,FJ60,HJ60 T=2.86-2.88,T=2.86-2.88 |
1 | ||
| 90560-30187 |
BJ60,FJ60,HJ60 T=2.83-2.85,T=2.83-2.85 |
1 | ||
| 90560-30190 |
BJ60,FJ60,HJ60 T=2.89-2.91,T=2.89-2.91 |
1 | ||
| 90560-30191 |
BJ60,FJ60,HJ60 T=2.92-2.94,T=2.92-2.94 |
1 | ||
| 90201-40553 |
BJ60,FJ62,HJ6# T=1.15,T=1.15 |
1 | ||
| 90201-40555 |
BJ60,FJ62,HJ6# T=1.25,T=1.25 |
1 | ||
| 90560-30199 |
BJ60,FJ60,HJ60 T=2.98-3.00,T=2.98-3.00 |
1 | ||
| 90560-30185 |
BJ60,FJ60,HJ60 T=2.77-2.79,T=2.77-2.79 |
1 | ||
| 90201-40556 |
BJ60,FJ62,HJ6# T=1.30,T=1.30 |
1 | ||
| 90201-40552 |
BJ60,FJ62,HJ6# T=1.10,T=1.10 |
1 | ||
| 90560-30186 |
BJ60,FJ60,HJ60 T=2.80-2.82,T=2.80-2.82 |
1 | ||
| 90201-40554 |
BJ60,FJ62,HJ6# T=1.20,T=1.20 |
1 | ||
| 90201-40560 |
BJ60,FJ62,HJ6# T=1.50,T=1.50 |
1 | ||
| 90201-40558 |
BJ60,FJ62,HJ6# T=1.40,T=1.40 |
1 | ||
| 90201-40557 |
BJ60,FJ62,HJ6# T=1.35,T=1.35 |
1 | ||
| 90560-30192 |
BJ60,FJ60,HJ60 T=2.95-2.97,T=2.95-2.97 |
1 | ||
| 90201-40559 |
BJ60,FJ62,HJ6# T=1.45,T=1.45 |
1 | ||
| 90201-40551 |
BJ60,FJ62,HJ6# T=1.05,T=1.05 |
1 | ||
| 90201-40561 |
BJ60,FJ62,HJ6# T=1.55,T=1.55 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-60010 |
BJ60,FJ60,HJ60 |
1 | ||
| 41204-60030 |
BJ60,FJ6#,HJ6# |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-22007 |
BJ60,FJ62,HJ6# |
1 | ||
| 90201-20005 |
BJ60,FJ60,HJ60 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-22011 |
BJ60,FJ62,HJ6# |
1 | ||
| 90179-20001 |
BJ60,FJ60,HJ60 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-40010 |
BJ60,FJ60,HJ60 |
1 | ||
| 41214-30010 |
BJ60,FJ60,HJ60 |
1 | ||
| 41214-26010 |
BJ60,FJ62,HJ6# |
1 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 41226-35010 |
BJ60,FJ6#,HJ6# |
12 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-60020 |
BJ60,FJ62,HJ6# |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 37341-30010 |
BJ60,FJ60,HJ60 |
1 | ||
| 41252-35010 |
BJ60,FJ6#,HJ6# |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-60002 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
2 | ||
| 90368-45066 |
BJ60,FJ6#,HJ6# |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-60002 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
2 | ||
| 90368-45066 |
BJ60,FJ6#,HJ6# |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-60020 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
1 | ||
| 41311-36010 |
BJ60,FJ6#,HJ6# |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-30010 |
BJ60,FJ6#,HJ6# |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-30010 |
BJ60,FJ6#,HJ6# |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-30010 |
BJ60,FJ6#,HJ6# |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35020 |
BJ60,FJ6#,HJ6# |
2 | ||
| 41331-60020 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35020 |
BJ60,FJ6#,HJ6# |
2 | ||
| 41331-60020 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55012 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
4 | ||
| 41341-55012 |
BJ60,FJ6#,HJ6# |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55012 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
4 | ||
| 41341-55012 |
BJ60,FJ6#,HJ6# |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-60010 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR L=136.0,W/DIFFERENTIAL LOCK |
1 | ||
| 41342-60020 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR L=60.5,W/DIFFERENTIAL LOCK |
2 | ||
| 41342-55010 |
BJ60,FJ6#,HJ6# |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 41343-55010 |
BJ60,FJ6#,HJ6# |
1 | ||
| 41343-60010 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
3 | ||
| 41344 - SPACER, DIFFERENTIAL PINION SHAFT | ||||
| 41348-35010 |
BJ60,FJ6#,HJ6#..EUR,GEN,ME H=29.4 |
1 | ||
| 41344-35010 |
BJ60,FJ6#,HJ6#..EUR,GEN,ME H=29.8 |
1 | ||
| 41345-35010 |
BJ60,FJ6#,HJ6#..EUR,GEN,ME H=30.2 |
1 | ||
| 41347-35010 |
BJ60,FJ6#,HJ6#..EUR,GEN,ME H=29.0 |
1 | ||
| 41346-35010 |
BJ60,FJ6#,HJ6#..EUR,GEN,ME H=30.6 |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
4 | ||
| 41351-35011 |
BJ60,FJ6#,HJ6# |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
4 | ||
| 41351-35011 |
BJ60,FJ6#,HJ6# |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60030 |
BJ60,FJ6#,HJ6# T=1.90,T=1.85-1.95 |
2 | ||
| 41361-60020 |
BJ60,FJ6#,HJ6# T=1.75,T=1.70-1.80 |
2 | ||
| 41361-60040 |
BJ60,FJ6#,HJ6# T=2.05,T=2.00-2.10 |
2 | ||
| 41361-60010 |
BJ60,FJ6#,HJ6# T=1.60,T=1.55-1.65 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60030 |
BJ60,FJ6#,HJ6# T=1.90,T=1.85-1.95 |
2 | ||
| 41361-60020 |
BJ60,FJ6#,HJ6# T=1.75,T=1.70-1.80 |
2 | ||
| 41361-60040 |
BJ60,FJ6#,HJ6# T=2.05,T=2.00-2.10 |
2 | ||
| 41361-60010 |
BJ60,FJ6#,HJ6# T=1.60,T=1.55-1.65 |
2 | ||
| Common parts | ||||
| 90179-12134 | ||||
| 91611-60814 | ||||
| 94512-00800 | ||||
(8510- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-60021 |
BJ60,FJ60,HJ60 |
1 | ||
| 41101-60080 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
1 | ||
| 41101-60040 |
BJ60,FJ62,HJ6# |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-60026 |
FJ60,HJ60..EUR,GEN *AXC=K052,*FGR=37:10 |
1 | ||
| 41110-60027 |
FJ60,HJ60..EUR,GEN *AXC=K052,*FGR=37:10 |
1 | ||
| 41110-60062 |
FJ60,HJ60..EUR,GEN *AXC=K055,*FGR=37:10,W/LSD |
1 | ||
| 41110-60100 |
FJ62,HJ6#..MTM..(EUR,GEN) *FGR=37:10=3.700,*AXC=K052,*FGR=37:10 |
1 | ||
| 41110-60220 |
FJ62,HJ6#..MTM..(EUR,GEN) *FGR=37:10=3.700,*AXC=K054,*FGR=37:10,W/*DL |
1 | ||
| 41110-60120 |
FJ62,HJ6#..MTM..(EUR,GEN) *FGR=37:10=3.700,*AXC=K055,*FGR=37:10,W/LSD |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 41114-35010 |
BJ60,FJ60,HJ60 |
4 | ||
| 41114-60010 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
4 | ||
| 90105-12053 |
BJ60,FJ62,HJ6# |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-69095 |
FJ60,HJ60..EUR,GEN *AXC=K052 OR K055,*FGR=37:10 |
1 | ||
| 41201-69156 |
FJ62,HJ6#..MTM..(EUR,GEN) *FGR=37:10=3.700,*AXC=K052 OR K055,*FGR=37:10 |
1 | ||
| 41201-69155 |
FJ62,HJ60..MTM..(EUR,GEN) *AXC=K052 OR K055,*FGR=37:10 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 97619-30308 |
BJ60,FJ60,HJ60 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 97619-30306 |
BJ60,FJ60,HJ60 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38134 |
BJ60,FJ6#,HJ6# |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90560-30184 |
BJ60,FJ60,HJ60 T=2.74-2.76,T=2.74-2.76 |
1 | ||
| 90560-30188 |
BJ60,FJ60,HJ60 T=2.86-2.88,T=2.86-2.88 |
1 | ||
| 90560-30187 |
BJ60,FJ60,HJ60 T=2.83-2.85,T=2.83-2.85 |
1 | ||
| 90560-30190 |
BJ60,FJ60,HJ60 T=2.89-2.91,T=2.89-2.91 |
1 | ||
| 90560-30191 |
BJ60,FJ60,HJ60 T=2.92-2.94,T=2.92-2.94 |
1 | ||
| 90201-40553 |
BJ60,FJ62,HJ6# T=1.15,T=1.15 |
1 | ||
| 90201-40555 |
BJ60,FJ62,HJ6# T=1.25,T=1.25 |
1 | ||
| 90560-30199 |
BJ60,FJ60,HJ60 T=2.98-3.00,T=2.98-3.00 |
1 | ||
| 90560-30185 |
BJ60,FJ60,HJ60 T=2.77-2.79,T=2.77-2.79 |
1 | ||
| 90201-40556 |
BJ60,FJ62,HJ6# T=1.30,T=1.30 |
1 | ||
| 90201-40552 |
BJ60,FJ62,HJ6# T=1.10,T=1.10 |
1 | ||
| 90560-30186 |
BJ60,FJ60,HJ60 T=2.80-2.82,T=2.80-2.82 |
1 | ||
| 90201-40554 |
BJ60,FJ62,HJ6# T=1.20,T=1.20 |
1 | ||
| 90201-40560 |
BJ60,FJ62,HJ6# T=1.50,T=1.50 |
1 | ||
| 90201-40558 |
BJ60,FJ62,HJ6# T=1.40,T=1.40 |
1 | ||
| 90201-40557 |
BJ60,FJ62,HJ6# T=1.35,T=1.35 |
1 | ||
| 90560-30192 |
BJ60,FJ60,HJ60 T=2.95-2.97,T=2.95-2.97 |
1 | ||
| 90201-40559 |
BJ60,FJ62,HJ6# T=1.45,T=1.45 |
1 | ||
| 90201-40551 |
BJ60,FJ62,HJ6# T=1.05,T=1.05 |
1 | ||
| 90201-40561 |
BJ60,FJ62,HJ6# T=1.55,T=1.55 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-60010 |
BJ60,FJ60,HJ60 |
1 | ||
| 41204-60030 |
BJ60,FJ6#,HJ6# |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-22007 |
BJ60,FJ62,HJ6# |
1 | ||
| 90201-20005 |
BJ60,FJ60,HJ60 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-22011 |
BJ60,FJ62,HJ6# |
1 | ||
| 90179-20001 |
BJ60,FJ60,HJ60 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-40010 |
BJ60,FJ60,HJ60 |
1 | ||
| 41214-30010 |
BJ60,FJ60,HJ60 |
1 | ||
| 41214-26010 |
BJ60,FJ62,HJ6# |
1 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 41226-35010 |
BJ60,FJ6#,HJ6# |
12 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-60020 |
BJ60,FJ62,HJ6# |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 37341-30010 |
BJ60,FJ60,HJ60 |
1 | ||
| 41252-35010 |
BJ60,FJ6#,HJ6# |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-60002 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
2 | ||
| 90368-45066 |
BJ60,FJ6#,HJ6# |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-60002 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
2 | ||
| 90368-45066 |
BJ60,FJ6#,HJ6# |
2 | ||
| 41301B - WASHER(FOR REAR DIFFERENTIAL TAPERED ROLLER BEARING) | ||||
| 90201-79003 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR T=2.73,MARK 03,MARK 03 |
2 | ||
| 90201-79005 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR T=2.79,MARK 05,MARK 05 |
2 | ||
| 90201-79001 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR T=2.67,MARK 01,MARK 01 |
2 | ||
| 90201-79002 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR T=2.70,MARK 02,MARK 02 |
2 | ||
| 90201-79012 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR T=3.00 MARK 12,MARK 12 |
2 | ||
| 90201-79009 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR T=2.91 MARK 09,MARK 09 |
2 | ||
| 90201-79006 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR T=2.82 MARK 06,MARK 06 |
2 | ||
| 90201-79007 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR T=2.85 MARK 07,MARK 07 |
2 | ||
| 90201-79004 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR T=2.76,MARK 04,MARK 04 |
2 | ||
| 90201-79014 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR T=3.06 MARK 14,MARK 14 |
2 | ||
| 90201-79010 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR T=2.94 MARK 10,MARK 10 |
2 | ||
| 90201-79013 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR T=3.03 MARK 13,MARK 13 |
2 | ||
| 90201-79008 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR T=2.88 MARK 08,MARK 08 |
2 | ||
| 90201-79019 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR T=3.21 MARK 19,MARK 19 |
2 | ||
| 90201-79023 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR T=3.33 MARK 23,MARK 23 |
2 | ||
| 90201-79015 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR T=3.09 MARK 15,MARK 15 |
2 | ||
| 90201-79011 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR T=2.97 MARK 11,MARK 11 |
2 | ||
| 90201-79016 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR T=3.12 MARK 16,MARK 16 |
2 | ||
| 90201-79022 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR T=3.30 MARK 22,MARK 22 |
2 | ||
| 90201-79018 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR T=3.18 MARK 18,MARK 18 |
2 | ||
| 90201-79020 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR T=3.24 MARK 20,MARK 20 |
2 | ||
| 90201-79021 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR T=3.27 MARK 21,MARK 21 |
2 | ||
| 90201-79017 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR T=3.15 MARK 17,MARK 17 |
2 | ||
| 41301B - WASHER(FOR REAR DIFFERENTIAL TAPERED ROLLER BEARING) | ||||
| 90201-79003 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR T=2.73,MARK 03,MARK 03 |
2 | ||
| 90201-79005 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR T=2.79,MARK 05,MARK 05 |
2 | ||
| 90201-79001 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR T=2.67,MARK 01,MARK 01 |
2 | ||
| 90201-79002 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR T=2.70,MARK 02,MARK 02 |
2 | ||
| 90201-79012 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR T=3.00 MARK 12,MARK 12 |
2 | ||
| 90201-79009 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR T=2.91 MARK 09,MARK 09 |
2 | ||
| 90201-79006 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR T=2.82 MARK 06,MARK 06 |
2 | ||
| 90201-79007 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR T=2.85 MARK 07,MARK 07 |
2 | ||
| 90201-79004 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR T=2.76,MARK 04,MARK 04 |
2 | ||
| 90201-79014 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR T=3.06 MARK 14,MARK 14 |
2 | ||
| 90201-79010 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR T=2.94 MARK 10,MARK 10 |
2 | ||
| 90201-79013 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR T=3.03 MARK 13,MARK 13 |
2 | ||
| 90201-79008 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR T=2.88 MARK 08,MARK 08 |
2 | ||
| 90201-79019 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR T=3.21 MARK 19,MARK 19 |
2 | ||
| 90201-79023 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR T=3.33 MARK 23,MARK 23 |
2 | ||
| 90201-79015 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR T=3.09 MARK 15,MARK 15 |
2 | ||
| 90201-79011 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR T=2.97 MARK 11,MARK 11 |
2 | ||
| 90201-79016 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR T=3.12 MARK 16,MARK 16 |
2 | ||
| 90201-79022 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR T=3.30 MARK 22,MARK 22 |
2 | ||
| 90201-79018 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR T=3.18 MARK 18,MARK 18 |
2 | ||
| 90201-79020 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR T=3.24 MARK 20,MARK 20 |
2 | ||
| 90201-79021 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR T=3.27 MARK 21,MARK 21 |
2 | ||
| 90201-79017 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR T=3.15 MARK 17,MARK 17 |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-60020 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
1 | ||
| 41311-36010 |
BJ60,FJ6#,HJ6# |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90109-10091 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
5 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35020 |
BJ60,FJ6#,HJ6# |
2 | ||
| 41331-60020 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35020 |
BJ60,FJ6#,HJ6# |
2 | ||
| 41331-60020 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55012 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
4 | ||
| 41341-55012 |
BJ60,FJ6#,HJ6# |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55012 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
4 | ||
| 41341-55012 |
BJ60,FJ6#,HJ6# |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55012 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
4 | ||
| 41341-55012 |
BJ60,FJ6#,HJ6# |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55012 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
4 | ||
| 41341-55012 |
BJ60,FJ6#,HJ6# |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-60010 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR L=136.0,W/DIFFERENTIAL LOCK |
1 | ||
| 41342-60020 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR L=60.5,W/DIFFERENTIAL LOCK |
2 | ||
| 41342-55010 |
BJ60,FJ6#,HJ6# |
1 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-60010 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR L=136.0,W/DIFFERENTIAL LOCK |
1 | ||
| 41342-60020 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR L=60.5,W/DIFFERENTIAL LOCK |
2 | ||
| 41342-55010 |
BJ60,FJ6#,HJ6# |
1 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-60010 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR L=136.0,W/DIFFERENTIAL LOCK |
1 | ||
| 41342-60020 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR L=60.5,W/DIFFERENTIAL LOCK |
2 | ||
| 41342-55010 |
BJ60,FJ6#,HJ6# |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 41343-55010 |
BJ60,FJ6#,HJ6# |
1 | ||
| 41343-60010 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
3 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
4 | ||
| 41351-35011 |
BJ60,FJ6#,HJ6# |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
4 | ||
| 41351-35011 |
BJ60,FJ6#,HJ6# |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
4 | ||
| 41351-35011 |
BJ60,FJ6#,HJ6# |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
4 | ||
| 41351-35011 |
BJ60,FJ6#,HJ6# |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60030 |
BJ60,FJ6#,HJ6# T=1.90,T=1.85-1.95 |
2 | ||
| 41361-60020 |
BJ60,FJ6#,HJ6# T=1.75,T=1.70-1.80 |
2 | ||
| 41361-60040 |
BJ60,FJ6#,HJ6# T=2.05,T=2.00-2.10 |
2 | ||
| 41361-60010 |
BJ60,FJ6#,HJ6# T=1.60,T=1.55-1.65 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60030 |
BJ60,FJ6#,HJ6# T=1.90,T=1.85-1.95 |
2 | ||
| 41361-60020 |
BJ60,FJ6#,HJ6# T=1.75,T=1.70-1.80 |
2 | ||
| 41361-60040 |
BJ60,FJ6#,HJ6# T=2.05,T=2.00-2.10 |
2 | ||
| 41361-60010 |
BJ60,FJ6#,HJ6# T=1.60,T=1.55-1.65 |
2 | ||
| 41375 - HOLDER, REAR DIFFERENTIAL PINION SHAFT | ||||
| 41375-60010 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
1 | ||
| 41467 - PROTECTOR, DIFFERENTIAL LOCK CYLINDER | ||||
| 41467-60020 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR |
1 | ||
| 41467 - PROTECTOR, DIFFERENTIAL LOCK CYLINDER | ||||
| 41467-60020 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR |
1 | ||
| 41991 - CAUTION PLATE, REAR DIFFERENTIAL | ||||
| 41991-60030 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR W/DIFFERENTIAL LOCK |
1 | ||
| Common parts | ||||
| 90179-12134 | ||||
| 91655-60818 | ||||
| 94184-61000 | ||||

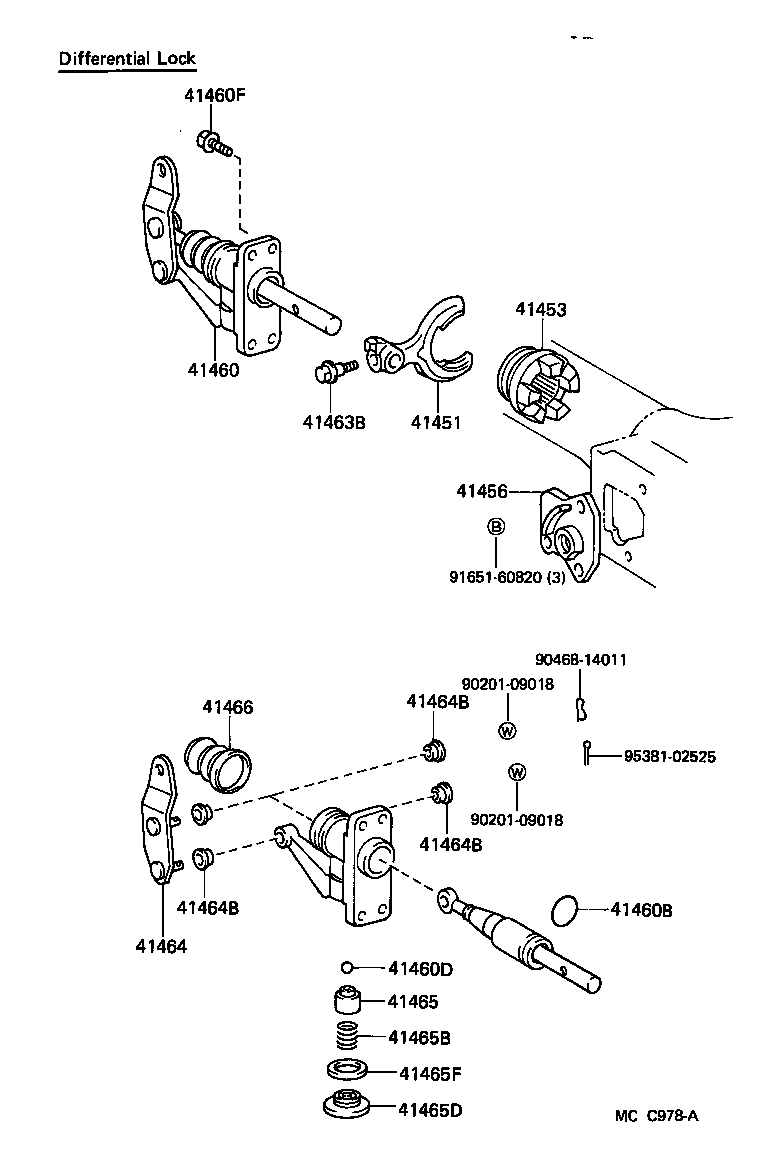

(8510- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41451 - FORK, REAR DIFFERENTIAL LOCK SHIFT | ||||
| 41451-60010 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR |
1 | ||
| 41453 - SLEEVE, REAR DIFFERENTIAL LOCK | ||||
| 41453-60010 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR |
1 | ||
| 41456 - COVER, REAR DIFFERENTIAL LOCK | ||||
| 41456-60010 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR |
1 | ||
| 41460 - CYLINDER ASSY, REAR DIFFERENTIAL LOCK | ||||
| 41460-60010 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR |
1 | ||
| 41460B - RING O (FOR REAR DIFFERENTIAL LOCK CYLINDER) | ||||
| 96711-24023 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR |
1 | ||
| 41460D - BALL (FOR REAR DIFFERENTIAL LOCK CYLINDER) | ||||
| 90360-10003 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR |
1 | ||
| 41460F - BOLT (FOR REAR DIFFERENTIAL LOCK CYLINDER SET) | ||||
| 90105-08114 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR |
4 | ||
| 41463B - BOLT (FOR REAR DIFFERENTIAL LOCK SHIFT FORK SHAFT SET) | ||||
| 90105-06052 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR |
1 | ||
| 41464 - LEVER, REAR DIFFERENTIAL LOCK CYLINDER | ||||
| 41464-60010 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR |
1 | ||
| 41464B - BUSH(FOR REAR DIFFERENTIAL LOCK CYLINDER LEVER) | ||||
| 90386-09009 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR |
4 | ||
| 41464B - BUSH(FOR REAR DIFFERENTIAL LOCK CYLINDER LEVER) | ||||
| 90386-09009 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR |
4 | ||
| 41464B - BUSH(FOR REAR DIFFERENTIAL LOCK CYLINDER LEVER) | ||||
| 90386-09009 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR |
4 | ||
| 41465 - RETAINER, REAR DIFFERENTIAL LOCK SPRING | ||||
| 41465-60010 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR |
1 | ||
| 41465B - SPRING, COMPRESSION (FOR REAR DIFFERENTIAL LOCK RETAINE | ||||
| 90501-20083 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR |
1 | ||
| 41465D - PLUG (FOR REAR DIFFERENTIAL LOCK CYLINDER) | ||||
| 90341-26001 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR |
1 | ||
| 41465F - GASKET (FOR REAR DIFFERENTIAL LOCK CYLINDER) | ||||
| 90430-26002 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR |
1 | ||
| 41466 - BOOT, REAR DIFFERENTIAL LOCK CYLINDER | ||||
| 41466-60010 |
FJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR |
1 | ||
| Common parts | ||||
| 90201-09018 | ||||
| 90468-14011 | ||||
| 91651-60820 | ||||
| 95381-02525 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
