Toyota Land cruiser HJ60 HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

Manufacturers Home
Toyota
EU
LAND CRUISER
HJ60RG-MNW (1987)
8712 - HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

HJ60RG-MNW (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990

Engine 2H

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8708- )

Click highlighted areas on diagram

REAR HEATER(SEPARATE SEAT)

Part #	Description	Period	Qty
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-90A06	HJ6# FRONT	08/1987 - 01/1990	1
87104-90A02	HJ60..RHD UNITED KINGDOM SPEC,FRONT	08/1987 - 01/1990	1
87104-90K04	HJ6#..MTM..GX W(FRONT SEPARATE SEAT),REAR	08/1987 - 01/1990	1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-14030	HJ60..RHD FRONT	08/1987 - 01/1990	1
87134-30020	HJ60..RHD UNITED KINGDOM SPEC,FRONT	08/1987 - 01/1990	1
87105-87002	FJ62;HJ60..RHD;HJ6#..SOB..GX REAR	08/1987 - 01/1990	1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-90A06	HJ6#..MTM..GX W(FRONT SEPARATE SEAT),REAR	08/1987 - 08/1988	1
87107-90A00	FJ62;HJ60..RHD FRONT	08/1987 - 01/1990	1
87107-90A06	FJ62,HJ61..GX;HJ60..MTM..GX W(FRONT SEPARATE SEAT),REAR	08/1988 - 01/1990	1
87110 - HEATER ASSY
87110-90A06	HJ6#..MTM..GX W(FRONT SEPARATE SEAT)	08/1987 - 01/1990	1
87123 - KNOB, HEATER
55905-12070	FJ62,HJ61..GX;HJ60..MTM..GX	08/1987 - 01/1990	1
87138 - RESISTOR, HEATER BLOWER
87138-90A00	HJ6# FRONT	08/1987 - 01/1990	1
87138-90K03	HJ60..RHD;HJ6#..SOB..GX REAR	08/1987 - 01/1990	1
87212A - DUCT, AIR, REAR NO.1
87212-90A00	FJ62,HJ61..GX;HJ60..MTM..GX	08/1987 - 01/1990	1
87240H - VALVE ASSY, WATER UNIT
87240-90A02	FJ62,HJ61..GX;HJ60..MTM..GX	08/1987 - 01/1990	1
Common parts
91651-40816

(8708- )

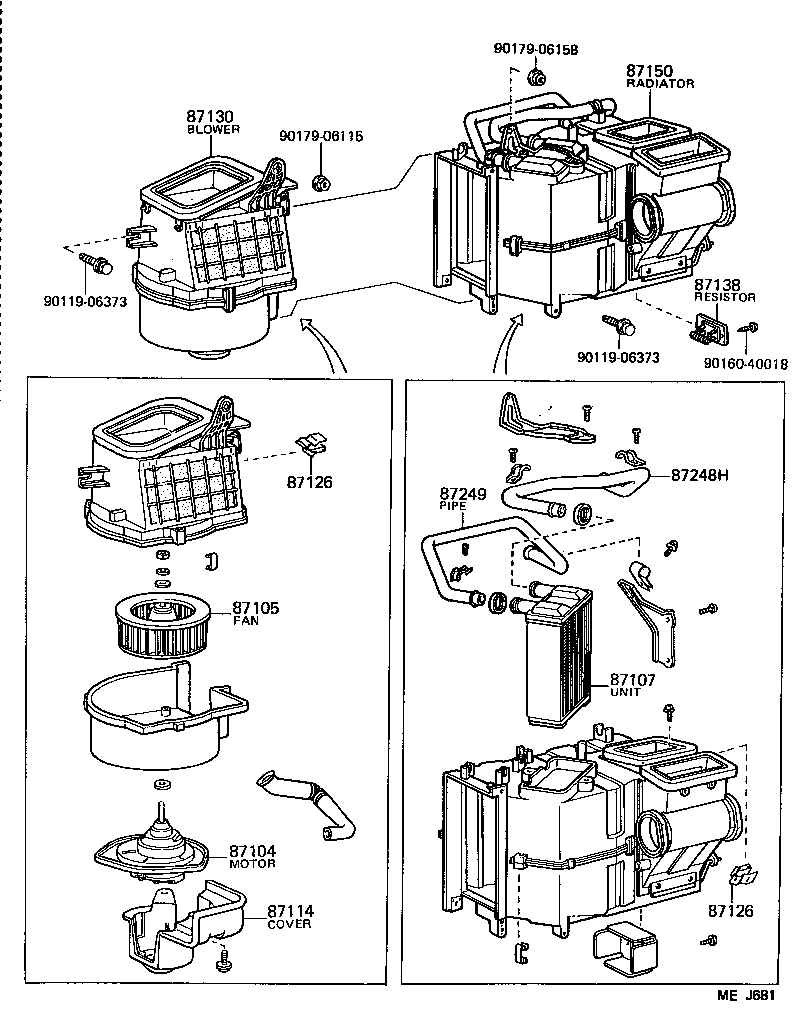

Click highlighted areas on diagram

FRONT HEATER

Part #	Description	Period	Qty
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-90A06	HJ6# FRONT	08/1987 - 01/1990	1
87104-90A02	HJ60..RHD UNITED KINGDOM SPEC,FRONT	08/1987 - 01/1990	1
87104-90K04	HJ6#..MTM..GX W(FRONT SEPARATE SEAT),REAR	08/1987 - 01/1990	1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-14030	HJ60..RHD FRONT	08/1987 - 01/1990	1
87134-30020	HJ60..RHD UNITED KINGDOM SPEC,FRONT	08/1987 - 01/1990	1
87105-87002	FJ62;HJ60..RHD;HJ6#..SOB..GX REAR	08/1987 - 01/1990	1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-90A06	HJ6#..MTM..GX W(FRONT SEPARATE SEAT),REAR	08/1987 - 08/1988	1
87107-90A00	FJ62;HJ60..RHD FRONT	08/1987 - 01/1990	1
87107-90A06	FJ62,HJ61..GX;HJ60..MTM..GX W(FRONT SEPARATE SEAT),REAR	08/1988 - 01/1990	1
87114 - COVER, HEATER
87114-90A00	HJ60..RHD	08/1987 - 01/1990	1
87126 - CLAMP, HEATER CONTROL
87126-16010	FJ62,HJ6# BLOWER	08/1987 - 01/1990	1
87126-90A01	FJ62,HJ6# RADIATOR	08/1987 - 01/1990	2
87126 - CLAMP, HEATER CONTROL
87126-16010	FJ62,HJ6# BLOWER	08/1987 - 01/1990	1
87126-90A01	FJ62,HJ6# RADIATOR	08/1987 - 01/1990	2
87130 - BLOWER ASSY, HEATER, FRONT
87130-90A04	HJ60..RHD UNITED KINGDOM SPEC	08/1987 - 01/1990	1
87130-90A07	HJ60..RHD	08/1987 - 01/1990	1
87138 - RESISTOR, HEATER BLOWER
87138-90A00	HJ6# FRONT	08/1987 - 01/1990	1
87138-90K03	HJ60..RHD;HJ6#..SOB..GX REAR	08/1987 - 01/1990	1
87150 - RADIATOR ASSY, HEATER
87150-90A08	HJ60..RHD	08/1987 - 01/1990	1
87248H - PIPE, HEATER WATER INLET
87248-90A00	HJ60..RHD	08/1987 - 01/1990	1
87249 - PIPE, WATER
87248-90A02	HJ60..RHD	08/1987 - 01/1990	1
Common parts
90119-06373
90160-40018
90179-06115
90179-06158
