HJ60RG-MNW (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 2H
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(8708- )

Click highlighted areas on diagram

diagram 83100B 83100B 83100B 83100B 83100B 83101 83101 83101 83101 83101 83102 83110 83132 83134 83138 83145 8316120080 8316120180 8316120240 8316520020 83246 83270 83310 83410 83630 9016845002 9016845002 9016845002 9098008209 9354013016 9411540400
Part # Description Qty Price

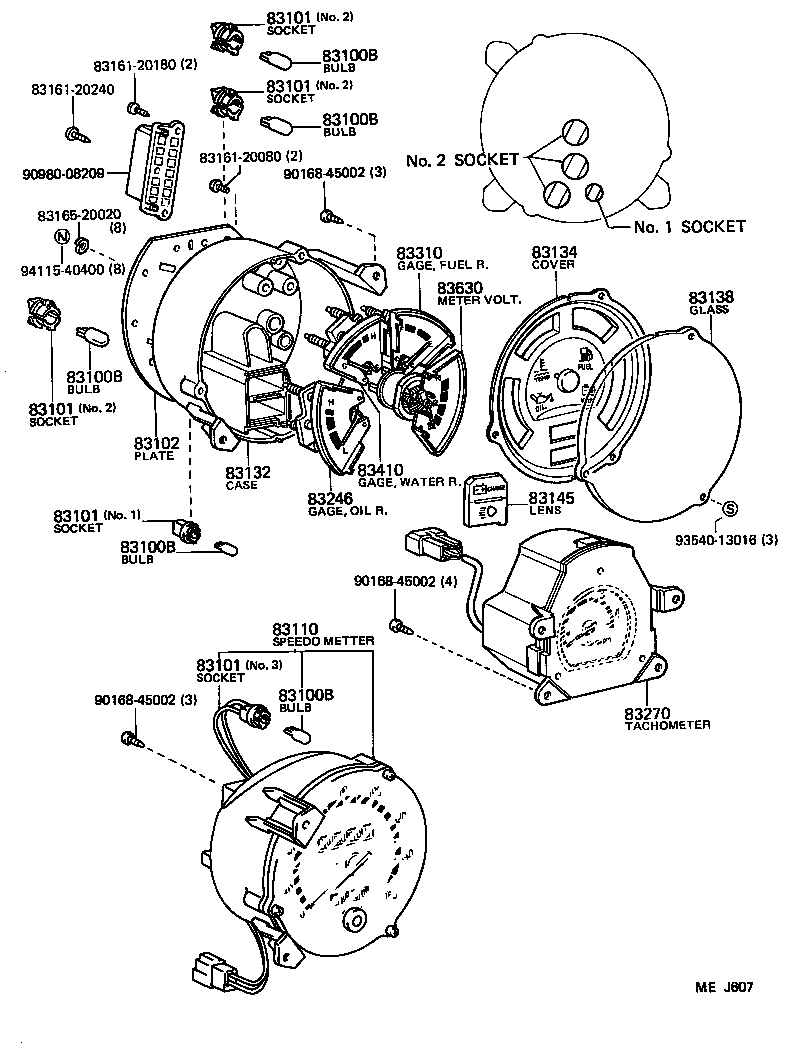

83100B - BULB, COMBINATION METER, NO.1
99134-12030

HJ6#

24V 3W

 3
90981-11022

HJ6#

24V 1.4W

 1
99134-12030

HJ6#

24V 3W

 2
83100B - BULB, COMBINATION METER, NO.1
99134-12030

HJ6#

24V 3W

 3
90981-11022

HJ6#

24V 1.4W

 1
99134-12030

HJ6#

24V 3W

 2
83100B - BULB, COMBINATION METER, NO.1
99134-12030

HJ6#

24V 3W

 3
90981-11022

HJ6#

24V 1.4W

 1
99134-12030

HJ6#

24V 3W

 2
83100B - BULB, COMBINATION METER, NO.1
99134-12030

HJ6#

24V 3W

 3
90981-11022

HJ6#

24V 1.4W

 1
99134-12030

HJ6#

24V 3W

 2
83100B - BULB, COMBINATION METER, NO.1
99134-12030

HJ6#

24V 3W

 3
90981-11022

HJ6#

24V 1.4W

 1
99134-12030

HJ6#

24V 3W

 2
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-36010

FJ62,HJ6#

NO.3

 2
83101-95020

HJ6#

NO.1

 1
83101-20040

FJ62,HJ6#

NO.2

 3
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-36010

FJ62,HJ6#

NO.3

 2
83101-95020

HJ6#

NO.1

 1
83101-20040

FJ62,HJ6#

NO.2

 3
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-36010

FJ62,HJ6#

NO.3

 2
83101-95020

HJ6#

NO.1

 1
83101-20040

FJ62,HJ6#

NO.2

 3
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-36010

FJ62,HJ6#

NO.3

 2
83101-95020

HJ6#

NO.1

 1
83101-20040

FJ62,HJ6#

NO.2

 3
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-36010

FJ62,HJ6#

NO.3

 2
83101-95020

HJ6#

NO.1

 1
83101-20040

FJ62,HJ6#

NO.2

 3
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83247-90A06

HJ6#

 1
83110 - SPEEDOMETER ASSY
83110-90A39

HJ60..RHD

 1
83132 - CASE, COMBINATION METER
83132-90A03

HJ60..RHD

 1
83134 - COVER, COMBINATION METER, NO.1
83134-90A06

FJ62,HJ6#

 1
83138 - GLASS, SPEEDOMETER
83138-90A00

FJ62,HJ6#

 1
83145 - LENS, METER, NO.1
83145-90A02

FJ62,HJ6#

 1
83246 - GAUGE, OIL PRESSURE RECEIVER
83246-90A06

HJ6#

 1
83270 - TACHOMETER ASSY, ENGINE
83270-90A12

HJ60..GX

 1
83310 - GAGE ASSY, FUEL RECEIVER
83243-90A04

HJ6#

 1
83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER
83244-90A02

FJ62,HJ6#

 1
83630 - VOLTMETER ASSY
83245-90A04

HJ6#

 1
Common parts
83161-20080
83161-20180
83161-20240
83165-20020
90168-45002
90980-08209
93540-13016
94115-40400

ILLUST NO. 3 OF 3(8708- )GX,VX

Click highlighted areas on diagram

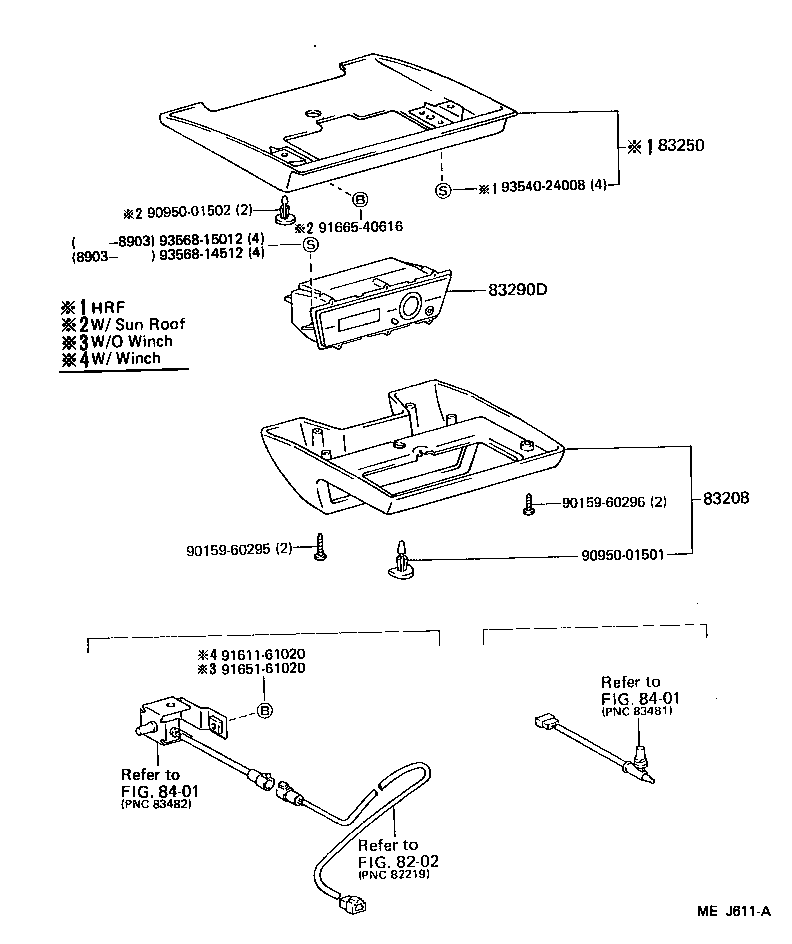

diagram 8202 83208 83250 83290D 8401 8401 9015960295 9015960296 9095001501 9095001502 9161161020 9165161020 9166540616 9354024008 9356814512 9356815012
Part # Description Qty Price
Common parts
90159-60295
90159-60296
90950-01501
90950-01502
91611-61020
91651-61020
91665-40616
93540-24008
93568-14512
93568-15012
Linked diagrams
8202
8401

ILLUST NO. 2 OF 3(8708- )HJ6#

Click highlighted areas on diagram

diagram 83180 83710 83710 83710B 83710B 83710E 83715 83910 9016845002 9020107069 9020107069 9030305002 9046310521 9046310521 9046400376 9046400376 9048030023 9098901040 9098901040
Part # Description Qty Price

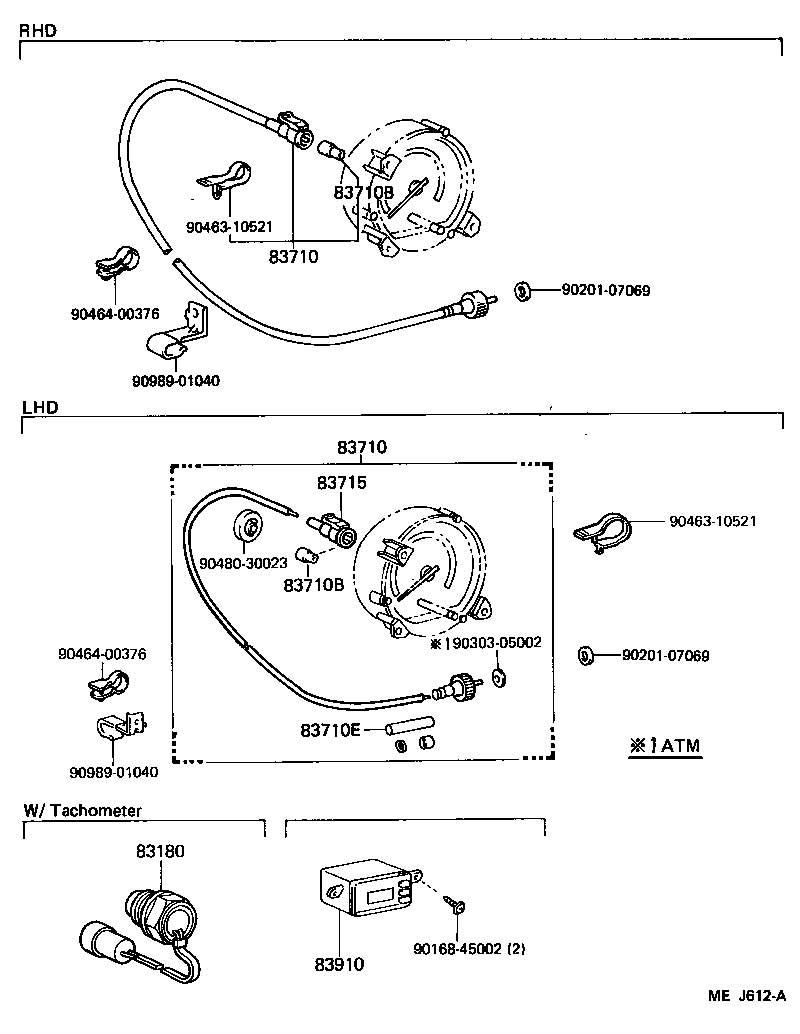

83180 - DETECTOR ASSY, REVOLUTION
83180-60040

HJ6#..GX,VX

 1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-69115

HJ60..RHD

 1
83710-69135

HJ60..RHD

 1
83710-69125

HJ60..RHD

 1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-69115

HJ60..RHD

 1
83710-69135

HJ60..RHD

 1
83710-69125

HJ60..RHD

 1
83710B - BUSH, SPEEDOMETER DRIVE CABLE
90389-02001

FJ62,HJ6#

 1
83710B - BUSH, SPEEDOMETER DRIVE CABLE
90389-02001

FJ62,HJ6#

 1
83910 - CLOCK ASSY
83910-90A12

HJ6#..GX

 1
Common parts
90168-45002
90201-07069
90303-05002
90463-10521
90464-00376
90480-30023
90989-01040
