HJ60RG-MNW (1987)
Toyota Land Cruiser

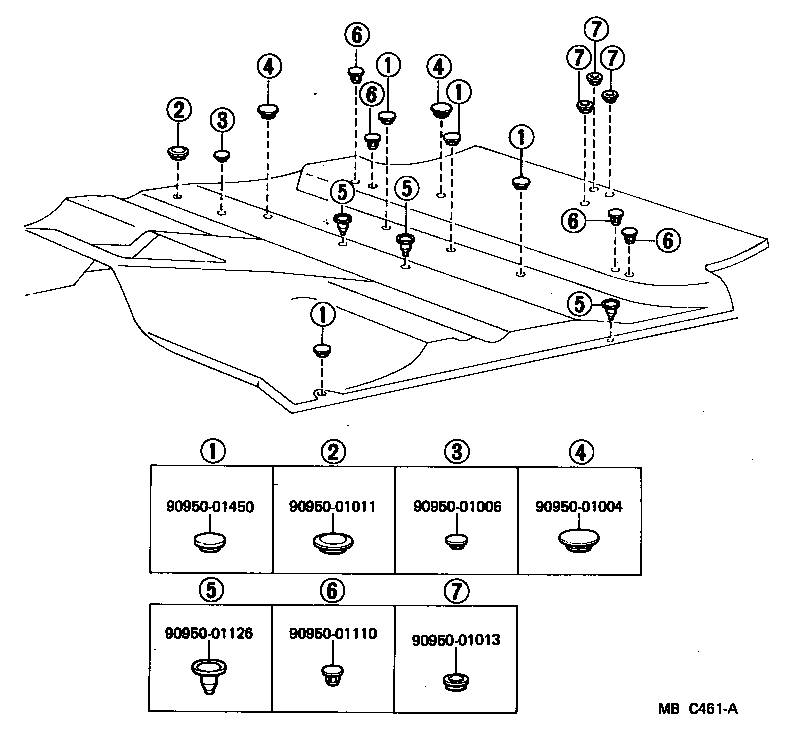

ILLUST NO. 3 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90950-01004 | ||||
| 90950-01006 | ||||
| 90950-01011 | ||||
| 90950-01013 | ||||
| 90950-01110 | ||||
| 90950-01126 | ||||
| 90950-01450 | ||||

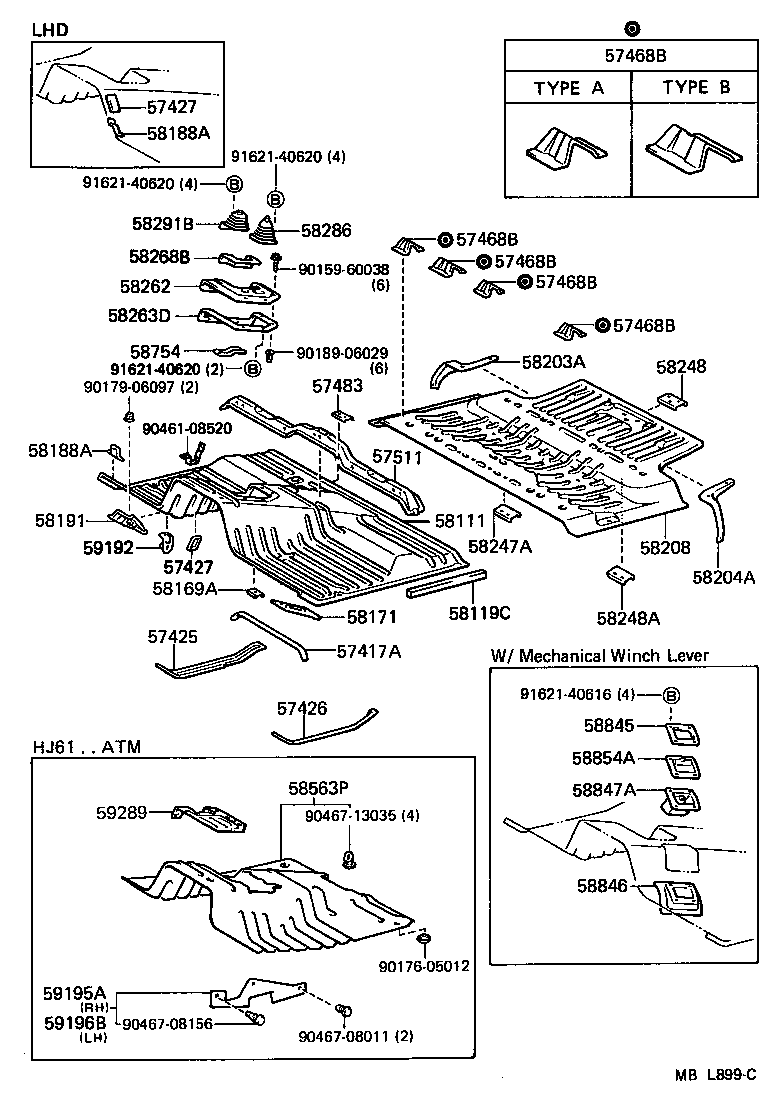

ILLUST NO. 1 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57417A - REINFORCEMENT, FRONT FLOOR UNDER | ||||
| 57417-90A03 |
HJ6#..MTM |
1 | ||
| 57425 - REINFORCEMENT, FRONT FLOOR, NO.2 RH | ||||
| 57425-90A02 |
FJ62,HJ61;HJ60..MTM |
1 | ||
| 57425-90A02 |
HJ6# |
1 | ||
| 57426 - REINFORCEMENT, FRONT FLOOR, NO.2 LH | ||||
| 57426-90A04 |
HJ6# |
1 | ||
| 57426-90A04 |
FJ62,HJ61;HJ60..MTM |
1 | ||
| 57427 - REINFORCEMENT, FRONT FLOOR TO BRACE | ||||
| 57427-90A00 |
HJ6# |
1 | ||
| 57427-90A00 |
FJ62,HJ61;HJ60..MTM |
1 | ||
| 57427 - REINFORCEMENT, FRONT FLOOR TO BRACE | ||||
| 57427-90A00 |
HJ6# |
1 | ||
| 57427-90A00 |
FJ62,HJ61;HJ60..MTM |
1 | ||
| 57468B - BRACKET, FRONT SEAT, REAR | ||||
| 57468-90A02 |
FJ62,HJ6# INNER |
2 | ||
| 57468-90A01 |
FJ62,HJ6# OUTER |
2 | ||
| 57468B - BRACKET, FRONT SEAT, REAR | ||||
| 57468-90A02 |
FJ62,HJ6# INNER |
2 | ||
| 57468-90A01 |
FJ62,HJ6# OUTER |
2 | ||
| 57468B - BRACKET, FRONT SEAT, REAR | ||||
| 57468-90A02 |
FJ62,HJ6# INNER |
2 | ||
| 57468-90A01 |
FJ62,HJ6# OUTER |
2 | ||
| 57468B - BRACKET, FRONT SEAT, REAR | ||||
| 57468-90A02 |
FJ62,HJ6# INNER |
2 | ||
| 57468-90A01 |
FJ62,HJ6# OUTER |
2 | ||
| 57468B - BRACKET, FRONT SEAT, REAR | ||||
| 57468-90A02 |
FJ62,HJ6# INNER |
2 | ||
| 57468-90A01 |
FJ62,HJ6# OUTER |
2 | ||
| 57483 - RETAINER, DIFFERENTIAL LOCK LEVER SUPPORT | ||||
| 57483-90A00 |
HJ60..RHD W(REAR HEATER) |
2 | ||
| 57483-90A00 |
HJ60..RHD |
1 | ||
| 57511 - REINFORCEMENT, FRONT FLOOR, CENTER | ||||
| 57511-90A03 |
FJ62,HJ61;HJ60..MTM |
1 | ||
| 57511-90A03 |
HJ6# |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-90A50 |
HJ60..RHD |
1 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58107-90A00 |
FJ62,HJ61;HJ60..MTM |
1 | ||
| 58107-90A00 |
HJ6# |
1 | ||
| 58188A - BRACKET, ACCELERATOR PEDAL STOPPER | ||||
| 58188-90A02 |
HJ60..RHD |
1 | ||
| 58188A - BRACKET, ACCELERATOR PEDAL STOPPER | ||||
| 58188-90A02 |
HJ60..RHD |
1 | ||
| 58203A - REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH | ||||
| 58203-90A00 |
FJ62,HJ6# |
1 | ||
| 58204A - REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH | ||||
| 58204-90A00 |
FJ62,HJ6# |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-90A21 |
FJ62,HJ61..GX;HJ60..MTM..SRF |
1 | ||
| 58211-90A23 |
HJ60..RHD W(DEFFERENTIAL LOCK) |
1 | ||
| 58211-90A27 |
HJ60..RHD W(DEFFERENTIAL LOCK & REAR HEATER) |
1 | ||
| 58211-90A25 |
HJ60..RHD W(REAR HEATER) |
1 | ||
| 58247A - REINFORCEMENT, REAR SEAT CUSHION HINGE, RH | ||||
| 58247-90A00 |
FJ62,HJ6#..SRF..(GX,STD) |
1 | ||
| 58248 - REINFORCEMENT, REAR SEAT CUSHION LOCK | ||||
| 58248-90A00 |
FJ62,HJ6#..SRF..(GX,STD) |
1 | ||
| 58248A - REINFORCEMENT, REAR SEAT CUSHION HINGE, LH | ||||
| 58247-90A00 |
FJ62,HJ6#..SRF..(GX,STD) |
1 | ||
| 58262 - COVER, TRANSMISSION | ||||
| 58261-90A03 |
HJ6#..MTM |
1 | ||
| 58263D - PACKING, TRANSMISSION COVER | ||||
| 58263-90A02 |
FJ62,HJ6# |
1 | ||
| 58268B - SEAL, TRANSFER LEVER BOOT | ||||
| 58268-90A05 |
FJ62,HJ6# |
1 | ||
| 58286 - BOOT, SHIFT & SELECT LEVER, NO.1 | ||||
| 58280-90A04 |
HJ6#..MTM |
1 | ||
| 58291B - BOOT, TRANSFER SHIFT LEVER | ||||
| 58290-90A04 |
FJ62,HJ6# |
1 | ||
| 58290-90A05 |
FJ62,HJ6# |
1 | ||
| 58754 - PLATE, ENGINE SERVICE COVER CATCH | ||||
| 58754-90A00 |
HJ6# |
1 | ||
| 58754-90A00 |
FJ62,HJ61;HJ60..MTM |
1 | ||
| Common parts | ||||
| 90159-60038 | ||||
| 90176-05012 | ||||
| 90179-06097 | ||||
| 90189-06029 | ||||
| 90461-08520 | ||||
| 90467-08011 | ||||
| 90467-08156 | ||||
| 90467-13035 | ||||
| 91621-40616 | ||||
| 91621-40620 | ||||

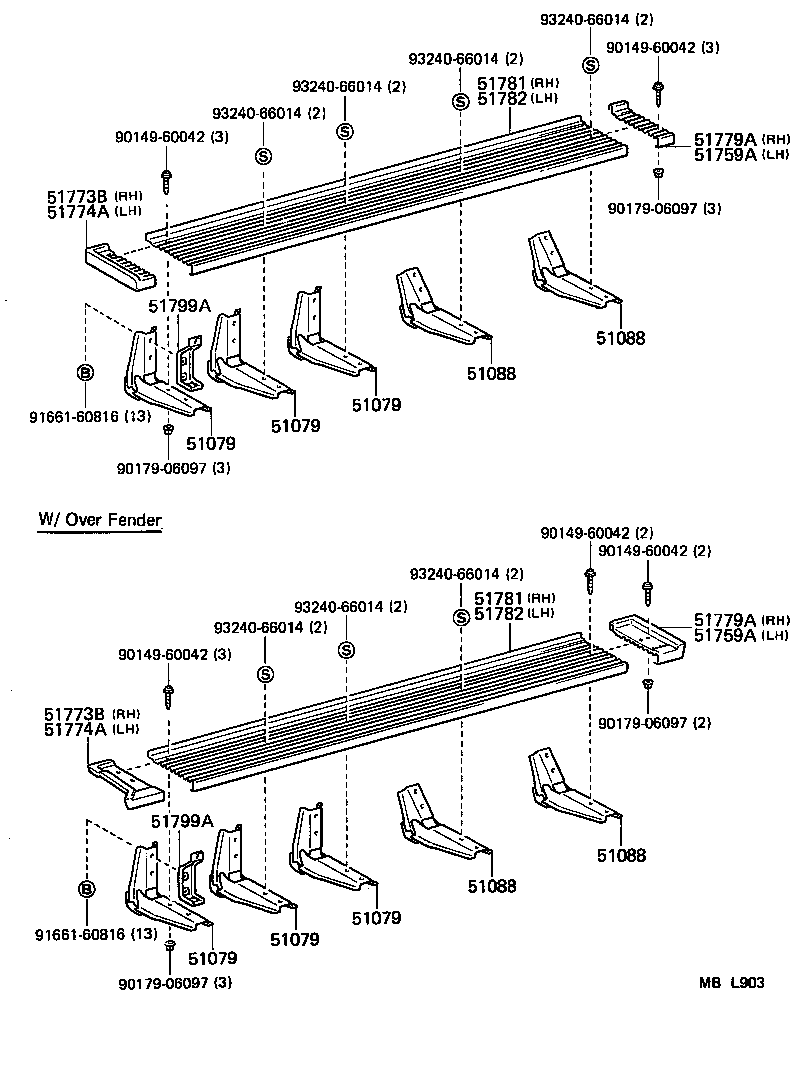

ILLUST NO. 2 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51079 - BRACKET SUB-ASSY, SIDE STEP | ||||
| 51079-90A00 |
HJ60..RHD |
6 | ||
| 51079 - BRACKET SUB-ASSY, SIDE STEP | ||||
| 51079-90A00 |
HJ60..RHD |
6 | ||
| 51079 - BRACKET SUB-ASSY, SIDE STEP | ||||
| 51079-90A00 |
HJ60..RHD |
6 | ||
| 51079 - BRACKET SUB-ASSY, SIDE STEP | ||||
| 51079-90A00 |
HJ60..RHD |
6 | ||
| 51079 - BRACKET SUB-ASSY, SIDE STEP | ||||
| 51079-90A00 |
HJ60..RHD |
6 | ||
| 51079 - BRACKET SUB-ASSY, SIDE STEP | ||||
| 51079-90A00 |
HJ60..RHD |
6 | ||
| 51088 - BRACKET SUB-ASSY, SIDE STEP, NO.2 | ||||
| 51077-90A01 |
HJ60..RHD |
4 | ||
| 51088 - BRACKET SUB-ASSY, SIDE STEP, NO.2 | ||||
| 51077-90A01 |
HJ60..RHD |
4 | ||
| 51088 - BRACKET SUB-ASSY, SIDE STEP, NO.2 | ||||
| 51077-90A01 |
HJ60..RHD |
4 | ||
| 51088 - BRACKET SUB-ASSY, SIDE STEP, NO.2 | ||||
| 51077-90A01 |
HJ60..RHD |
4 | ||
| 51759A - COVER, SIDE DOOR STEP PLATE, REAR LH | ||||
| 51759-90A00 |
FJ62,HJ6#..GX,VX |
1 | ||
| 51759-90A00 |
HJ61..VX;HJ60..RHD;HJ60..ATM;HJ6#..SOB..GX |
1 | ||
| 51759A - COVER, SIDE DOOR STEP PLATE, REAR LH | ||||
| 51759-90A00 |
FJ62,HJ6#..GX,VX |
1 | ||
| 51759-90A00 |
HJ61..VX;HJ60..RHD;HJ60..ATM;HJ6#..SOB..GX |
1 | ||
| 51773B - COVER, SIDE DOOR STEP PLATE, FRONT RH | ||||
| 51773-90A00 |
FJ62,HJ6#..GX,VX |
1 | ||
| 51773-90A00 |
HJ61..VX;HJ60..RHD;HJ60..ATM;HJ6#..SOB..GX |
1 | ||
| 51773B - COVER, SIDE DOOR STEP PLATE, FRONT RH | ||||
| 51773-90A00 |
FJ62,HJ6#..GX,VX |
1 | ||
| 51773-90A00 |
HJ61..VX;HJ60..RHD;HJ60..ATM;HJ6#..SOB..GX |
1 | ||
| 51774A - COVER, SIDE DOOR STEP PLATE, FRONT LH | ||||
| 51774-90A00 |
HJ61..VX;HJ60..RHD;HJ60..ATM;HJ6#..SOB..GX |
1 | ||
| 51774-90A00 |
FJ62,HJ6#..GX,VX |
1 | ||
| 51774A - COVER, SIDE DOOR STEP PLATE, FRONT LH | ||||
| 51774-90A00 |
HJ61..VX;HJ60..RHD;HJ60..ATM;HJ6#..SOB..GX |
1 | ||
| 51774-90A00 |
FJ62,HJ6#..GX,VX |
1 | ||
| 51779A - COVER, SIDE DOOR STEP PLATE, REAR RH | ||||
| 51779-90A00 |
FJ62,HJ6#..GX,VX |
1 | ||
| 51779-90A00 |
HJ61..VX;HJ60..RHD;HJ60..ATM;HJ6#..SOB..GX |
1 | ||
| 51779A - COVER, SIDE DOOR STEP PLATE, REAR RH | ||||
| 51779-90A00 |
FJ62,HJ6#..GX,VX |
1 | ||
| 51779-90A00 |
HJ61..VX;HJ60..RHD;HJ60..ATM;HJ6#..SOB..GX |
1 | ||
| 51781 - PANEL, STEP, RH | ||||
| 51781-90A00 |
HJ60..RHD |
1 | ||
| 51781 - PANEL, STEP, RH | ||||
| 51781-90A00 |
HJ60..RHD |
1 | ||
| 51782 - PANEL, STEP, LH | ||||
| 51782-90A00 |
HJ60..RHD |
1 | ||
| 51782 - PANEL, STEP, LH | ||||
| 51782-90A00 |
HJ60..RHD |
1 | ||
| 51799A - BRACKET, SIDE STEP, NO.4 | ||||
| 51799-90A00 |
HJ60..RHD |
2 | ||
| 51799A - BRACKET, SIDE STEP, NO.4 | ||||
| 51799-90A00 |
HJ60..RHD |
2 | ||
| Common parts | ||||
| 90149-60042 | ||||
| 90179-06097 | ||||
| 91661-60816 | ||||
| 93240-66014 | ||||
