HJ60RG-MNW (1987)
Toyota Land Cruiser
Production
Aug 1987
-
Jan 1990
Engine
2H
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )

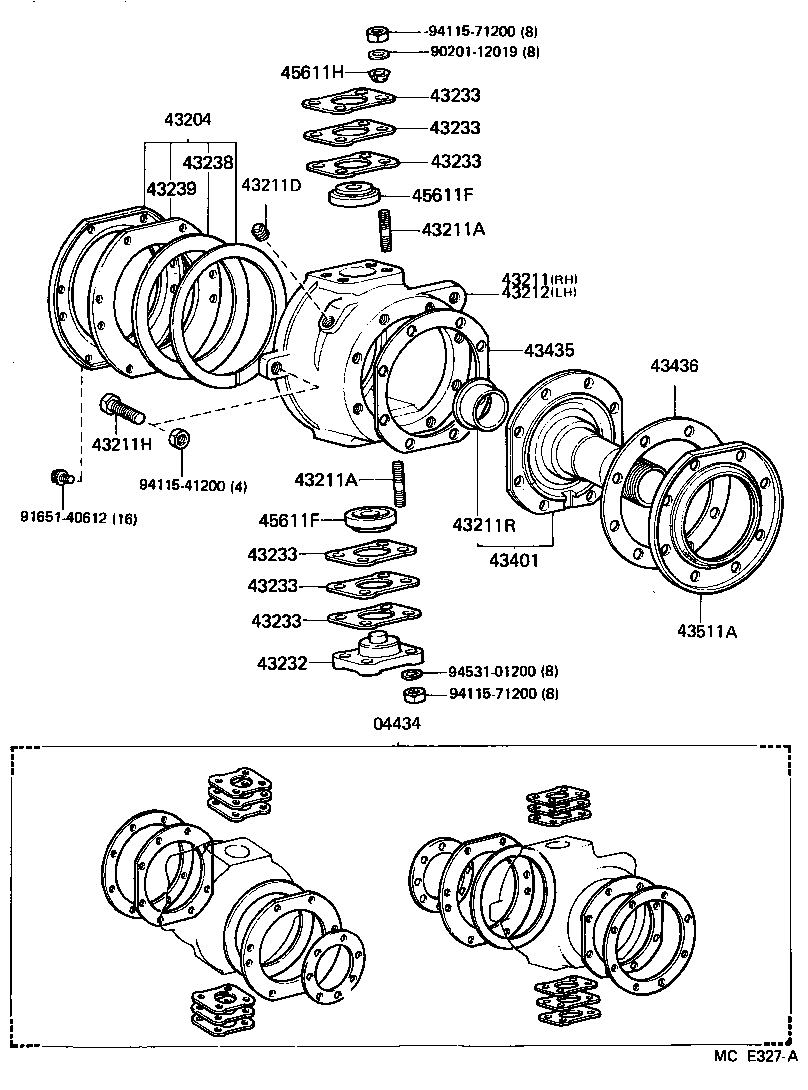

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04434 - GASKET KIT, FRONT AXLE OVERHAUL | ||||
| 04434-60012 |
FJ62,HJ6# |
1 | ||
| 43204 - SEAL SUB-ASSY, STEERING KNUCKLE OIL | ||||
| 43204-60020 |
HJ6# |
2 | ||
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-60050 |
HJ6# |
1 | ||
| 43211A - BOLT, STUD (FOR STEERING SET) | ||||
| 90116-12007 |
HJ6# |
16 | ||
| 43211A - BOLT, STUD (FOR STEERING SET) | ||||
| 90116-12007 |
HJ6# |
16 | ||
| 43211D - PLUG (FOR STEERING KNUCKLE) | ||||
| 90345-53020 |
HJ6# |
2 | ||
| 43211H - BOLT, ROUND HEXAGON | ||||
| 90106-12022 |
HJ6# |
4 | ||
| 43211R - BUSH (FOR STEERING KNUCKLE) | ||||
| 90381-33002 |
HJ6# |
2 | ||
| 90381-33001 |
HJ6# |
2 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-60050 |
HJ6# |
1 | ||
| 43232 - CAP, STEERING KNUCKLE BEARING | ||||
| 43232-35010 |
HJ6# |
2 | ||
| 43233 - SHIM, STEERING KNUCKLE ADJUST, NO.1 | ||||
| 43235-60010 |
HJ6# T=1.0 |
1 | ||
| 43237-60030 |
HJ6# T=0.30 |
1 | ||
| 43234-60011 |
HJ6# T=0.50 |
1 | ||
| 43233-60011 |
HJ6# T=0.20 |
1 | ||
| 43236-60010 |
HJ6# T=0.1 |
1 | ||
| 43233 - SHIM, STEERING KNUCKLE ADJUST, NO.1 | ||||
| 43235-60010 |
HJ6# T=1.0 |
1 | ||
| 43237-60030 |
HJ6# T=0.30 |
1 | ||
| 43234-60011 |
HJ6# T=0.50 |
1 | ||
| 43233-60011 |
HJ6# T=0.20 |
1 | ||
| 43236-60010 |
HJ6# T=0.1 |
1 | ||
| 43233 - SHIM, STEERING KNUCKLE ADJUST, NO.1 | ||||
| 43235-60010 |
HJ6# T=1.0 |
1 | ||
| 43237-60030 |
HJ6# T=0.30 |
1 | ||
| 43234-60011 |
HJ6# T=0.50 |
1 | ||
| 43233-60011 |
HJ6# T=0.20 |
1 | ||
| 43236-60010 |
HJ6# T=0.1 |
1 | ||
| 43233 - SHIM, STEERING KNUCKLE ADJUST, NO.1 | ||||
| 43235-60010 |
HJ6# T=1.0 |
1 | ||
| 43237-60030 |
HJ6# T=0.30 |
1 | ||
| 43234-60011 |
HJ6# T=0.50 |
1 | ||
| 43233-60011 |
HJ6# T=0.20 |
1 | ||
| 43236-60010 |
HJ6# T=0.1 |
1 | ||
| 43233 - SHIM, STEERING KNUCKLE ADJUST, NO.1 | ||||
| 43235-60010 |
HJ6# T=1.0 |
1 | ||
| 43237-60030 |
HJ6# T=0.30 |
1 | ||
| 43234-60011 |
HJ6# T=0.50 |
1 | ||
| 43233-60011 |
HJ6# T=0.20 |
1 | ||
| 43236-60010 |
HJ6# T=0.1 |
1 | ||
| 43233 - SHIM, STEERING KNUCKLE ADJUST, NO.1 | ||||
| 43235-60010 |
HJ6# T=1.0 |
1 | ||
| 43237-60030 |
HJ6# T=0.30 |
1 | ||
| 43234-60011 |
HJ6# T=0.50 |
1 | ||
| 43233-60011 |
HJ6# T=0.20 |
1 | ||
| 43236-60010 |
HJ6# T=0.1 |
1 | ||
| 43238 - SEAL, STEERING KNUCKLE OIL, INNER | ||||
| 43238-60010 |
HJ6# |
2 | ||
| 43239 - SEAL, STEERING KNUCKLE OIL, OUTER | ||||
| 43239-60020 |
HJ6# |
2 | ||
| 43401 - SPINDLE SUB-ASSY, STEERING KNUCKLE | ||||
| 43401-60012 |
HJ6# |
2 | ||
| 43401-60060 |
HJ6# |
2 | ||
| 43435 - GASKET, KNUCKLE SPINDLE | ||||
| 43435-60011 |
HJ6# |
2 | ||
| 43436 - GASKET, KNUCKLE SPINDLE OIL RETAINER | ||||
| 43436-60011 |
HJ6# |
2 | ||
| 43511A - SEAL, DUST (FOR FRONT AXLE HUB) | ||||
| 90313-93011 |
HJ6# |
2 | ||
| 45611F - BEARING(FOR STEERING KNUCKLE ARM) | ||||
| 90366-17001 |
HJ6# |
4 | ||
| 45611F - BEARING(FOR STEERING KNUCKLE ARM) | ||||
| 90366-17001 |
HJ6# |
4 | ||
| 45611H - DOWEL, SPLIT(FOR STEERING KNUCKLE ARM) | ||||
| 42323-60020 |
HJ6# |
8 | ||
| Common parts | ||||
| 90201-12019 | ||||
| 91651-40612 | ||||
| 94115-41200 | ||||
| 94115-71200 | ||||
| 94531-01200 | ||||
