HJ60RG-MNW (1987)
Toyota Land Cruiser
Production
Aug 1987
-
Jan 1990
Engine
2H
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )

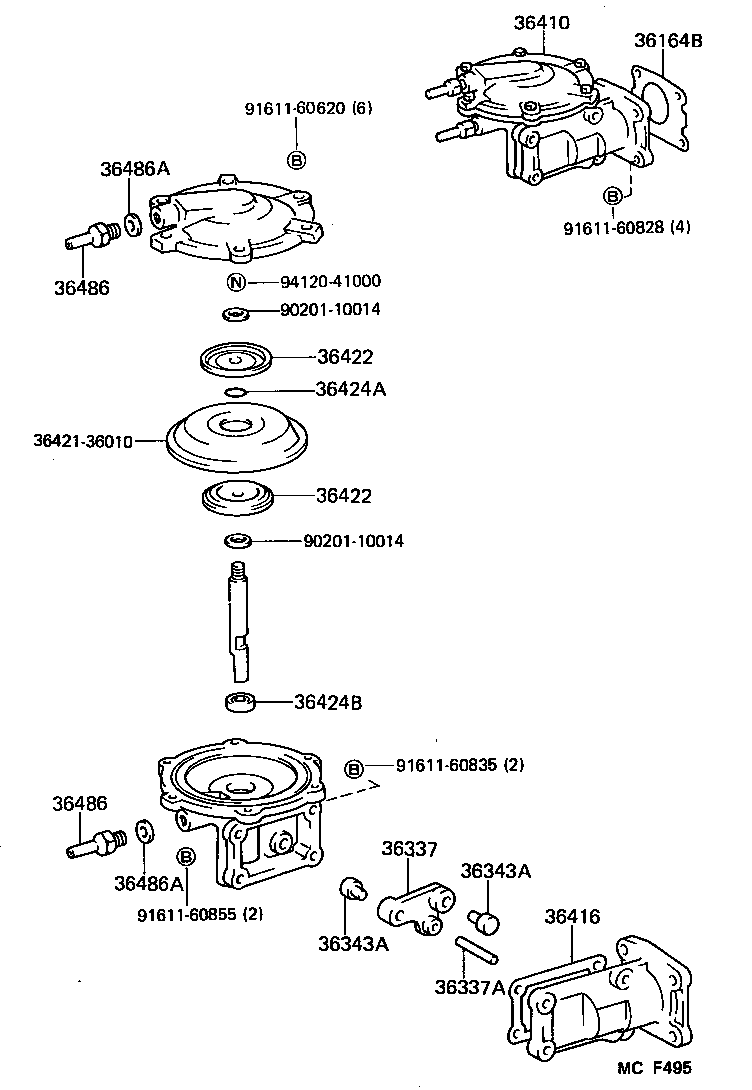

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36164B - GASKET, TRANSFER SHIFT SHAFT GUIDE | ||||
| 36164-60040 |
HJ60..RHD |
1 | ||
| 36337 - LEVER, FRONT DRIVE SHIFT LINK | ||||
| 36337-60080 |
HJ60..RHD |
1 | ||
| 36337A - PIN, STRAIGHT (FOR FRONT DRIVE SHIFT LINK LEVER) | ||||
| 90250-08024 |
HJ60..RHD |
1 | ||
| 36343A - SHOE, FR DRIVE SHIFT LINK LEVER (FOR VACUUM MAGNET TYPE | ||||
| 36343-60010 |
HJ60..RHD OD=18 |
1 | ||
| 36343-60040 |
HJ60..RHD OD=12 |
1 | ||
| 36343A - SHOE, FR DRIVE SHIFT LINK LEVER (FOR VACUUM MAGNET TYPE | ||||
| 36343-60010 |
HJ60..RHD OD=18 |
1 | ||
| 36343-60040 |
HJ60..RHD OD=12 |
1 | ||
| 36410 - CYLINDER ASSY, DIAPHRAGM | ||||
| 36410-60030 |
HJ60..RHD |
1 | ||
| 36416 - GASKET, DIAPHRAGM CYLINDER | ||||
| 36416-36010 |
HJ60..RHD |
1 | ||
| 36422 - PLATE, TRANSFER DIAPHRAGM | ||||
| 36422-36010 |
HJ60..RHD |
2 | ||
| 36422 - PLATE, TRANSFER DIAPHRAGM | ||||
| 36422-36010 |
HJ60..RHD |
2 | ||
| 36424A - RING, O (FOR DIAPHRAGM PUSH ROD) | ||||
| 96711-19010 |
HJ60..RHD |
1 | ||
| 36424B - SEAL, TYPE T, OIL (FOR DIAPHRAGM PUSH ROD) | ||||
| 90311-13066 |
HJ60..RHD |
1 | ||
| 36486 - TUBE, SUCTION | ||||
| 36486-60010 |
HJ60..RHD |
2 | ||
| 36486 - TUBE, SUCTION | ||||
| 36486-60010 |
HJ60..RHD |
2 | ||
| 36486A - GASKET (FOR SUCTION TUBE) | ||||
| 90430-10022 |
HJ60..RHD |
2 | ||
| 36486A - GASKET (FOR SUCTION TUBE) | ||||
| 90430-10022 |
HJ60..RHD |
2 | ||
| Common parts | ||||
| 36421-36010 | ||||
| 90201-10014 | ||||
| 91611-60620 | ||||
| 91611-60828 | ||||
| 91611-60835 | ||||
| 91611-60855 | ||||
| 94120-41000 | ||||
