HJ60RG-K (1980)
Toyota Land Cruiser
Production
Aug 1980
-
Aug 1987
Engine
2H
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8008- )

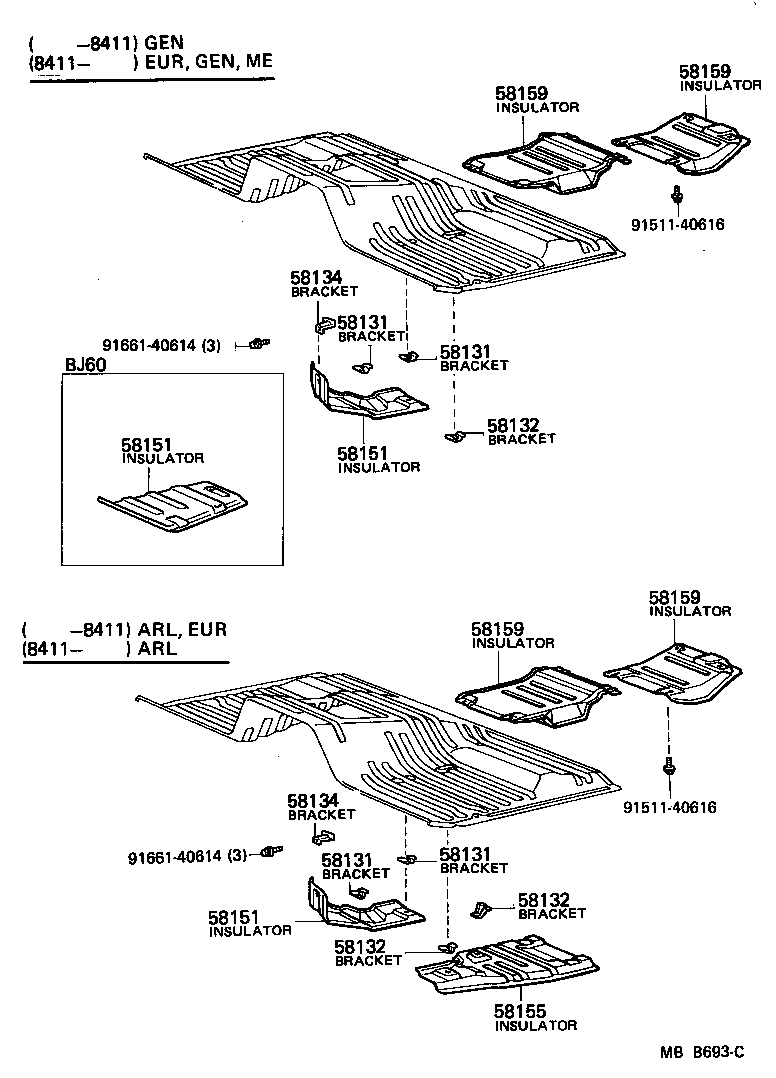

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58131 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 | ||||
| 58231-90A00 |
FJ6#,HJ6# |
1 | ||
| 58131 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 | ||||
| 58231-90A00 |
FJ6#,HJ6# |
1 | ||
| 58131 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 | ||||
| 58231-90A00 |
FJ6#,HJ6# |
1 | ||
| 58131 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 | ||||
| 58231-90A00 |
FJ6#,HJ6# |
1 | ||
| 58134 - BRACKET, CENTER FLOOR HEAT INSULATOR, NO.1 | ||||
| 58232-90A00 |
BJ60,FJ6#,HJ6# LH |
1 | ||
| 58131-90A00 |
BJ60,FJ60,HJ60 RH |
1 | ||
| 58345-90A00 |
BJ60,FJ62,HJ6# RH |
1 | ||
| 58134 - BRACKET, CENTER FLOOR HEAT INSULATOR, NO.1 | ||||
| 58232-90A00 |
BJ60,FJ6#,HJ6# LH |
1 | ||
| 58131-90A00 |
BJ60,FJ60,HJ60 RH |
1 | ||
| 58345-90A00 |
BJ60,FJ62,HJ6# RH |
1 | ||
| 58151 - INSULATOR, FRONT FLOOR HEAT, NO.1 | ||||
| 58155-90A00 |
FJ6#,HJ6# |
1 | ||
| 58151 - INSULATOR, FRONT FLOOR HEAT, NO.1 | ||||
| 58155-90A00 |
FJ6#,HJ6# |
1 | ||
| 58151 - INSULATOR, FRONT FLOOR HEAT, NO.1 | ||||
| 58155-90A00 |
FJ6#,HJ6# |
1 | ||
| 58159 - INSULATOR, MAIN MAFFLAR HEAT | ||||
| 58043-90A00 |
BJ60,FJ6#,HJ6# RR |
1 | ||
| 58041-90A00 |
BJ60,FJ6#,HJ60 FR |
1 | ||
| 58041-90A01 |
BJ60,FJ62,HJ6# FR |
1 | ||
| 58159 - INSULATOR, MAIN MAFFLAR HEAT | ||||
| 58043-90A00 |
BJ60,FJ6#,HJ6# RR |
1 | ||
| 58041-90A00 |
BJ60,FJ6#,HJ60 FR |
1 | ||
| 58041-90A01 |
BJ60,FJ62,HJ6# FR |
1 | ||
| 58159 - INSULATOR, MAIN MAFFLAR HEAT | ||||
| 58043-90A00 |
BJ60,FJ6#,HJ6# RR |
1 | ||
| 58041-90A00 |
BJ60,FJ6#,HJ60 FR |
1 | ||
| 58041-90A01 |
BJ60,FJ62,HJ6# FR |
1 | ||
| 58159 - INSULATOR, MAIN MAFFLAR HEAT | ||||
| 58041-90A01 |
BJ60,FJ62,HJ6# FR |
1 | ||
| 58043-90A00 |
BJ60,FJ6#,HJ6# RR |
1 | ||
| 58041-90A00 |
BJ60,FJ6#,HJ60 FR |
1 | ||
| Common parts | ||||
| 91511-40616 | ||||
| 91661-40614 | ||||
