HJ60LV-KCW (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982
Engine 2H
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

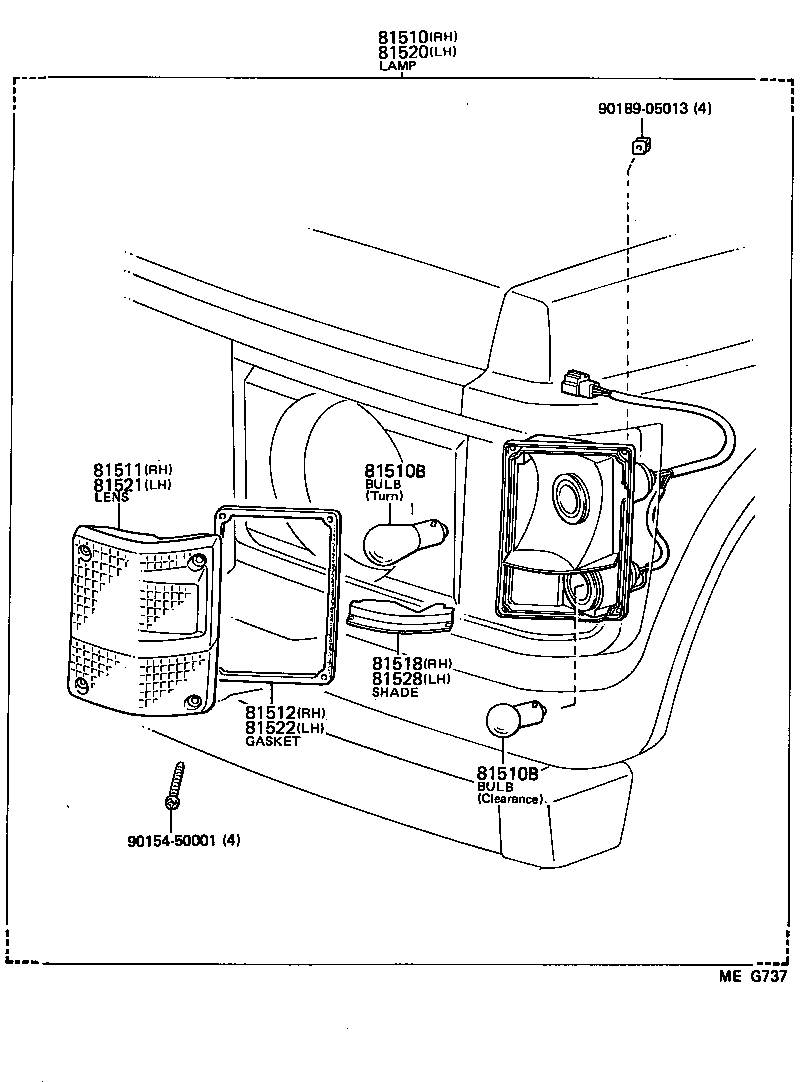

Click highlighted areas on diagram

diagram 81510 81510B 81510B 81511 81512 81518 81520 81521 81522 81528 9015450001 9018905013
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-69195

HJ60..EUR

24V AMBER-CLEAR

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-16016

BJ60,HJ60..EUR,GEN

24V 5W,24V 5W(CLEALANCE)

 2
90981-16014

HJ6#..EUR

24V 21W,24V 21W(TURN)

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-16016

BJ60,HJ60..EUR,GEN

24V 5W,24V 5W(CLEALANCE)

 2
90981-16014

HJ6#..EUR

24V 21W,24V 21W(TURN)

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-90A00

BJ60,FJ6#,HJ6#

AMBER-CLEAR

 1
81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-90A00

BJ60,FJ6#,HJ6#

 1
81518 - SHADE, FRONT TURN SIGNAL LAMP, RH
81517-90A00

BJ60,FJ6#,HJ6#

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-69195

HJ60..EUR

24V AMBER-CLEAR

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-90A00

BJ60,FJ6#,HJ6#

AMBER-CLEAR

 1
81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81512-90A00

BJ60,FJ6#,HJ6#

 1
81528 - SHADE, FRONT TURN SIGNAL LAMP, LH
81527-90A00

BJ60,FJ6#,HJ6#

 1
Common parts
90154-50001
90189-05013
