HJ60LV-KCW (1980)
Toyota Land Cruiser
Production
Aug 1980
-
Oct 1982
Engine
2H
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8008- )

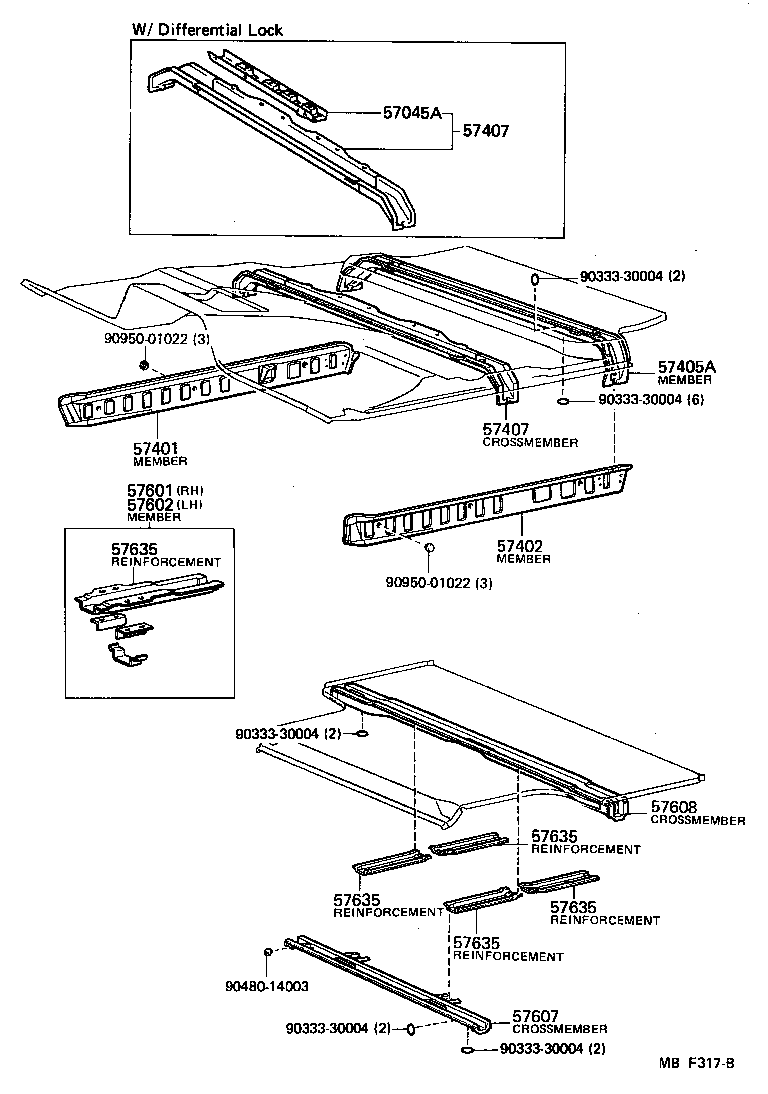

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH | ||||
| 57401-90A01 |
BJ60,FJ60,HJ60 |
1 | ||
| 57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH | ||||
| 57402-90A01 |
BJ60,FJ60,HJ60 |
1 | ||
| 57405A - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2 | ||||
| 57405-90A00 |
BJ60,FJ60,HJ60 |
1 | ||
| 57407 - CROSS MEMBER SUB-ASSY, CENTER FLOOR, NO.1 | ||||
| 57407-90A01 |
FJ60,HJ60..EUR SEPARATE SEAT,W/O HEATER |
1 | ||
| 57407-90A04 |
FJ60,HJ60..LHD..EUR BENCH SEAT,W/HEATER |
1 | ||
| 57407-90A03 |
FJ60,HJ60..EUR SEPARATE SEAT,W/HEATER |
1 | ||
| 57407-90A00 |
FJ60,HJ60..LHD..EUR BENCH SEAT,W/O HEATER |
1 | ||
| 57407 - CROSS MEMBER SUB-ASSY, CENTER FLOOR, NO.1 | ||||
| 57407-90A01 |
FJ60,HJ60..EUR SEPARATE SEAT,W/O HEATER |
1 | ||
| 57407-90A04 |
FJ60,HJ60..LHD..EUR BENCH SEAT,W/HEATER |
1 | ||
| 57407-90A03 |
FJ60,HJ60..EUR SEPARATE SEAT,W/HEATER |
1 | ||
| 57407-90A00 |
FJ60,HJ60..LHD..EUR BENCH SEAT,W/O HEATER |
1 | ||
| 57607 - CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.1 | ||||
| 57605-90A00 |
BJ60,FJ60,HJ60 |
1 | ||
| 57608 - CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.2 | ||||
| 57606-90A00 |
BJ60,FJ60,HJ60 |
1 | ||
| 57635 - REINFORCEMENT, REAR FLOOR SIDE MEMBER | ||||
| 57635-90A00 |
BJ60,FJ60,HJ60 |
4 | ||
| 57635 - REINFORCEMENT, REAR FLOOR SIDE MEMBER | ||||
| 57635-90A00 |
BJ60,FJ60,HJ60 |
4 | ||
| 57635 - REINFORCEMENT, REAR FLOOR SIDE MEMBER | ||||
| 57635-90A00 |
BJ60,FJ60,HJ60 |
4 | ||
| 57635 - REINFORCEMENT, REAR FLOOR SIDE MEMBER | ||||
| 57635-90A00 |
BJ60,FJ60,HJ60 |
4 | ||
| 57635 - REINFORCEMENT, REAR FLOOR SIDE MEMBER | ||||
| 57635-90A00 |
BJ60,FJ60,HJ60 |
4 | ||
| Common parts | ||||
| 90333-30004 | ||||
| 90480-14003 | ||||
| 90950-01022 | ||||
