HJ60LV-KCW (1980)
Toyota Land Cruiser
Production
Aug 1980
-
Oct 1982
Engine
2H
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8008-8601)HJ6#..LHD ; (8601- )HJ6#..LHD..MTM

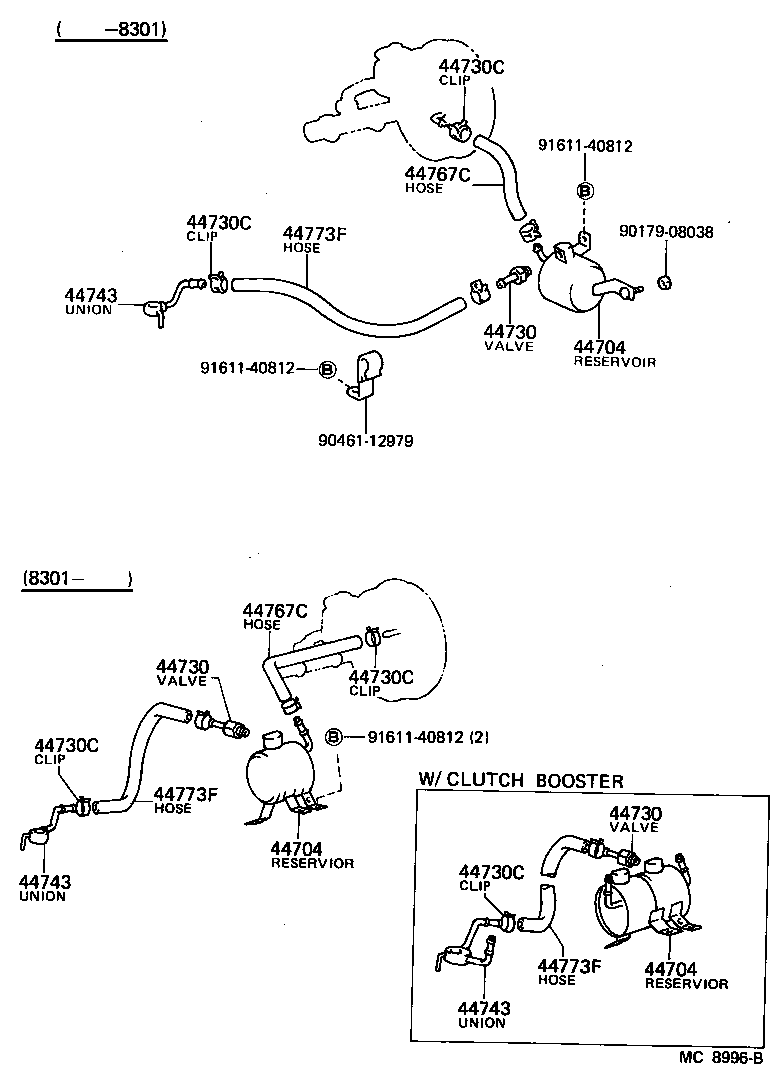

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-60050 |
BJ60,HJ60 |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-60050 |
BJ60,HJ60 |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-60050 |
BJ60,HJ60 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
BJ60,HJ6# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
BJ60,HJ6# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
BJ60,HJ6# |
1 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16141 |
BJ60,FJ60,HJ60 |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16141 |
BJ60,FJ60,HJ60 |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16141 |
BJ60,FJ60,HJ60 |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16141 |
BJ60,FJ60,HJ60 |
8 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16141 |
BJ60,FJ60,HJ60 |
8 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09027 |
HJ60 |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09027 |
HJ60 |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09027 |
HJ60 |
1 | ||
| 44767C - HOSE(FOR VACUUM RESERVOIR TO BRAKE BOOSTER) | ||||
| 90445-17895 |
HJ60..LHD |
1 | ||
| 44767C - HOSE(FOR VACUUM RESERVOIR TO BRAKE BOOSTER) | ||||
| 90445-17895 |
HJ60..LHD |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 90445-17008 |
HJ60 |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 90445-17008 |
HJ60 |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 90445-17008 |
HJ60 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 90461-12979 | ||||
| 91611-40812 | ||||
