HJ60LG-PZW (1984)

Toyota Land Cruiser

Production Nov 1984 - Oct 1985
Engine 2H
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )HJ60

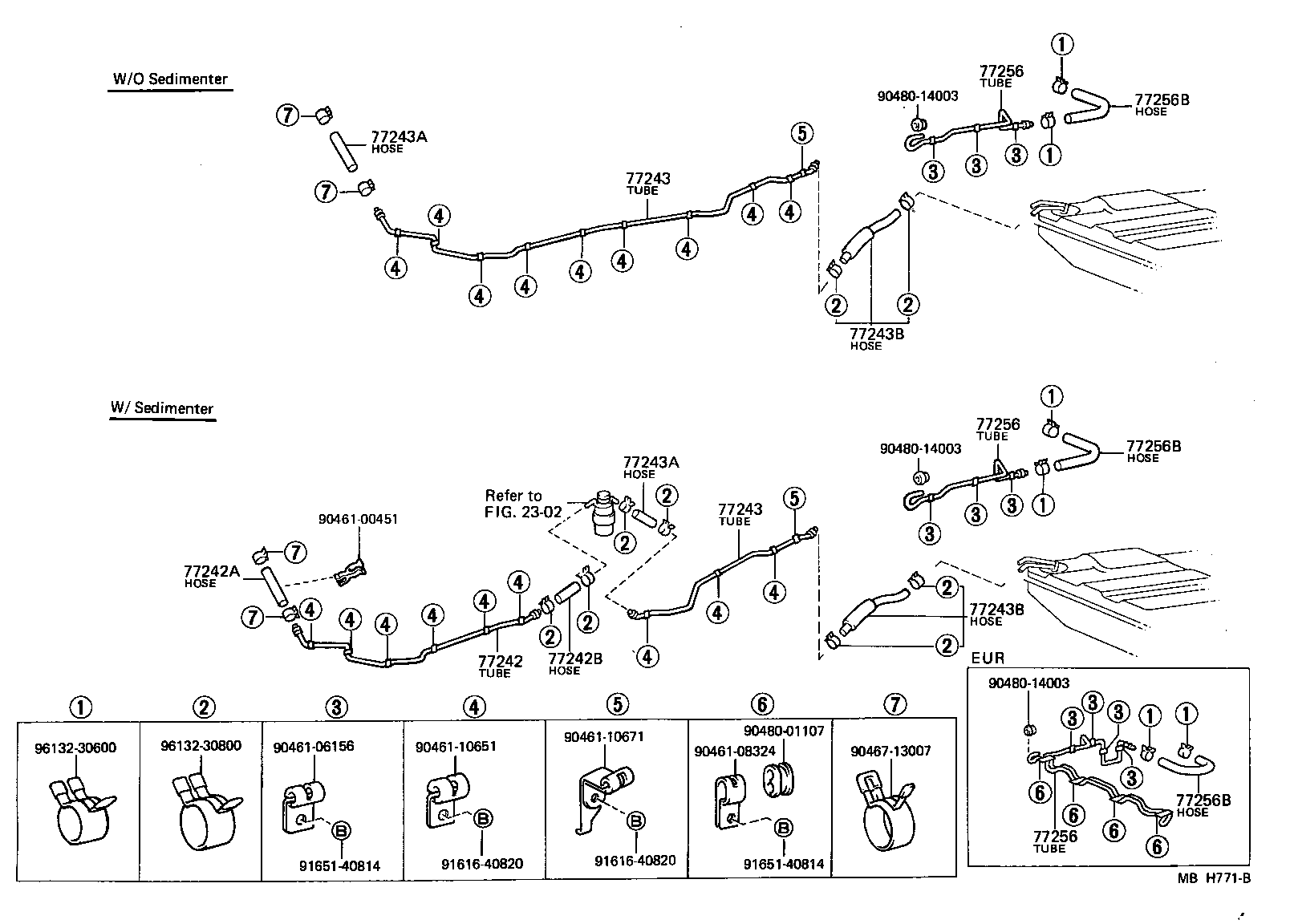

Click highlighted areas on diagram

diagram 2302 77242 77242A 77242B 77243 77243 77243A 77243A 77243B 77243B 77256 77256 77256 77256B 77256B 77256B 9046100451 9046106156 9046108324 9046110651 9046110671 9046713007 9048001107 9048014003 9048014003 9048014003 9161640820 9161640820 9165140814 9165140814 9613230600 9613230800
Part # Description Qty Price
77242 - TUBE, FUEL MAIN, NO.2
77252-60050

HJ60

W/SEDIMENTER

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-08020

HJ60

*H,L=200,ID=7.6

 1
77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2)
95332-08020

BJ60,HJ6#

*H,L=130,ID=7.6,W/SEDIMENTER

 1
77243 - TUBE, FUEL MAIN, NO.3
77251-60190

HJ60..EUR,GEN

 1
77251-60210

BJ60,HJ60

W/SEDIMENTER

 1
77243 - TUBE, FUEL MAIN, NO.3
77251-60190

HJ60..EUR,GEN

 1
77251-60210

BJ60,HJ60

W/SEDIMENTER

 1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-08020

BJ60,HJ6#

*H,L=130,ID=7.6,W/SEDIMENTER

 1
95332-08030

HJ60..EUR,GEN

*H,L=280,ID=7.6

 1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-08020

BJ60,HJ6#

*H,L=130,ID=7.6,W/SEDIMENTER

 1
95332-08030

HJ60..EUR,GEN

*H,L=280,ID=7.6

 1
77243B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.3)
77250-60050

BJ60,FJ6#,HJ6#

 1
77243B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.3)
77250-60050

BJ60,FJ6#,HJ6#

 1
77256 - TUBE, FUEL EMISSION, NO.3
77244-60130

HJ60;BJ60,FJ60..EUR,GEN

 1
77256 - TUBE, FUEL EMISSION, NO.3
77244-60130

HJ60;BJ60,FJ60..EUR,GEN

 1
77256 - TUBE, FUEL EMISSION, NO.3
77244-60130

HJ60;BJ60,FJ60..EUR,GEN

 1
77256B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.3)
95332-06030

BJ60,FJ60,HJ60

*H,L=240

 1
77256B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.3)
95332-06030

BJ60,FJ60,HJ60

*H,L=240

 1
77256B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.3)
95332-06030

BJ60,FJ60,HJ60

*H,L=240

 1
Common parts
90461-00451
90461-06156
90461-08324
90461-10651
90461-10671
90467-13007
90480-01107
90480-14003
91616-40820
91651-40814
96132-30600
96132-30800
Linked diagrams
2302
