HJ60LG-PZW (1984)

Toyota Land Cruiser

Production Nov 1984 - Oct 1985
Engine 2H
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8411-8510)HJ60..LHD

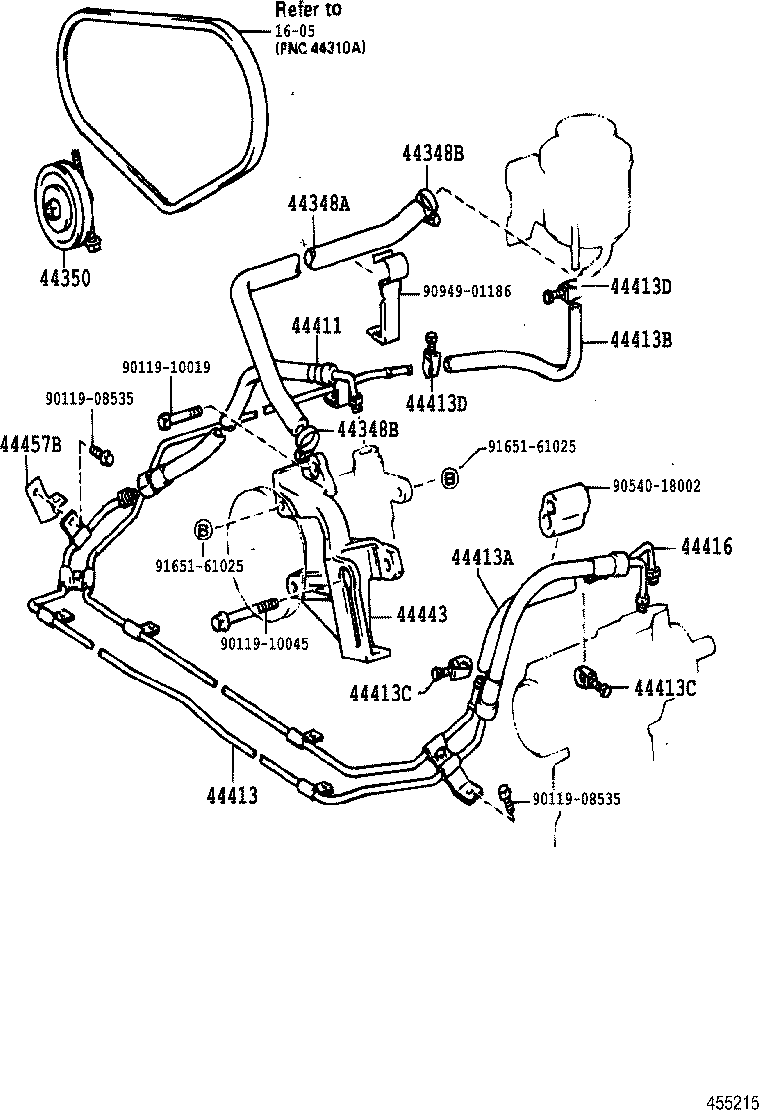

Click highlighted areas on diagram

diagram 1605 44348A 44348B 44348B 44350 44411 44413 44413A 44413B 44413C 44413C 44413D 44413D 44416 44443 44457B 9011908535 9011908535 9011910019 9011910045 9054018002 9094901186 9165161025 9165161025
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-60020

HJ60

 1
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001

HJ6#

 2
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001

HJ6#

 2
44350 - PULLEY ASSY, POWER STEERING IDLE
16630-47020

HJ6#

 1
44413 - TUBE, PRESSURE FEED, NO.1
44410-60050

HJ60..LHD

 1
44410-60151

HJ60..LHD

 1
44413A - HOSE(FOR RETURN TUBE OUTLET)
90445-18089

FJ60,HJ60..LHD

 1
44413B - HOSE(FOR RESERVOIR TANK INLET)
90445-18089

HJ6#..LHD

 1
44413C - CLAMP(FOR RETURN TUBE OUTLET HOSE)
90460-01001

FJ60,HJ60..LHD

 2
44413C - CLAMP(FOR RETURN TUBE OUTLET HOSE)
90460-01001

FJ60,HJ60..LHD

 2
44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE)
90460-01001

FJ60,HJ60..LHD

 2
44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE)
90460-01001

FJ60,HJ60..LHD

 2
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-60060

HJ60;FJ60..LHD

 1
44443 - BRACKET, PUMP
44443-60030

HJ60

 1
44443-60070

HJ60

 1
44457B - BRACKET, POWER STEERING TUBE SUPPORT, NO.2
44457-60110

HJ60..LHD

 1
Common parts
90119-08535
90119-10019
90119-10045
90540-18002
90949-01186
91651-61025
Linked diagrams
1605
