HJ60LG-PNW (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 2H
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

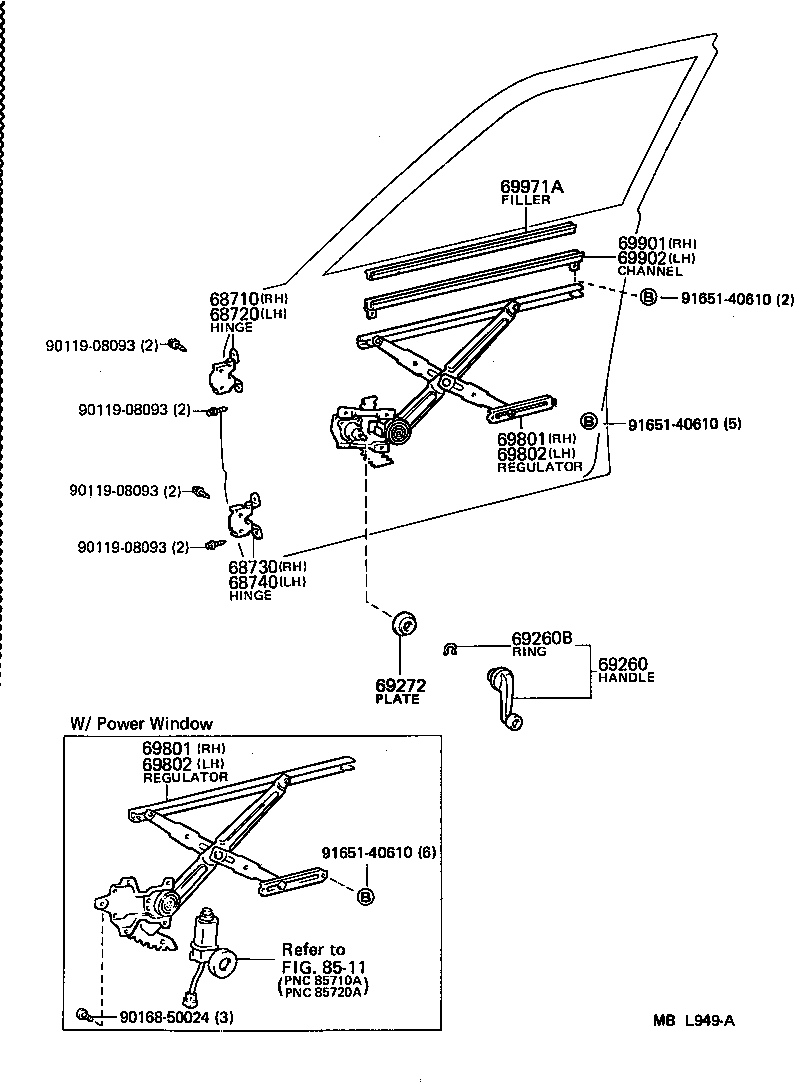

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69260 69260B 69272 69801 69801 69802 69802 69901 69902 69971A 8511 9011908093 9011908093 9011908093 9011908093 9016850024 9165140610 9165140610 9165140610
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-14020

HJ6#;FJ62..SOB

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-14020

HJ6#;FJ62..SOB

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-14020

HJ6#;FJ62..SOB

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-14020

HJ6#;FJ62..SOB

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-2005003

FJ62..SOB;HJ6#..GX,VX

GRAY,TRIM1#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01002

HJ6#

 2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69285-2201008

HJ6#;FJ62..SOB

NATURAL WHITE,TRIM1#,4#

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-90A00

FJ62..SOB;HJ6#..GX,VX

W(POWER WINDOW)

 1
69810-90A02

HJ6#;FJ62..SOB

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-90A00

FJ62..SOB;HJ6#..GX,VX

W(POWER WINDOW)

 1
69810-90A02

HJ6#;FJ62..SOB

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-90A00

FJ62..SOB;HJ6#..GX,VX

W(POWER WINDOW)

 1
69820-90A02

HJ6#;FJ62..SOB

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-90A00

FJ62..SOB;HJ6#..GX,VX

W(POWER WINDOW)

 1
69820-90A02

HJ6#;FJ62..SOB

 1
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69901-90A03

FJ62,HJ6#

 1
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69902-90A02

FJ62,HJ6#

 1
69971A - FILLER, FRONT DOOR GLASS CHANNEL
69971-90A01

FJ62,HJ6#

 2
Common parts
90119-08093
90168-50024
91651-40610
Linked diagrams
8511
