HJ60LG-PNW (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 2H
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )2H

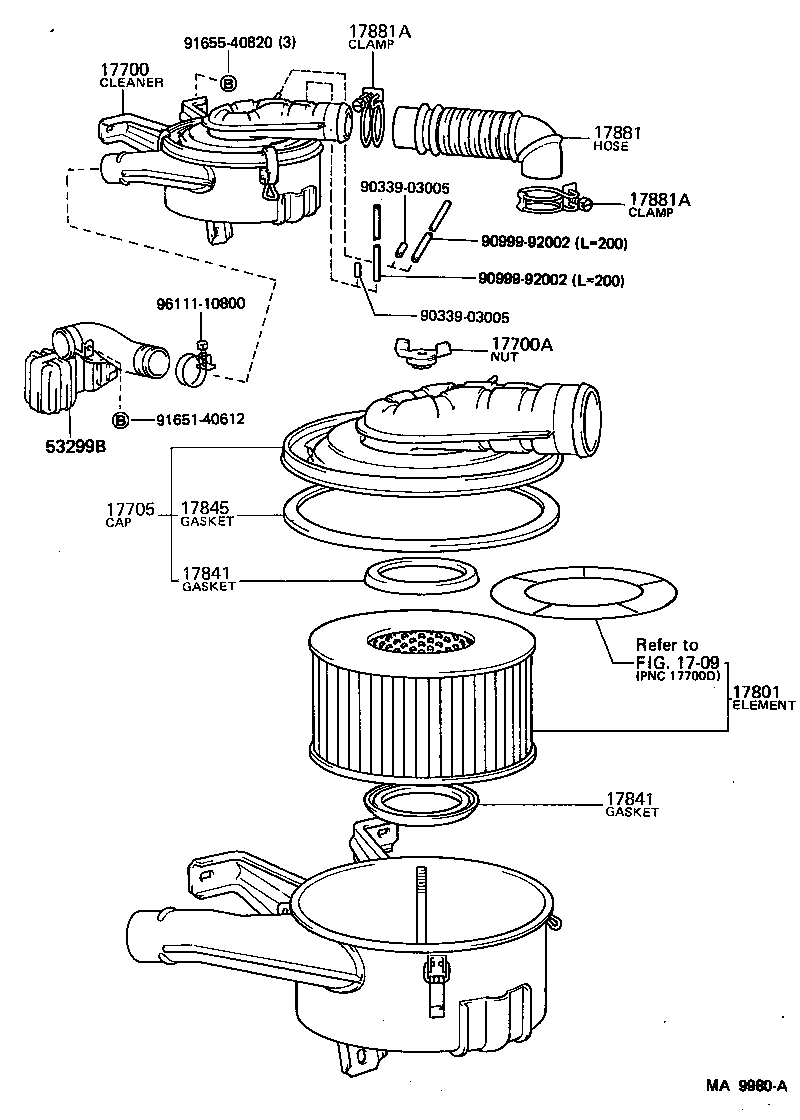

Click highlighted areas on diagram

diagram 1709 17700 17700A 17705 17801 17841 17841 17845 17881 17881A 17881A 53299B 9033903005 9033903005 9099992002 9099992002 9165140612 9165540820 9611110800
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-68210

2H..HJ60

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-08008

12HT,2H..HJ6#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-68100

2H..HJ60

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-68020

2H..HJ60

 1
17841 - GASKET, FILTER ELEMENT
17841-68010

12HT,2H..HJ6#

 2
17841 - GASKET, FILTER ELEMENT
17841-68010

12HT,2H..HJ6#

 2
17845 - GASKET, AIR CLEANER CAP
17845-61011

12HT,2H..HJ6#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-68010

2H..HJ60

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10830

12HT,2H..HJ6#

AIR CLEANER SIDE

 1
96111-10780

2H..HJ60

VENTURI SIDE

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10830

12HT,2H..HJ6#

AIR CLEANER SIDE

 1
96111-10780

2H..HJ60

VENTURI SIDE

 1
53299B - DUCT, COOL AIR INTAKE
53207-90A01

HJ6#

 1
Common parts
90339-03005
90999-92002
91651-40612
91655-40820
96111-10800
Linked diagrams
1709
