HJ60LG-MZW (1983)

Toyota Land Cruiser

Production May 1983 - Aug 1987
Engine 2H
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

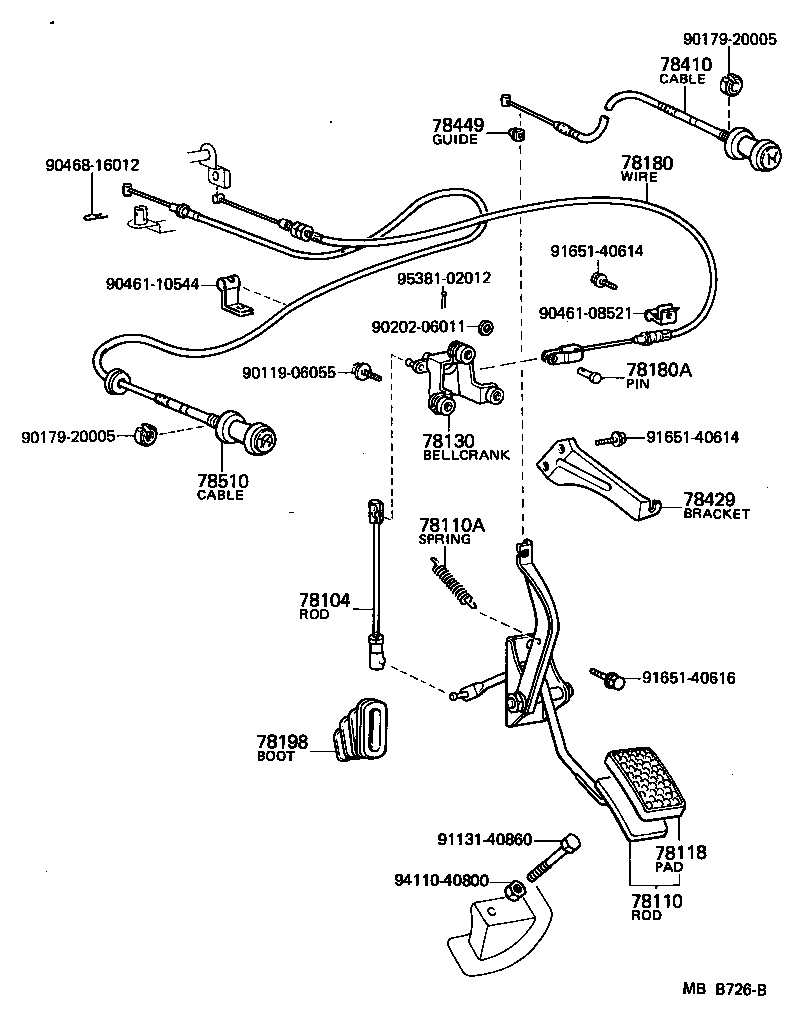

(8008-8411)HJ60..LHD

Click highlighted areas on diagram

diagram 78104 78110 78110A 78118 78130 78180 78180A 78198 78410 78429 78449 78510 9011906055 9017920005 9017920005 9020206011 9046108521 9046110544 9046816012 9113140860 9165140614 9165140614 9165140616 9411040800 9538102012
Part # Description Qty Price
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78104-90A01

BJ60,FJ62,HJ60..LHD

 1
78104-90A01

BJ60,HJ60..LHD

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-90A03

BJ60,HJ60..LHD

 1
78120-90A06

BJ60,FJ62,HJ60..LHD

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90506-12262

BJ60,FJ6#,HJ60..LHD

 1
78118 - PAD, ACCELERATOR PEDAL
78111-95110

BJ60,FJ6#,HJ6#

 1
78130 - BELLCRANK ASSY, ACCELERATOR
78160-90A01

BJ60,HJ60..LHD

 1
78160-90A02

BJ60,FJ62,HJ60..LHD

 1
78180 - WIRE ASSY, ACCELERATOR
78180-90A03

HJ60..LHD

 1
78180-90A13

HJ60..LHD..MTM

 1
78180A - PIN, ACCELERATOR WIRE SET
90240-05071

BJ60,HJ60..LHD

 1
78198 - BOOT, ACCELERATOR CONNECTING ROD
78199-90352

FJ60,HJ60..LHD

 1
78410 - CABLE ASSY, THROTTLE CONTROL
78410-90A02

BJ60,FJ6#,HJ6#..LHD

 1
78410-90A06

HJ60..LHD..EUR

*FRG

 1
78429 - BRACKET, THROTTLE ROD
78471-90A00

BJ60,FJ6#,HJ6#..LHD

 1
78449 - GUIDE, THROTTLE CABLE
78449-90300

BJ60,FJ6#,HJ60

 1
Common parts
90119-06055
90179-20005
90202-06011
90461-08521
90461-10544
90468-16012
91131-40860
91651-40614
91651-40616
94110-40800
95381-02012

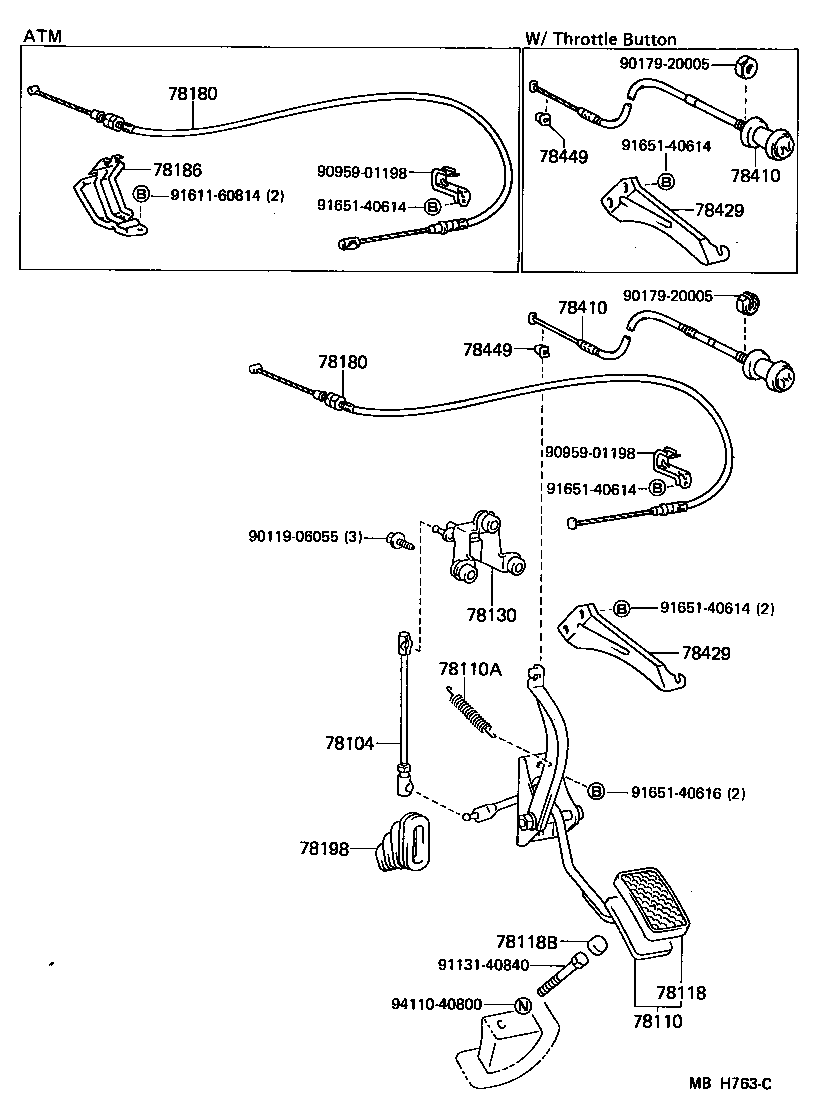

(8411- )HJ60..LHD

Click highlighted areas on diagram

diagram 78104 78110 78110A 78118 78118B 78130 78180 78180 78186 78198 78410 78410 78429 78429 78449 78449 9011906055 9017920005 9017920005 9095901198 9095901198 9113140840 9161160814 9165140614 9165140614 9165140614 9165140614 9165140616 9411040800
Part # Description Qty Price
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78104-90A01

BJ60,FJ62,HJ60..LHD

 1
78104-90A01

BJ60,HJ60..LHD

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-90A03

BJ60,HJ60..LHD

 1
78120-90A06

BJ60,FJ62,HJ60..LHD

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90506-12262

BJ60,FJ6#,HJ60..LHD

 1
78118 - PAD, ACCELERATOR PEDAL
78111-95110

BJ60,FJ6#,HJ6#

 1
78118B - STOPPER, ACCELERATOR PEDAL
78118-90K00

BJ60,FJ62,HJ6#

 1
78130 - BELLCRANK ASSY, ACCELERATOR
78160-90A01

BJ60,HJ60..LHD

 1
78160-90A02

BJ60,FJ62,HJ60..LHD

 1
78180 - WIRE ASSY, ACCELERATOR
78180-90A03

HJ60..LHD

 1
78180-90A13

HJ60..LHD..MTM

 1
78180 - WIRE ASSY, ACCELERATOR
78180-90A03

HJ60..LHD

 1
78180-90A13

HJ60..LHD..MTM

 1
78198 - BOOT, ACCELERATOR CONNECTING ROD
78199-90352

FJ60,HJ60..LHD

 1
78410 - CABLE ASSY, THROTTLE CONTROL
78410-90A02

BJ60,FJ6#,HJ6#..LHD

 1
78410-90A06

HJ60..LHD..EUR

*FRG

 1
78410 - CABLE ASSY, THROTTLE CONTROL
78410-90A02

BJ60,FJ6#,HJ6#..LHD

 1
78410-90A06

HJ60..LHD..EUR

*FRG

 1
78429 - BRACKET, THROTTLE ROD
78471-90A00

BJ60,FJ6#,HJ6#..LHD

 1
78429 - BRACKET, THROTTLE ROD
78471-90A00

BJ60,FJ6#,HJ6#..LHD

 1
78449 - GUIDE, THROTTLE CABLE
78449-90300

BJ60,FJ6#,HJ60

 1
78449 - GUIDE, THROTTLE CABLE
78449-90300

BJ60,FJ6#,HJ60

 1
Common parts
90119-06055
90179-20005
90959-01198
91131-40840
91611-60814
91651-40614
91651-40616
94110-40800

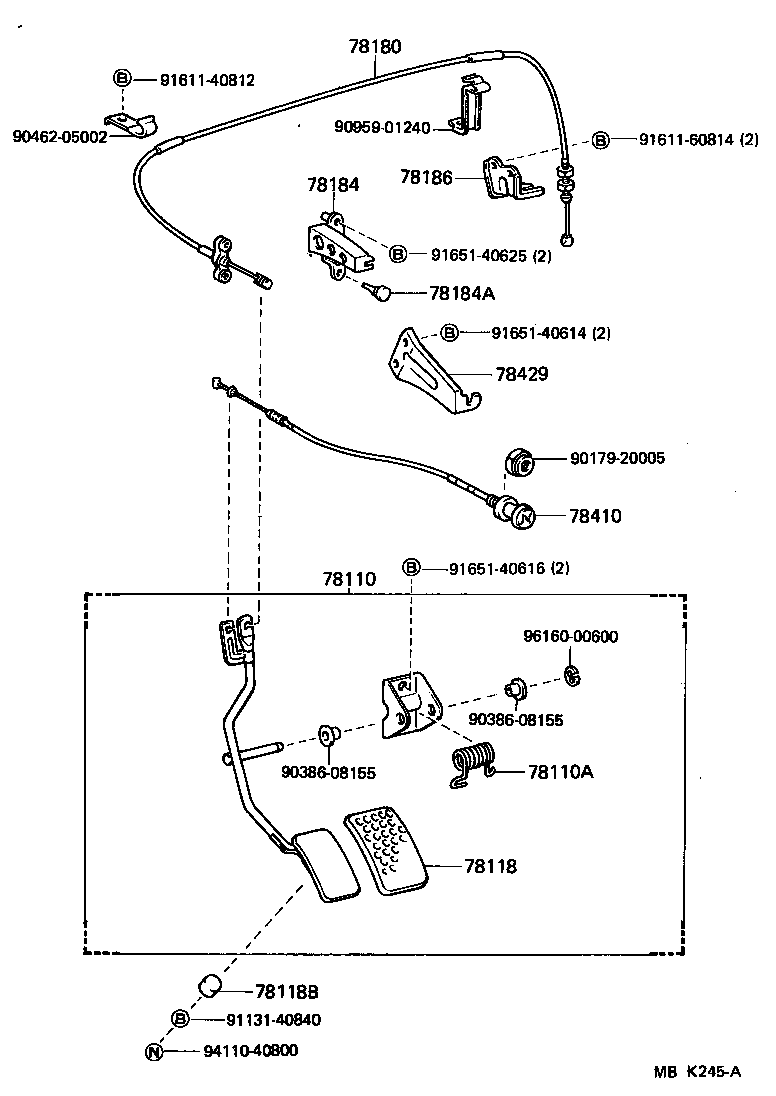

(8510- )HJ60..LHD

Click highlighted areas on diagram

diagram 78110 78110A 78118 78118B 78180 78184 78184A 78186 78410 78429 9017920005 9038608155 9038608155 9046205002 9095901240 9113140840 9161140812 9161160814 9165140614 9165140616 9165140625 9411040800 9616000600
Part # Description Qty Price
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-90A03

BJ60,HJ60..LHD

 1
78120-90A06

BJ60,FJ62,HJ60..LHD

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90506-12262

BJ60,FJ6#,HJ60..LHD

 1
78118 - PAD, ACCELERATOR PEDAL
78111-95110

BJ60,FJ6#,HJ6#

 1
78118B - STOPPER, ACCELERATOR PEDAL
78118-90K00

BJ60,FJ62,HJ6#

 1
78180 - WIRE ASSY, ACCELERATOR
78180-90A03

HJ60..LHD

 1
78180-90A13

HJ60..LHD..MTM

 1
78184 - CHANNEL, ACCELERATOR IDLE ADJUSTING STOPPER
78184-90A02

HJ60..LHD..MTM

 1
78410 - CABLE ASSY, THROTTLE CONTROL
78410-90A02

BJ60,FJ6#,HJ6#..LHD

 1
78410-90A06

HJ60..LHD..EUR

*FRG

 1
78429 - BRACKET, THROTTLE ROD
78471-90A00

BJ60,FJ6#,HJ6#..LHD

 1
Common parts
90179-20005
90386-08155
90462-05002
90959-01240
91131-40840
91611-40812
91611-60814
91651-40614
91651-40616
91651-40625
94110-40800
96160-00600
