HJ60LG-MZ (1983)

Toyota Land Cruiser

Production Sep 1983 - Aug 1987
Engine 2H
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

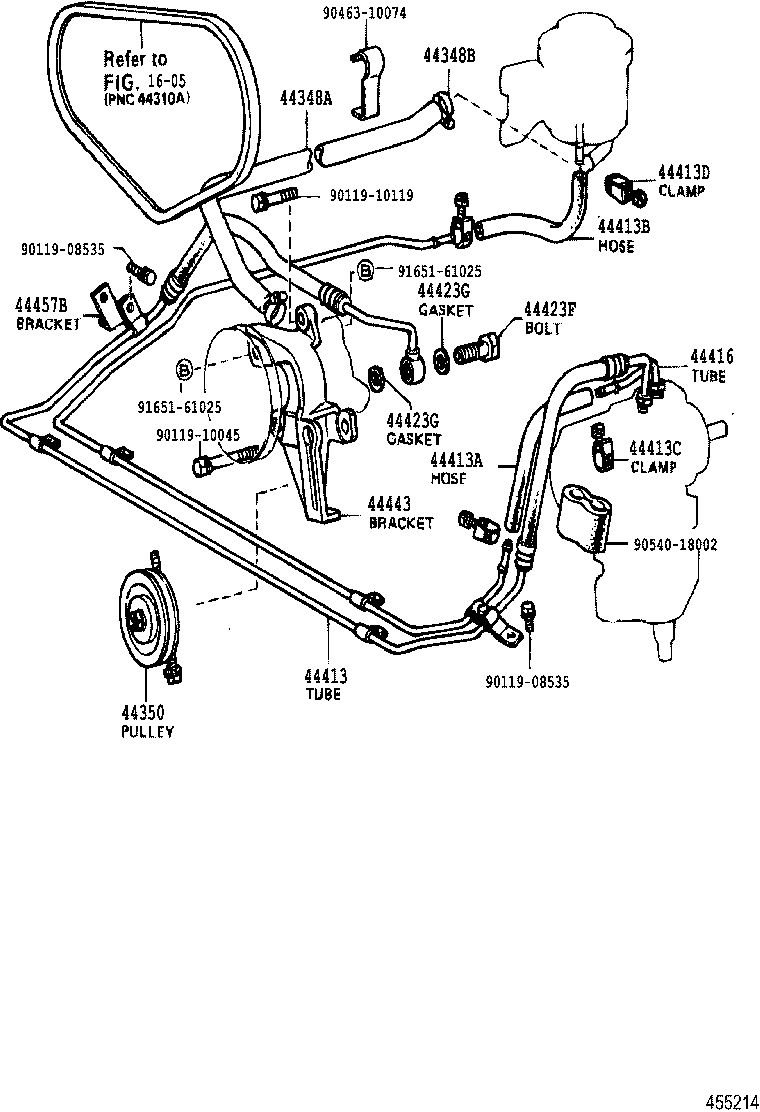

(8008-8411)HJ60..LHD

Click highlighted areas on diagram

diagram 1605 44348A 44348B 44350 44413 44413A 44413B 44413C 44413D 44416 44423F 44423G 44423G 44443 44457B 9011908535 9011908535 9011910045 9011910119 9046310074 9054018002 9165161025 9165161025
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-60070

HJ6#

 1
44348-60020

HJ60

 1
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001

HJ6#

 2
44350 - PULLEY ASSY, POWER STEERING IDLE
16630-47020

HJ6#

 1
44413 - TUBE, PRESSURE FEED, NO.1
44410-60050

HJ60..LHD

 1
44410-60151

HJ60..LHD

 1
44410-60130

HJ6#..LHD

 1
44413A - HOSE(FOR RETURN TUBE OUTLET)
90445-18089

BJ60,FJ6#,HJ6#..LHD

 1
90445-18089

FJ60,HJ60..LHD

 1
44413B - HOSE(FOR RESERVOIR TANK INLET)
90445-18089

HJ6#..LHD

 1
44413C - CLAMP(FOR RETURN TUBE OUTLET HOSE)
90460-01001

FJ60,HJ60..LHD

 2
90460-01001

BJ60,FJ6#,HJ6#..LHD

 2
44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE)
90460-01001

FJ60,HJ60..LHD

 2
90460-01001

BJ60,FJ6#,HJ6#..LHD

 2
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-60060

HJ60;FJ60..LHD

 1
44416-60061

BJ60,FJ62,HJ6#

 1
44416-60060

BJ60,FJ6#,HJ60

 1
44423F - BOLT, UNION
90401-16004

HJ60

 1
44423G - GASKET, UNION BOLT
90430-16242

HJ60

 2
44423G - GASKET, UNION BOLT
90430-16242

HJ60

 2
44443 - BRACKET, PUMP
44443-60030

HJ60

 1
44443-60071

HJ6#

 1
44443-60070

HJ60

 1
44457B - BRACKET, POWER STEERING TUBE SUPPORT, NO.2
44457-60110

HJ60..LHD

 1
Common parts
90119-08535
90119-10045
90119-10119
90463-10074
90540-18002
91651-61025
Linked diagrams
1605

(8411-8510)HJ60..LHD

Click highlighted areas on diagram

diagram 1605 44348A 44348B 44348B 44350 44411 44413 44413A 44413B 44413C 44413C 44413D 44413D 44416 44443 44457B 9011908535 9011908535 9011910019 9011910045 9054018002 9094901186 9165161025 9165161025
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-60070

HJ6#

 1
44348-60020

HJ60

 1
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001

HJ6#

 2
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001

HJ6#

 2
44350 - PULLEY ASSY, POWER STEERING IDLE
16630-47020

HJ6#

 1
44411 - HOSE, PRESSURE FEED
44411-60300

HJ60..LHD

 1
44413 - TUBE, PRESSURE FEED, NO.1
44410-60050

HJ60..LHD

 1
44410-60151

HJ60..LHD

 1
44410-60130

HJ6#..LHD

 1
44413A - HOSE(FOR RETURN TUBE OUTLET)
90445-18089

BJ60,FJ6#,HJ6#..LHD

 1
90445-18089

FJ60,HJ60..LHD

 1
44413B - HOSE(FOR RESERVOIR TANK INLET)
90445-18089

HJ6#..LHD

 1
44413C - CLAMP(FOR RETURN TUBE OUTLET HOSE)
90460-01001

FJ60,HJ60..LHD

 2
90460-01001

BJ60,FJ6#,HJ6#..LHD

 2
44413C - CLAMP(FOR RETURN TUBE OUTLET HOSE)
90460-01001

FJ60,HJ60..LHD

 2
90460-01001

BJ60,FJ6#,HJ6#..LHD

 2
44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE)
90460-01001

FJ60,HJ60..LHD

 2
90460-01001

BJ60,FJ6#,HJ6#..LHD

 2
44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE)
90460-01001

FJ60,HJ60..LHD

 2
90460-01001

BJ60,FJ6#,HJ6#..LHD

 2
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-60060

HJ60;FJ60..LHD

 1
44416-60061

BJ60,FJ62,HJ6#

 1
44416-60060

BJ60,FJ6#,HJ60

 1
44443 - BRACKET, PUMP
44443-60030

HJ60

 1
44443-60071

HJ6#

 1
44443-60070

HJ60

 1
44457B - BRACKET, POWER STEERING TUBE SUPPORT, NO.2
44457-60110

HJ60..LHD

 1
Common parts
90119-08535
90119-10019
90119-10045
90540-18002
90949-01186
91651-61025
Linked diagrams
1605

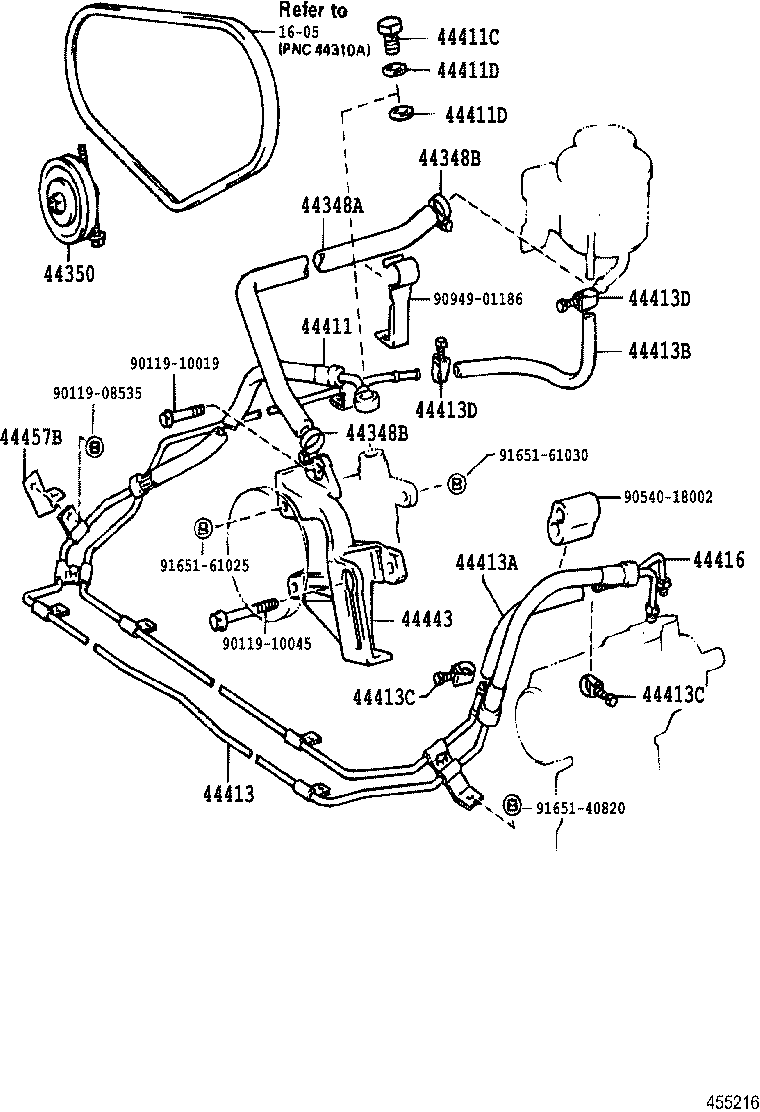

(8510- )HJ6#..LHD

Click highlighted areas on diagram

diagram 1605 44348A 44348B 44348B 44350 44411 44411C 44411D 44411D 44413 44413A 44413B 44413C 44413C 44413D 44413D 44416 44443 44457B 9011908535 9011910019 9011910045 9054018002 9094901186 9165140820 9165161025 9165161030
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-60070

HJ6#

 1
44348-60020

HJ60

 1
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001

HJ6#

 2
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001

HJ6#

 2
44350 - PULLEY ASSY, POWER STEERING IDLE
16630-47020

HJ6#

 1
44411 - HOSE, PRESSURE FEED
44411-60300

HJ60..LHD

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16008

HJ60

 1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16242

HJ6#

 1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16242

HJ6#

 1
44413 - TUBE, PRESSURE FEED, NO.1
44410-60050

HJ60..LHD

 1
44410-60151

HJ60..LHD

 1
44410-60130

HJ6#..LHD

 1
44413A - HOSE(FOR RETURN TUBE OUTLET)
90445-18089

BJ60,FJ6#,HJ6#..LHD

 1
90445-18089

FJ60,HJ60..LHD

 1
44413B - HOSE(FOR RESERVOIR TANK INLET)
90445-18089

HJ6#..LHD

 1
44413C - CLAMP(FOR RETURN TUBE OUTLET HOSE)
90460-01001

FJ60,HJ60..LHD

 2
90460-01001

BJ60,FJ6#,HJ6#..LHD

 2
44413C - CLAMP(FOR RETURN TUBE OUTLET HOSE)
90460-01001

FJ60,HJ60..LHD

 2
90460-01001

BJ60,FJ6#,HJ6#..LHD

 2
44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE)
90460-01001

FJ60,HJ60..LHD

 2
90460-01001

BJ60,FJ6#,HJ6#..LHD

 2
44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE)
90460-01001

FJ60,HJ60..LHD

 2
90460-01001

BJ60,FJ6#,HJ6#..LHD

 2
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-60060

HJ60;FJ60..LHD

 1
44416-60061

BJ60,FJ62,HJ6#

 1
44416-60060

BJ60,FJ6#,HJ60

 1
44443 - BRACKET, PUMP
44443-60030

HJ60

 1
44443-60071

HJ6#

 1
44443-60070

HJ60

 1
44457B - BRACKET, POWER STEERING TUBE SUPPORT, NO.2
44457-60110

HJ60..LHD

 1
Common parts
90119-08535
90119-10019
90119-10045
90540-18002
90949-01186
91651-40820
91651-61025
91651-61030
Linked diagrams
1605
