HJ60LG-MRCW (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 2H
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

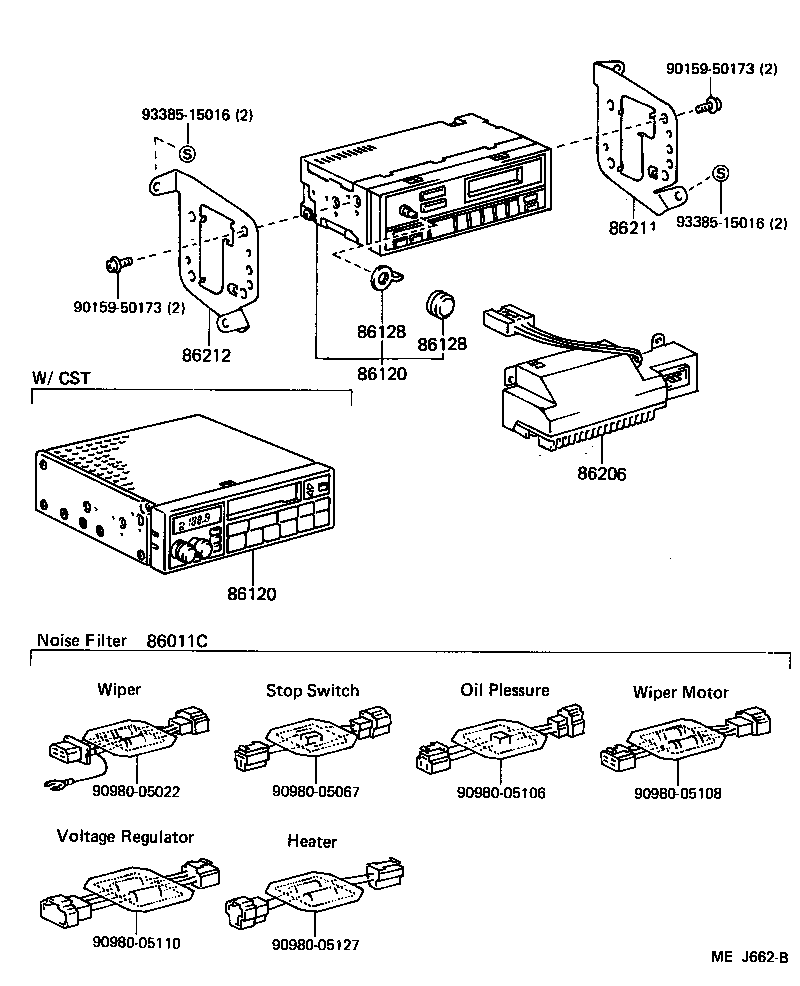

Click highlighted areas on diagram

diagram 86011C 86120 86120 86128 86128 86206 86211 86212 9015950173 9015950173 9098005022 9098005067 9098005106 9098005108 9098005110 9098005127 9338515016 9338515016
Part # Description Qty Price
86011C - FILTER, NOISE
90980-05110

HJ6#..MTM

GENERATOR REGULATOR

 1
90980-05108

HJ6#

WIPER MOTOR

 1
90980-05067

FJ62,HJ6#

STOP SWITCH

 1
90980-05110

FJ62,HJ6#

VOLTAGE REGULATOR

 1
90980-05022

FJ62,HJ6#

WIPER

 1
90980-05106

FJ62,HJ6#

OIL PRESSURE

 1
90980-05127

FJ62,HJ6#

HEATER

 1
86120 - RECEIVER ASSY, RADIO
86120-32102

FJ62,HJ6#

MATSUSHITA,MW/LW/UKW MPX ETR CASSETTE

 1
86120-32111

FJ62,HJ6#

FUJITSU TEN,MW/LW/UKW MPX ETR

 1
86120-32241

FJ62,HJ6#..LHD

FUJITSU TEN,MW/LW/UKW ETR

 1
86120 - RECEIVER ASSY, RADIO
86120-32102

FJ62,HJ6#

MATSUSHITA,MW/LW/UKW MPX ETR CASSETTE

 1
86120-32111

FJ62,HJ6#

FUJITSU TEN,MW/LW/UKW MPX ETR

 1
86120-32241

FJ62,HJ6#..LHD

FUJITSU TEN,MW/LW/UKW ETR

 1
86128 - KNOB, RADIO RECEIVER
86128-32060

HJ6#..LHD

PWR/VOL(RADIO P/NO.86120-32241)

 1
86128-32060

HJ6#

PWR/VOL(RADIO P/NO.86120-32111)

 1
86128-32080

HJ6#

TONE(RADIO P/NO.86120-32111)

 1
86128-32410

HJ6#

TONE(RADIO P/NO.86120-32102)

 1
86128-32310

HJ6#

PWR/VOL(RADIO P/NO.86120-32102)

 1
86128-32080

HJ6#..LHD

TONE(RADIO P/NO.86120-32241)

 1
86128-32330

HJ6#

BAL(RADIO P/NO.86120-32102)

 1
86128 - KNOB, RADIO RECEIVER
86128-32060

HJ6#..LHD

PWR/VOL(RADIO P/NO.86120-32241)

 1
86128-32060

HJ6#

PWR/VOL(RADIO P/NO.86120-32111)

 1
86128-32080

HJ6#

TONE(RADIO P/NO.86120-32111)

 1
86128-32410

HJ6#

TONE(RADIO P/NO.86120-32102)

 1
86128-32310

HJ6#

PWR/VOL(RADIO P/NO.86120-32102)

 1
86128-32080

HJ6#..LHD

TONE(RADIO P/NO.86120-32241)

 1
86128-32330

HJ6#

BAL(RADIO P/NO.86120-32102)

 1
86206 - CONVERTER SUB-ASSY, VOLTAGE
86206-90K01

HJ6#..LHD

 1
86206-90A05

HJ6#

W(CASSETTE RADIO)

 1
86211 - BRACKET, RADIO, NO.1
86211-90A06

FJ62,HJ61;HJ60..STD;HJ60..LHD..LUB;HJ60..HRF..SOB

 1
86212 - BRACKET, RADIO, NO.2
86212-90A03

FJ62,HJ61;HJ60..STD;HJ60..LHD..LUB;HJ60..HRF..SOB

 1
Common parts
90159-50173
90980-05022
90980-05067
90980-05106
90980-05108
90980-05110
90980-05127
93385-15016
