HJ60LG-MRCW (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 2H
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )HJ60

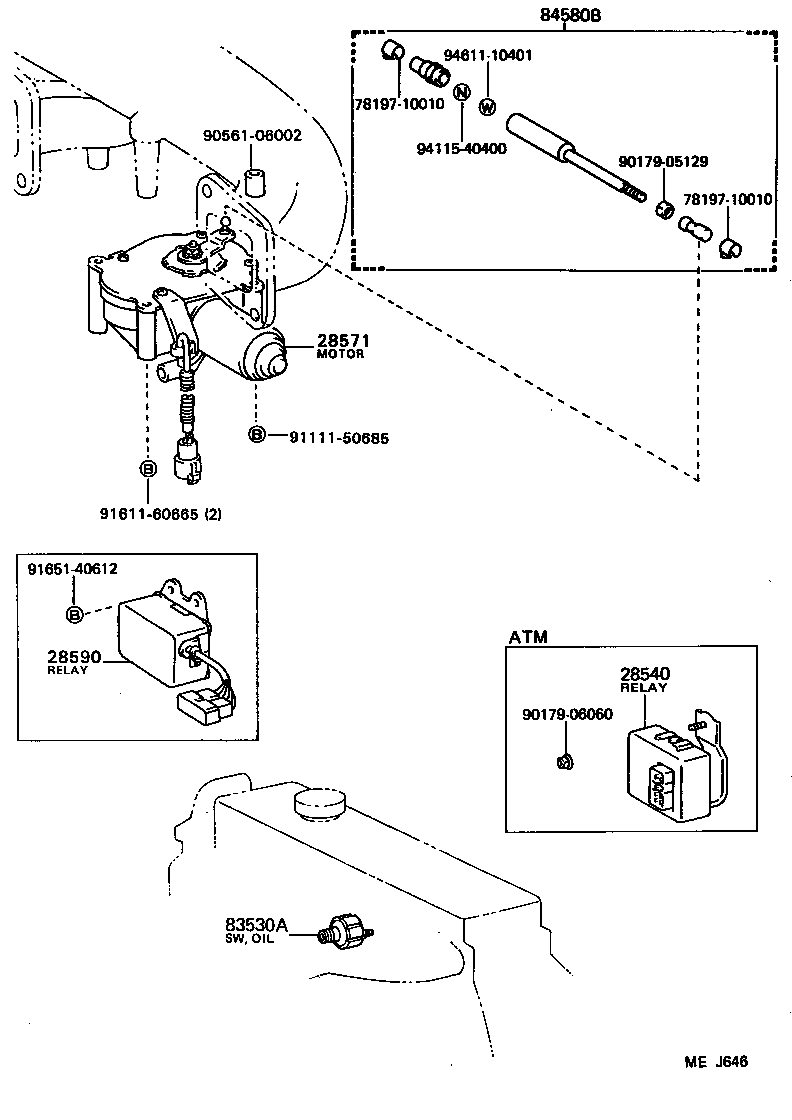

Click highlighted areas on diagram

diagram 28540 28571 28590 7819710010 7819710010 83530A 84580B 9017905129 9017906060 9056106002 9111150685 9161160665 9165140612 9411540400 9461110401
Part # Description Qty Price
28571 - MOTOR, FUEL CONTROL
28571-56150

2H..HJ60..MTM

 1
28590 - RELAY ASSY, FUEL CONTROL
28590-56100

2H..HJ60..MTM

 1
83530A - SWITCH ASSY, OIL PRESSURE
83530-14030

HJ60

 1
84580B - ROD ASSY, CONNECTING
84580-36040

HJ60..MTM

 1
Common parts
78197-10010
90179-05129
90179-06060
90561-06002
91111-50685
91611-60665
91651-40612
94115-40400
94611-10401
