HJ60LG-MRCW (1987)
Toyota Land Cruiser

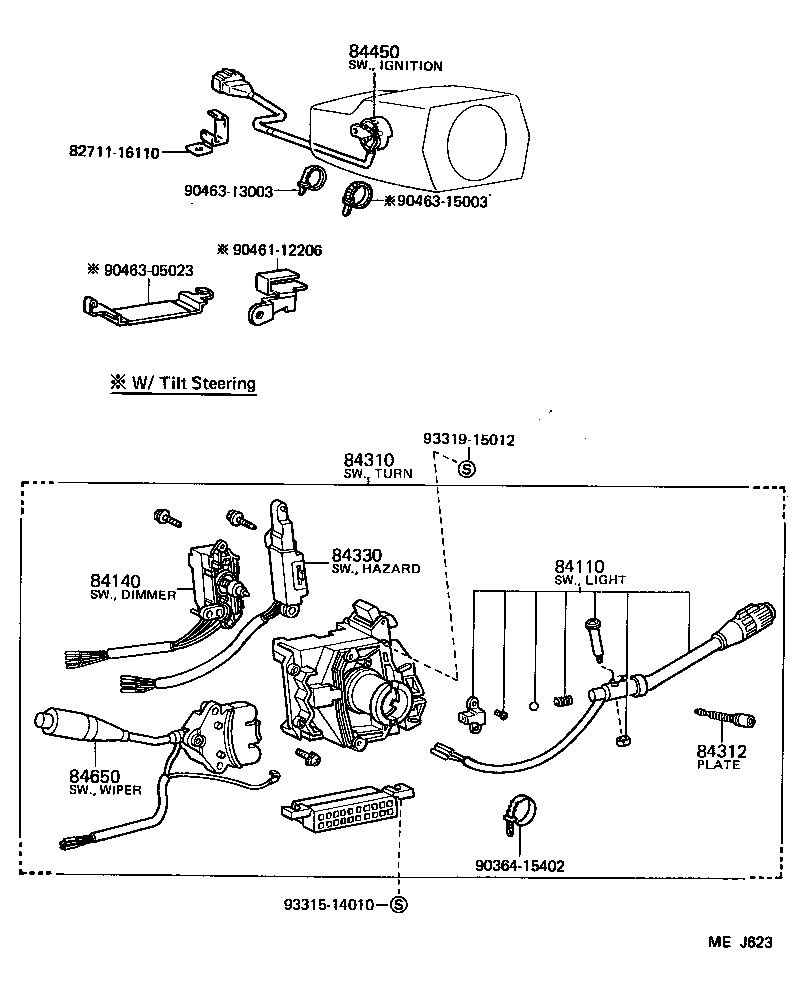

ILLUST NO. 4 OF 6(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-69335 |
HJ6#..LHD |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-69085 |
HJ6#..LHD |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-60710 |
HJ6#..LHD |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
FJ62,HJ6# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-69095 |
HJ6#..LHD |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-60080 |
HJ6# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-69385 |
HJ6#..LHD |
1 | ||
| Common parts | ||||
| 82711-16110 | ||||
| 90364-15402 | ||||
| 90461-12206 | ||||
| 90463-05023 | ||||
| 90463-13003 | ||||
| 90463-15003 | ||||
| 93315-14010 | ||||
| 93319-15012 | ||||

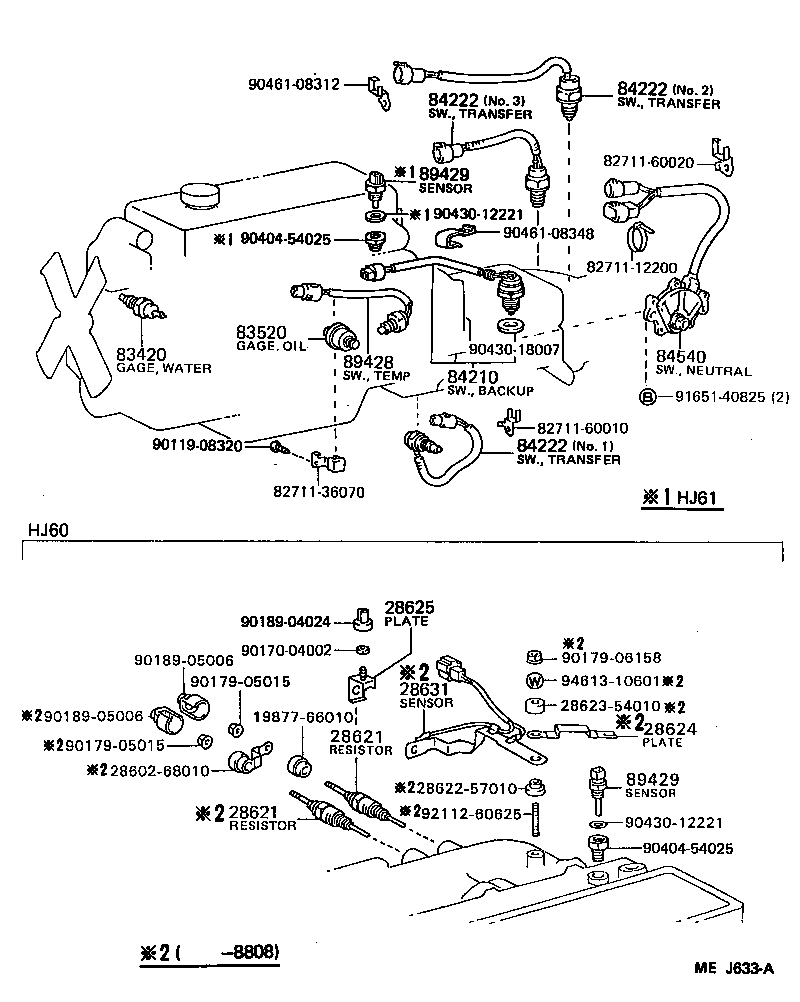

ILLUST NO. 1 OF 6(8708- )HJ6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28621 - RESISTOR, GLOW PLUG | ||||
| 28621-68020 |
2H..HJ60 |
1 | ||
| 28621-64011 |
2H..HJ60 |
2 | ||
| 28621 - RESISTOR, GLOW PLUG | ||||
| 28621-68020 |
2H..HJ60 |
1 | ||
| 28621-64011 |
2H..HJ60 |
2 | ||
| 28624 - PLATE, CURRENT SENSOR | ||||
| 28624-68011 |
2H..HJ60 |
1 | ||
| 28625 - PLATE, GLOW PLUG RESISTOR | ||||
| 28625-68040 |
2H..HJ60 |
1 | ||
| 28631 - SENSOR, GLOW PLUG CURRENT | ||||
| 28631-68010 |
2H..HJ60 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
FJ62,HJ6# |
1 | ||
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-60020 |
HJ6# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60021 |
HJ6#..MTM |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-60040 |
HJ6#..MTM NO.3 |
1 | ||
| 84222-60021 |
FJ62,HJ6# NO.1 |
1 | ||
| 84222-60071 |
HJ6# W(DIFFERENTIAL LOCK),NO.4 |
2 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-60040 |
HJ6#..MTM NO.3 |
1 | ||
| 84222-60021 |
FJ62,HJ6# NO.1 |
1 | ||
| 84222-60071 |
HJ6# W(DIFFERENTIAL LOCK),NO.4 |
2 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-60040 |
HJ6#..MTM NO.3 |
1 | ||
| 84222-60021 |
FJ62,HJ6# NO.1 |
1 | ||
| 84222-60071 |
HJ6# W(DIFFERENTIAL LOCK),NO.4 |
2 | ||
| 89429 - SENSOR, OIL TEMPERATURE | ||||
| 89422-30020 |
HJ6# |
1 | ||
| 89429 - SENSOR, OIL TEMPERATURE | ||||
| 89422-30020 |
HJ6# |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 28602-68010 | ||||
| 28622-57010 | ||||
| 28623-54010 | ||||
| 82711-12200 | ||||
| 82711-36070 | ||||
| 82711-60010 | ||||
| 82711-60020 | ||||
| 90119-08320 | ||||
| 90170-04002 | ||||
| 90179-05015 | ||||
| 90179-06158 | ||||
| 90189-04024 | ||||
| 90189-05006 | ||||
| 90404-54025 | ||||
| 90430-12221 | ||||
| 90430-18007 | ||||
| 90461-08312 | ||||
| 90461-08348 | ||||
| 91651-40825 | ||||
| 92112-60625 | ||||
| 94613-10601 | ||||

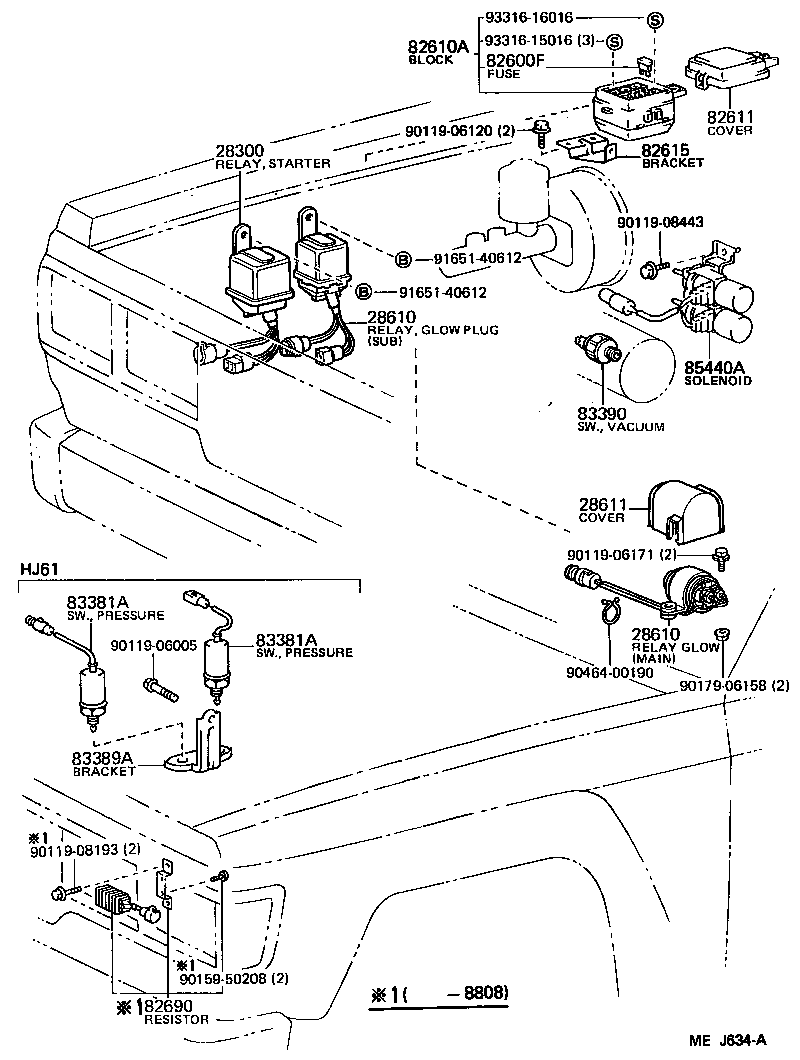

ILLUST NO. 2 OF 6(8708- )HJ6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-56020 |
12HT,2H..HJ6# |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-54180 |
2H..HJ60 SUB |
1 | ||
| 28610-57090 |
2H..HJ60 MAIN |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-54180 |
2H..HJ60 SUB |
1 | ||
| 28610-57090 |
2H..HJ60 MAIN |
1 | ||
| 28611 - COVER, GLOW PLUG RELAY | ||||
| 28611-55010 |
2H..HJ60 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
HJ6# 7.5A |
5 | ||
| 90982-09002 |
FJ62,HJ60..LHD 10A |
3 | ||
| 90982-09005 |
FJ62,HJ61;HJ60..MTM 7.5A |
5 | ||
| 90982-09004 |
FJ62,HJ6# 20A,YELLOW |
2 | ||
| 90982-09003 |
FJ62,HJ6# 15A |
10 | ||
| 90982-09005 |
HJ6# 7.5A |
2 | ||
| 90982-09002 |
HJ6# 10A |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-90K03 |
HJ6# |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-90K01 |
HJ6# |
1 | ||
| 82615 - BRACKET, FUSE | ||||
| 82615-90A02 |
HJ6# |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-30020 |
HJ6# |
1 | ||
| 85440A - SOLENOID ASSY, FOUR WHEEL DRIVE CONTROL | ||||
| 85440-60130 |
HJ6#..MTM |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06120 | ||||
| 90119-06171 | ||||
| 90119-08193 | ||||
| 90119-08443 | ||||
| 90159-50208 | ||||
| 90179-06158 | ||||
| 90464-00190 | ||||
| 91651-40612 | ||||
| 93316-15016 | ||||
| 93316-16016 | ||||

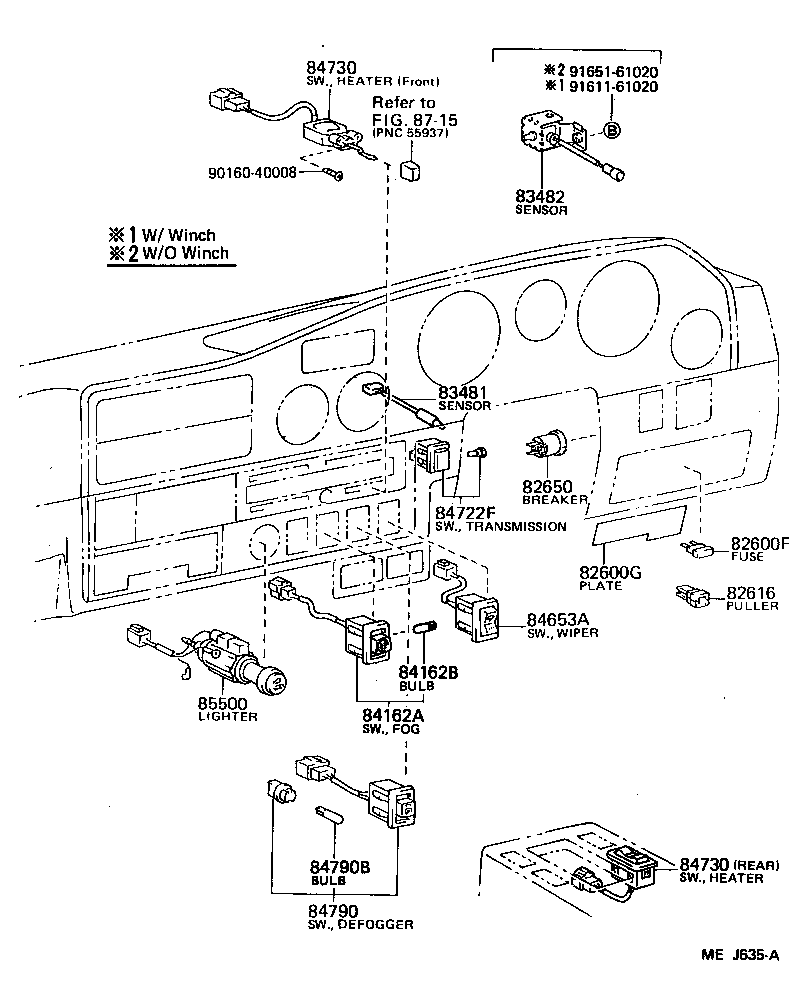

ILLUST NO. 3 OF 6(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
HJ6# 7.5A |
5 | ||
| 90982-09002 |
FJ62,HJ60..LHD 10A |
3 | ||
| 90982-09005 |
FJ62,HJ61;HJ60..MTM 7.5A |
5 | ||
| 90982-09004 |
FJ62,HJ6# 20A,YELLOW |
2 | ||
| 90982-09003 |
FJ62,HJ6# 15A |
10 | ||
| 90982-09005 |
HJ6# 7.5A |
2 | ||
| 90982-09002 |
HJ6# 10A |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-90A18 |
HJ6# |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
FJ62,HJ6# |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-12020 |
FJ62,HJ6# 14A |
1 | ||
| 82650-20011 |
FJ62,HJ6# 30A |
2 | ||
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84160-90A03 |
HJ6# |
1 | ||
| 84162B - BULB, FOG LAMP SWITCH | ||||
| 84999-10100 |
HJ6# 24V 1.12W |
1 | ||
| 84722F - SWITCH, TRANSMISSION CONTROL | ||||
| 84722-60080 |
HJ6#..MTM |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84730-90A02 |
FJ62,HJ6# FRONT |
1 | ||
| 84732-90A00 |
FJ62,HJ61;HJ60..MTM REAR |
1 | ||
| 84730-90A00 |
FJ62,HJ6# FRONT |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84730-90A02 |
FJ62,HJ6# FRONT |
1 | ||
| 84732-90A00 |
FJ62,HJ61;HJ60..MTM REAR |
1 | ||
| 84730-90A00 |
FJ62,HJ6# FRONT |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-90A08 |
HJ60..STD |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10100 |
HJ60..STD 24V 1.12W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-90A08 |
HJ60..STD |
1 | ||
| Common parts | ||||
| 90160-40008 | ||||
| 91611-61020 | ||||
| 91651-61020 | ||||
| Linked diagrams | ||||
| 8715 | ||||
ILLUST NO. 5 OF 6(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27790 - RELAY ASSY, CHARGE LAMP | ||||
| 27790-57010 |
12HT,2H..HJ6#..MTM |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02005 |
12HT,2H..HJ6# |
1 | ||
| 28521 - TIMER, PREHEATING | ||||
| 28521-68051 |
2H..HJ60 |
1 | ||
| 28521-68120 |
2H..HJ60 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-36060 |
HJ6# |
1 | ||
| 81990 - RELAY ASSY, TURN SIGNAL | ||||
| 90987-02005 |
HJ6# |
2 | ||
| 81990 - RELAY ASSY, TURN SIGNAL | ||||
| 90987-02005 |
HJ6# |
2 | ||
| 85550 - RESISTOR ASSY, PILOT LAMP | ||||
| 85550-90A00 |
HJ6# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-90K00 |
HJ6# FRONT |
1 | ||
| 85980-90A00 |
HJ61..VX;HJ60..RHD;HJ6#..SOB REAR |
1 | ||
| 85980-90A00 |
HJ6#..STD,VX W(FRONT BENCH SEAT),REAR |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02007 |
HJ6# HEAD |
1 | ||
| 90987-02005 |
HJ6# REAR FOG LAMP |
1 | ||
| 90987-01004 |
HJ6# TAIL |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02007 |
HJ6# HEAD |
1 | ||
| 90987-02005 |
HJ6# REAR FOG LAMP |
1 | ||
| 90987-01004 |
HJ6# TAIL |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02007 |
HJ6# HEAD |
1 | ||
| 90987-02005 |
HJ6# REAR FOG LAMP |
1 | ||
| 90987-01004 |
HJ6# TAIL |
1 | ||
| 85917 - RELAY, FRONT DRIVE | ||||
| 90987-03002 |
HJ6#..MTM |
1 | ||
| 85925A - RELAY, RED INDICATOR | ||||
| 90987-03002 |
HJ6#..LHD |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 85926-90K00 |
HJ6# |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-26010 |
HJ6# NO.1 |
2 | ||
| 85940-90A07 |
HJ6#..LHD NO.2 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-26010 |
HJ6# NO.1 |
2 | ||
| 85940-90A07 |
HJ6#..LHD NO.2 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-26010 |
HJ6# NO.1 |
2 | ||
| 85940-90A07 |
HJ6#..LHD NO.2 |
1 | ||
| 85969 - RELAY, LIGHT REMINDER | ||||
| 85969-90A00 |
HJ6# |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-12050 |
FJ62,HJ6# REAR FOG LAMP RELAY |
1 | ||
| 85999-12050 |
FJ62,HJ6#..LHD RED INDICATOR RELAY |
1 | ||
| 85999-89101 |
HJ6#..MTM CHAGE LAMP RELAY |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-12050 |
FJ62,HJ6# REAR FOG LAMP RELAY |
1 | ||
| 85999-12050 |
FJ62,HJ6#..LHD RED INDICATOR RELAY |
1 | ||
| 85999-89101 |
HJ6#..MTM CHAGE LAMP RELAY |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-12050 |
FJ62,HJ6# REAR FOG LAMP RELAY |
1 | ||
| 85999-12050 |
FJ62,HJ6#..LHD RED INDICATOR RELAY |
1 | ||
| 85999-89101 |
HJ6#..MTM CHAGE LAMP RELAY |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-12050 |
FJ62,HJ6# REAR FOG LAMP RELAY |
1 | ||
| 85999-12050 |
FJ62,HJ6#..LHD RED INDICATOR RELAY |
1 | ||
| 85999-89101 |
HJ6#..MTM CHAGE LAMP RELAY |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-12050 |
FJ62,HJ6# REAR FOG LAMP RELAY |
1 | ||
| 85999-12050 |
FJ62,HJ6#..LHD RED INDICATOR RELAY |
1 | ||
| 85999-89101 |
HJ6#..MTM CHAGE LAMP RELAY |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-12050 |
FJ62,HJ6# REAR FOG LAMP RELAY |
1 | ||
| 85999-12050 |
FJ62,HJ6#..LHD RED INDICATOR RELAY |
1 | ||
| 85999-89101 |
HJ6#..MTM CHAGE LAMP RELAY |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-12050 |
FJ62,HJ6# REAR FOG LAMP RELAY |
1 | ||
| 85999-12050 |
FJ62,HJ6#..LHD RED INDICATOR RELAY |
1 | ||
| 85999-89101 |
HJ6#..MTM CHAGE LAMP RELAY |
1 | ||
| Common parts | ||||
| 90179-04010 | ||||
| 90179-06115 | ||||
| 91611-60612 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 91651-60612 | ||||

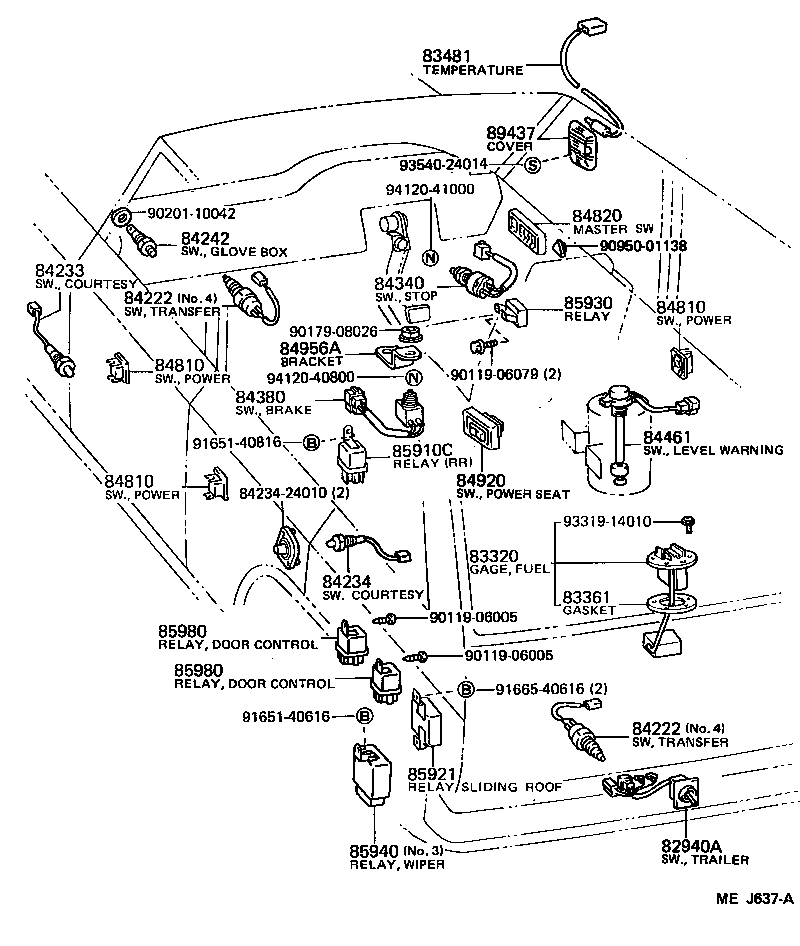

ILLUST NO. 6 OF 6(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82940A - SWITCH ASSY, TRAILER SOCKET | ||||
| 82940-65011 |
FJ62,HJ6# |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-69015 |
FJ62,HJ6# |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
FJ62,HJ6# |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-60040 |
HJ6#..MTM NO.3 |
1 | ||
| 84222-60021 |
FJ62,HJ6# NO.1 |
1 | ||
| 84222-60071 |
HJ6# W(DIFFERENTIAL LOCK),NO.4 |
2 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-60040 |
HJ6#..MTM NO.3 |
1 | ||
| 84222-60021 |
FJ62,HJ6# NO.1 |
1 | ||
| 84222-60071 |
HJ6# W(DIFFERENTIAL LOCK),NO.4 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-22051 |
HJ6# |
2 | ||
| 84231-28010 |
FJ62,HJ6# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84230-22051 |
HJ6# |
2 | ||
| 84231-28010 |
FJ62,HJ6# |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22072 |
FJ62,HJ6# |
1 | ||
| 84380 - SWITCH ASSY, BRAKE WARNING TEST | ||||
| 84380-20010 |
FJ62,HJ6# |
1 | ||
| 84461 - SWITCH, LEVEL WARNING | ||||
| 84461-60020 |
HJ6# |
1 | ||
| 84956A - BRACKET, HAND BRAKE SIGNAL SWITCH | ||||
| 84956-60030 |
FJ62,HJ6# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-90K00 |
HJ6# FRONT |
1 | ||
| 85980-90A00 |
HJ61..VX;HJ60..RHD;HJ6#..SOB REAR |
1 | ||
| 85980-90A00 |
HJ6#..STD,VX W(FRONT BENCH SEAT),REAR |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-26010 |
HJ6# NO.1 |
2 | ||
| 85940-90A07 |
HJ6#..LHD NO.2 |
1 | ||
| Common parts | ||||
| 84234-24010 | ||||
| 90119-06005 | ||||
| 90119-06079 | ||||
| 90179-08026 | ||||
| 90201-10042 | ||||
| 90950-01138 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91665-40616 | ||||
| 93319-14010 | ||||
| 93540-24014 | ||||
| 94120-40800 | ||||
| 94120-41000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
