HJ60LG-MRCW (1987)
Toyota Land Cruiser
Production
Aug 1987
-
Jan 1990
Engine
2H
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )

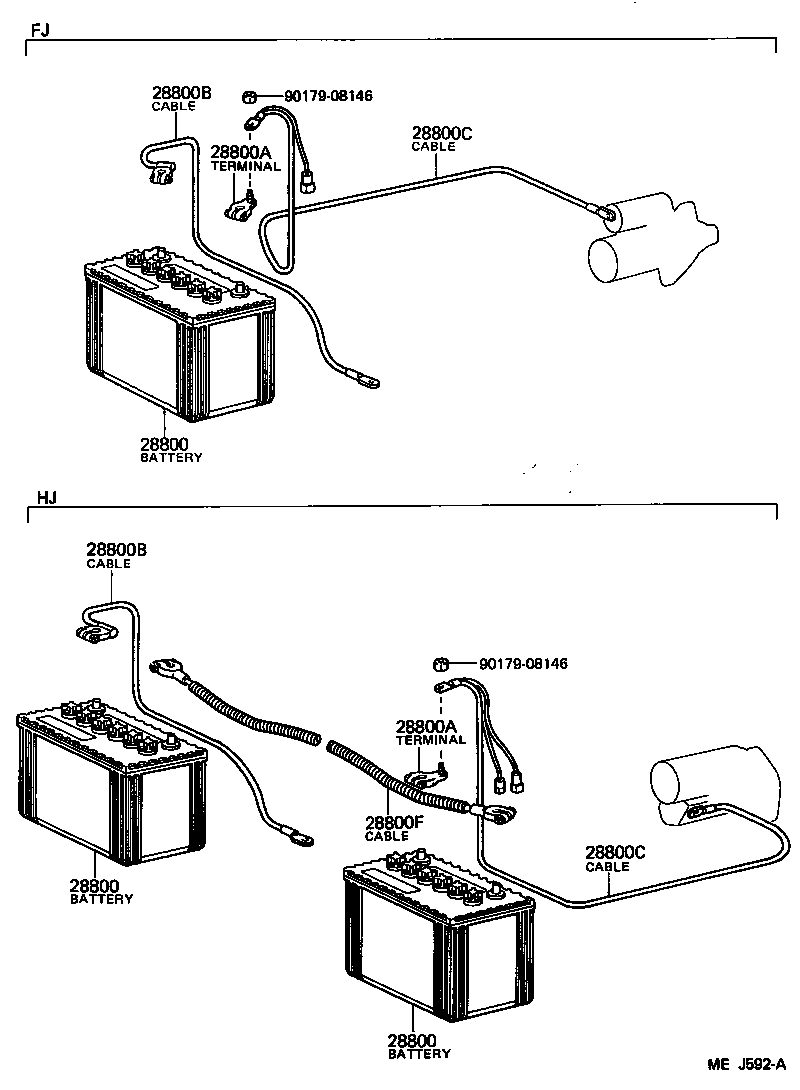

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28800 - BATTERY | ||||
| 28800-14010 |
12HT,2H..HJ6#..MTM 55D23R |
1 | ||
| 28800-64010 |
12HT,2H..HJ6#..MTM 55D23L |
1 | ||
| 28800-46012 |
12HT,2H..HJ6#..MTM..(GX,STD) 75D31R |
1 | ||
| 28800-42010 |
12HT,2H..HJ6#..MTM..(GX,STD) 75D31L |
1 | ||
| 28800 - BATTERY | ||||
| 28800-14010 |
12HT,2H..HJ6#..MTM 55D23R |
1 | ||
| 28800-64010 |
12HT,2H..HJ6#..MTM 55D23L |
1 | ||
| 28800-46012 |
12HT,2H..HJ6#..MTM..(GX,STD) 75D31R |
1 | ||
| 28800-42010 |
12HT,2H..HJ6#..MTM..(GX,STD) 75D31L |
1 | ||
| 28800 - BATTERY | ||||
| 28800-14010 |
12HT,2H..HJ6#..MTM 55D23R |
1 | ||
| 28800-64010 |
12HT,2H..HJ6#..MTM 55D23L |
1 | ||
| 28800-46012 |
12HT,2H..HJ6#..MTM..(GX,STD) 75D31R |
1 | ||
| 28800-42010 |
12HT,2H..HJ6#..MTM..(GX,STD) 75D31L |
1 | ||
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05030 |
12HT,3FE,2H..FJ62,HJ6# |
1 | ||
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05030 |
12HT,3FE,2H..FJ62,HJ6# |
1 | ||
| 28800B - CABLE, BATTERY TO GROUND | ||||
| 90982-02207 |
12HT,3FE,2H..FJ62,HJ6# |
1 | ||
| 28800B - CABLE, BATTERY TO GROUND | ||||
| 90982-02207 |
12HT,3FE,2H..FJ62,HJ6# |
1 | ||
| 28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH) | ||||
| 90982-01414 |
12HT,2H..HJ6# |
1 | ||
| 28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH) | ||||
| 90982-01414 |
12HT,2H..HJ6# |
1 | ||
| 28800F - CABLE, BATTERY TO BATTERY | ||||
| 90982-03019 |
12HT,2H..HJ6# |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
