HJ60LG-MRCW (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 2H
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

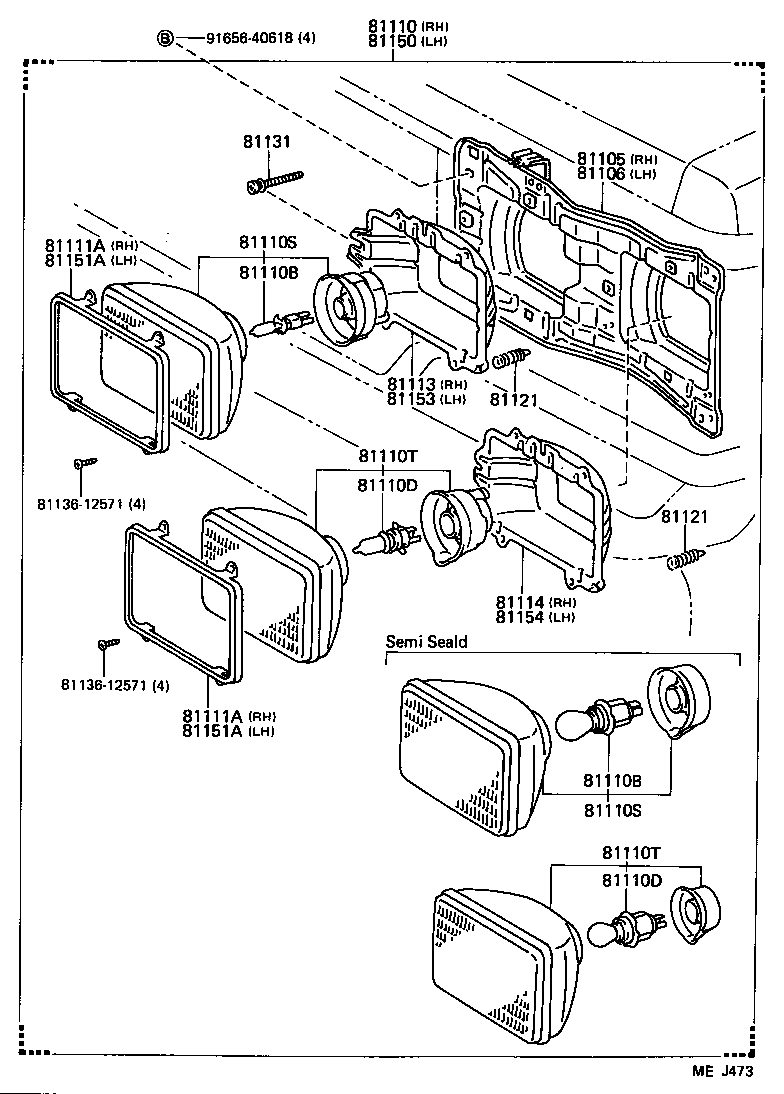

Click highlighted areas on diagram

diagram 81105 81106 81110 81110B 81110B 81110D 81110D 81110S 81110S 81110T 81110T 81111A 81111A 81113 81114 81121 81121 81131 8113612571 8113612571 81150 81151A 81151A 81153 81154 9165640618
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-90A27

FJ62,HJ6#

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-90A27

FJ62,HJ6#

 1
81110 - HEADLAMP ASSY, RH
81110-90A37

HJ6#..LHD

 1
81110-90A34

HJ6#..LHD

SEMI-SEALED YELLOW

 1
81110-90A47

HJ6#..LHD

 1
81110-90A44

HJ6#..LHD

SEMI-SEALED YELLOW

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-17009

HJ6#..LHD

24V 55/50W,YELLOW

 2
90981-17015

HJ6#

24V 70W,*HAL *WH

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-17009

HJ6#..LHD

24V 55/50W,YELLOW

 2
90981-17015

HJ6#

24V 70W,*HAL *WH

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-17009

HJ6#..LHD

24V 55/50W,YELLOW

 2
90981-17011

HJ6#

24V 75/70W,*HAL *WH

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-17009

HJ6#..LHD

24V 55/50W,YELLOW

 2
90981-17011

HJ6#

24V 75/70W,*HAL *WH

 2
81110S - SEALED BEAM UNIT, NO.1
90981-10017

HJ6#

24V 70W,*HWS

 2
90981-10019

HJ6#..LHD

24V 55/50W,*YSB

 2
81110S - SEALED BEAM UNIT, NO.1
90981-10017

HJ6#

24V 70W,*HWS

 2
90981-10019

HJ6#..LHD

24V 55/50W,*YSB

 2
81110T - SEALED BEAM UNIT, NO.2
90981-10020

HJ6#..LHD

24V 55/50W,*YSB

 2
90981-10018

HJ6#..LHD

24V 75/70W,*HWS

 2
81110T - SEALED BEAM UNIT, NO.2
90981-10020

HJ6#..LHD

24V 55/50W,*YSB

 2
90981-10018

HJ6#..LHD

24V 75/70W,*HWS

 2
81111A - RING, SEALED BEAM RETAINING, NO.1 RH
81111-20360

FJ62,HJ6#

 2
81111A - RING, SEALED BEAM RETAINING, NO.1 RH
81111-20360

FJ62,HJ6#

 2
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-90B04

FJ62,HJ6#

 1
81114 - RING, SEALED BEAM MOUNTING, NO.2 RH
81154-22391

FJ62,HJ6#

 1
81121 - SPRING, HEADLAMP TENSION
81121-14320

FJ62,HJ6#

 4
81121 - SPRING, HEADLAMP TENSION
81121-14320

FJ62,HJ6#

 4
81131 - SCREW, HEADLAMP ADJUSTING
81131-28050

FJ62,HJ6#

 8
81150 - HEADLAMP ASSY, LH
81150-90A47

HJ6#..LHD

 1
81150-90A37

HJ6#..LHD

 1
81150-90A34

HJ6#..LHD

SEMI-SEALED YELLOW

 1
81150-90A44

HJ6#..LHD

SEMI-SEALED YELLOW

 1
81151A - RING, SEALED BEAM RETAINING, NO.1 LH
81111-20360

FJ62,HJ6#

 2
81151A - RING, SEALED BEAM RETAINING, NO.1 LH
81111-20360

FJ62,HJ6#

 2
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-90B04

FJ62,HJ6#

 1
81154 - RING, SEALED BEAM MOUNTING, NO.2 LH
81114-22391

FJ62,HJ6#

 1
Common parts
81136-12571
91656-40618
