HJ60LG-MRCW (1987)
Toyota Land Cruiser
Production
Aug 1987
-
Jan 1990
Engine
2H
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )HJ60..LHD

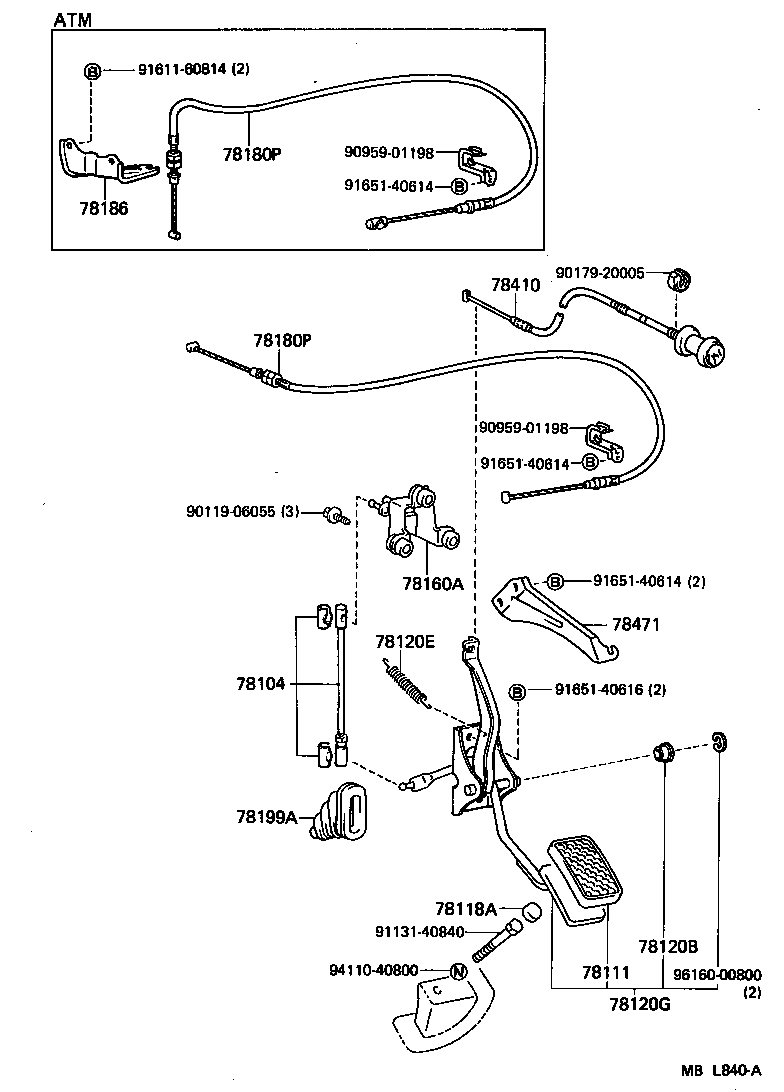

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2 | ||||
| 78104-90A01 |
HJ60..LHD |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-95110 |
FJ62,HJ6# |
1 | ||
| 78118A - STOPPER, ACCELERATOR PEDAL | ||||
| 78118-90K00 |
FJ62,HJ6# |
1 | ||
| 78120B - BUSH (FOR ACCELERATOR LINK ROD) | ||||
| 90386-10138 |
HJ60..LHD |
2 | ||
| 78120E - SPRING, TENSION (FOR ACCELERATOR LINK ROD) | ||||
| 90506-12262 |
HJ60..LHD |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-90A06 |
HJ60..LHD |
1 | ||
| 78160A - BELLCRANK ASSY, ACCEL CONTROL W/BRACKET | ||||
| 78160-90A02 |
HJ60..LHD |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-90A13 |
HJ60..LHD..MTM |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-90A13 |
HJ60..LHD..MTM |
1 | ||
| 78199A - BOOT, ACCELERATOR PEDAL ROD | ||||
| 78199-90352 |
HJ60..LHD |
1 | ||
| 78410 - CABLE ASSY, THROTTLE CONTROL | ||||
| 78410-90A02 |
HJ6#..LHD |
1 | ||
| 78471 - BRACKET, THROTTLE CONTROL CABLE | ||||
| 78471-90A00 |
HJ60..LHD |
1 | ||
| Common parts | ||||
| 90119-06055 | ||||
| 90179-20005 | ||||
| 90959-01198 | ||||
| 91131-40840 | ||||
| 91611-60814 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 94110-40800 | ||||
| 96160-00800 | ||||
