HJ60LG-MRCW (1987)
Toyota Land Cruiser

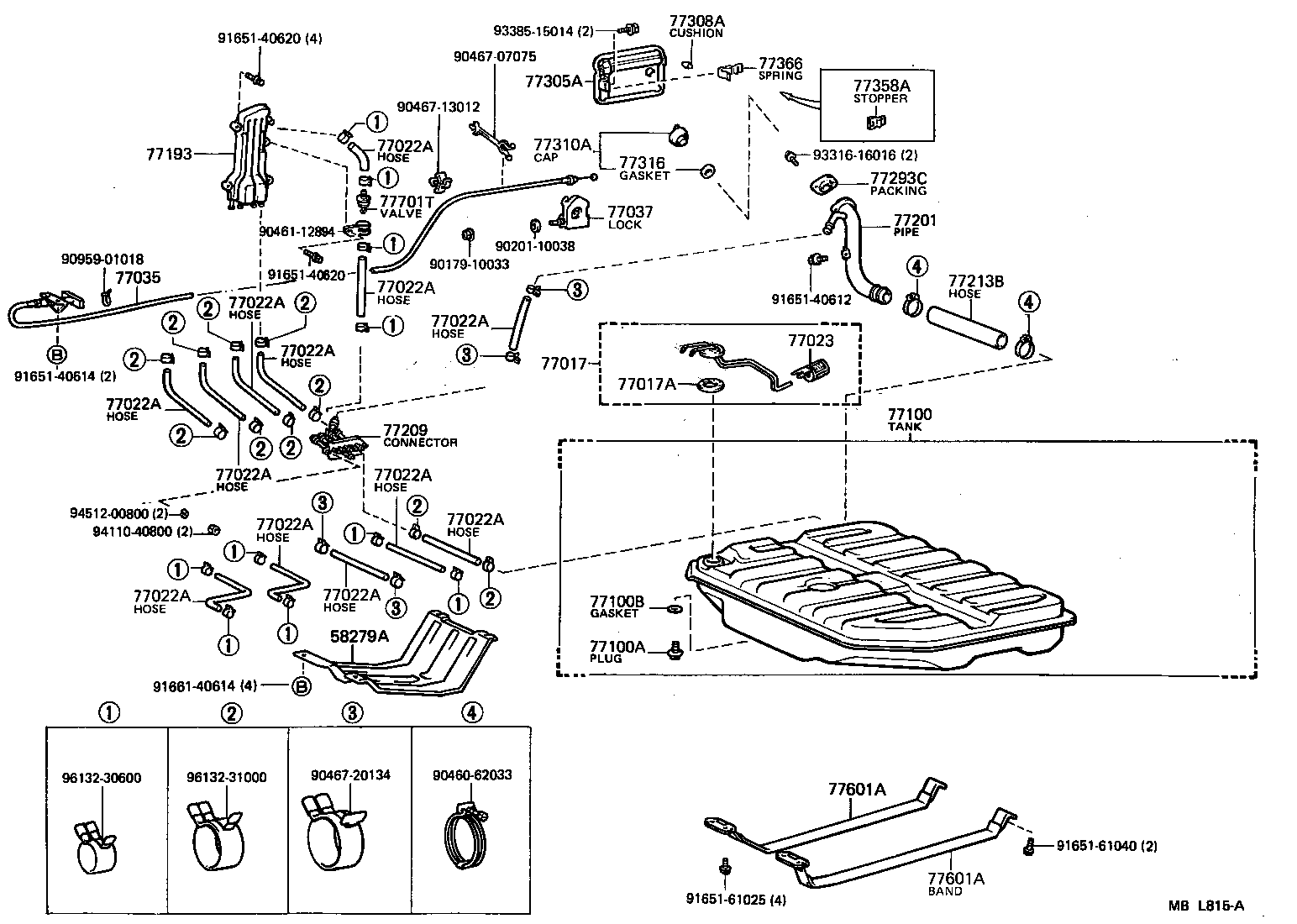

ILLUST NO. 1 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58279A - PROTECTOR, FUEL HOSE | ||||
| 58279-90A00 |
FJ62,HJ6# |
1 | ||
| 77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT | ||||
| 77240-60011 |
HJ60 |
1 | ||
| 77017A - GASKET, FUEL TANK VENT | ||||
| 77169-14020 |
HJ6# |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 77249-60050 |
FJ62,HJ6# 265X285X70 |
1 | ||
| 90445-22015 |
FJ62,HJ6# L=150 |
1 | ||
| 90445-22904 |
FJ62,HJ6# L=300 |
1 | ||
| 95332-10024 |
FJ62,HJ6# *H,L=240 |
4 | ||
| 95333-06040 |
HJ6# *H,L=400 |
1 | ||
| 95333-06040 |
FJ62,HJ6# *H,L=400 |
1 | ||
| 95332-10036 |
FJ62,HJ6# *H,L=360 |
1 | ||
| 95333-06010 |
HJ6# *H,L=100 |
1 | ||
| 77249-60040 |
FJ62,HJ6# 250X312X92 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 77249-60050 |
FJ62,HJ6# 265X285X70 |
1 | ||
| 90445-22015 |
FJ62,HJ6# L=150 |
1 | ||
| 90445-22904 |
FJ62,HJ6# L=300 |
1 | ||
| 95332-10024 |
FJ62,HJ6# *H,L=240 |
4 | ||
| 95333-06040 |
HJ6# *H,L=400 |
1 | ||
| 95333-06040 |
FJ62,HJ6# *H,L=400 |
1 | ||
| 95332-10036 |
FJ62,HJ6# *H,L=360 |
1 | ||
| 95333-06010 |
HJ6# *H,L=100 |
1 | ||
| 77249-60040 |
FJ62,HJ6# 250X312X92 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 77249-60050 |
FJ62,HJ6# 265X285X70 |
1 | ||
| 90445-22015 |
FJ62,HJ6# L=150 |
1 | ||
| 90445-22904 |
FJ62,HJ6# L=300 |
1 | ||
| 95332-10024 |
FJ62,HJ6# *H,L=240 |
4 | ||
| 95333-06040 |
HJ6# *H,L=400 |
1 | ||
| 95333-06040 |
FJ62,HJ6# *H,L=400 |
1 | ||
| 95332-10036 |
FJ62,HJ6# *H,L=360 |
1 | ||
| 95333-06010 |
HJ6# *H,L=100 |
1 | ||
| 77249-60040 |
FJ62,HJ6# 250X312X92 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 77249-60050 |
FJ62,HJ6# 265X285X70 |
1 | ||
| 90445-22015 |
FJ62,HJ6# L=150 |
1 | ||
| 90445-22904 |
FJ62,HJ6# L=300 |
1 | ||
| 95332-10024 |
FJ62,HJ6# *H,L=240 |
4 | ||
| 95333-06040 |
HJ6# *H,L=400 |
1 | ||
| 95333-06040 |
FJ62,HJ6# *H,L=400 |
1 | ||
| 95332-10036 |
FJ62,HJ6# *H,L=360 |
1 | ||
| 95333-06010 |
HJ6# *H,L=100 |
1 | ||
| 77249-60040 |
FJ62,HJ6# 250X312X92 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 77249-60050 |
FJ62,HJ6# 265X285X70 |
1 | ||
| 90445-22015 |
FJ62,HJ6# L=150 |
1 | ||
| 90445-22904 |
FJ62,HJ6# L=300 |
1 | ||
| 95332-10024 |
FJ62,HJ6# *H,L=240 |
4 | ||
| 95333-06040 |
HJ6# *H,L=400 |
1 | ||
| 95333-06040 |
FJ62,HJ6# *H,L=400 |
1 | ||
| 95332-10036 |
FJ62,HJ6# *H,L=360 |
1 | ||
| 95333-06010 |
HJ6# *H,L=100 |
1 | ||
| 77249-60040 |
FJ62,HJ6# 250X312X92 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 77249-60050 |
FJ62,HJ6# 265X285X70 |
1 | ||
| 90445-22015 |
FJ62,HJ6# L=150 |
1 | ||
| 90445-22904 |
FJ62,HJ6# L=300 |
1 | ||
| 95332-10024 |
FJ62,HJ6# *H,L=240 |
4 | ||
| 95333-06040 |
HJ6# *H,L=400 |
1 | ||
| 95333-06040 |
FJ62,HJ6# *H,L=400 |
1 | ||
| 95332-10036 |
FJ62,HJ6# *H,L=360 |
1 | ||
| 95333-06010 |
HJ6# *H,L=100 |
1 | ||
| 77249-60040 |
FJ62,HJ6# 250X312X92 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 77249-60050 |
FJ62,HJ6# 265X285X70 |
1 | ||
| 90445-22015 |
FJ62,HJ6# L=150 |
1 | ||
| 90445-22904 |
FJ62,HJ6# L=300 |
1 | ||
| 95332-10024 |
FJ62,HJ6# *H,L=240 |
4 | ||
| 95333-06040 |
HJ6# *H,L=400 |
1 | ||
| 95333-06040 |
FJ62,HJ6# *H,L=400 |
1 | ||
| 95332-10036 |
FJ62,HJ6# *H,L=360 |
1 | ||
| 95333-06010 |
HJ6# *H,L=100 |
1 | ||
| 77249-60040 |
FJ62,HJ6# 250X312X92 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 77249-60050 |
FJ62,HJ6# 265X285X70 |
1 | ||
| 90445-22015 |
FJ62,HJ6# L=150 |
1 | ||
| 90445-22904 |
FJ62,HJ6# L=300 |
1 | ||
| 95332-10024 |
FJ62,HJ6# *H,L=240 |
4 | ||
| 95333-06040 |
HJ6# *H,L=400 |
1 | ||
| 95333-06040 |
FJ62,HJ6# *H,L=400 |
1 | ||
| 95332-10036 |
FJ62,HJ6# *H,L=360 |
1 | ||
| 95333-06010 |
HJ6# *H,L=100 |
1 | ||
| 77249-60040 |
FJ62,HJ6# 250X312X92 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 77249-60050 |
FJ62,HJ6# 265X285X70 |
1 | ||
| 90445-22015 |
FJ62,HJ6# L=150 |
1 | ||
| 90445-22904 |
FJ62,HJ6# L=300 |
1 | ||
| 95332-10024 |
FJ62,HJ6# *H,L=240 |
4 | ||
| 95333-06040 |
HJ6# *H,L=400 |
1 | ||
| 95333-06040 |
FJ62,HJ6# *H,L=400 |
1 | ||
| 95332-10036 |
FJ62,HJ6# *H,L=360 |
1 | ||
| 95333-06010 |
HJ6# *H,L=100 |
1 | ||
| 77249-60040 |
FJ62,HJ6# 250X312X92 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 77249-60050 |
FJ62,HJ6# 265X285X70 |
1 | ||
| 90445-22015 |
FJ62,HJ6# L=150 |
1 | ||
| 90445-22904 |
FJ62,HJ6# L=300 |
1 | ||
| 95332-10024 |
FJ62,HJ6# *H,L=240 |
4 | ||
| 95333-06040 |
HJ6# *H,L=400 |
1 | ||
| 95333-06040 |
FJ62,HJ6# *H,L=400 |
1 | ||
| 95332-10036 |
FJ62,HJ6# *H,L=360 |
1 | ||
| 95333-06010 |
HJ6# *H,L=100 |
1 | ||
| 77249-60040 |
FJ62,HJ6# 250X312X92 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 77249-60050 |
FJ62,HJ6# 265X285X70 |
1 | ||
| 90445-22015 |
FJ62,HJ6# L=150 |
1 | ||
| 90445-22904 |
FJ62,HJ6# L=300 |
1 | ||
| 95332-10024 |
FJ62,HJ6# *H,L=240 |
4 | ||
| 95333-06040 |
HJ6# *H,L=400 |
1 | ||
| 95333-06040 |
FJ62,HJ6# *H,L=400 |
1 | ||
| 95332-10036 |
FJ62,HJ6# *H,L=360 |
1 | ||
| 95333-06010 |
HJ6# *H,L=100 |
1 | ||
| 77249-60040 |
FJ62,HJ6# 250X312X92 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 77249-60050 |
FJ62,HJ6# 265X285X70 |
1 | ||
| 90445-22015 |
FJ62,HJ6# L=150 |
1 | ||
| 90445-22904 |
FJ62,HJ6# L=300 |
1 | ||
| 95332-10024 |
FJ62,HJ6# *H,L=240 |
4 | ||
| 95333-06040 |
HJ6# *H,L=400 |
1 | ||
| 95333-06040 |
FJ62,HJ6# *H,L=400 |
1 | ||
| 95332-10036 |
FJ62,HJ6# *H,L=360 |
1 | ||
| 95333-06010 |
HJ6# *H,L=100 |
1 | ||
| 77249-60040 |
FJ62,HJ6# 250X312X92 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-22040 |
HJ6# |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77030-90A01 |
FJ62..SOB;HJ6#..LHD |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-90K00 |
HJ6#;FJ62..SOB |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-60240 |
HJ6# |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
FJ62,HJ6# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
FJ62,HJ6# |
1 | ||
| 77193 - VALVE, FUEL LIQUID VAPOR SEPARATOR | ||||
| 77193-60031 |
FJ62,HJ6# |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60130 |
HJ6# |
1 | ||
| 77209 - CONNECTOR SUB-ASSY, FUEL TUBE | ||||
| 77209-60041 |
FJ62,HJ6# |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-60030 |
FJ62,HJ6# |
1 | ||
| 77293C - PACKING, FUEL TANK OUTER FILLER PIPE | ||||
| 77293-60030 |
FJ62,HJ6# |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-90A01 |
FJ62,HJ6# |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-08003 |
FJ62,HJ6# |
2 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-35061 |
HJ6# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-12050 |
FJ62,HJ6# |
1 | ||
| 77358A - STOPPER, FUEL FILLER OPENING LID | ||||
| 77358-12020 |
FJ62,HJ6# |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-12010 |
FJ62,HJ6# |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-60060 |
FJ62,HJ6# RH |
1 | ||
| 77602-60040 |
FJ62,HJ6# LH |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-60060 |
FJ62,HJ6# RH |
1 | ||
| 77602-60040 |
FJ62,HJ6# LH |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
HJ6# |
1 | ||
| Common parts | ||||
| 90179-10033 | ||||
| 90201-10038 | ||||
| 90460-62033 | ||||
| 90461-12894 | ||||
| 90467-07075 | ||||
| 90467-13012 | ||||
| 90467-20134 | ||||
| 90959-01018 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-40620 | ||||
| 91651-61025 | ||||
| 91651-61040 | ||||
| 91661-40614 | ||||
| 93316-16016 | ||||
| 93385-15014 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
| 96132-30600 | ||||
| 96132-31000 | ||||

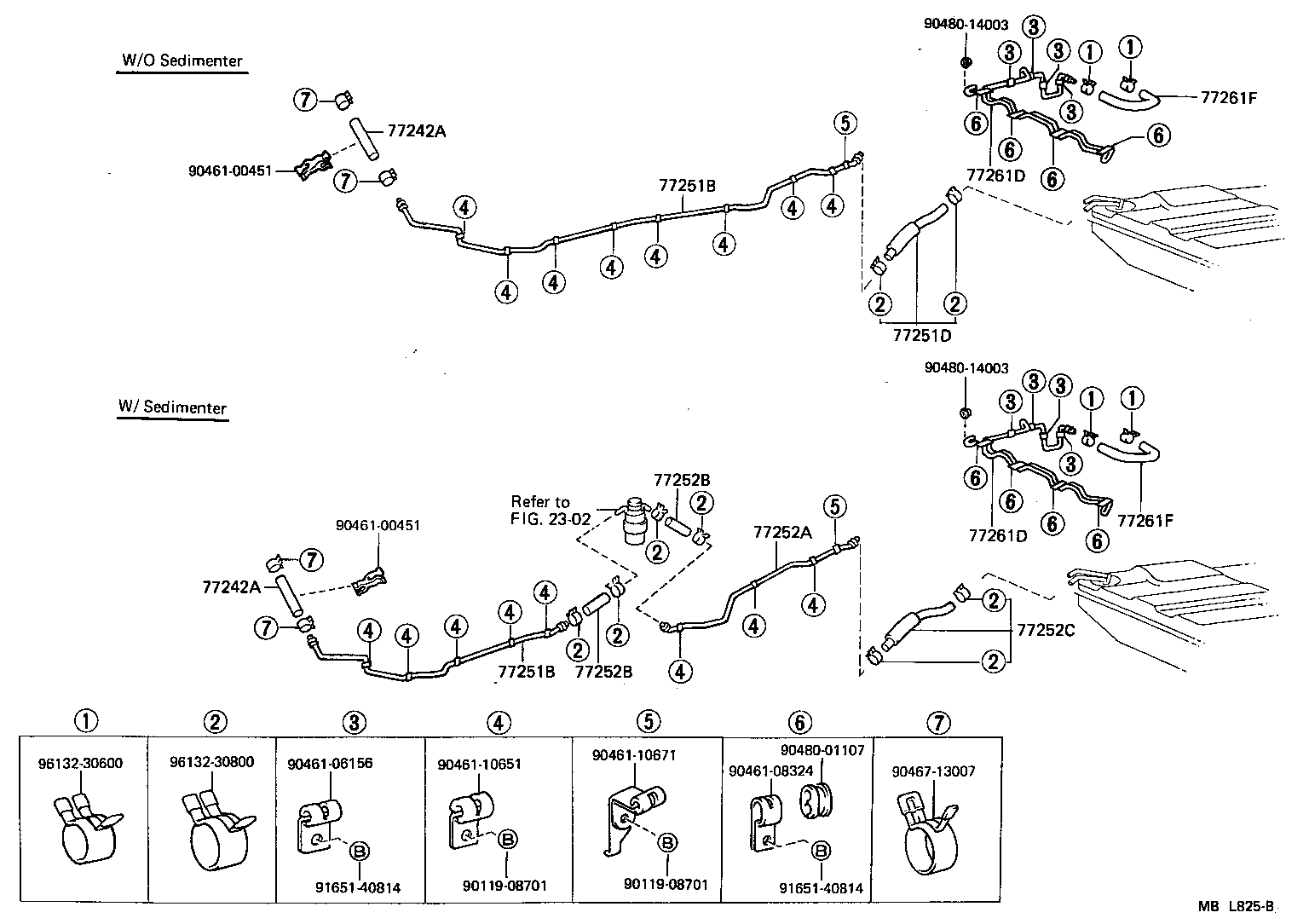

ILLUST NO. 2 OF 2(8708- )HJ60
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95333-08030 |
HJ60 *H,L=300 |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95333-08030 |
HJ60 *H,L=300 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77252-60051 |
HJ60 W(SEDIMENTER) |
1 | ||
| 77251-60192 |
HJ60 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77252-60051 |
HJ60 W(SEDIMENTER) |
1 | ||
| 77251-60192 |
HJ60 |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 77250-60050 |
HJ60 |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77251-60212 |
HJ60 |
1 | ||
| 77252B - HOSE, FUEL, NO.1 (FOR FUEL MAIN NO.2 TUBE) | ||||
| 95333-08020 |
HJ6# L=200,ID=8 |
2 | ||
| 77252B - HOSE, FUEL, NO.1 (FOR FUEL MAIN NO.2 TUBE) | ||||
| 95333-08020 |
HJ6# L=200,ID=8 |
2 | ||
| 77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE) | ||||
| 77250-60050 |
HJ60 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77244-60140 |
HJ6# |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77244-60140 |
HJ6# |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06030 |
HJ6# *H,L=300 |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06030 |
HJ6# *H,L=300 |
1 | ||
| Common parts | ||||
| 90119-08701 | ||||
| 90461-00451 | ||||
| 90461-06156 | ||||
| 90461-08324 | ||||
| 90461-10651 | ||||
| 90461-10671 | ||||
| 90467-13007 | ||||
| 90480-01107 | ||||
| 90480-14003 | ||||
| 91651-40814 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
| Linked diagrams | ||||
| 2302 | ||||
