HJ60LG-MRCW (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 2H
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8708- )

Click highlighted areas on diagram

diagram 73550 73560 73570 73580 73590
Part # Description Qty Price

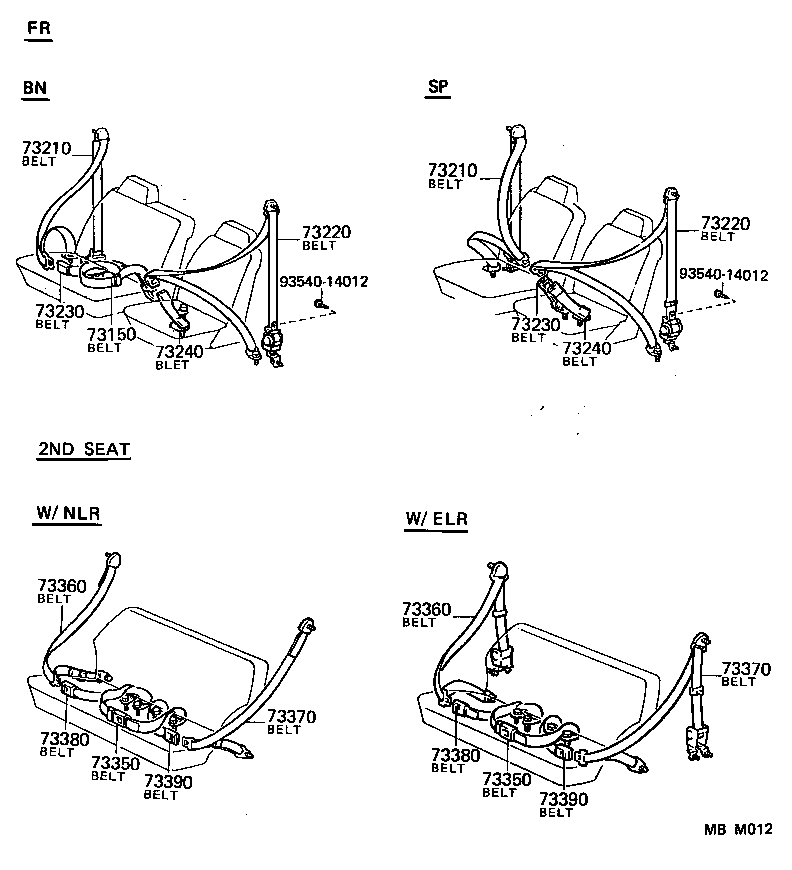

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

diagram 73150 73210 73210 73220 73220 73230 73230 73240 73240 73350 73350 73360 73360 73370 73370 73380 73380 73390 73390 9354014012 9354014012
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-90A2506

FJ62,HJ6#

SEPIA BROWN,TRIM4#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-90A2506

FJ62,HJ6#

SEPIA BROWN,TRIM4#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-90A1406

FJ62,HJ6#

SEPIA BROWN,TRIM4#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-90A1406

FJ62,HJ6#

SEPIA BROWN,TRIM4#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-90A2306

FJ62,HJ6#

SEPIA BROWN,TRIM4#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-90A2306

FJ62,HJ6#

SEPIA BROWN,TRIM4#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-90A2306

FJ62,HJ6#

SEPIA BROWN,TRIM4#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-90A2306

FJ62,HJ6#

SEPIA BROWN,TRIM4#

 1
73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER
73330-90A4406

FJ62,HJ6#..LHD..SRF..(GX,STD)

SEPIA BROWN,TRIM4#

 1
73330-90A3006

HJ6#..LHD..SRF..(GX,STD)

SEPIA BROWN,TRIM4#

 1
73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER
73330-90A4406

FJ62,HJ6#..LHD..SRF..(GX,STD)

SEPIA BROWN,TRIM4#

 1
73330-90A3006

HJ6#..LHD..SRF..(GX,STD)

SEPIA BROWN,TRIM4#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-90A2906

HJ6#..LHD..SRF..(GX,STD)

SEPIA BROWN,TRIM4#

 1
73360-90A3706

FJ62,HJ6#..LHD..SRF..(GX,STD)

SEPIA BROWN,TRIM4#

 1
73360-90A3006

HJ6#..SRF..(GX,STD)

W(*ELR),SEPIA BROWN,TRIM4#

 1
73360-90A3806

FJ62,HJ6#..SRF..(GX,STD)

W(*ELR),SEPIA BROWN,TRIM4#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-90A2906

HJ6#..LHD..SRF..(GX,STD)

SEPIA BROWN,TRIM4#

 1
73360-90A3706

FJ62,HJ6#..LHD..SRF..(GX,STD)

SEPIA BROWN,TRIM4#

 1
73360-90A3006

HJ6#..SRF..(GX,STD)

W(*ELR),SEPIA BROWN,TRIM4#

 1
73360-90A3806

FJ62,HJ6#..SRF..(GX,STD)

W(*ELR),SEPIA BROWN,TRIM4#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73360-90A2906

HJ6#..LHD..SRF..(GX,STD)

SEPIA BROWN,TRIM4#

 1
73360-90A3006

HJ6#..SRF..(GX,STD)

W(*ELR),SEPIA BROWN,TRIM4#

 1
73360-90A3706

FJ62,HJ6#..LHD..SRF..(GX,STD)

SEPIA BROWN,TRIM4#

 1
73360-90A3806

FJ62,HJ6#..SRF..(GX,STD)

W(*ELR),SEPIA BROWN,TRIM4#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73360-90A2906

HJ6#..LHD..SRF..(GX,STD)

SEPIA BROWN,TRIM4#

 1
73360-90A3006

HJ6#..SRF..(GX,STD)

W(*ELR),SEPIA BROWN,TRIM4#

 1
73360-90A3706

FJ62,HJ6#..LHD..SRF..(GX,STD)

SEPIA BROWN,TRIM4#

 1
73360-90A3806

FJ62,HJ6#..SRF..(GX,STD)

W(*ELR),SEPIA BROWN,TRIM4#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-90A1806

FJ62,HJ6#..LHD..SRF..(GX,STD)

SEPIA BROWN,TRIM4#

 1
73380-90A1406

HJ6#..LHD..SRF..(GX,STD)

SEPIA BROWN,TRIM4#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-90A1806

FJ62,HJ6#..LHD..SRF..(GX,STD)

SEPIA BROWN,TRIM4#

 1
73380-90A1406

HJ6#..LHD..SRF..(GX,STD)

SEPIA BROWN,TRIM4#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73380-90A1406

HJ6#..LHD..SRF..(GX,STD)

SEPIA BROWN,TRIM4#

 1
73380-90A1806

FJ62,HJ6#..LHD..SRF..(GX,STD)

SEPIA BROWN,TRIM4#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73380-90A1406

HJ6#..LHD..SRF..(GX,STD)

SEPIA BROWN,TRIM4#

 1
73380-90A1806

FJ62,HJ6#..LHD..SRF..(GX,STD)

SEPIA BROWN,TRIM4#

 1
Common parts
93540-14012
