HJ60LG-MRCW (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 2H
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 4(8708- )

Click highlighted areas on diagram

diagram 71394A 71394A 73800 73800 73847 73847 73888 73888 9011910406 9011910406
Part # Description Qty Price
Common parts
90119-10406

ILLUST NO. 1 OF 4(8708- )GX,STD

Click highlighted areas on diagram

diagram 71071S 71072S 71073S 71074S 71410S 71420S 71430S 71440S 71812A 71812A 71812A 71812A 71910A 71931 71931 72110A 72120 72130A 72140A 72145A 72146A 72510D 72520D 72525A 72526 72551B 72552B 9010910406 9011908079 9011908079 9011910037 9011910406 9011910406 9011910406 9011910406 9011910406 9015480004 9038612005 9052308001 9354055010
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-90A5306

HJ60..STD

SEPIA BROWN,TRIM4#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-90A3406

HJ60..STD

SEPIA BROWN,TRIM4#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71074-90A0906

HJ60..STD

SEPIA BROWN,TRIM4#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-90A0906

HJ60..STD

SEPIA BROWN,TRIM4#

 1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-90A4903

HJ60..STD

SEPIA BROWN,TRIM4#

 1
71410-90A4906

HJ60..STD

SEPIA BROWN,TRIM4#

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-90A5506

HJ60..STD

SEPIA BROWN,TRIM4#

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-90A7706

HJ60..STD

SEPIA BROWN,TRIM4#

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-90A9006

HJ60..STD

SEPIA BROWN,TRIM4#

 1
71812A - RING, HOG, SMALL (FOR FRONT SEAT)
90468-18071

FJ62,HJ6#

 18
90468-18071

FJ62,HJ6#..GX,STD

 32
71812A - RING, HOG, SMALL (FOR FRONT SEAT)
90468-18071

FJ62,HJ6#

 18
90468-18071

FJ62,HJ6#..GX,STD

 32
71812A - RING, HOG, SMALL (FOR FRONT SEAT)
90468-18071

FJ62,HJ6#

 18
90468-18071

FJ62,HJ6#..GX,STD

 32
71812A - RING, HOG, SMALL (FOR FRONT SEAT)
90468-18071

FJ62,HJ6#

 18
90468-18071

FJ62,HJ6#..GX,STD

 32
71910A - HEADREST ASSY, FRONT SEAT
71910-90A1006

FJ62,HJ6#..GX,STD

SEPIA BROWN,TRIM4#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71956-3002056

HJ6#..STD,VX

W/O(LOCK),SEPIA BROWN,TRIM4#

 1
71990-3002056

HJ6#..STD,VX

W(LOCK),SEPIA BROWN,TRIM4#

 1
71931 - SUPPORT, FRONT SEAT HEADREST
71956-3002056

HJ6#..STD,VX

W/O(LOCK),SEPIA BROWN,TRIM4#

 1
71990-3002056

HJ6#..STD,VX

W(LOCK),SEPIA BROWN,TRIM4#

 1
72110A - TRACK ASSY, FRONT SEAT, OUTER RH
72110-90A04

FJ62,HJ6#..GX,STD

 1
72120 - TRACK ASSY, FRONT SEAT, OUTER LH
72120-90A04

FJ62,HJ6#..GX,STD

 1
72130A - TRACK ASSY, FRONT SEAT, INNER RH
72130-90A03

FJ62,HJ6#..GX,STD

 1
72140A - TRACK ASSY, FRONT SEAT,INNER LH
72140-90A00

FJ62,HJ6#..GX,STD

 1
72145A - BRACKET, FRONT INNER SEAT TRACK, LOWER FRONT RH
72145-90A00

FJ62,HJ6#..GX,STD

 1
72146A - BRACKET, FRONT INNER SEAT TRACK, LOWER FRONT LH
72146-90A00

FJ62,HJ6#..GX,STD

 1
72510D - ADJUSTER ASSY, RECLINING SEAT, OUTER RH
72510-90A00

FJ62,HJ6#

 1
72520D - ADJUSTER ASSY, RECLINING SEAT, OUTER LH
72520-90A00

FJ62,HJ6#

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-1401056

FJ62,HJ6#

BROWN,TRIM4#

 1
72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-1401056

FJ62,HJ6#

BROWN,TRIM4#

 1
72551B - COVER, RECLINING HINGE, RH
72551-90A0016

FJ62,HJ6#

SEPIA BROWN,TRIM4#

 1
72552B - COVER, RECLINING HINGE, LH
72552-90A0016

FJ62,HJ6#

SEPIA BROWN,TRIM4#

 1
Common parts
90109-10406
90119-08079
90119-10037
90119-10406
90154-80004
90386-12005
90523-08001
93540-55010

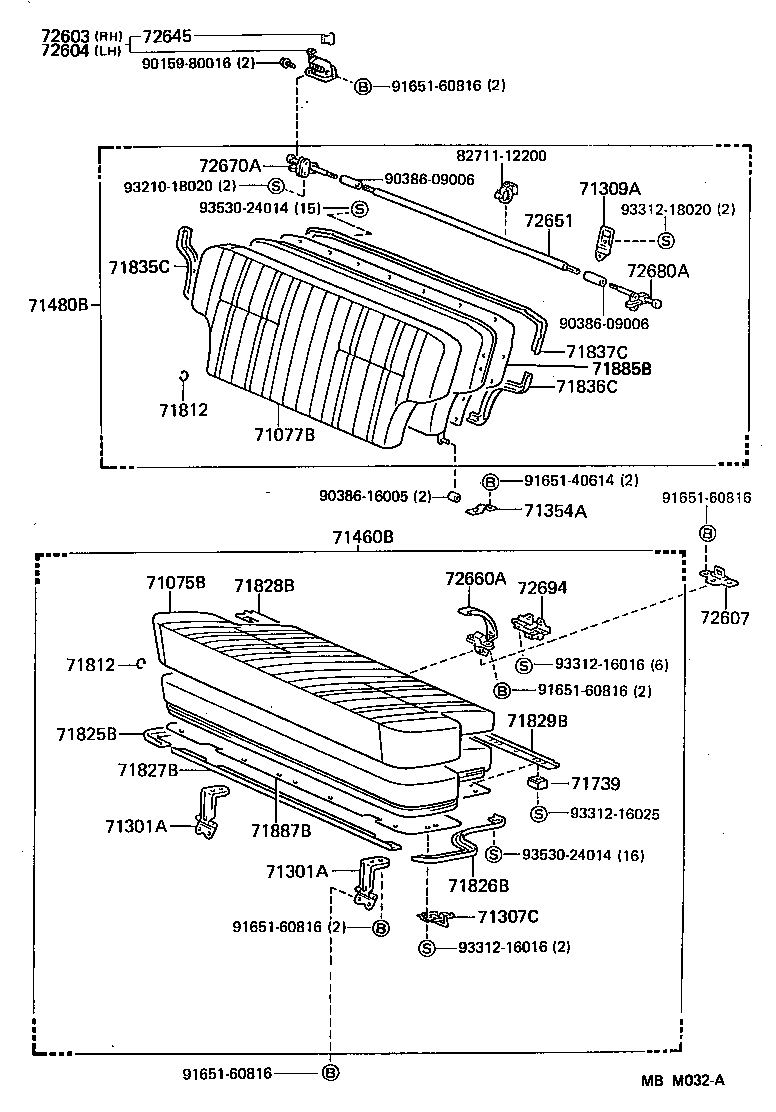

ILLUST NO. 3 OF 4(8708- )STD

Click highlighted areas on diagram

diagram 71075B 71077B 71301A 71301A 71307C 71309A 71354A 71460B 71480B 71739 71812 71812 71825B 71826B 71827B 71828B 71829B 71835C 71836C 71837C 71885B 71887B 72603 72604 72607 72645 72651 72660A 72670A 72680A 72694 8271112200 9015980016 9038609006 9038609006 9038616005 9165140614 9165160816 9165160816 9165160816 9165160816 9165160816 9321018020 9331216016 9331216016 9331216025 9331218020 9353024014 9353024014
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-90A2306

HJ60..STD

SEPIA BROWN,TRIM4#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-90A6206

HJ60..STD

SEPIA BROWN,TRIM4#

 1
71301A - HINGE SUB-ASSY, REAR SEAT CUSHION
71301-90A00

FJ62,HJ6#..SRF..(GX,STD)

 2
71301A - HINGE SUB-ASSY, REAR SEAT CUSHION
71301-90A00

FJ62,HJ6#..SRF..(GX,STD)

 2
71307C - BRACKET SUB-ASSY, REAR SEAT CUSHION HOLDER
71307-90A00

FJ62,HJ6#..SRF..(GX,STD)

 2
71309A - BRACKET SUB-ASSY, REAR SEAT BACK HOLDER
71309-90A00

FJ62,HJ6#..SRF..(GX,STD)

 2
71354A - PLATE, REAR SEAT BACK SET
71354-90A00

FJ62,HJ6#..SRF..(GX,STD)

 2
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-90G1006

HJ60..STD

SEPIA BROWN,TRIM4#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-90G2206

HJ60..STD

W(FLOOR MAT = VINYL),SEPIA BROWN,TRIM4#

 1
71480-90G2106

HJ60..STD

SEPIA BROWN,TRIM4#

 1
71739 - CUSHION, SEAT SUPPORT
71739-90A00

FJ62,HJ6#..SRF..(GX,STD)

 3
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

FJ62,HJ6#..SRF..(GX,STD)

 29
90468-18071

FJ62,HJ6#..SRF..(GX,STD)

 37
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

FJ62,HJ6#..SRF..(GX,STD)

 29
90468-18071

FJ62,HJ6#..SRF..(GX,STD)

 37
71825B - MOULDING, REAR SEAT CUSHION, RH
71825-90A0016

FJ62,HJ6#..SRF..(GX,STD)

SEPIA BROWN,TRIM4#

 1
71826B - MOULDING, REAR SEAT CUSHION, LH
71826-90A0016

FJ62,HJ6#..SRF..(GX,STD)

SEPIA BROWN,TRIM4#

 1
71827B - MOULDING, REAR SEAT CUSHION, FRONT
71827-90A0016

FJ62,HJ6#..SRF..(GX,STD)

SEPIA BROWN,TRIM4#

 1
71828B - MOULDING, REAR SEAT CUSHION, REAR RH
71828-90A0016

FJ62,HJ6#..SRF..(GX,STD)

SEPIA BROWN,TRIM4#

 1
71829B - MOULDING, REAR SEAT CUSHION, REAR LH
71829-90A0016

FJ62,HJ6#..SRF..(GX,STD)

SEPIA BROWN,TRIM4#

 1
71835C - MOULDING, REAR SEAT BACK, RH
71835-90A0016

FJ62,HJ6#..SRF..(GX,STD)

SEPIA BROWN,TRIM4#

 1
71836C - MOULDING, REAR SEAT BACK, LH
71836-90A0016

FJ62,HJ6#..SRF..(GX,STD)

SEPIA BROWN,TRIM4#

 1
71837C - MOULDING, REAR SEAT BACK, UPPER
71837-90A0106

FJ62,HJ6#..SRF..(GX,STD)

SEPIA BROWN,TRIM4#

 1
71885B - MAT, REAR SEAT BACK
71885-90A0116

HJ60..STD

SEPIA BROWN,TRIM4#

 1
71887B - MAT, REAR SEAT CUSHION
71887-90A0016

FJ62,HJ6#..SRF..(GX,STD)

SEPIA BROWN,TRIM4#

 1
72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH
72630-90A17

FJ62,HJ6#..SRF..(GX,STD)

 1
72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH
72640-90A17

FJ62,HJ6#..SRF..(GX,STD)

 1
72607 - STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK
72607-90A00

FJ62,HJ6#..SRF..(GX,STD)

 1
72645 - CUSHION, REAR SEAT BACK LOCK
72645-90A00

FJ62,HJ6#..SRF..(GX,STD)

 2
72651 - ROD, REAR SEAT BACK LOCK
72651-90A00

FJ62,HJ6#..SRF..(GX,STD)

 1
72660A - SUPPORT ASSY, REAR SEAT CUSHION
72660-90A0016

FJ62,HJ6#..SRF..(GX,STD)

SEPIA BROWN,TRIM4#

 1
72670A - STRIKER ASSY, REAR SEAT BACK LOCK, RH
72670-90A02

FJ62,HJ6#..SRF..(GX,STD)

 1
72680A - STRIKER ASSY, REAR SEAT BACK LOCK, LH
72680-90A02

FJ62,HJ6#..SRF..(GX,STD)

 1
72694 - COVER, REAR SEAT CUSHION LOCK
72694-90A0016

FJ62,HJ6#..SRF..(GX,STD)

SEPIA BROWN,TRIM4#

 1
Common parts
82711-12200
90159-80016
90386-09006
90386-16005
91651-40614
91651-60816
93210-18020
93312-16016
93312-16025
93312-18020
93530-24014

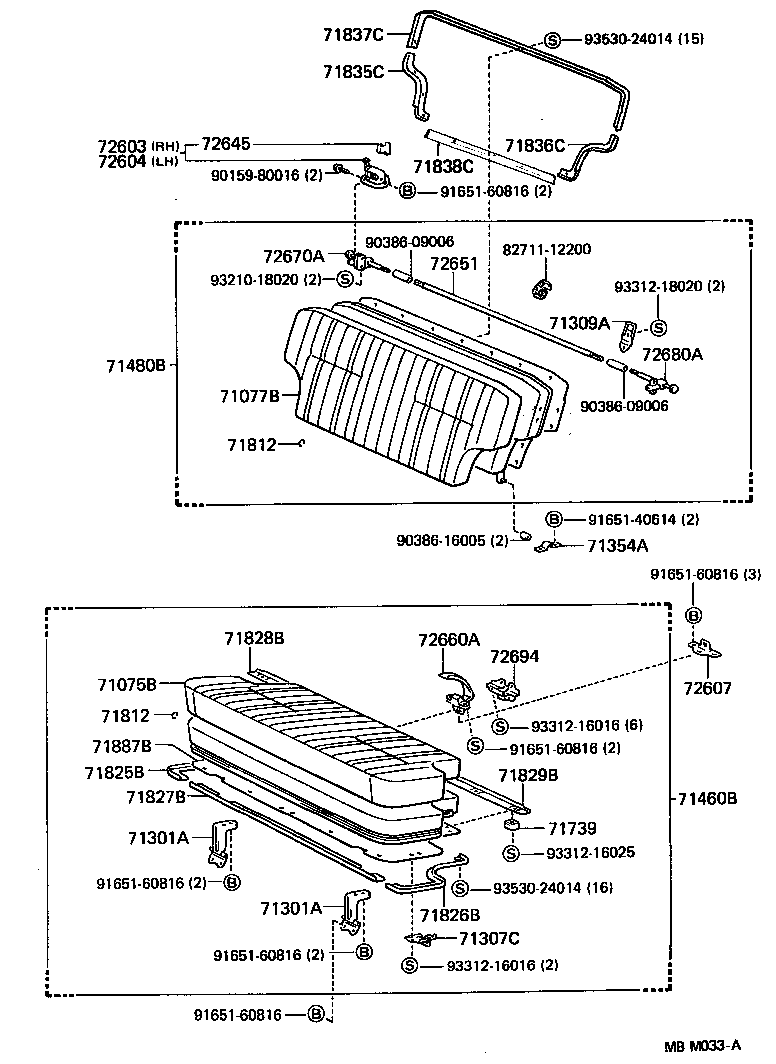

ILLUST NO. 3 OF 4(8708- )SRF..GX,STD

Click highlighted areas on diagram

diagram 71075B 71077B 71301A 71301A 71307C 71309A 71354A 71460B 71480B 71739 71812 71812 71825B 71826B 71827B 71828B 71829B 71835C 71836C 71837C 71838C 71887B 72603 72604 72607 72645 72651 72660A 72670A 72680A 72694 8271112200 9015980016 9038609006 9038609006 9038616005 9165140614 9165160816 9165160816 9165160816 9165160816 9165160816 9165160816 9321018020 9331216016 9331216016 9331216025 9331218020 9353024014 9353024014
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-90A2306

HJ60..STD

SEPIA BROWN,TRIM4#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-90A6206

HJ60..STD

SEPIA BROWN,TRIM4#

 1
71301A - HINGE SUB-ASSY, REAR SEAT CUSHION
71301-90A00

FJ62,HJ6#..SRF..(GX,STD)

 2
71301A - HINGE SUB-ASSY, REAR SEAT CUSHION
71301-90A00

FJ62,HJ6#..SRF..(GX,STD)

 2
71307C - BRACKET SUB-ASSY, REAR SEAT CUSHION HOLDER
71307-90A00

FJ62,HJ6#..SRF..(GX,STD)

 2
71309A - BRACKET SUB-ASSY, REAR SEAT BACK HOLDER
71309-90A00

FJ62,HJ6#..SRF..(GX,STD)

 2
71354A - PLATE, REAR SEAT BACK SET
71354-90A00

FJ62,HJ6#..SRF..(GX,STD)

 2
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-90G1006

HJ60..STD

SEPIA BROWN,TRIM4#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-90G2206

HJ60..STD

W(FLOOR MAT = VINYL),SEPIA BROWN,TRIM4#

 1
71480-90G2106

HJ60..STD

SEPIA BROWN,TRIM4#

 1
71739 - CUSHION, SEAT SUPPORT
71739-90A00

FJ62,HJ6#..SRF..(GX,STD)

 3
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

FJ62,HJ6#..SRF..(GX,STD)

 29
90468-18071

FJ62,HJ6#..SRF..(GX,STD)

 37
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

FJ62,HJ6#..SRF..(GX,STD)

 29
90468-18071

FJ62,HJ6#..SRF..(GX,STD)

 37
71825B - MOULDING, REAR SEAT CUSHION, RH
71825-90A0016

FJ62,HJ6#..SRF..(GX,STD)

SEPIA BROWN,TRIM4#

 1
71826B - MOULDING, REAR SEAT CUSHION, LH
71826-90A0016

FJ62,HJ6#..SRF..(GX,STD)

SEPIA BROWN,TRIM4#

 1
71827B - MOULDING, REAR SEAT CUSHION, FRONT
71827-90A0016

FJ62,HJ6#..SRF..(GX,STD)

SEPIA BROWN,TRIM4#

 1
71828B - MOULDING, REAR SEAT CUSHION, REAR RH
71828-90A0016

FJ62,HJ6#..SRF..(GX,STD)

SEPIA BROWN,TRIM4#

 1
71829B - MOULDING, REAR SEAT CUSHION, REAR LH
71829-90A0016

FJ62,HJ6#..SRF..(GX,STD)

SEPIA BROWN,TRIM4#

 1
71835C - MOULDING, REAR SEAT BACK, RH
71835-90A0016

FJ62,HJ6#..SRF..(GX,STD)

SEPIA BROWN,TRIM4#

 1
71836C - MOULDING, REAR SEAT BACK, LH
71836-90A0016

FJ62,HJ6#..SRF..(GX,STD)

SEPIA BROWN,TRIM4#

 1
71837C - MOULDING, REAR SEAT BACK, UPPER
71837-90A0106

FJ62,HJ6#..SRF..(GX,STD)

SEPIA BROWN,TRIM4#

 1
71838C - MOULDING, REAR SEAT BACK, LOWER
71838-90A0016

HJ60..STD

SEPIA BROWN,TRIM4#

 1
71887B - MAT, REAR SEAT CUSHION
71887-90A0016

FJ62,HJ6#..SRF..(GX,STD)

SEPIA BROWN,TRIM4#

 1
72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH
72630-90A17

FJ62,HJ6#..SRF..(GX,STD)

 1
72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH
72640-90A17

FJ62,HJ6#..SRF..(GX,STD)

 1
72607 - STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK
72607-90A00

FJ62,HJ6#..SRF..(GX,STD)

 1
72645 - CUSHION, REAR SEAT BACK LOCK
72645-90A00

FJ62,HJ6#..SRF..(GX,STD)

 2
72651 - ROD, REAR SEAT BACK LOCK
72651-90A00

FJ62,HJ6#..SRF..(GX,STD)

 1
72660A - SUPPORT ASSY, REAR SEAT CUSHION
72660-90A0016

FJ62,HJ6#..SRF..(GX,STD)

SEPIA BROWN,TRIM4#

 1
72670A - STRIKER ASSY, REAR SEAT BACK LOCK, RH
72670-90A02

FJ62,HJ6#..SRF..(GX,STD)

 1
72680A - STRIKER ASSY, REAR SEAT BACK LOCK, LH
72680-90A02

FJ62,HJ6#..SRF..(GX,STD)

 1
72694 - COVER, REAR SEAT CUSHION LOCK
72694-90A0016

FJ62,HJ6#..SRF..(GX,STD)

SEPIA BROWN,TRIM4#

 1
Common parts
82711-12200
90159-80016
90386-09006
90386-16005
91651-40614
91651-60816
93210-18020
93312-16016
93312-16025
93312-18020
93530-24014
