HJ60LG-MRCW (1987)
Toyota Land Cruiser

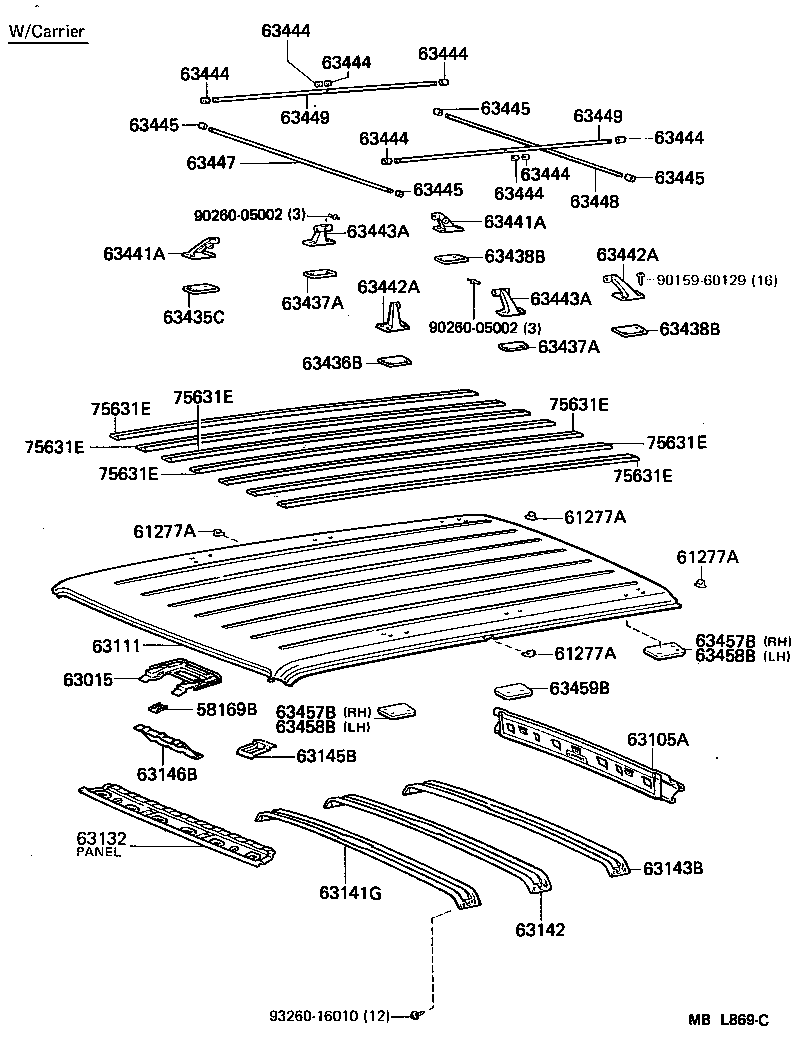

ILLUST NO. 1 OF 2(8708- )SRF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61277A - JOINT, ROOF DRIP CHANNEL | ||||
| 61277-90K00 |
HJ60..STD |
4 | ||
| 61277A - JOINT, ROOF DRIP CHANNEL | ||||
| 61277-90K00 |
HJ60..STD |
4 | ||
| 61277A - JOINT, ROOF DRIP CHANNEL | ||||
| 61277-90K00 |
HJ60..STD |
4 | ||
| 61277A - JOINT, ROOF DRIP CHANNEL | ||||
| 61277-90K00 |
HJ60..STD |
4 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-90A14 |
FJ62,HJ6#..SRF..SOB |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-90A00 |
FJ62,HJ6#..SRF |
1 | ||
| 63111-90A01 |
HJ60..STD;HJ60..RHD W(ROOF CARRIER) |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-90A00 |
FJ62,HJ6# |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-90A00 |
FJ62,HJ6#..SRF |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63141-90A00 |
FJ62,HJ6#..SRF |
1 | ||
| 63145B - REINFORCEMENT, WINDSHIELD HEADER PANEL | ||||
| 63145-90A00 |
FJ62,HJ6# |
1 | ||
| Common parts | ||||
| 93260-16010 | ||||

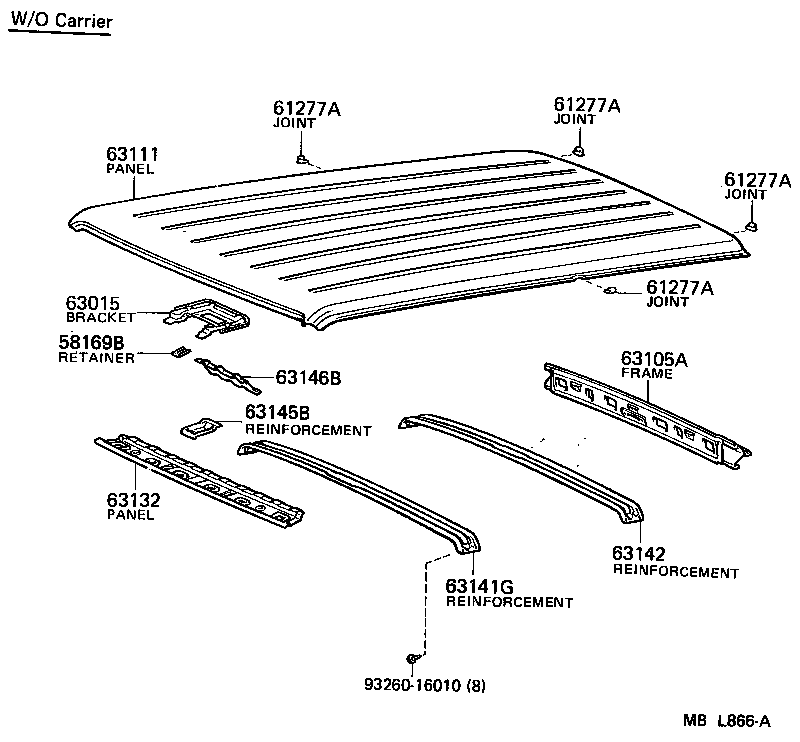

ILLUST NO. 2 OF 2(8708- )SRF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61277A - JOINT, ROOF DRIP CHANNEL | ||||
| 61277-90K00 |
HJ60..STD |
4 | ||
| 61277A - JOINT, ROOF DRIP CHANNEL | ||||
| 61277-90K00 |
HJ60..STD |
4 | ||
| 61277A - JOINT, ROOF DRIP CHANNEL | ||||
| 61277-90K00 |
HJ60..STD |
4 | ||
| 61277A - JOINT, ROOF DRIP CHANNEL | ||||
| 61277-90K00 |
HJ60..STD |
4 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-90A14 |
FJ62,HJ6#..SRF..SOB |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-90A00 |
FJ62,HJ6#..SRF |
1 | ||
| 63111-90A01 |
HJ60..STD;HJ60..RHD W(ROOF CARRIER) |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-90A00 |
FJ62,HJ6# |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-90A00 |
FJ62,HJ6#..SRF |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63141-90A00 |
FJ62,HJ6#..SRF |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63141-90A00 |
FJ62,HJ6#..SRF |
1 | ||
| 63145B - REINFORCEMENT, WINDSHIELD HEADER PANEL | ||||
| 63145-90A00 |
FJ62,HJ6# |
1 | ||
| 63435C - SEAL, ROOF CARRIER, NO.1 RH | ||||
| 63435-90A00 |
FJ62,HJ6#..SRF |
1 | ||
| 63436B - SEAL, ROOF CARRIER, NO.1 LH | ||||
| 63436-90A00 |
FJ62,HJ6#..SRF |
1 | ||
| 63437A - SEAL, ROOF CARRIER, NO.2 | ||||
| 63437-90A00 |
FJ62,HJ6#..SRF |
2 | ||
| 63437A - SEAL, ROOF CARRIER, NO.2 | ||||
| 63437-90A00 |
FJ62,HJ6#..SRF |
2 | ||
| 63438B - SEAL, ROOF CARRIER, NO.3 RH | ||||
| 63438-90A00 |
FJ62,HJ6#..SRF RH |
1 | ||
| 63439-90A00 |
FJ62,HJ6#..SRF LH |
1 | ||
| 63438B - SEAL, ROOF CARRIER, NO.3 RH | ||||
| 63438-90A00 |
FJ62,HJ6#..SRF RH |
1 | ||
| 63439-90A00 |
FJ62,HJ6#..SRF LH |
1 | ||
| 63441A - SUPPORT, ROOF CARRIER, NO.1 RH | ||||
| 63441-90A00 |
FJ62,HJ6#..SRF |
2 | ||
| 63441A - SUPPORT, ROOF CARRIER, NO.1 RH | ||||
| 63441-90A00 |
FJ62,HJ6#..SRF |
2 | ||
| 63442A - SUPPORT, ROOF CARRIER, NO.1 LH | ||||
| 63442-90A00 |
FJ62,HJ6#..SRF |
2 | ||
| 63442A - SUPPORT, ROOF CARRIER, NO.1 LH | ||||
| 63442-90A00 |
FJ62,HJ6#..SRF |
2 | ||
| 63443A - SUPPORT, ROOF CARRIER, NO.2 | ||||
| 63443-90A00 |
FJ62,HJ6#..SRF |
2 | ||
| 63443A - SUPPORT, ROOF CARRIER, NO.2 | ||||
| 63443-90A00 |
FJ62,HJ6#..SRF |
2 | ||
| 63444 - PROTECTOR, ROOF CARRIER, NO.1 | ||||
| 63444-90A00 |
FJ62,HJ6#..SRF |
8 | ||
| 63444 - PROTECTOR, ROOF CARRIER, NO.1 | ||||
| 63444-90A00 |
FJ62,HJ6#..SRF |
8 | ||
| 63444 - PROTECTOR, ROOF CARRIER, NO.1 | ||||
| 63444-90A00 |
FJ62,HJ6#..SRF |
8 | ||
| 63444 - PROTECTOR, ROOF CARRIER, NO.1 | ||||
| 63444-90A00 |
FJ62,HJ6#..SRF |
8 | ||
| 63444 - PROTECTOR, ROOF CARRIER, NO.1 | ||||
| 63444-90A00 |
FJ62,HJ6#..SRF |
8 | ||
| 63444 - PROTECTOR, ROOF CARRIER, NO.1 | ||||
| 63444-90A00 |
FJ62,HJ6#..SRF |
8 | ||
| 63444 - PROTECTOR, ROOF CARRIER, NO.1 | ||||
| 63444-90A00 |
FJ62,HJ6#..SRF |
8 | ||
| 63444 - PROTECTOR, ROOF CARRIER, NO.1 | ||||
| 63444-90A00 |
FJ62,HJ6#..SRF |
8 | ||
| 63445 - PROTECTOR, ROOF CARRIER, NO.2 | ||||
| 63445-90A00 |
FJ62,HJ6#..SRF |
4 | ||
| 63445 - PROTECTOR, ROOF CARRIER, NO.2 | ||||
| 63445-90A00 |
FJ62,HJ6#..SRF |
4 | ||
| 63445 - PROTECTOR, ROOF CARRIER, NO.2 | ||||
| 63445-90A00 |
FJ62,HJ6#..SRF |
4 | ||
| 63445 - PROTECTOR, ROOF CARRIER, NO.2 | ||||
| 63445-90A00 |
FJ62,HJ6#..SRF |
4 | ||
| 63447 - BAR, ROOF CARRIER, FRONT | ||||
| 63447-90A00 |
FJ62,HJ6#..SRF |
1 | ||
| 63448 - BAR, ROOF CARRIER, REAR | ||||
| 63448-90A00 |
FJ62,HJ6#..SRF |
1 | ||
| 63449 - BAR, ROOF CARRIER SIDE | ||||
| 63449-90A00 |
FJ62,HJ6#..SRF |
2 | ||
| 63449 - BAR, ROOF CARRIER SIDE | ||||
| 63449-90A00 |
FJ62,HJ6#..SRF |
2 | ||
| 63457B - RETAINER, ROOF CARRIER, NO.1 RH | ||||
| 63457-90A00 |
HJ60..STD;HJ60..RHD |
2 | ||
| 63457B - RETAINER, ROOF CARRIER, NO.1 RH | ||||
| 63457-90A00 |
HJ60..STD;HJ60..RHD |
2 | ||
| 63458B - RETAINER, ROOF CARRIER, NO.1 LH | ||||
| 63458-90A00 |
HJ60..STD;HJ60..RHD |
2 | ||
| 63458B - RETAINER, ROOF CARRIER, NO.1 LH | ||||
| 63458-90A00 |
HJ60..STD;HJ60..RHD |
2 | ||
| 63459B - RETAINER, ROOF CARRIER, NO.2 | ||||
| 63459-90A00 |
HJ60..STD;HJ60..RHD |
2 | ||
| 75631E - MOULDING, ROOF CARRIER | ||||
| 75631-90A01 |
FJ62,HJ6#..SRF |
7 | ||
| 75631E - MOULDING, ROOF CARRIER | ||||
| 75631-90A01 |
FJ62,HJ6#..SRF |
7 | ||
| 75631E - MOULDING, ROOF CARRIER | ||||
| 75631-90A01 |
FJ62,HJ6#..SRF |
7 | ||
| 75631E - MOULDING, ROOF CARRIER | ||||
| 75631-90A01 |
FJ62,HJ6#..SRF |
7 | ||
| 75631E - MOULDING, ROOF CARRIER | ||||
| 75631-90A01 |
FJ62,HJ6#..SRF |
7 | ||
| 75631E - MOULDING, ROOF CARRIER | ||||
| 75631-90A01 |
FJ62,HJ6#..SRF |
7 | ||
| 75631E - MOULDING, ROOF CARRIER | ||||
| 75631-90A01 |
FJ62,HJ6#..SRF |
7 | ||
| Common parts | ||||
| 90159-60129 | ||||
| 90260-05002 | ||||
| 93260-16010 | ||||
