HJ60LG-MRCW (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 2H
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

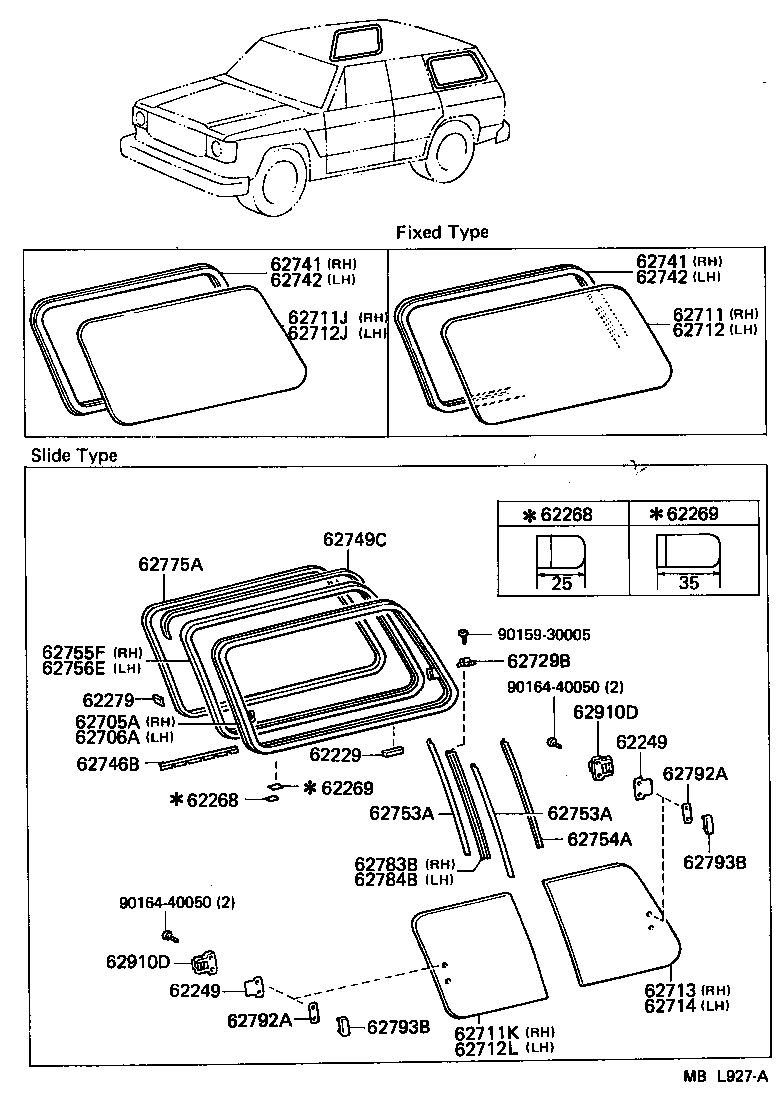

Click highlighted areas on diagram

diagram 62229 62249 62249 62268 62268 62269 62269 62279 62705A 62706A 62711 62711J 62711K 62712 62712J 62712L 62713 62714 62729B 62741 62741 62742 62742 62746B 62749C 62753A 62753A 62754A 62755F 62756E 62775A 62783B 62784B 62792A 62792A 62793B 62793B 62910D 62910D 9015930005 9016440050 9016440050
Part # Description Qty Price
62711 - GLASS, QUARTER WINDOW, RH
62711-90A12

FJ62,HJ6#..SRF;HJ60..HRF..SOB

*TT,T=3.5

 1
62712 - GLASS, QUARTER WINDOW, LH
62712-90A11

FJ62,HJ6#..SRF;HJ60..HRF..SOB

*TT,T=3.5

 1
62741 - WEATHERSTRIP, QUARTER WINDOW, RH
62741-90A00

HJ60..STD

 1
62741 - WEATHERSTRIP, QUARTER WINDOW, RH
62741-90A00

HJ60..STD

 1
62742 - WEATHERSTRIP, QUARTER WINDOW, LH
62741-90A00

HJ60..STD

 1
62742 - WEATHERSTRIP, QUARTER WINDOW, LH
62741-90A00

HJ60..STD

 1
Common parts
90159-30005
90164-40050
