HJ60LG-MRCW (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 2H
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

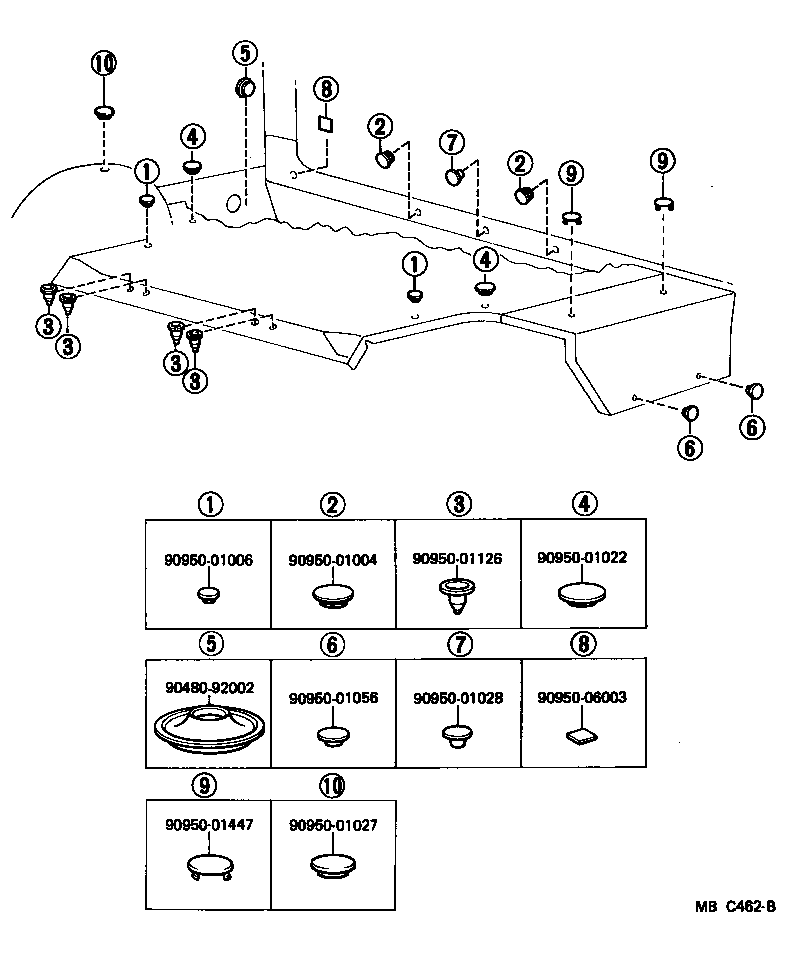

ILLUST NO. 2 OF 2(8708- )

Click highlighted areas on diagram

diagram 9048092002 9095001004 9095001006 9095001022 9095001027 9095001028 9095001056 9095001126 9095001447 9095006003
Part # Description Qty Price
Common parts
90480-92002
90950-01004
90950-01006
90950-01022
90950-01027
90950-01028
90950-01056
90950-01126
90950-01447
90950-06003

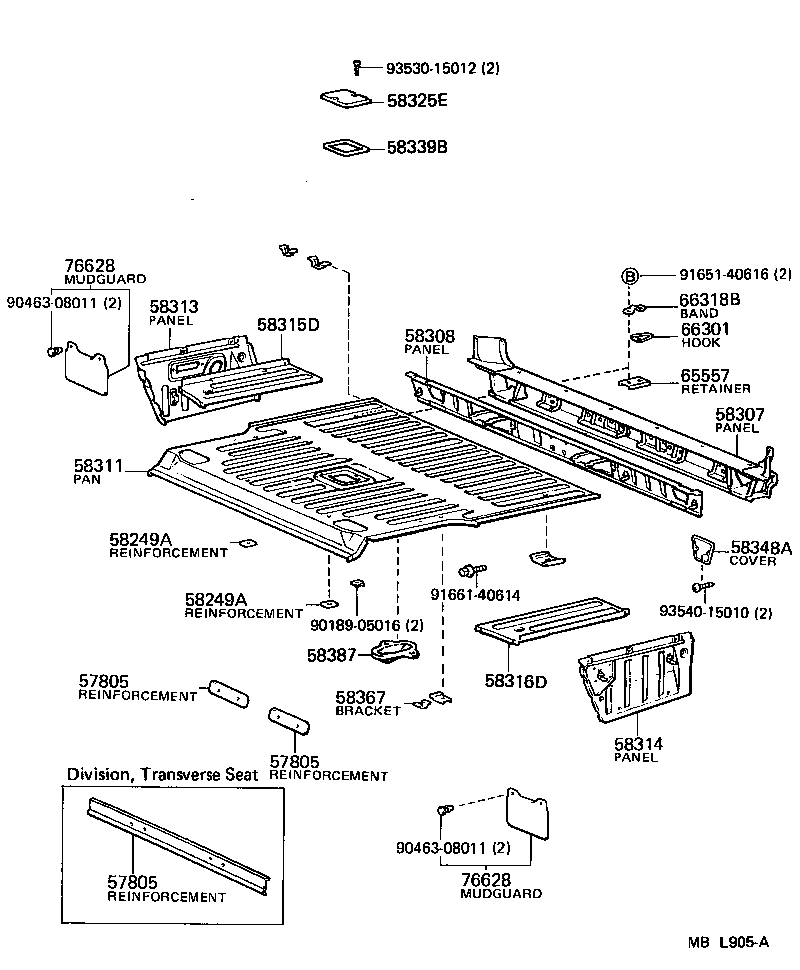

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

diagram 57805 57805 57805 58249A 58249A 58307 58308 58311 58313 58314 58315D 58316D 58325E 58339B 58348A 58367 58387 65557 66301 66318B 76628 76628 9018905016 9046308011 9046308011 9165140616 9166140614 9353015012 9354015010
Part # Description Qty Price
57805 - REINFORCEMENT SUB-ASSY, BELT ANCHOR
57805-90A00

FJ62,HJ6#..SRF..(GX,STD)

 2
57805 - REINFORCEMENT SUB-ASSY, BELT ANCHOR
57805-90A00

FJ62,HJ6#..SRF..(GX,STD)

 2
57805 - REINFORCEMENT SUB-ASSY, BELT ANCHOR
57805-90A00

FJ62,HJ6#..SRF..(GX,STD)

 2
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-90A02

FJ62,HJ6#..SOB

 1
58308 - PANEL SUB-ASSY, BODY LOWER BACK, INNER
58308-90A05

FJ62,HJ6#..SOB

 1
58311 - PAN, REAR FLOOR
58311-90A19

FJ62,HJ6#..SRF..(GX,STD)

 1
58313 - PANEL, REAR FLOOR SIDE, RH
58305-90A08

FJ62,HJ6#..SRF;HJ60..HRF..SOB

 1
58314 - PANEL, REAR FLOOR SIDE, LH
58306-90A12

FJ62,HJ6#..SRF;HJ60..HRF..SOB

 1
58315D - EXTENSION, REAR FLOOR PAN, RH
58315-90A07

FJ62,HJ6#..SRF;HJ60..HRF..SOB

 1
58316D - EXTENSION, REAR FLOOR PAN, LH
58316-90A07

FJ62,HJ6#..SRF;HJ60..HRF..SOB

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-90A00

FJ62,HJ6#

 1
58339B - PACKING, REAR FLOOR SERVICE HOLE
58339-90A00

FJ62,HJ6#

 1
58348A - COVER, REAR BODY MOUNTING SERVICE HOLE
58348-90A00

FJ62,HJ6#

 2
58367 - BRACKET, FUEL TUBE CLAMP
58367-90A00

FJ62,HJ6#

 1
65557 - RETAINER, ROPE HOOK
65557-90A01

FJ62,HJ6#

 4
66301 - HOOK SUB-ASSY, ROPE
66301-90A00

FJ62,HJ6#

 4
66318B - BAND, ROPE HOOK
66318-90A00

FJ62,HJ6#

 4
76628 - MUDGUARD, QUARTER PANEL, REAR
76628-90A01

FJ62,HJ6#

 2
76628 - MUDGUARD, QUARTER PANEL, REAR
76628-90A01

FJ62,HJ6#

 2
Common parts
90189-05016
90463-08011
91651-40616
91661-40614
93530-15012
93540-15010
